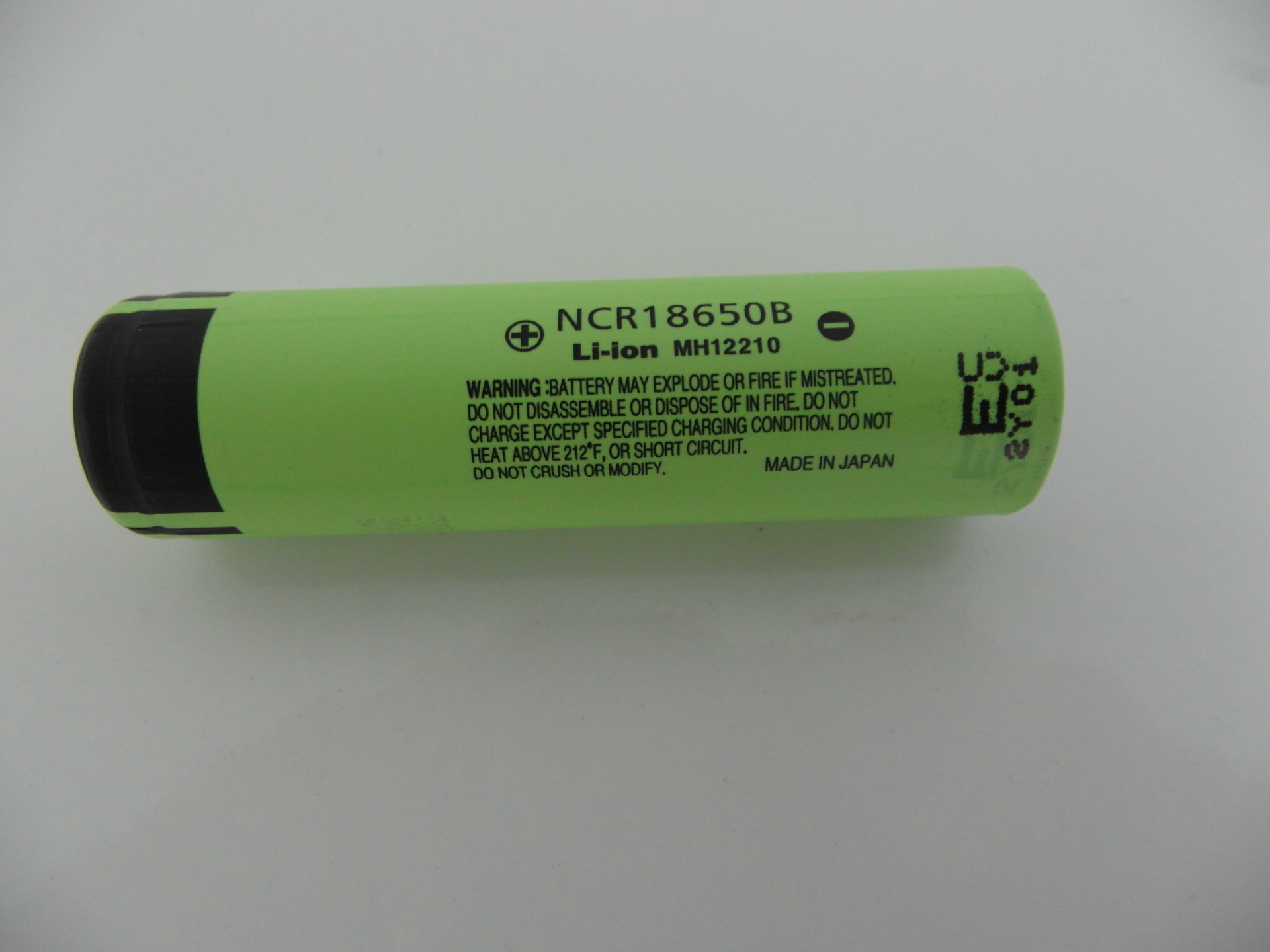

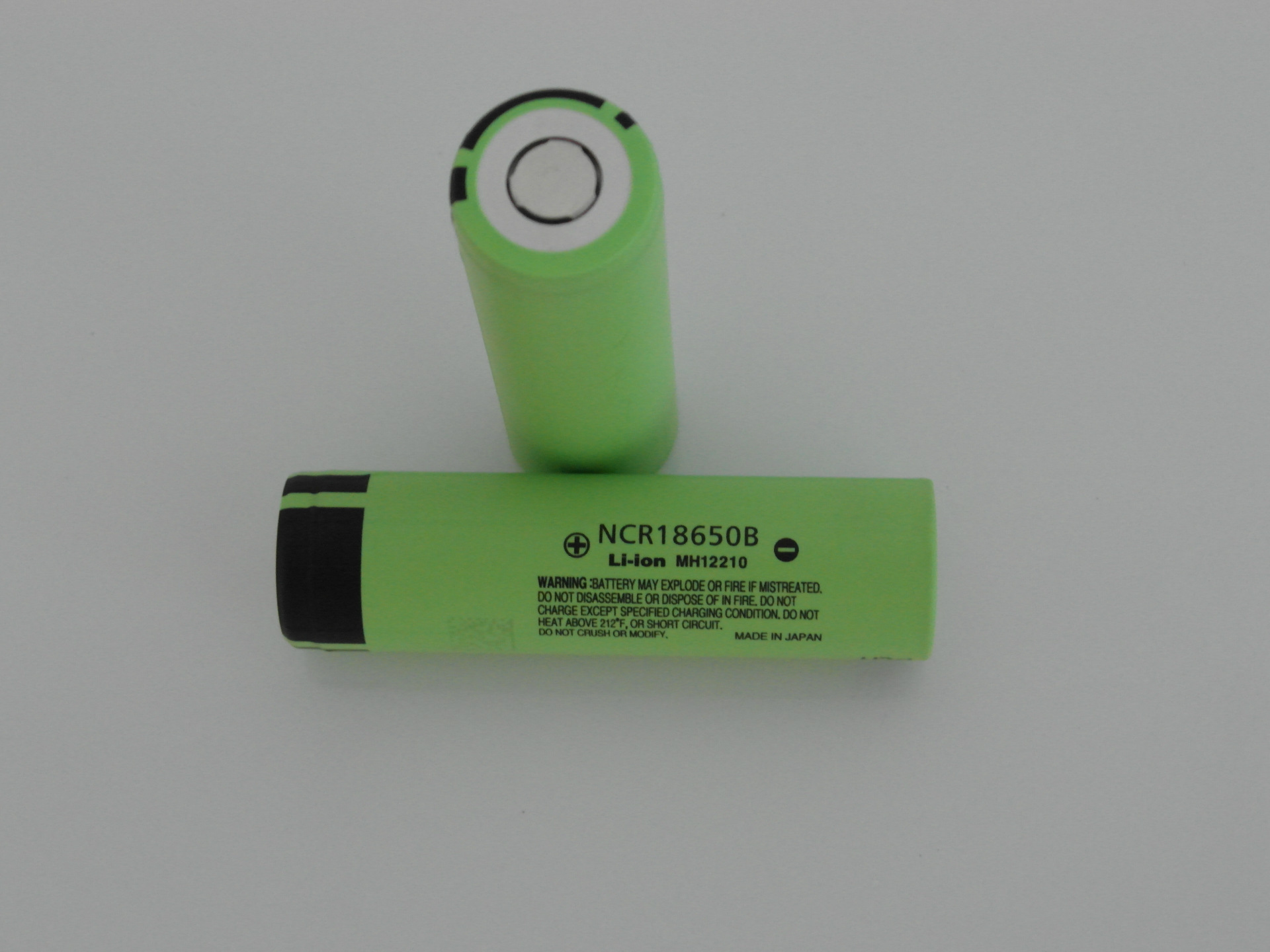

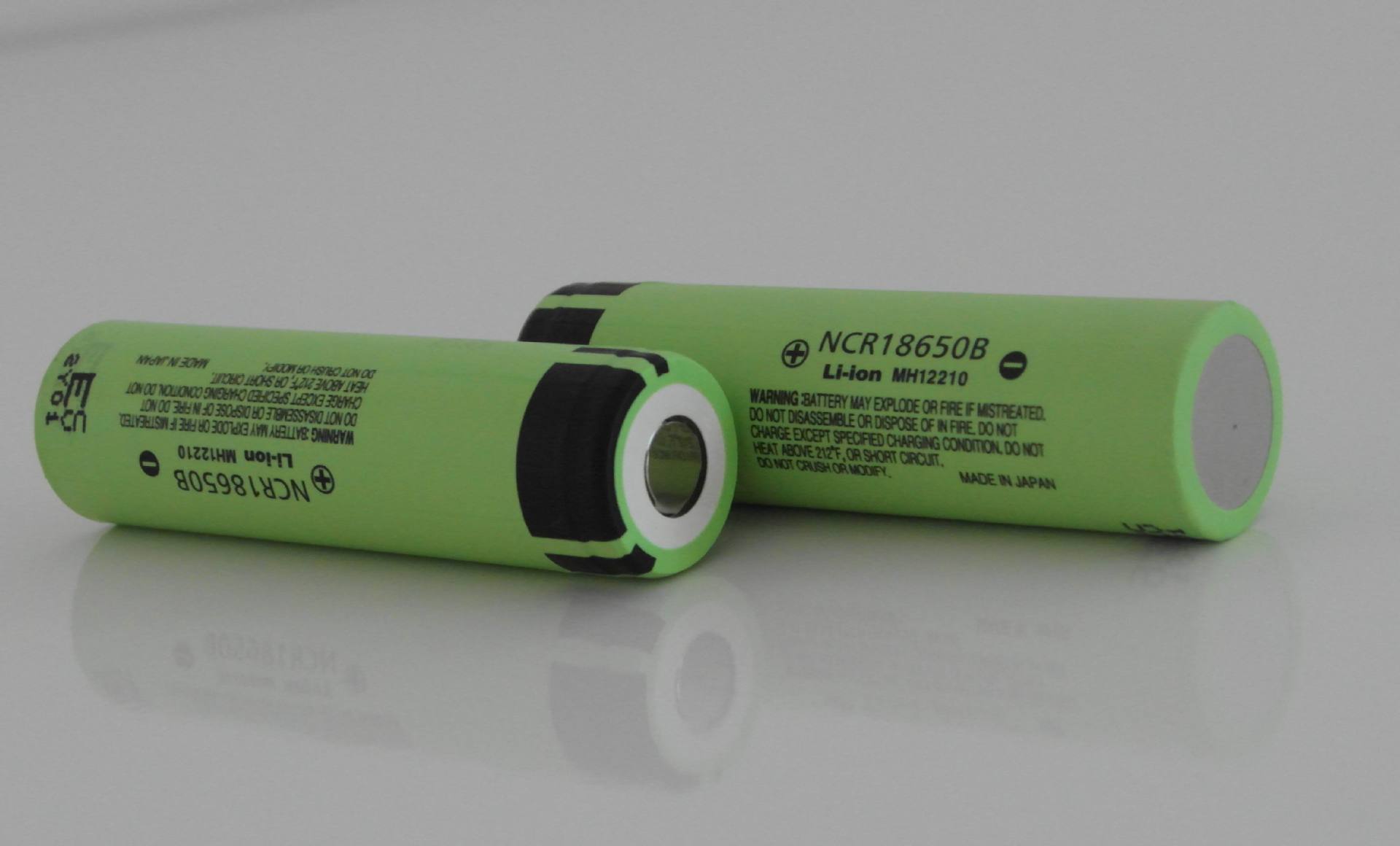

Bluetooth stereo cylindrical lithium ion NCR18650 battery, lithium ion 18650 battery 3400mAh, lithium ion 18650 battery for mobile power supply, LED flashlight lithium ion 18650 battery, ion sub battery 18650 for medical equipment, lithium ion 18650 battery for massage products 3400mAh
model: NCR18650
capacity: 3400mAh
voltage: 3.6V
size: 18.2*65.5mm
protection Board: can be added according to customer requirements
battery pack and: XSXP
scope of use: mobile power supply, LED flashlight, medical equipment, massage products, miner's lamp, Bluetooth audio
production cycle: Delivery 7 days after order confirmation
packing information: 120PCs/carton, carton size: 128*255*415mm
Preliminary Specification
1.General:
Battery with safety circuit and wires
Cell: NCR18650-3400mAh
PCM: Seiko IC is available
NTC: 10 kOhm or 100 kOhm (available)
Configuration: 1S1P or other types
Weight: approx. 60g
2.Electrical Specification:
Rated Capacity: 3350 mAh min, 3400 mAh typical
Nominal Voltage: 3.7V
Watt-hour rating: 12.58 Wh
Charging Method: Constant Current + Constant Voltage
Max. Charge Voltage [V]: 4.20 (±50MV)
Max. Continuous Charge Current: 3400 mA
Rec. Charge cut off: by current 68mA or timer 2.5h
Max. Continuous Discharge Current: 3400 mA
Rec. Discharge cut off: 3V
Internal Impedance: tbd
Exp. Cycle Life: 400 cycles > 80% of initial cap. (1C at 20oC)
Cell protection
Overcharge Detection: 4.35±0.025V
(0.5 to 1.5 sec. delay, resume 4.15±0.05V or at discharging current)
Overdischarge Detection: 2.30±0.05V
(0.1 to 0.2 sec. delay, resume 2.90±0.1V)
Overcurrent Detection: 6.8A to 8.5A (5 to 30msec. delay at discharge)
3.Ambient Conditions:
TemperatureRange
-Charge: 0 to +45oC
-Discharge: -20 to 60oC
-Charge Retention/Storage[%]: 1 year at -20 to +25oC
3 month at -20 to +45oC
Humidity: 65±20%RH
4.Environmental and Safety:
Please follow Hypercell Handling and Safety Precautions for Li ion and Li polymer
The cell is approved according UL 1642.
This battery meets the requirements of Battery Directives, and the battery parts are RoHS-Compliant.
Other models cell
| P/N | Nominal Voltage | Nominal Capacity | Dimension | Standard Charge Current | Rapid Charge Current | Continuous Discharge Current | Weight | |
| V | mAh | Height | Diameter | |||||
| ICR18650 | 3.6 | 1800 | 18.5 | 65.5 | 360 | 1800 | 1.8 | 41 |
| ICR18650 | 3.6 | 2000 | 18.5 | 65.5 | 400 | 2000 | 2.0 | 43 |
| ICR18650 | 3.6 | 2200 | 18.5 | 65.5 | 440 | 2200 | 2.2 | 45 |
| ICR18650 | 3.6 | 2400 | 18.5 | 65.5 | 480 | 2400 | 2.4 | 46 |
| ICR18650 | 3.6 | 2600 | 18.5 | 65.5 | 520 | 2600 | 2.6 | 46 |
| ICR18500 | 3.6 | 1400 | 18.5 | 65.5 | 280 | 1400 | 1.4 | 32 |
| ICR17500 | 3.6 | 1100 | 16.8 | 49.5 | 220 | 1100 | 1.1 | 29 |
| ICR17335 | 3.6 | 650 | 17.5 | 34 | 130 | 650 | 0.7 | 20 |
| ICR14650 | 3.6 | 1050 | 14.5 | 65.5 | 210 | 1050 | 1.1 | 28 |
| ICR14500 | 3.6 | 700 | 14.5 | 50.5 | 140 | 700 | 0.7 | 20 |
.....................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
