Yiwu Weigang Hardware Firm 14yr.
Contacts:ZHang Limin Chat
Mobile:86-13305898899
E-mail:635890701@qq.com
|

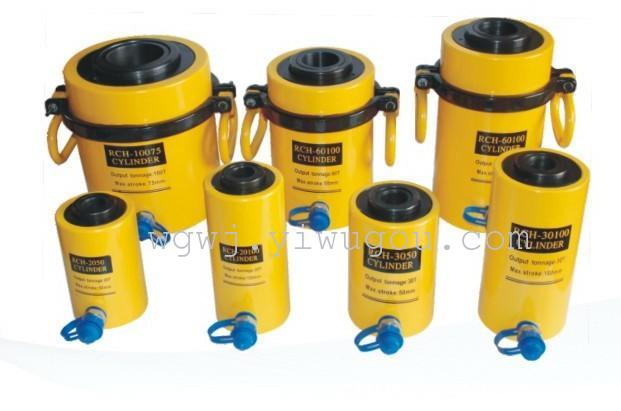

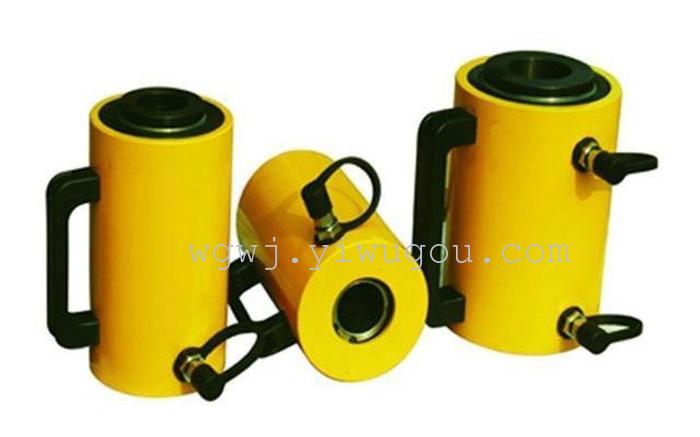

RCH hollow jack
|
| Model: RCH |
| Model |
tonnage (T) |
Work itinerary (mm) |
"作用面积"可以翻译为 "action area" 或 "effective area"。 (cm²) |
Oil Consumption (L) |
Product Height (mm) |
stretch height (mm) |
| RCH-2050 | 20 | 50 | 32.8 | 0.164 | 166 | 216 |
| RCH-20100 | 20 | 100 | 32.8 | 0.328 | 216 | 266 |
| RCH-20150 | 20 | 150 | 32.8 | 0.492 | 266 | 316 |
| RCH-3050 | 30 | 50 | 51.1 | 0.256 | 178 | 238 |
| RCH-30100 | 30 | 100 | 51.1 | 0.512 | 238 | 288 |
| RCH-30150 | 30 | 150 | 51.1 | 0.767 | 288 | 338 |
| RCH-6050 | 60 | 50 | 84.7 | 0.424 | 211 | 261 |
| RCH-60100 | 60 | 100 | 84.7 | 0.848 | 261 | 311 |
| RCH-60150 | 60 | 150 | 84.7 | 1.272 | 311 | 361 |
| RCH-10075 | 100 | 75 | 164.6 | 1.239 | 280 | 330 |
| RCH-100150 | 100 | 150 | 164.6 | 2.478 | 355 | 505 |
| RCH-100200 | 100 | 200 | 164.6 | 3.304 | 405 | 455 |
| Model |
Cylinder outer diameter (?mm) |
Cylinder bore (?mm") |
Shaft diameter (?mm) |
Piston Hole Diameter (?mm) |
Oil inlet thread (Rc) | Height (mm) |
| RCH-2050 | 95 | 75 | 55 | 27 | 3/8 | 7 |
| RCH-20100 | 95 | 75 | 55 | 27 | 3/8 | 7 |
| RCH-20150 | 95 | 75 | 55 | 27 | 3/8 | 7 |
| RCH-3050 | 118 | 95 | 70 | 34 | 3/8 | 9 |
| RCH-30100 | 118 | 95 | 70 | 34 | 3/8 | 9 |
| RCH-30150 | 118 | 95 | 70 | 34 | 3/8 | 9 |
| RCH-6050 | 165 | 135 | 100 | 54 | 3/8 | 12 |
| RCH-60100 | 165 | 135 | 100 | 54 | 3/8 | 12 |
| RCH-60150 | 165 | 135 | 100 | 54 | 3/8 | 12 |
| RCH-10075 | 235 | 185 | 145 | 79 | 3/8 | 15 |
| RCH-100150 | 235 | 185 | 145 | 79 | 3/8 | 15 |
| RCH-100200 | 235 | 185 | 145 | 79 | 3/8 | 15 |
