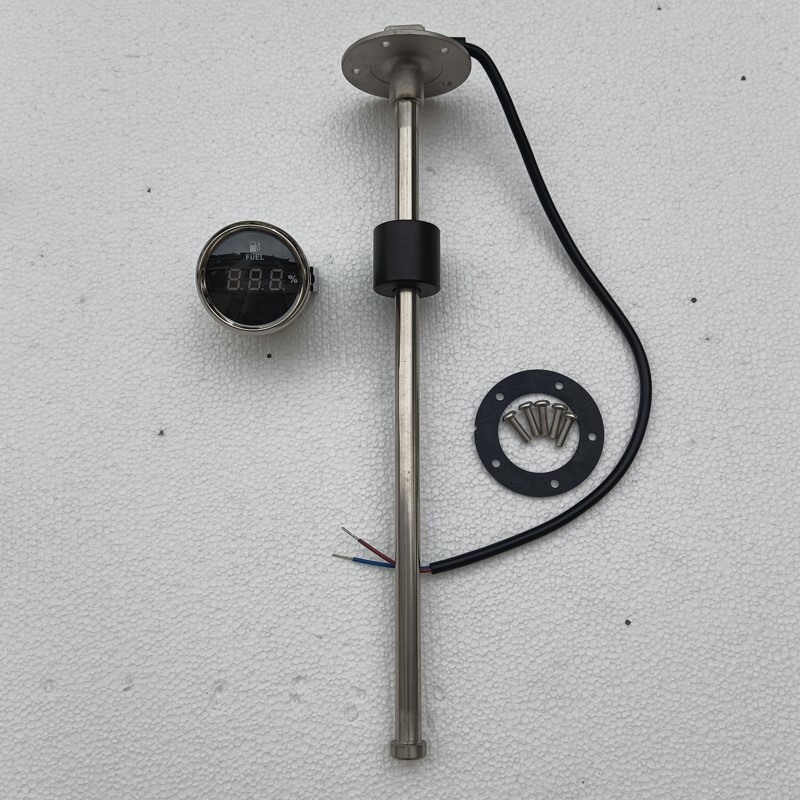

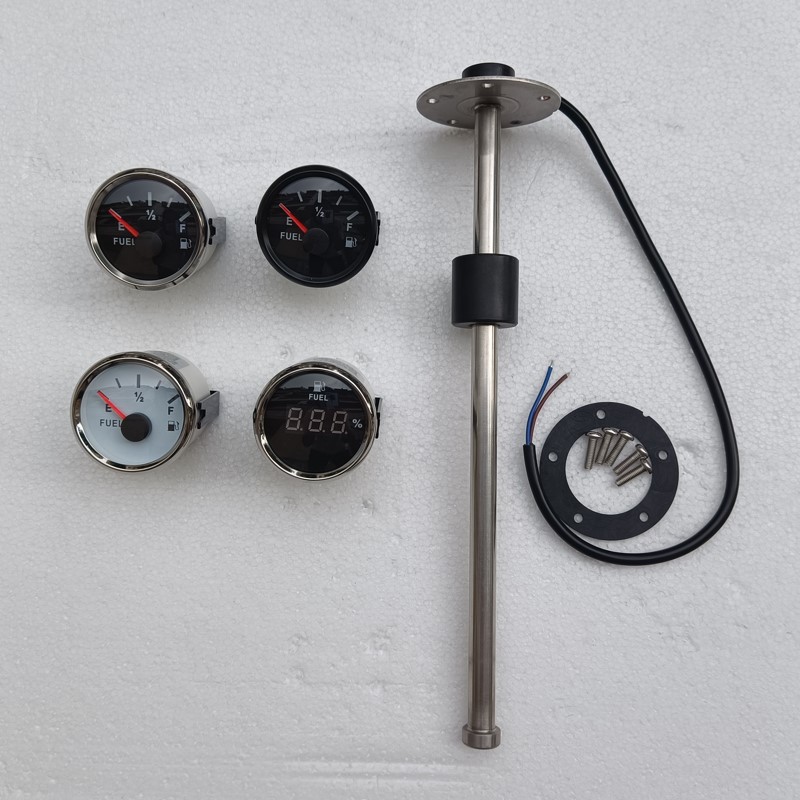

Truck Yacht Oil Level Sensor Liquid Level Sensor Disc Diameter 69mm 70mm 240-33 0-190

The above price does not include tax. For customers who want invoices, contact customer service before placing an order.

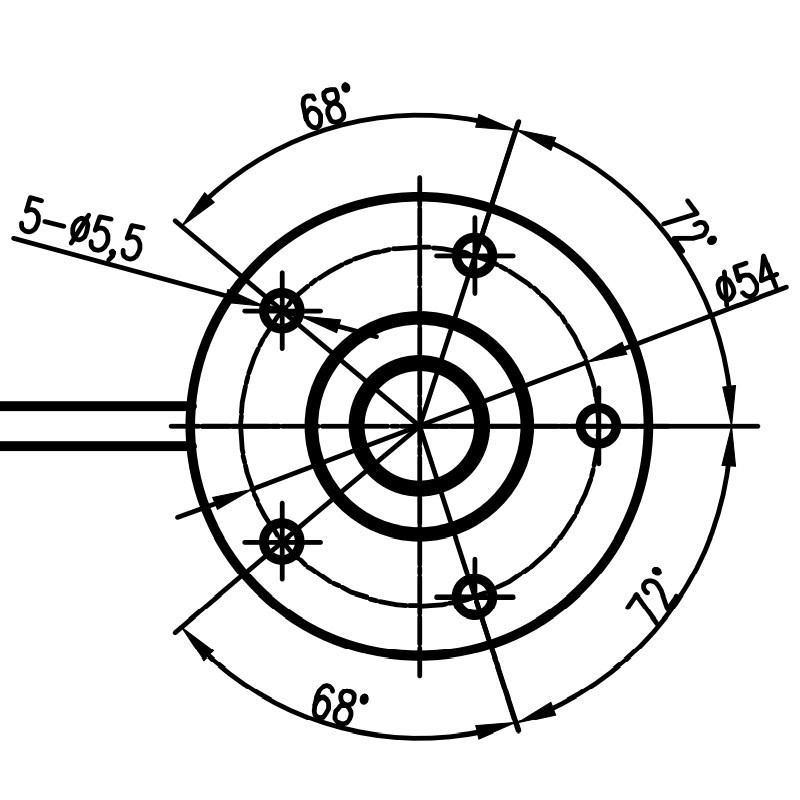

  Five-hole sensor

principle: the liquid level sensor completes the Measurement of liquid level through the reed tube switch in the electron tube. When the buoy moves up and down along the electron tube, the magnet in the buoy drives Reed tube switch at different positions, make the electronic signal of the internal circuit signal, through the wire will change feedback instrument equipment, display the liquid level at this time.

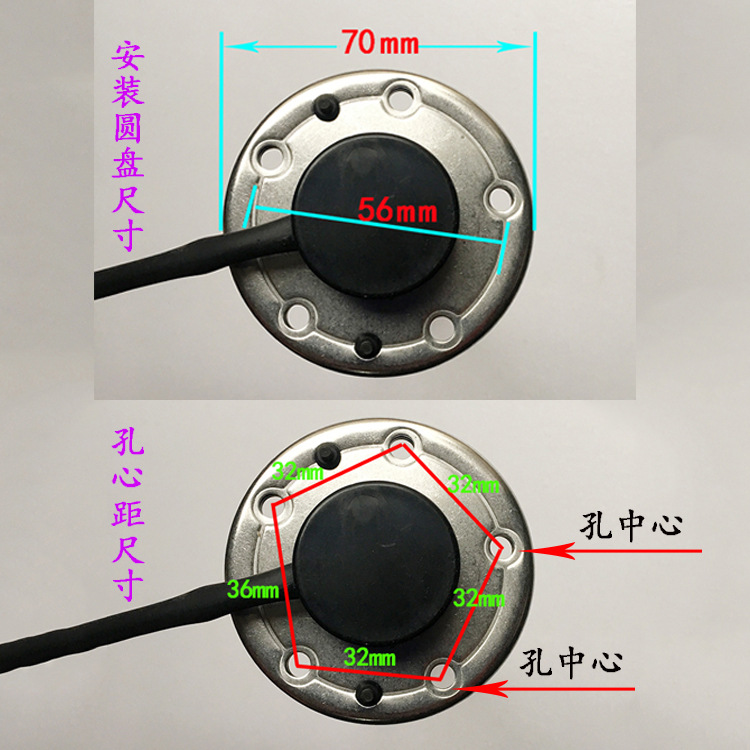

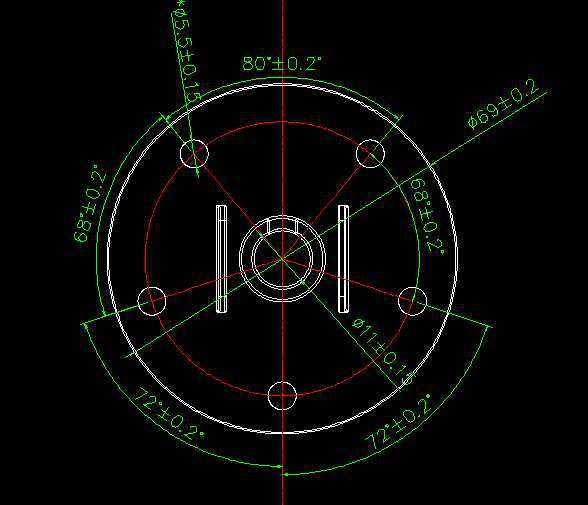

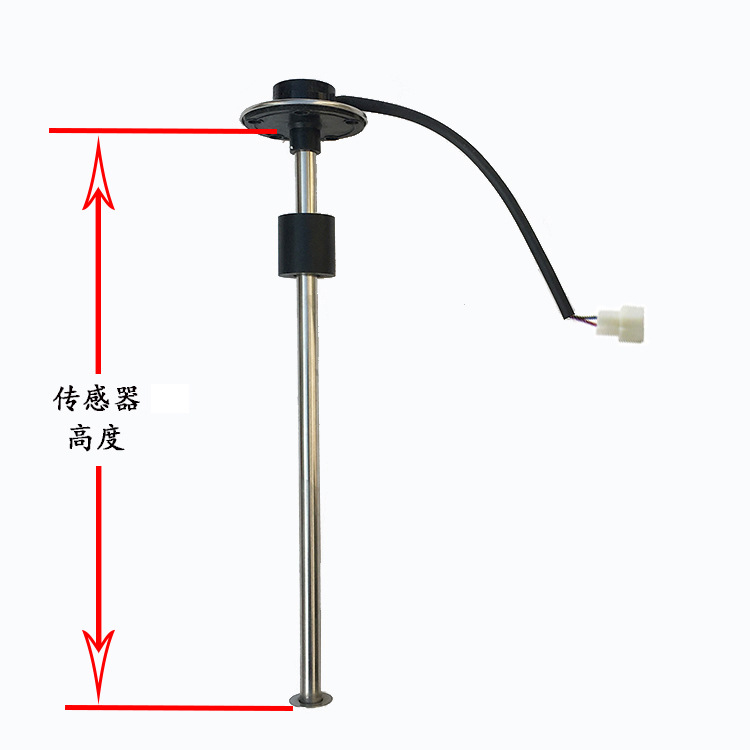

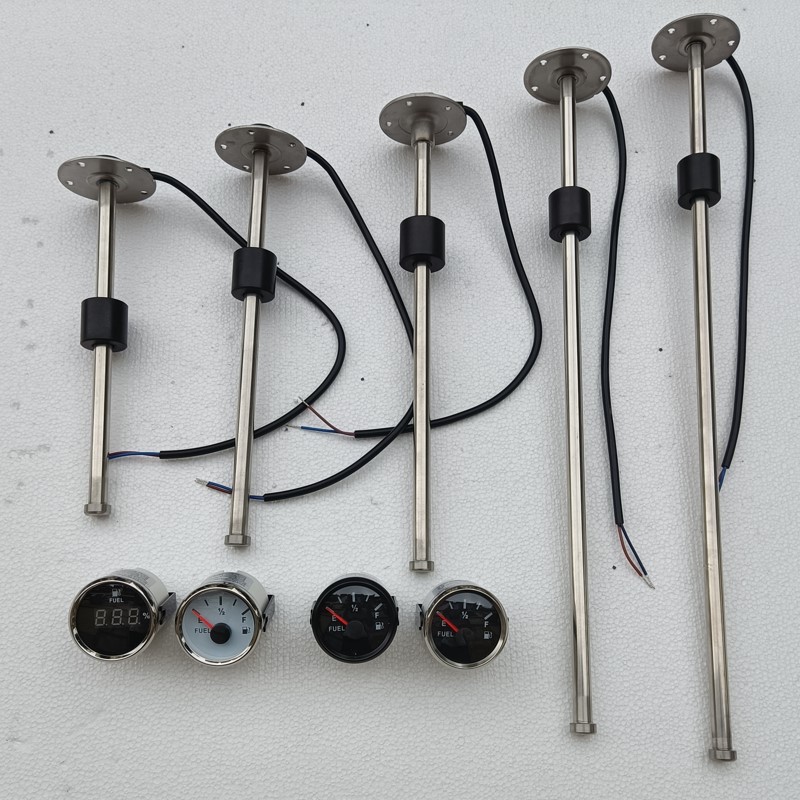

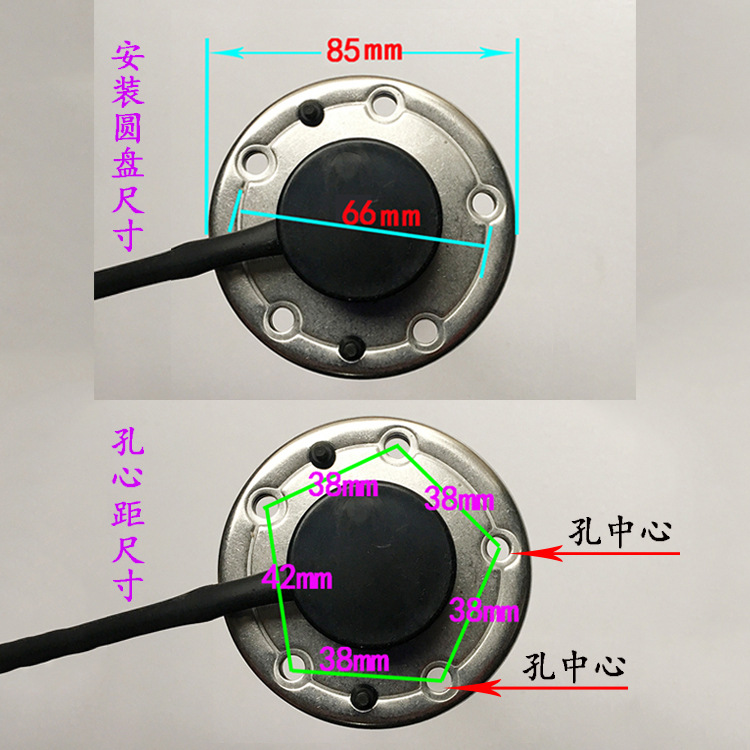

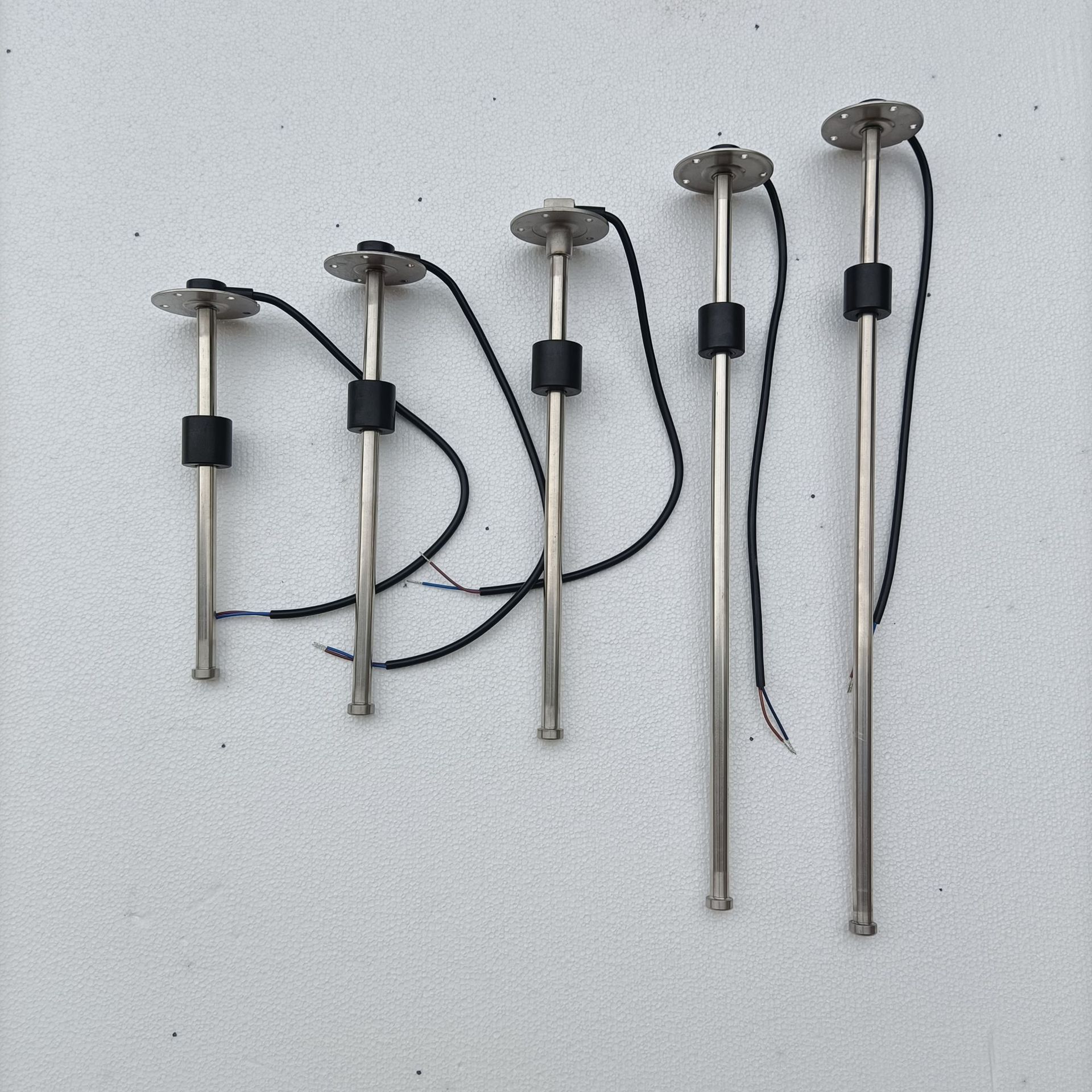

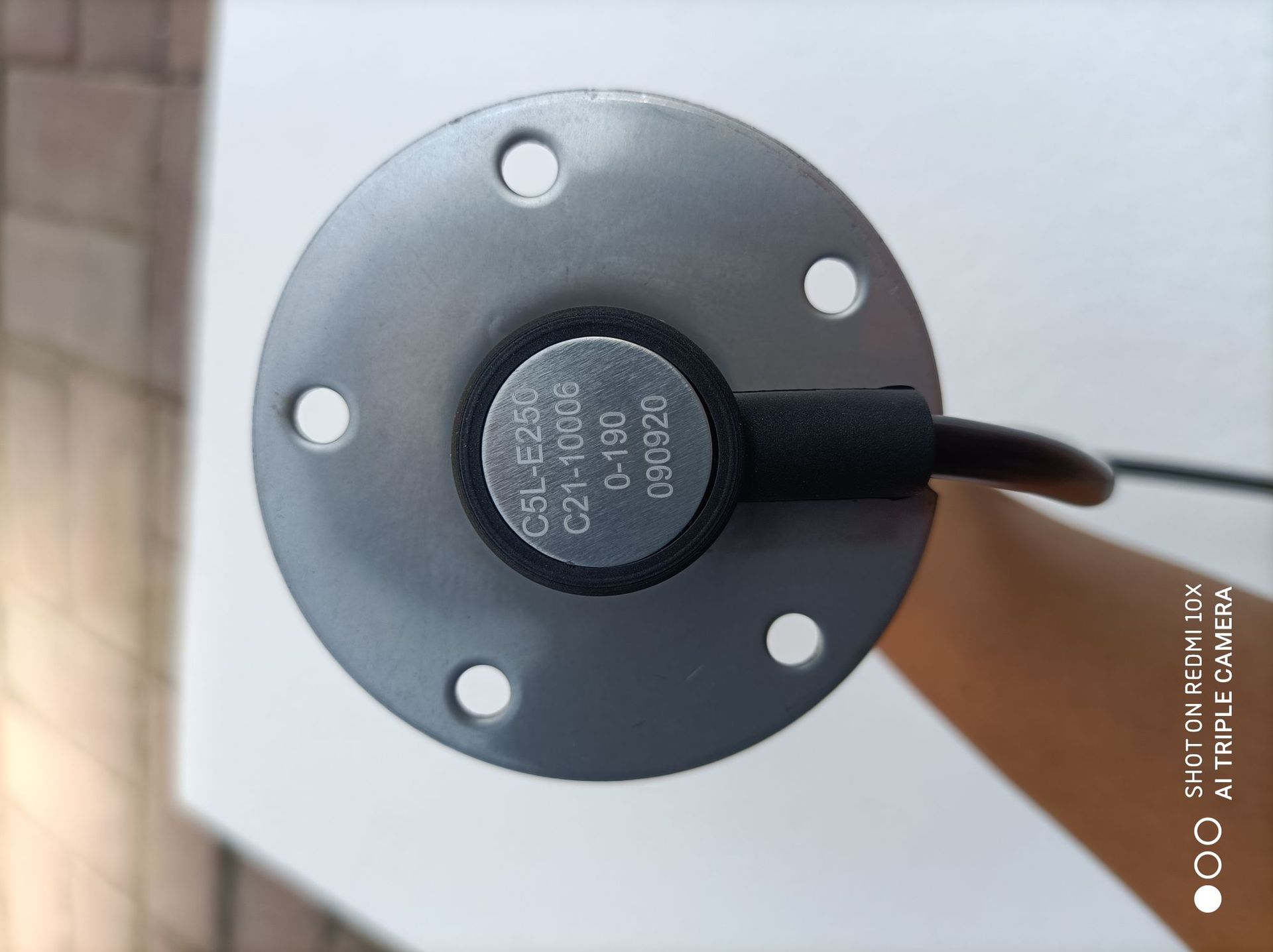

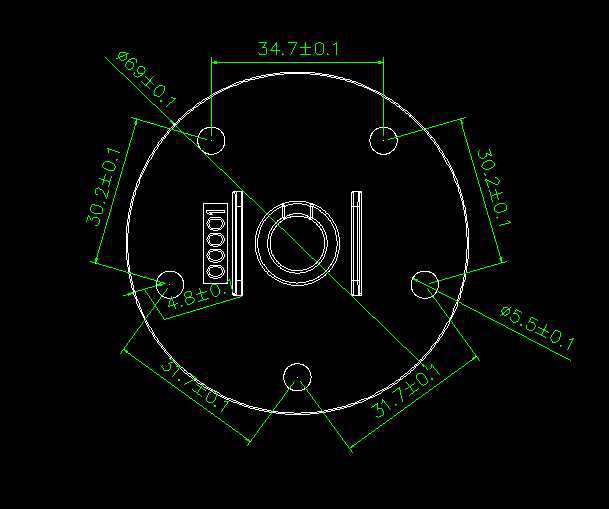

1: default sensor resistance output 0-190 Ohm (full oil 190 Ohm empty oil 0 Ohm),240-33 Ohm (full 33 Ohm, empty 240 Ohm) can be customized to select voltage signal, resistance signal, current signal, default resistance signal, rod length 10cm-115cm (4 inches-45 inches), disc diameter 69mm or 70mm,

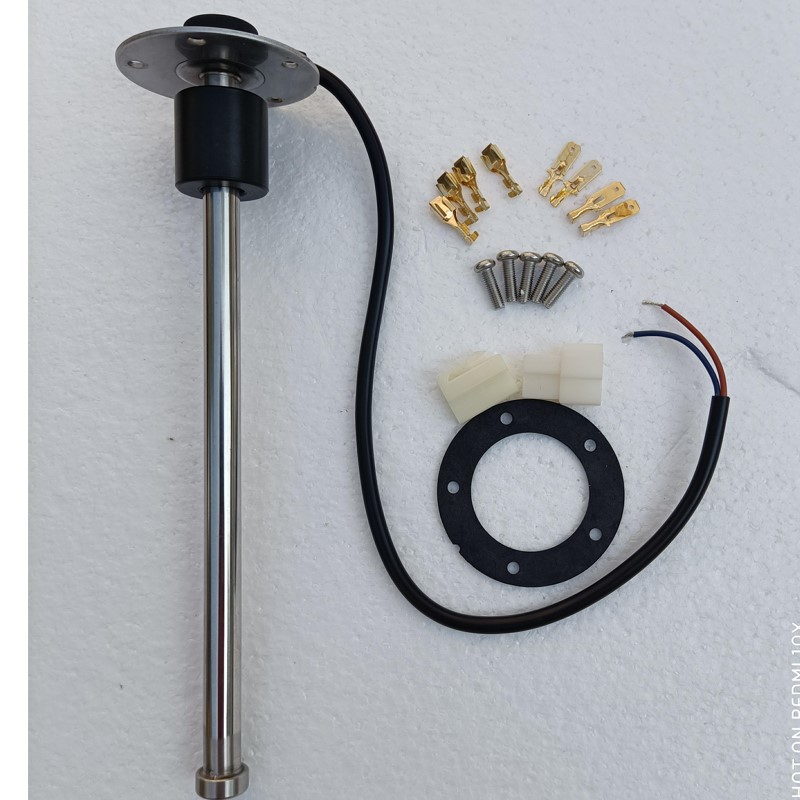

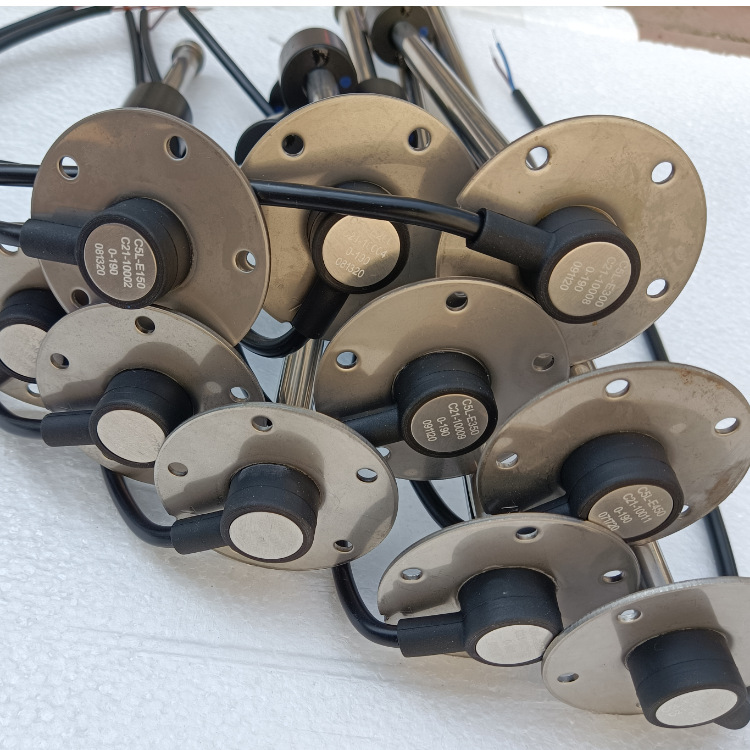

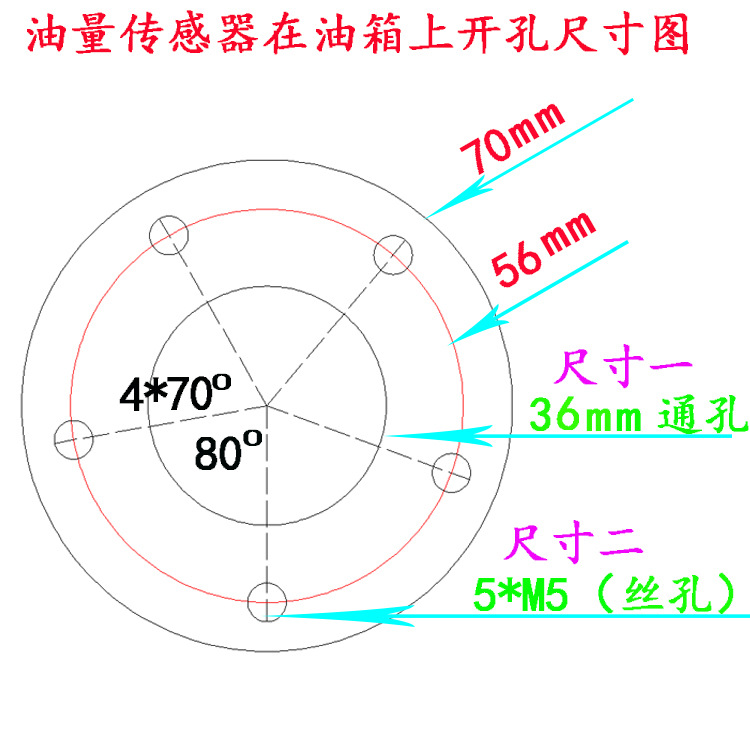

2: Material: default 304 stainless steel rod, can be customized 316 stainless steel; NSR floating ball, center separate 36mm through hole, surrounding screws M5 * 16, connection port: laser welding; Two output cable: blue wire connected to negative pole, brown line connecting signal line of liquid level meter

3: Operating Temperature:-40 degrees-+85 degrees. Rated Current 0.5A, rated power 125MW; Working principle: Reed tube switch principle,

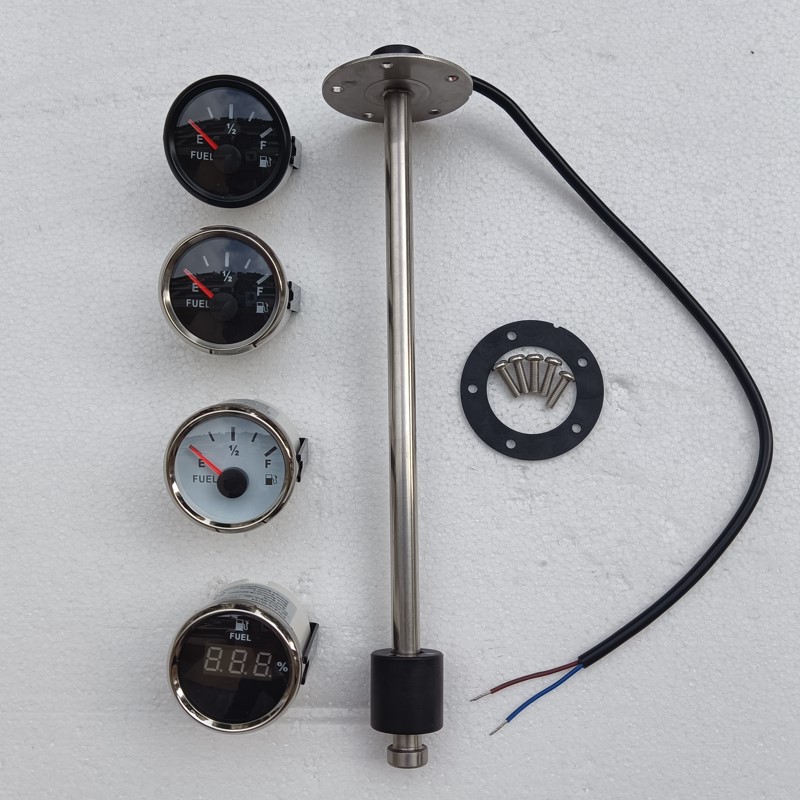

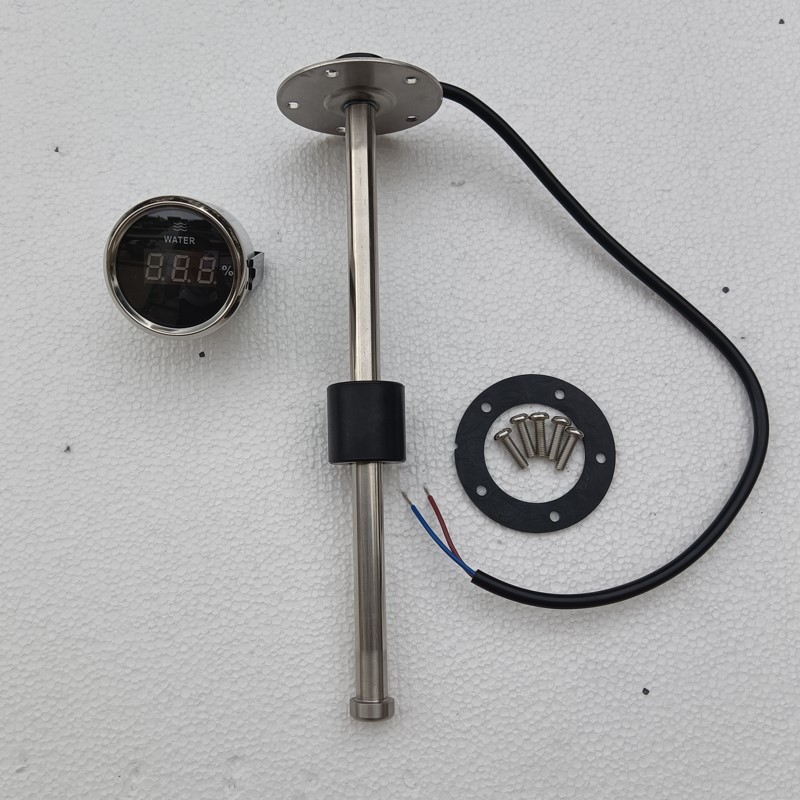

4: it is used for trucks, ships, automobiles, speedboats, generator sets, tractors, tricycles, modified vehicles, etc. It can be measured: diesel, gasoline, water, alcoholic liquid, and has a long service life, applicable to fuel tank and water tank of various materials.
