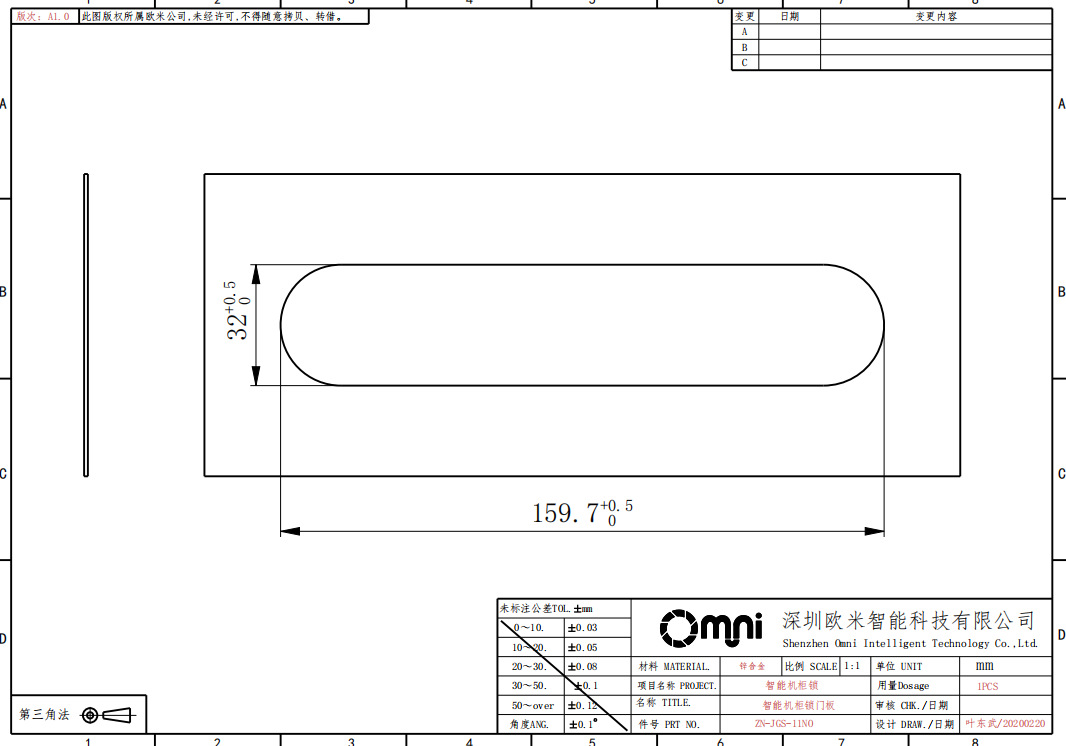

1: install the sheet metal diagram
2: product specifications:
1: Static current: ≤ 100uA
2: unlock maximum current: ≤ 200mA/12VDC
3: working voltage: DC 12V ± 5%
3: Operating Temperature:-20 ℃-60 ℃

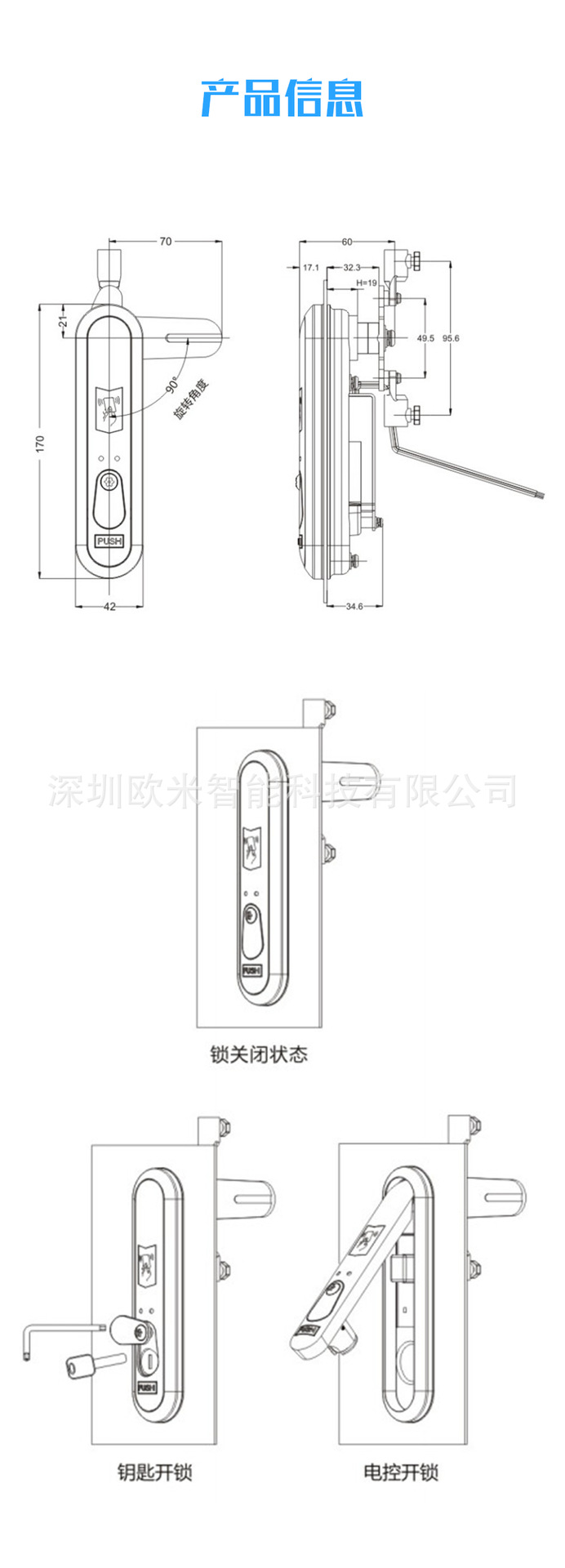

4: Lock size: 173*43.6 * 59.7mm
5: communication cable: 4pin terminal wire, length can be customized

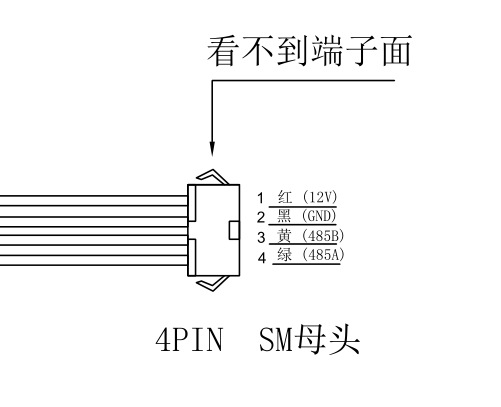

three: communication cable pin definition:

four: function description

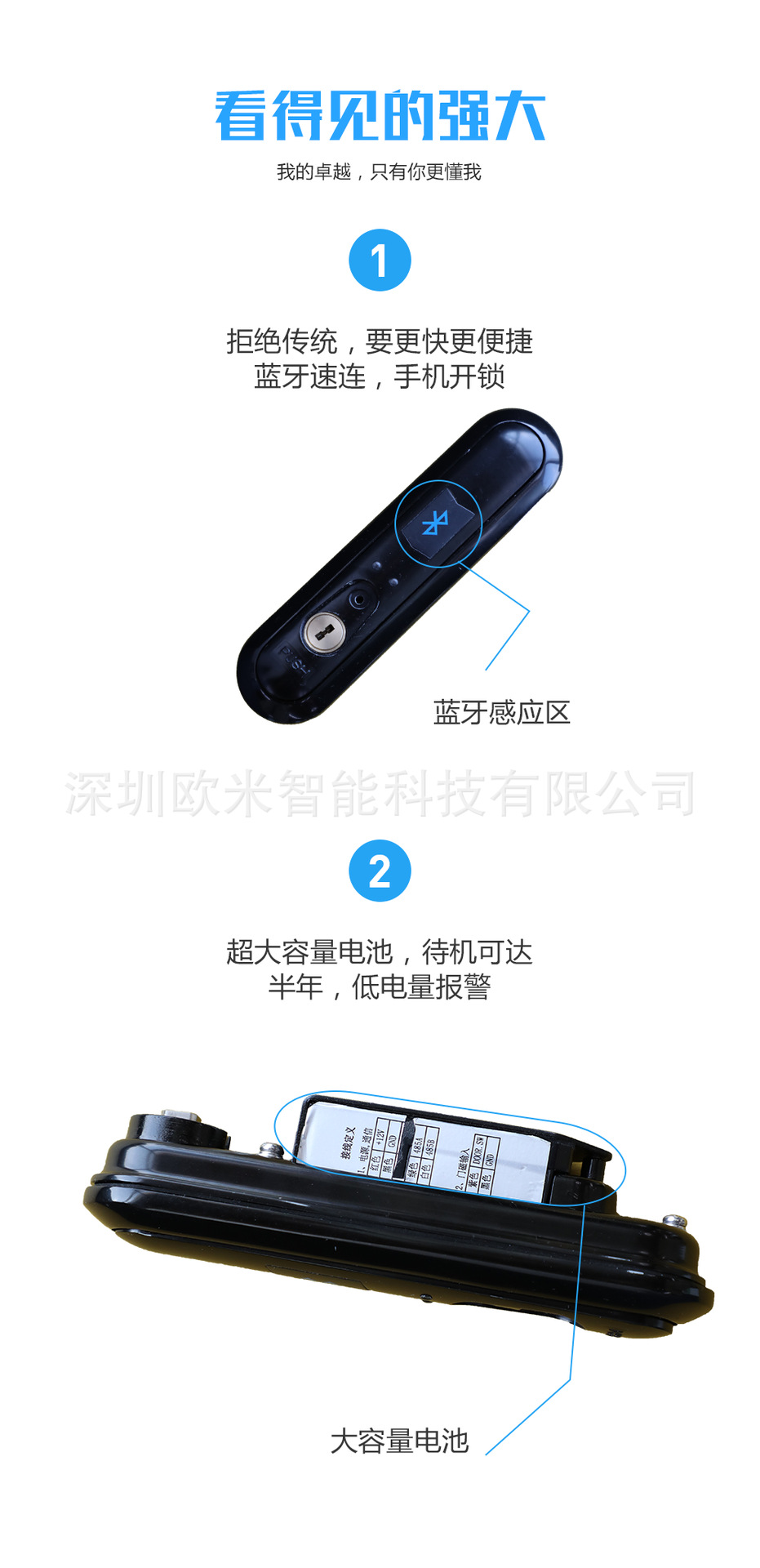

1: available mobile phone the APP or applet is opened through Bluetooth control lock.
2: control the opening of lock through PC PC software.
3: After performing the unlocking action, you need to press the handle with your hand. When you feel that the handle is bouncing out, move your hands outward together. After moving to no elasticity, turn the handle and open the door. If no one turns the handle to open the door, it will be locked automatically after waiting for 20 seconds.
4: illegal unlocking alarm function (this function is optional)
when someone opens the door without authorization, the lock will be automatically reported.
5: unlock record function (this function is optional)
you can record the time of each unlocking, the authorized unlocking personnel, and unlocking method to facilitate the background server to query at any time.
