MMCX-KE SMD USB Micro Connector RF RF Antenna Pedestal Module Tripod PCB Chassis Welding Type Power Strip

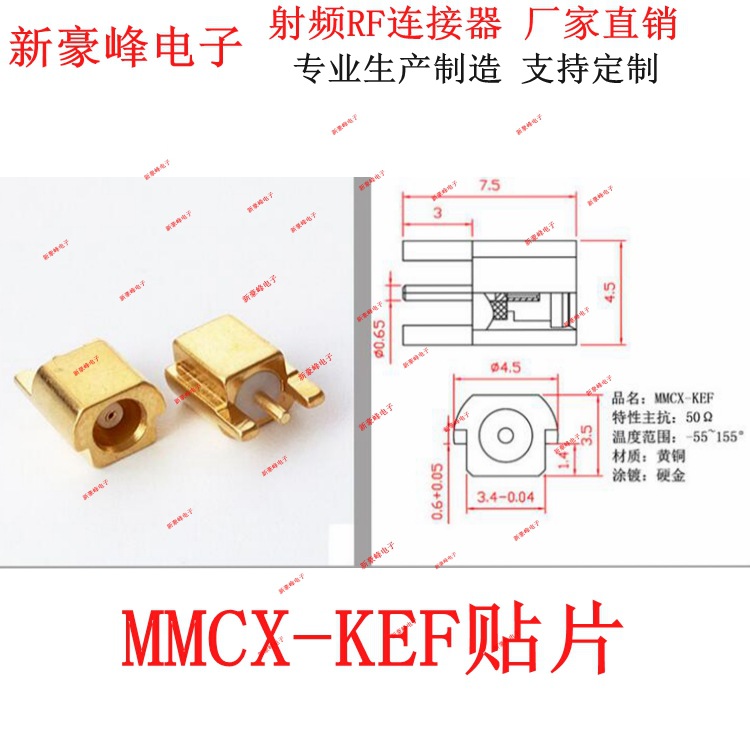

MMCX-KEF SMD USB micro connector RF RF antenna pedestal module tripod PCB chassis welding type power strip

spot situation: RF adapter, connector, RF coaxial line, etc. are generally in stock; Adapter cable finished products need to be ordered, but they are not in stock.

Small knowledge of RF connector model:

domestic: K: female connector J: male connector W: curved F: square plate/Diamond E: power strip, welding C: pressure pipe Y: gasket with nut RP: reverse joint (male connector original pin, female connector male pin) do not buy the wrong model!

Product Information:

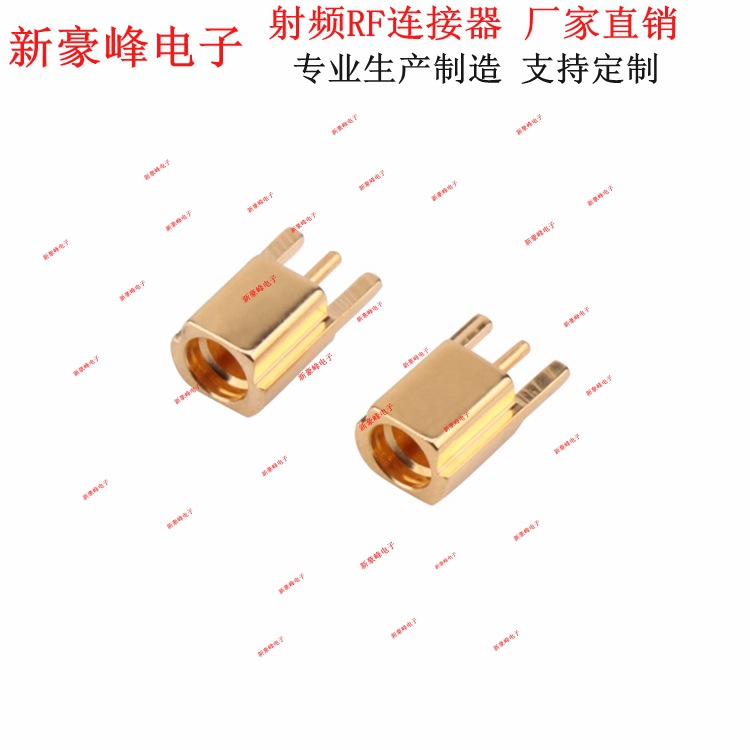

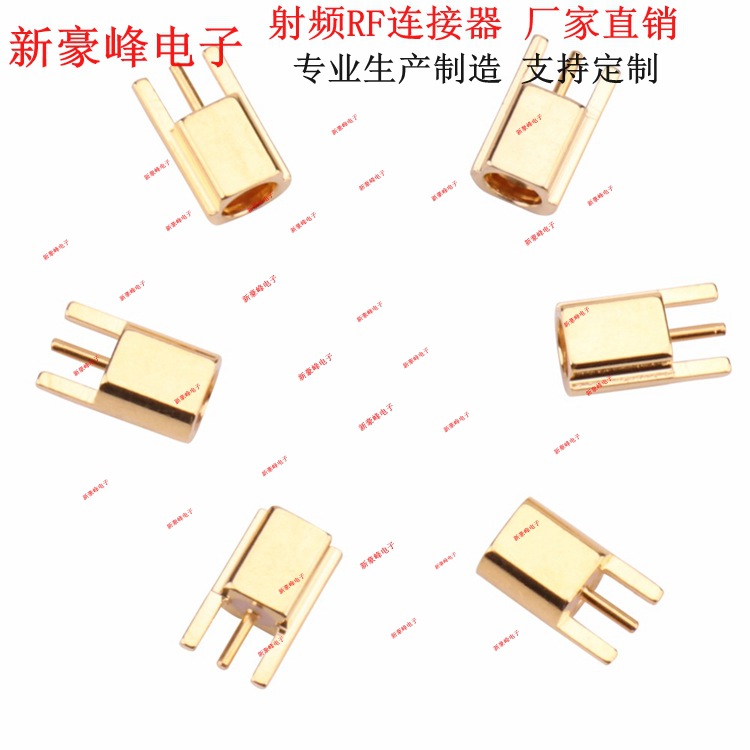

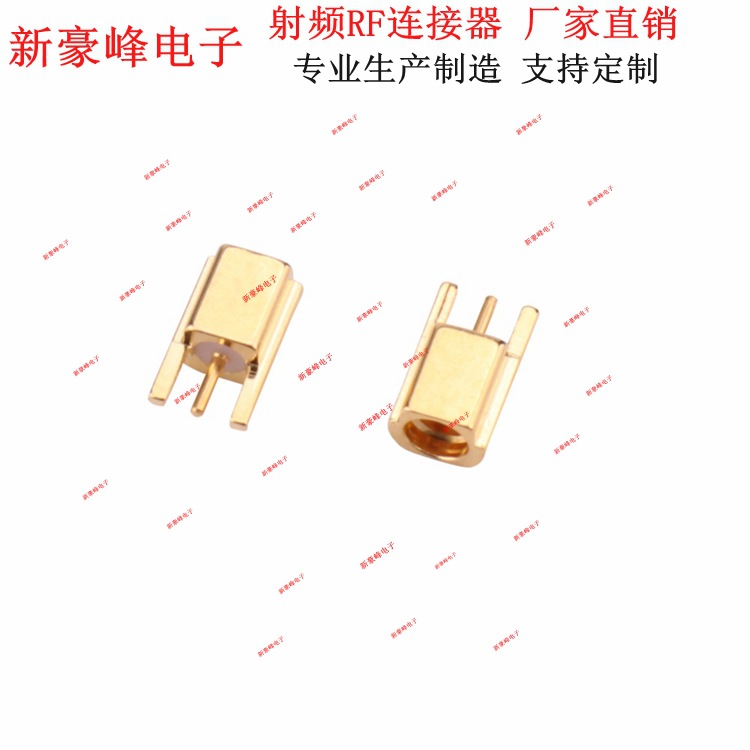

model: MMCX-KE tripod

material: copper plated with real gold

conductor: copper plated with real gold

insulator: Teflon (high temperature resistance)

impedance: 50 ohm

manufacturing process: CNC machining

customized processing: large non-standard products can be customized

the company's main products:

1. Antenna series: 4G antenna, 3G antenna, 2.4gwifi antenna, 5.8g image transmission antenna, 1.2g antenna, DVB-T digital television antenna, GPS navigation antenna, GSM antenna, 433MHz, FM vehicle, etc.

2. RF adapter cable series: RG58, RG316, RG174, RG178 IPEX, 1.13 IPEX, RG142, LMR195, LMR240, LMR400/7D-FB, LMR300/5D-FB, RG179, RG141, RG402, RG405, RG223, etc.

3. Coaxial RF connector series: SMA, SMB, SMC, MCX, MMCX, BNC/Q9, TNC, N, UHF/M, FME, F, TV, FAKRA, CRC9, TS9/S197, IP-9/MS156, MS147, etc. or RF adapter (available for straight head, elbow, male connector, female connector, male pin, original pin)

shipping instructions:

1. Our default Express is YTO Express. If you need other express, please note or contact us.

2. The freight within the province is generally 8-10 yuan for express delivery, while that outside the province is 12-20 yuan, depending on the specific Province, (our freight template has been adjusted, just take it directly)

3. Orders in the province can be received the next day. Orders outside the province are generally 2-5 days for Yuantong, and SF is generally 1-3 days. EMS is relatively slow in 3-10 days. We do not recommend sending.

4. The delivery time is generally around 6 pm, (all express delivery only has one delivery per day)

  after-sales service:

1. If you have any questions, please contact us first and we will reply to you in time.

2. After receiving the goods, if you have any questions or dissatisfaction, please communicate with us in time and we will give you a good solution.

3. Website pictures are taken in kind. Due to light, display and other reasons, the color of the real object is slightly inconsistent with the picture, and the real object shall prevail.

4. When receiving the Express, please open the package and check the goods before signing. If it is damaged, please reject it and ask the courier company to return it. Thank you for your cooperation!
