C- 8

programming game Mouse

【 chinese manual]]

manufacturer: Shenzhen master Electronic Technology Co., Ltd.

Package content( accessories)

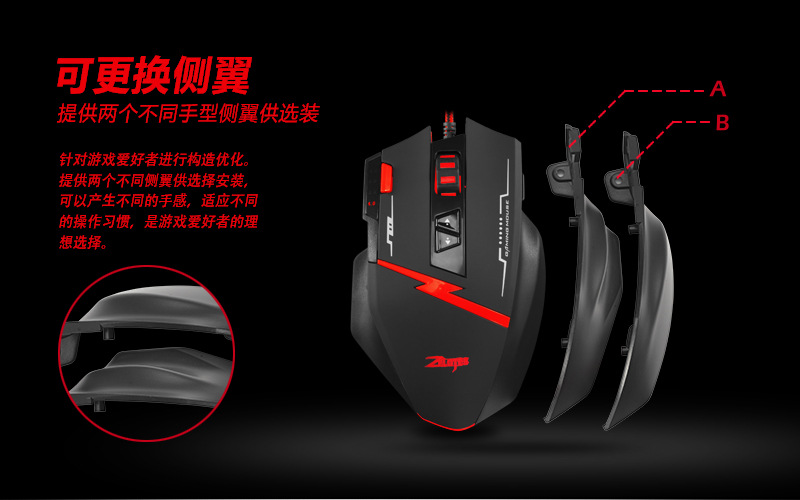

mouse x1, manual and warranty card x1 screwdriver x1 swap right wing x1

system requirements

IBM or compatible computers

Windows:2000/ME/XP( x64)/Vista/7/8

Mac OS X( V10.4 above)

A usable USB interface

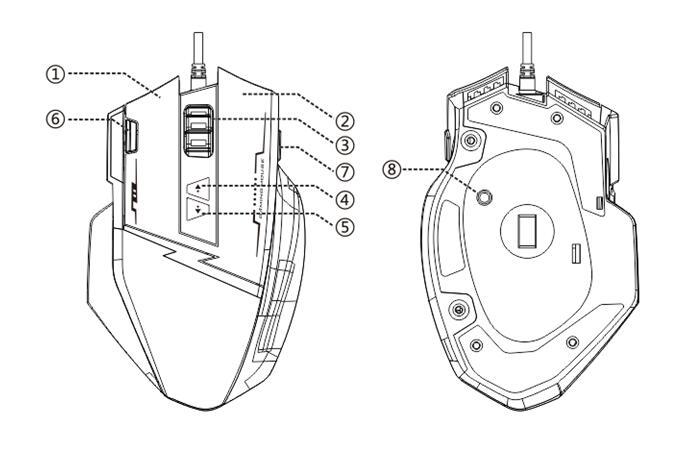

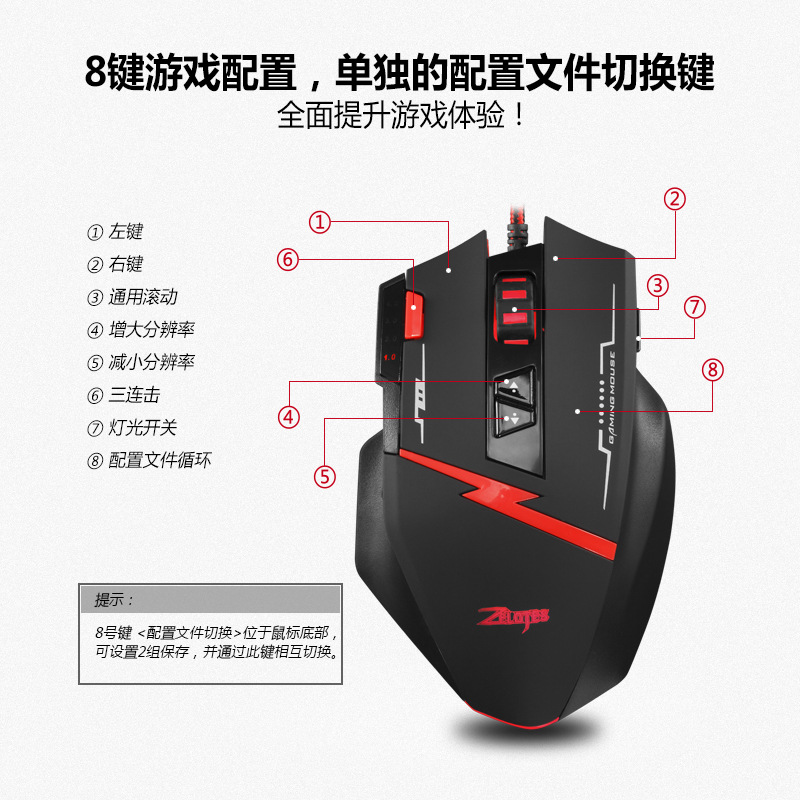

product Structure Diagram

component function description

● ① left key  ② right-click  ③ universal rolling  ④ increase resolution

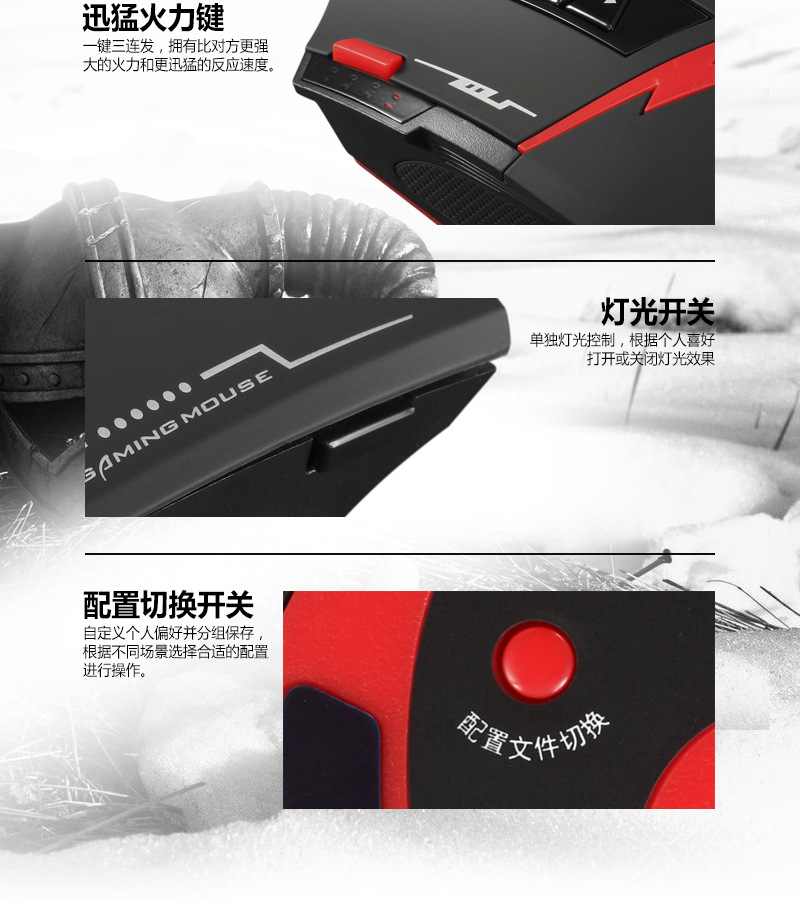

 ⑤ reduce resolution  ⑥ triple strike  ⑦ light switch  ⑧ configuration file loop

●4 adjustable gear DPI design:....

  Every transformation1 bright gear1 A light.

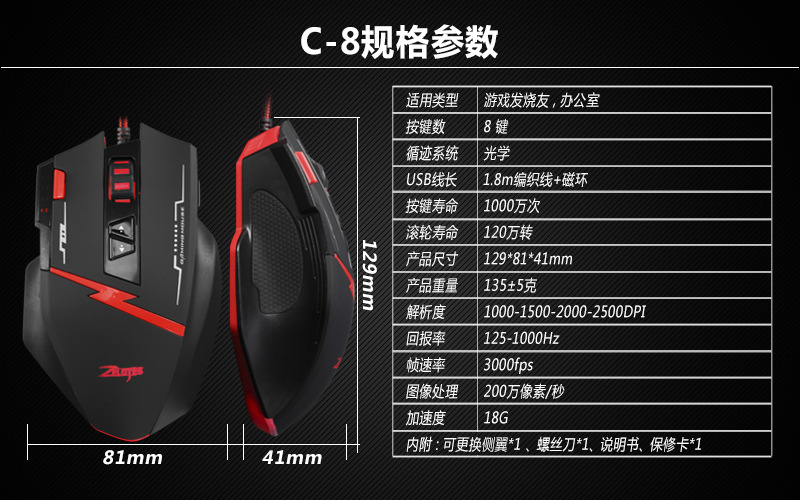

Specification parameters

number of buttons:8 key

tracking System: Optical

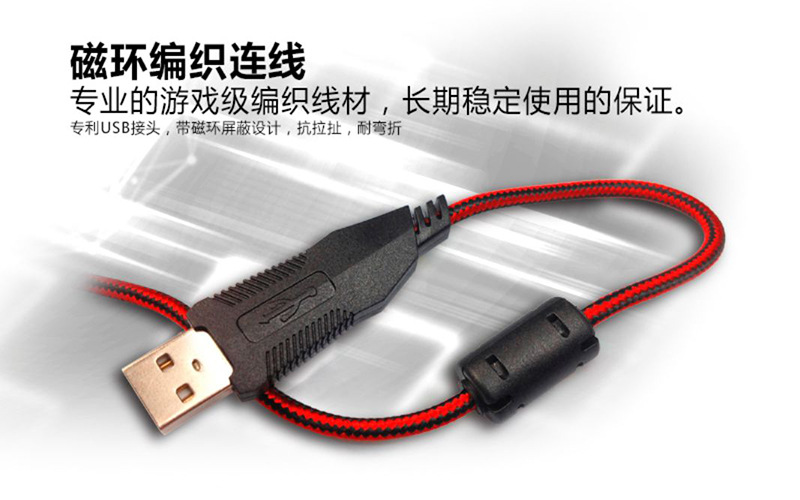

USB line length:1.8m

operating voltage/ current:5V/100mA

button life:1000 ten thousand times

roller life:120 universal rotation

product Size:129*81 * 41mm

product Weight:135±5 gram

resolution:...

Rate of return:125-1000Hz

L  tips: please tear off the protective film of the foot pad before use.

3.[Product features and usage details]]

product Features

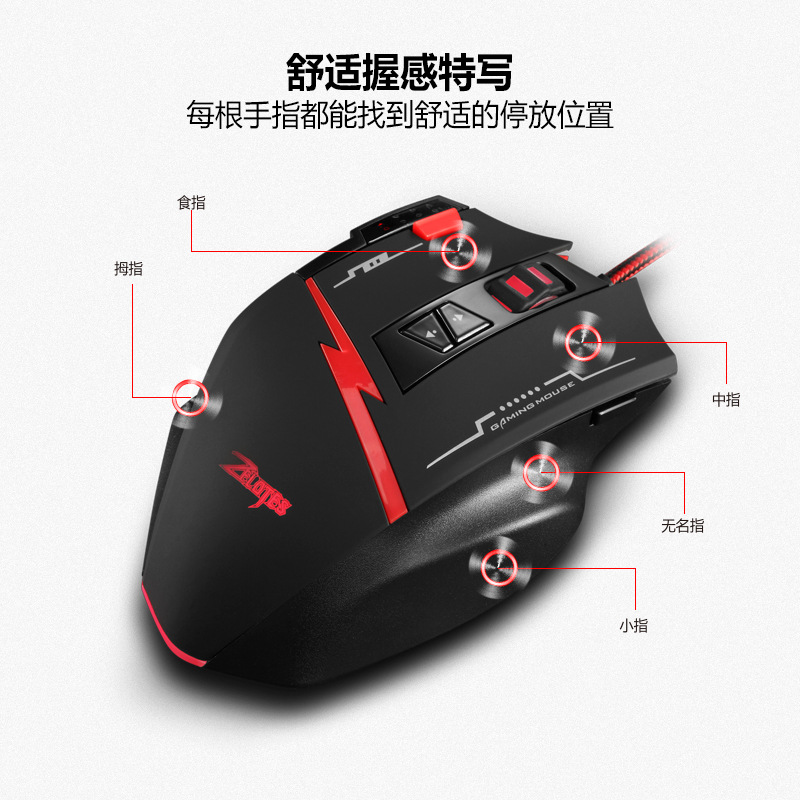

◎ ergonomic design

  ergonomic appearance design, comfortable hand feeling, suitable for games and office.

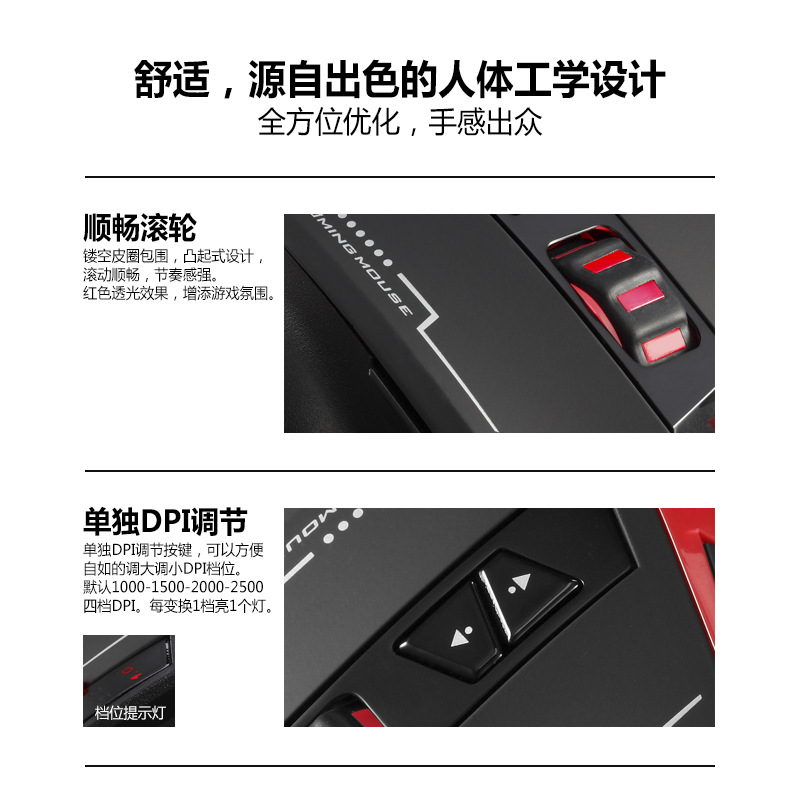

◎ four gears DPI variable speed

   ... The fourth gear is switched, and each gear has a corresponding light prompt.

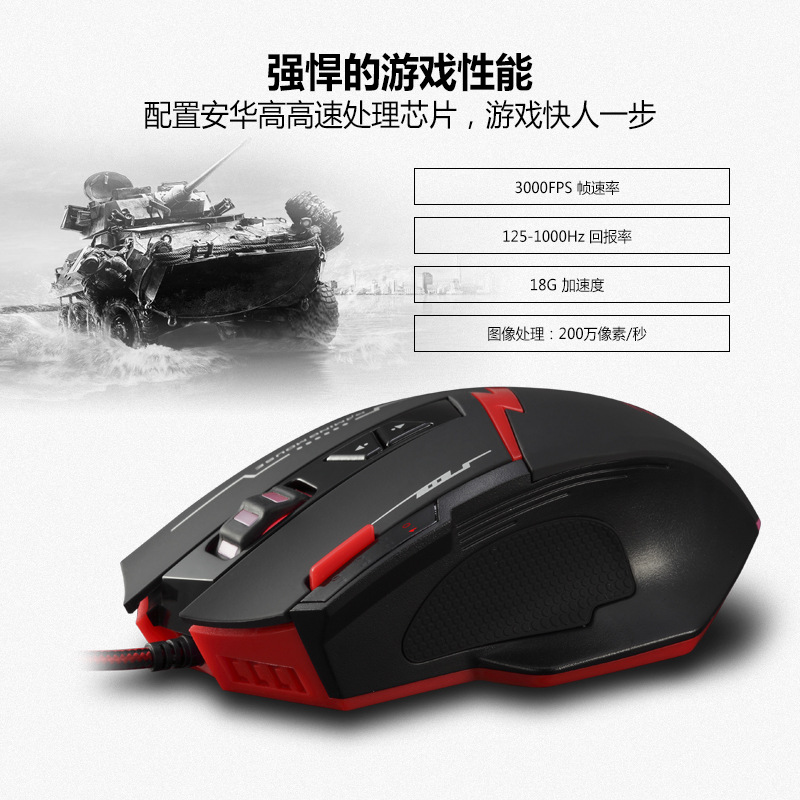

◎ e-sports high rate of return

  the rate of return represents the speed of data transmission between the mouse and the computer. Higher rate of return in game competition can give full play to the performance of the mouse, allowing the mouse to skip frames with zero delay in fierce games, it is more practical for game players.

◎ the product has memory storage function

  128KB the on-board memory can save the setting data and keep the last operation State after startup, which is more worry-free.

[Introduction to macro functions]]

◎ when the macro starts from Button N when the option is entered, all the selected macros are activated in the left key launch. For example4 the number key is set to a combination key. ABCD, when pressed4 number key, the function of the left key is ABCD.

◎ select another button as the close macro, that is, close N key ". Enable N the macro mouse light is always on and off. N the macro returns the normal color setting.

◎ if you enter from the assigned macro, select which button is used as the assigned macro and which button is sent, for example, set4 the number key is1234, press4 the function of the number key is1234.

◎ the configuration file is2 group, you can select a button as the configuration file to switch to2 group, or directly through driver settings2 by default, the blue light of the group configuration file is always on. You can also set other colors by yourself.

◎ you can set up to in the Armory32 left-click for the second time. You can adjust the cursor movement every time you click, Y+ is the cursor moving upward, Y- is to move down, X- move to the left, X+ move to the right.
