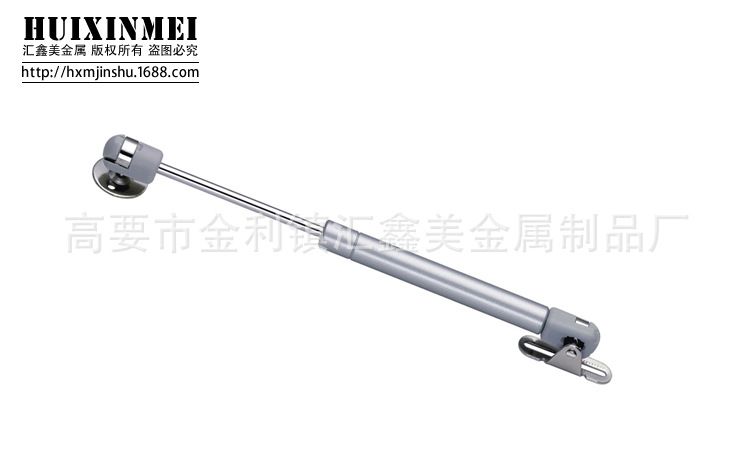

Hxm1801 Pneumatic Hydraulic Support Air Support Cabinet Door Support Gas Spring Picture Frame Electric Meter Box Cabinet Door Support

Pneumatic Hydraulic support air support cabinet door support gas spring picture frame electric meter box cabinet door support

[Product model] HXM1801-10-inch specification

[Product name] Pneumatic Hydraulic support

[Main material] Steel

[Surface treatment] spray paint

[Regular color] Silver

[Plastic material] polyoxymethylene POM

[Pipe density] 20# seamless steel pipe

[Center Rod] 45# steel

[Conventional 10-inch travel] 90mm

【 conventional 10-inch hole spacing] 245mm

[Scope of application] cabinet door, picture frame, electric meter box, etc.

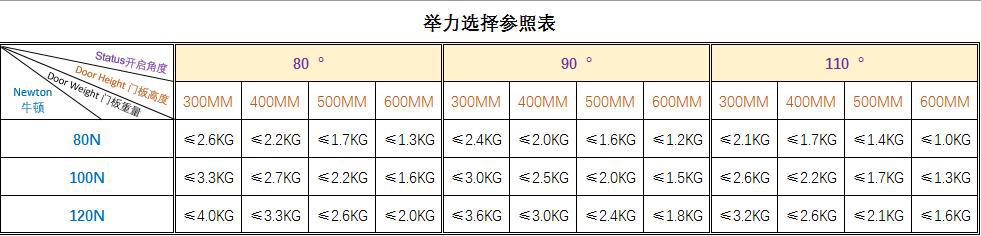

[Conventional air pressure] 20N ~ 150N (I .e. bearing 3KG to 15KG)

[Special air pressure] 200N ~ 300N

[Packing specification] 25 PCs/box, 4 boxes/box (I .e. 100 pcs/box) blank carton

[Our customizable colors] black, white, red, gold, etc.

[Our customizable size]]

* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

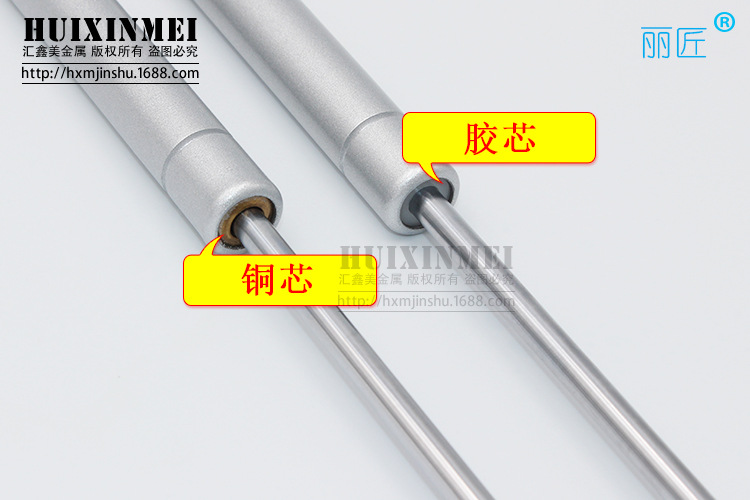

[Difference between copper core and rubber core]]

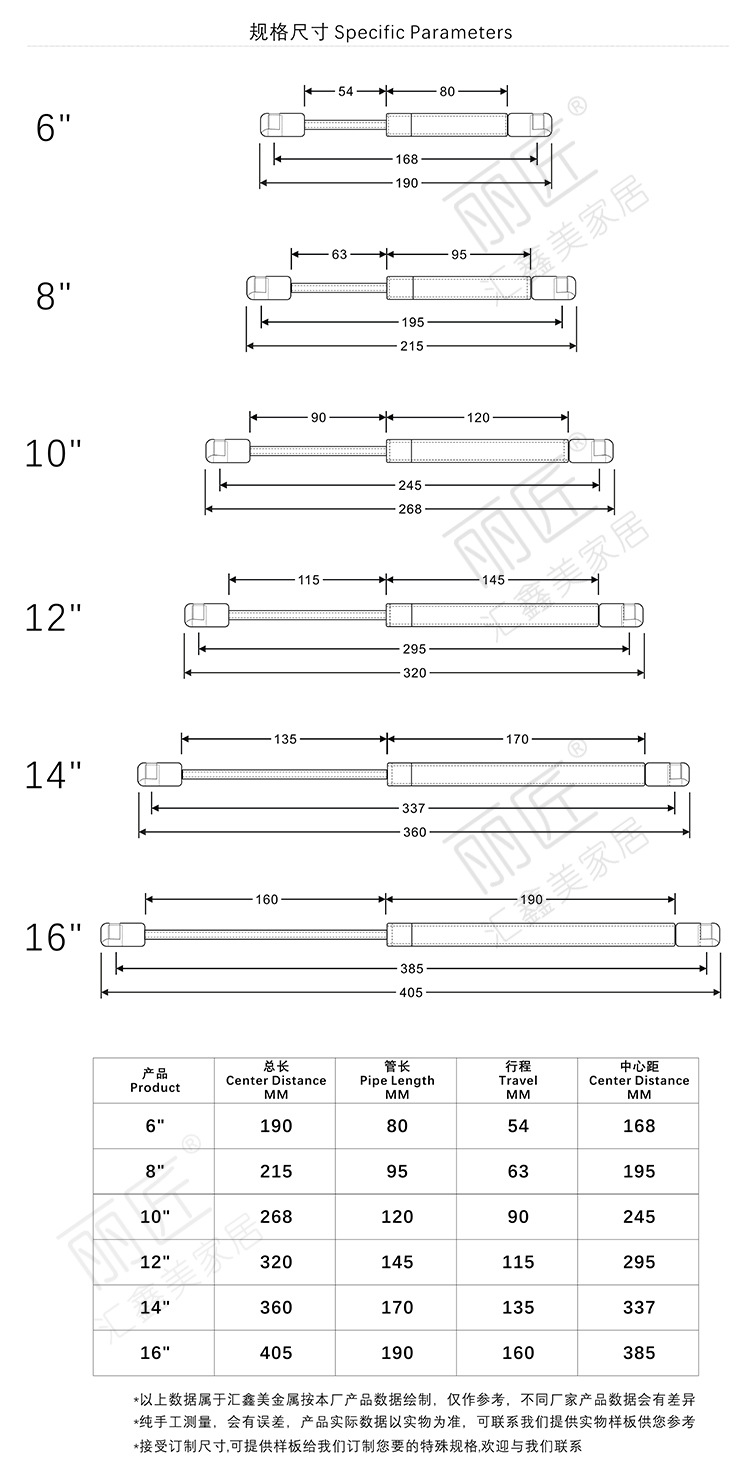

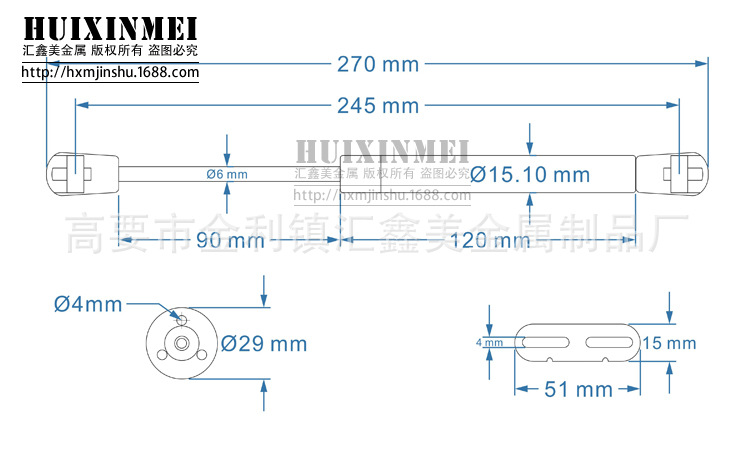

[Size chart]]

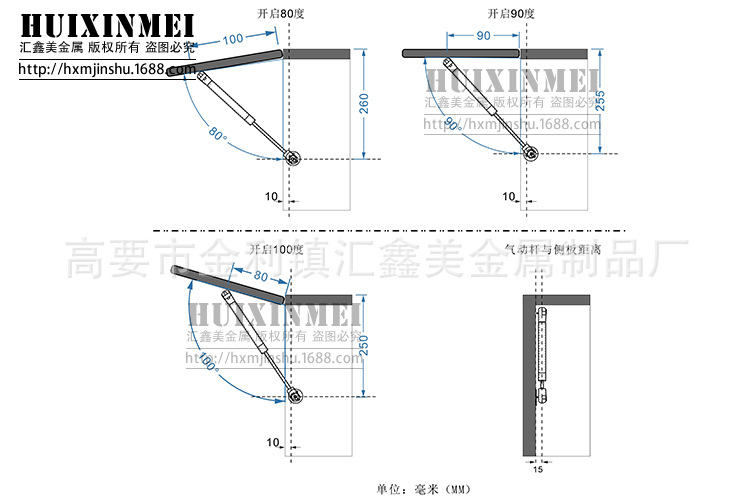

[Installation Guide]]

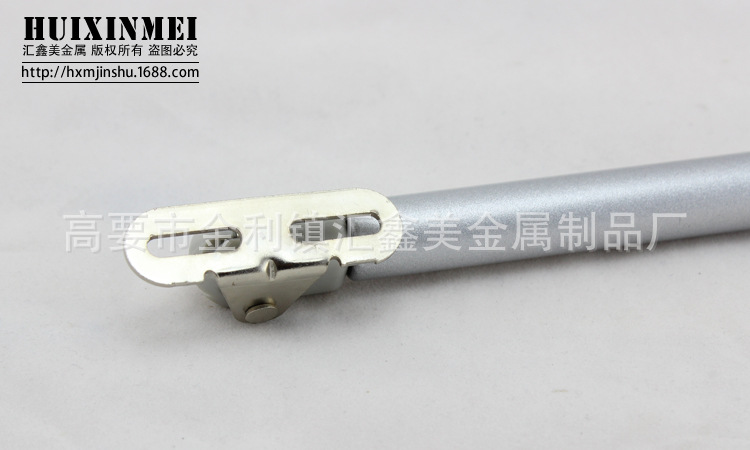

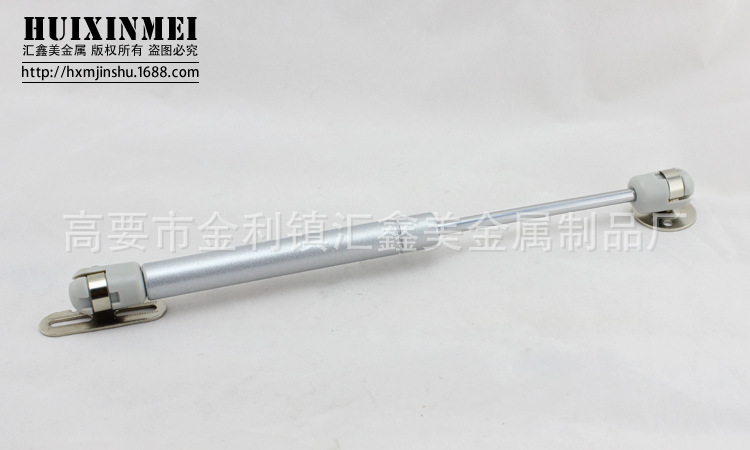

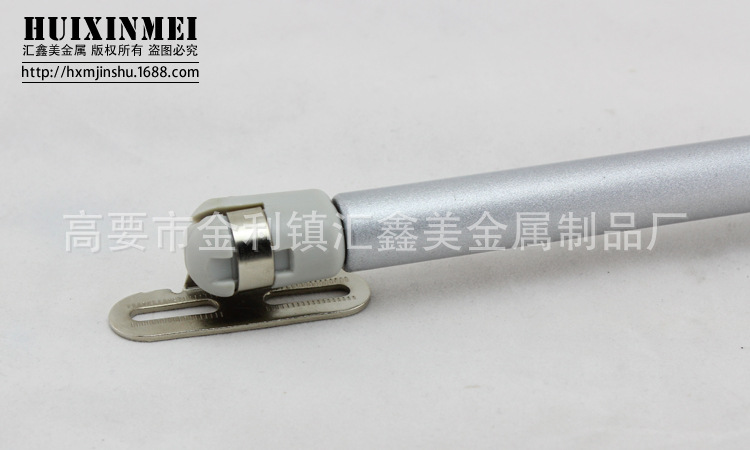

[Product details]]
