NV001 + PLUS is a new upgrade!!!!!!
Note: The product is standard without a memory card. If you need a memory card, please contact customer service. Please communicate with customer service before ordering

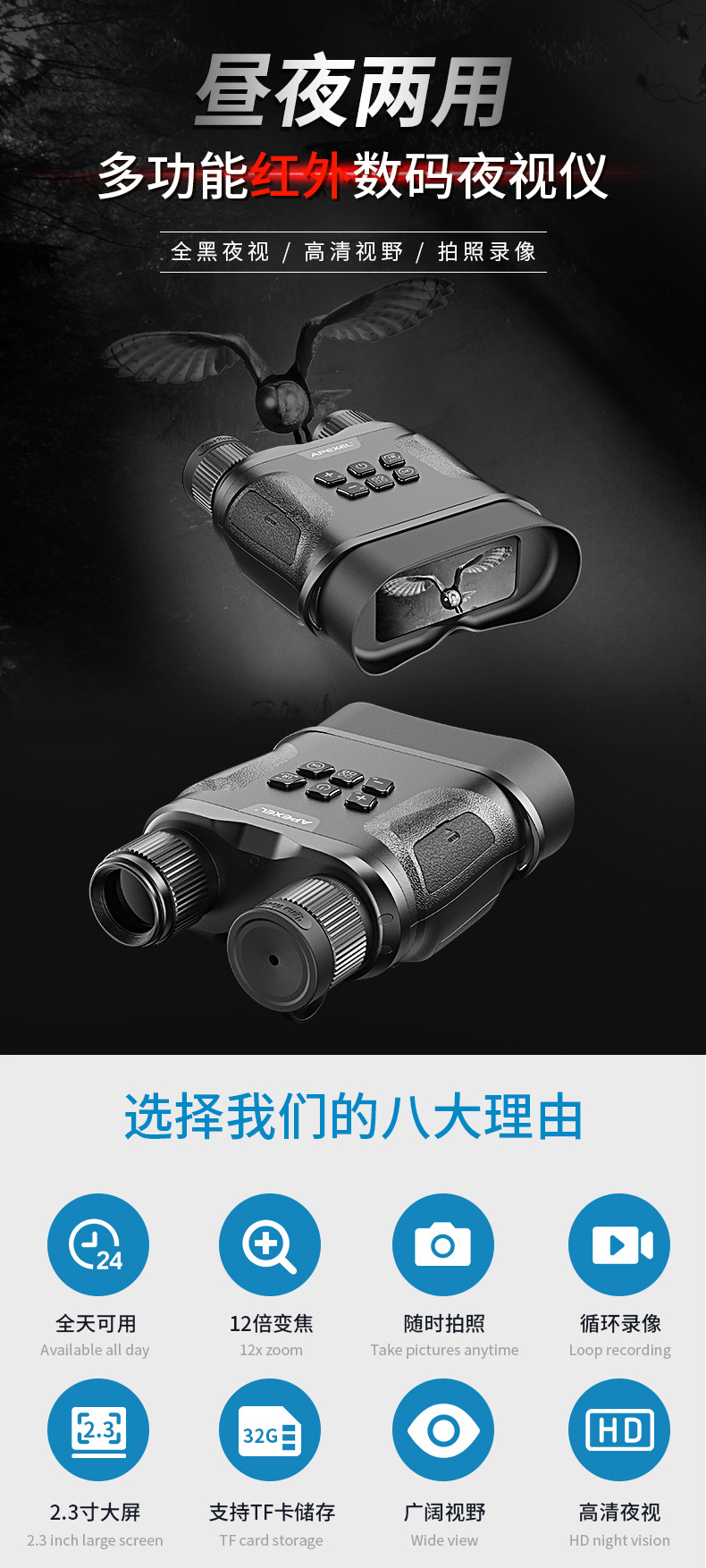

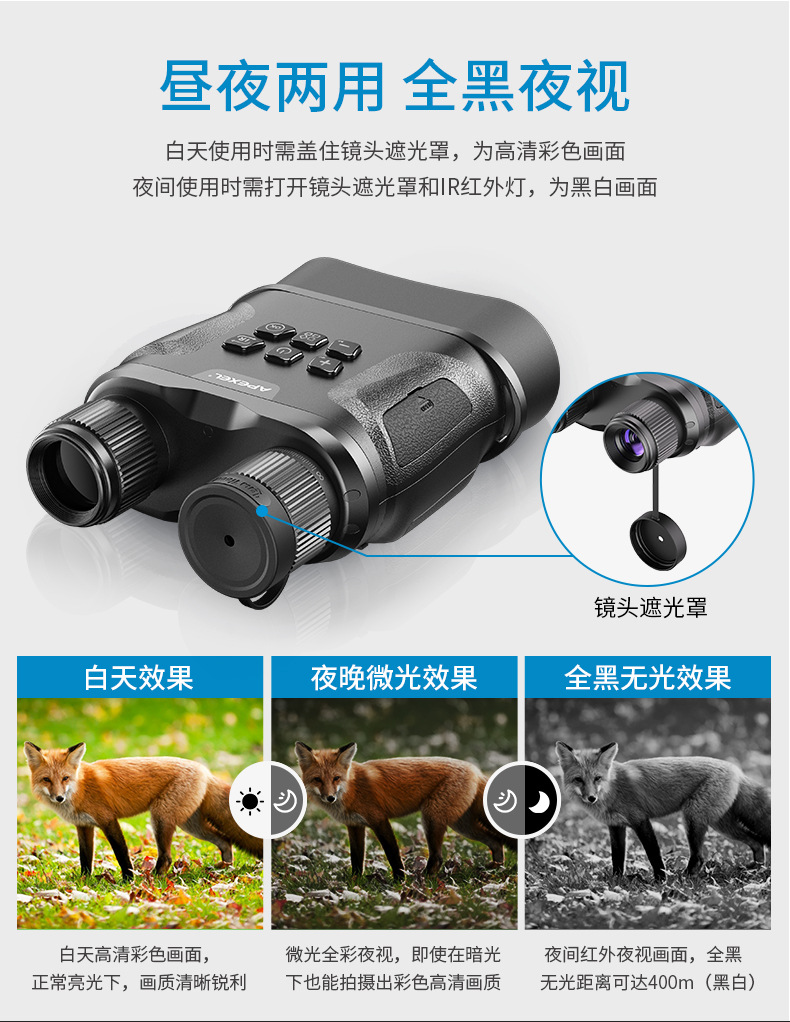

APL-NV001 + PLUS double tube infrared night vision instrument
software configuration table
project | description |
program version number | V1.0.39 (updatable) |
picture size | 4M/2M/1m |
photo scale | 4:3 |
photo format | JPG |
video size | 1080p @20FPS 720P@30FPS VGA@30FPS |
video format | MJPG/avi |
night vision sensitivity | auto |
prevent flickering | \ |
automatic shutdown time | 3/5/10min/off |
date format | mm/dd/yy |
time date watermark | close/Date/date and time |
language | 11 languages: Chinese, English, Spanish, Russian, German, Japanese, Arabic, Korean, Portuguese, French, Italian |
format | yes |
reset | yes |
program version number | yes, update the program version is supported. |
Digital zoom | 4X-12X |
continuous shooting mode | 1-3 sheets |
delayed photographing | 2, 5, 10, 30s |

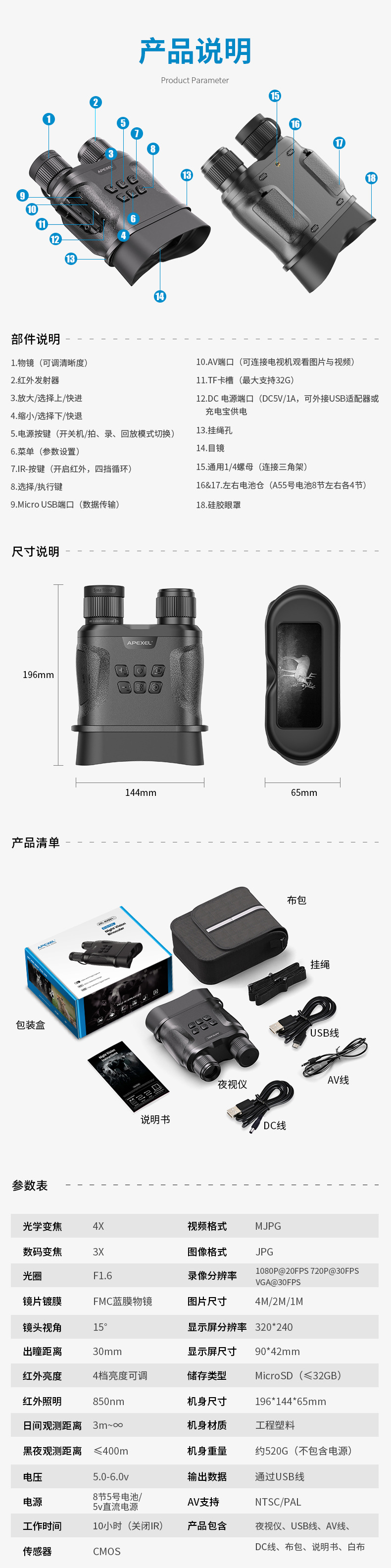

2.2 specification parameters
project | description |
cmos size | 1/2.7″ |
effective pixel | 976H × 582V |
pixel size | 5.5um × 6.9um |

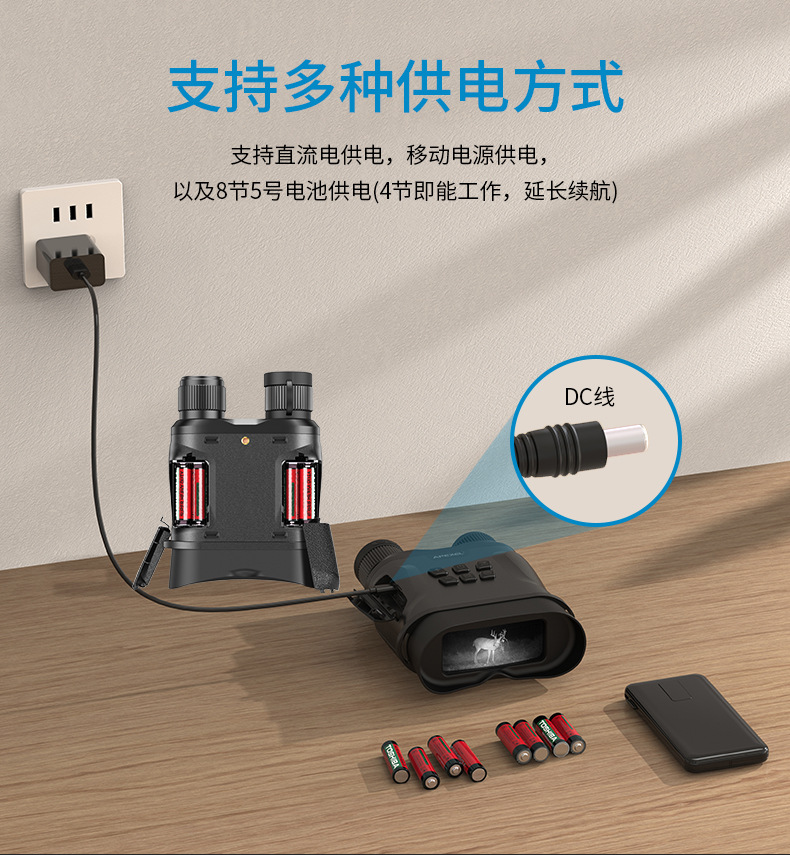

power supply mode | 8/4 festival no. 5 dry battery (6V)/DC5.5mm |

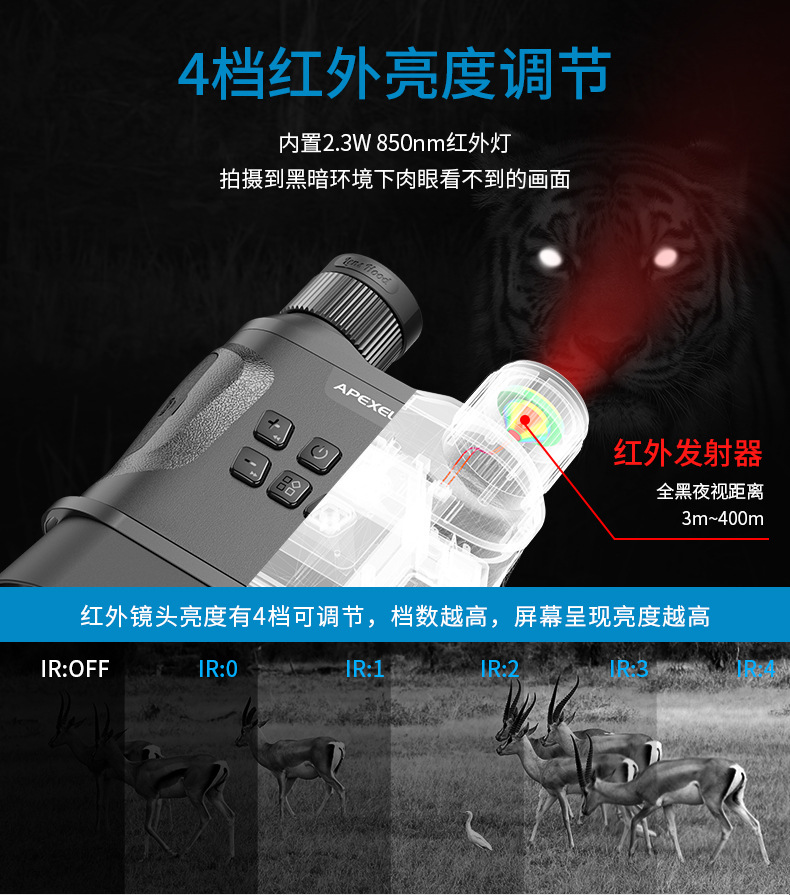

infrared emitter | max. 2.2W Power 850nm infrared lamp |

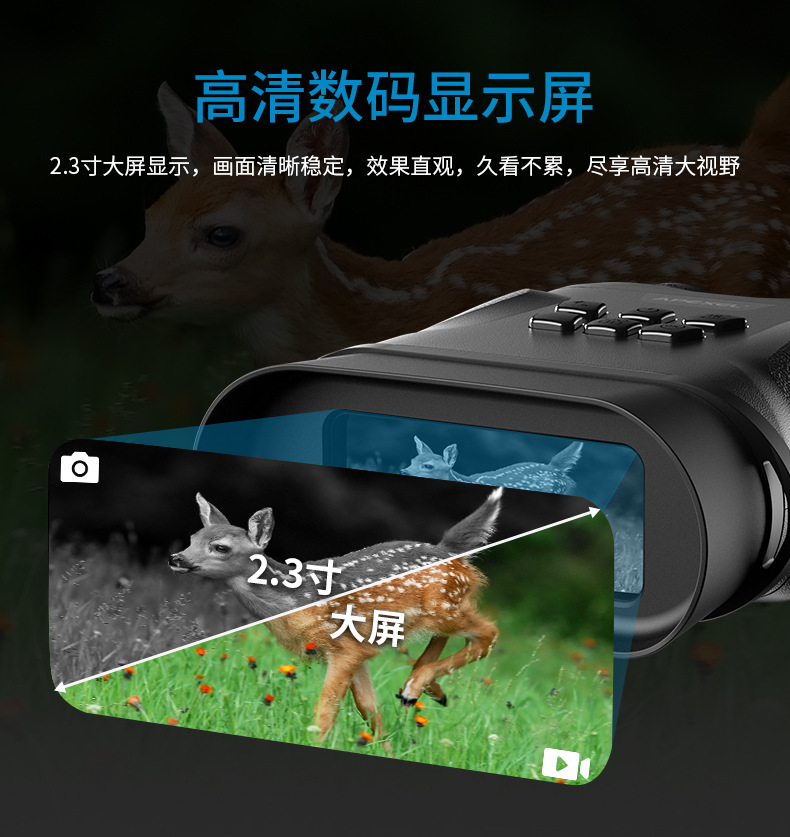

display size | 2.3 inches (320*240) |
eyepiece | single double convex glass lens K9 material 90X42MM |

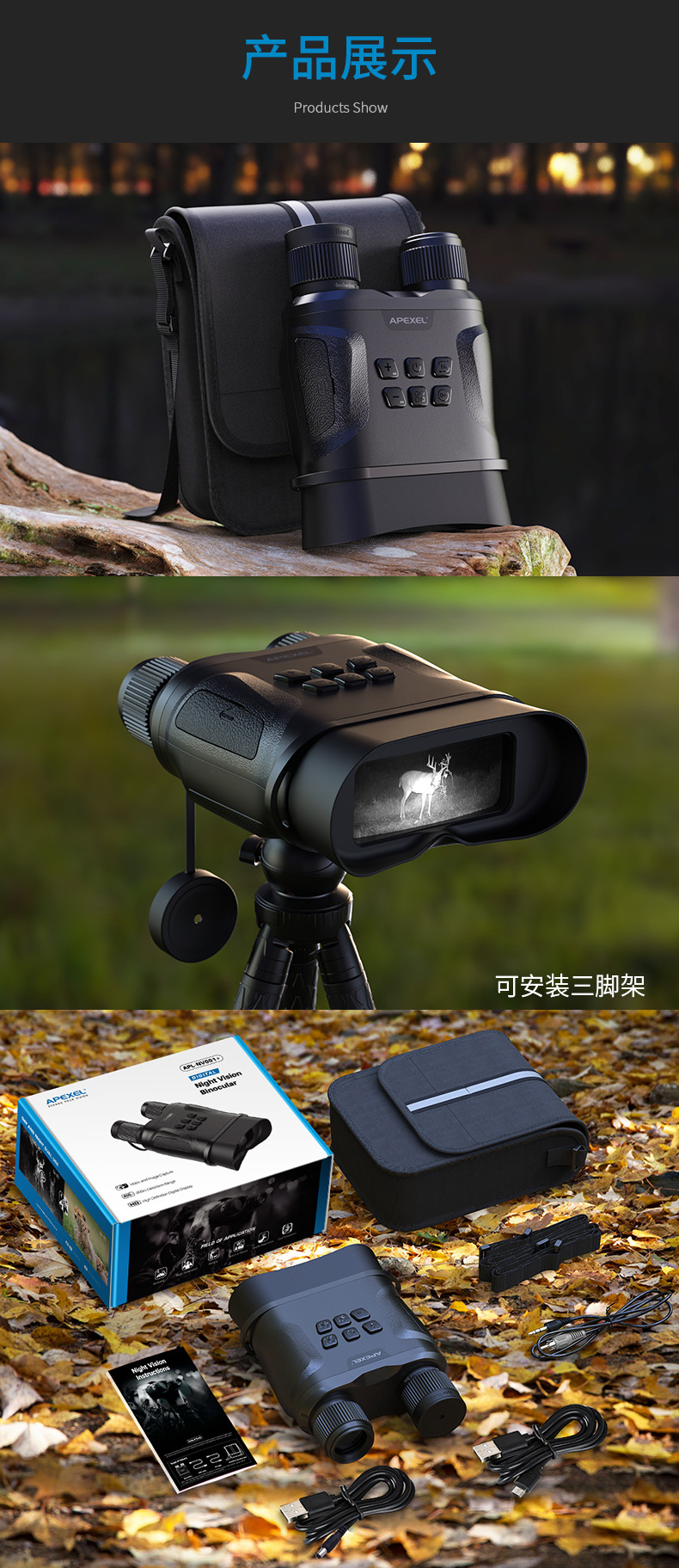

usage | double hand grip/Bracket |
operating temperature | -20 ℃ to 50 ℃ |
storage Temperature | -40 ℃ to 85 ℃ |
day and night switching mode | manual |
infrared emitter | 5 gear/2.2W 1.1W 0.3W 0.15W 0 |

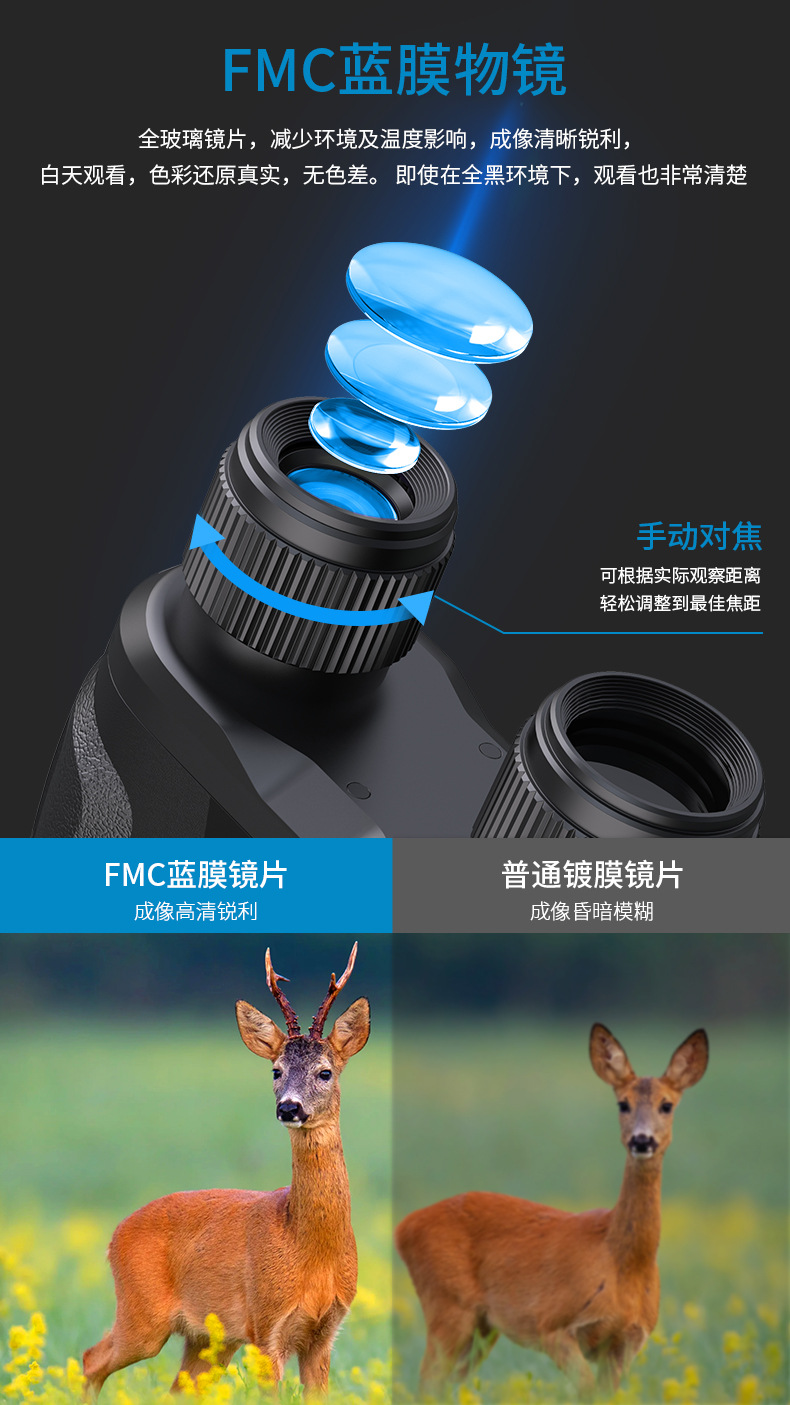

lens focusing | manual |
closest focus distance | 3M |
lens parameters | 7 ° F2.2 day and night coke |
visual magnification | 4-12X |
enable the recording time of the infrared transmitter (maximum brightness) | about180 minutes (use6 2600 mA Ni-MH batteries) |
number of photos that can be stored (4M 32G calculation) | about11W sheets |
recordable duration (press32G 1080P computing) | about95 minutes |
weight | 600g |
size | 196.5 × 154 × 64.5 |
