5 M 3V battery box set highlight El cold light clothing shoes and hats fabric backpack decoration props El Cold Light

el Cold Light features introduction El Cold Light (El wire) is also called Cold Light neon light tube. It is non-heating, waterproof, and can be bent into various shapes or patterns at will. Its there are many luminous colors, including red, green, blue, yellow, purple, orange, transparent, pink, orange, white light, etc.. Master the required wire diameter specifications include (unit: mm) Φ 0.9, Φ 1.3, Φ 2.3, Φ 3.2, Φ 4.3, and Φ 5.0.. It is a high-tech product that provides 360-degree radiation source. Its bright and soft light without radiation provides a changeable, practical, safe and energy-saving latest choice for designing new products. It has incomparable advantages over other line light sources:1. Can bend, paste or hang, can be made into any graphics, the length can be cut and installed easily and conveniently; 2. The power consumption is extremely low (cold light illuminator, electric energy 97% is converted into light energy, no heat loss);3. No ultraviolet ray, soft light, green and environment-friendly product. EL basic principle EL(electroluminescent) generates an electric field through the power supply added to the two electrodes, and the electrons excited by the electric field pongee center of luminescence, causing the transition, change, A physical phenomenon that compound causes light emission, namely electroluminescent phenomenon.

  El Cold Light parameters:

1. Working voltage: 20~220V recommended working voltage: 120V

2. Working frequency: 50~5000Hz recommended working frequency: 1500-2000Hz
3. Static capacitance: 6nf/m(20℃,RH <80℃)
4. Luminous brightness: Voltage: 120V, frequency: 200Hz ~ 2000Hz:30cd/m2 ~ 126 cd/m2
5. Power consumption: Voltage: 120V, frequency: 200Hz ~ 2000Hz:108MW/m ~ 1032MW/m
6. Service life: Voltage: 100V, frequency: 400Hz, normal temperature and humidity, about 8000 hours
7. Continuous working temperature/relative humidity:-10 ℃ ~ +60 ℃;RH< 90%
8. Storage temperature/relative humidity:-10 ℃ ~ +60 ℃;RH< 65%
9. Thread specifications: 0.9, 1.3, 2.3, 3.2, 4.3, 5.0(Online price wire diameter 2.3mm5 m long, with battery box, please contact the salesman for other wire diameter)
10. Main colors: red, yellow, blue, fluorescent green, orange, purple, pink, blue green, white luminescent light application range

11. Product function: button switch, always on/slow flash/Flash/close

12. Product packaging: OPP bag sealing packaging (blister color card packaging, plus 2 yuan/set)

product features:

★Uniform and delicate light, bright colors, rich colors, strong sense of three-dimensional and perspective, suitable for night visual observation, soft light, no irritation and glare to eyes

★Soft, foldable and curved, freely knotted, cut, spliced, without affecting the luminous performance, can be directly fixed to the surface of decorative objects using transparent tape, glue, pin, tailor's tack, etc.
★Energy saving, environmental protection and safety: This product has low power consumption, and will not cause any environmental pollution when it is used or abandoned, and will not cause danger to human body at the same time

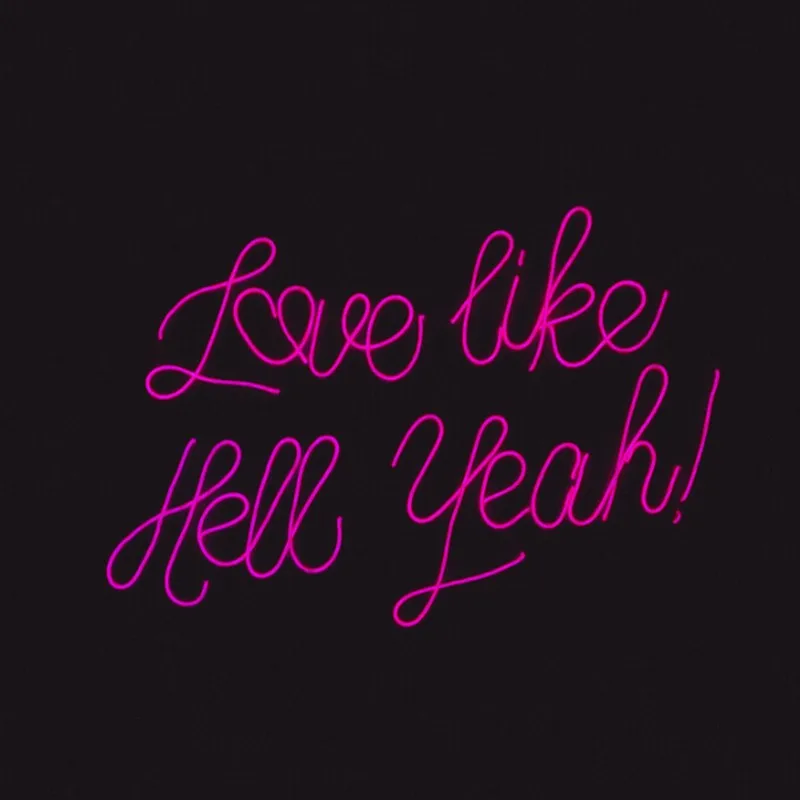

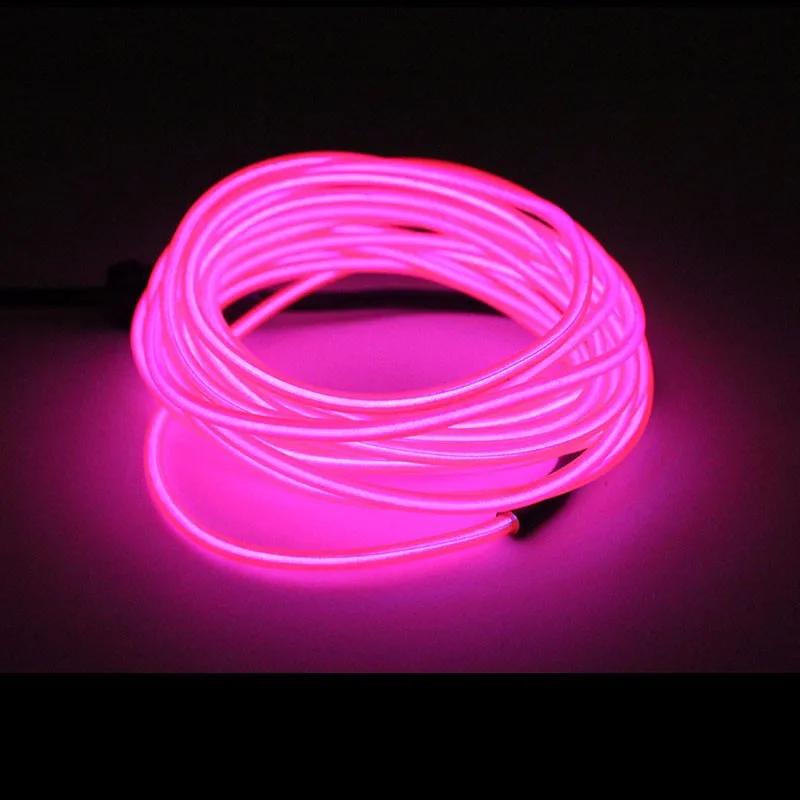

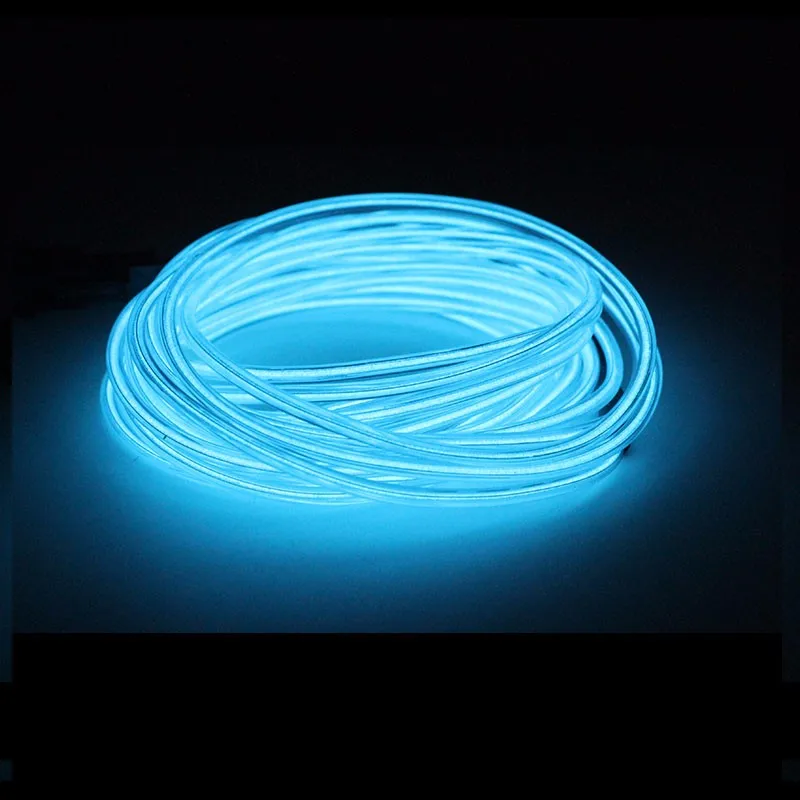

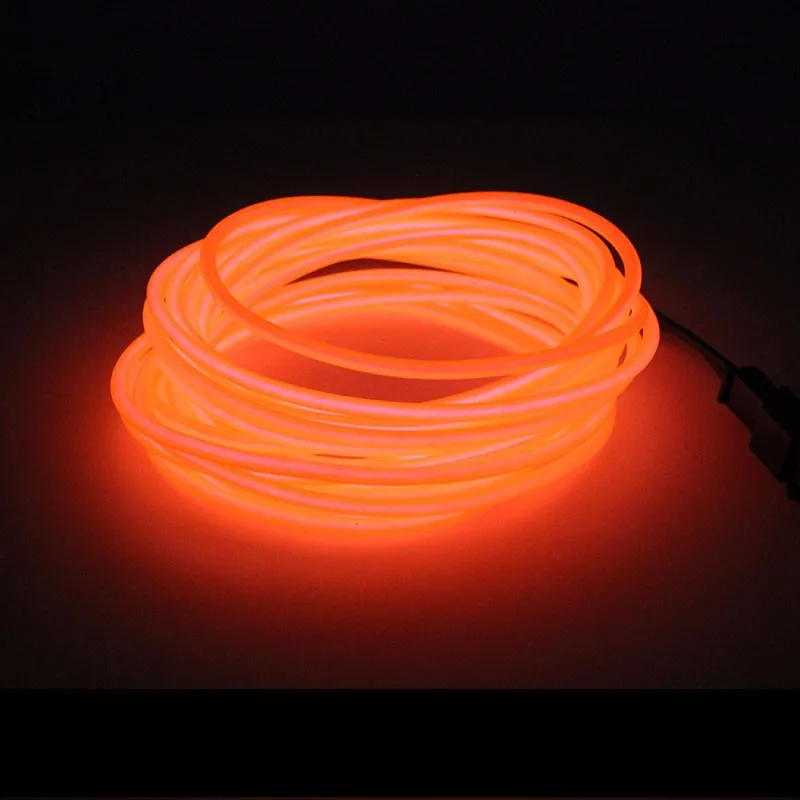

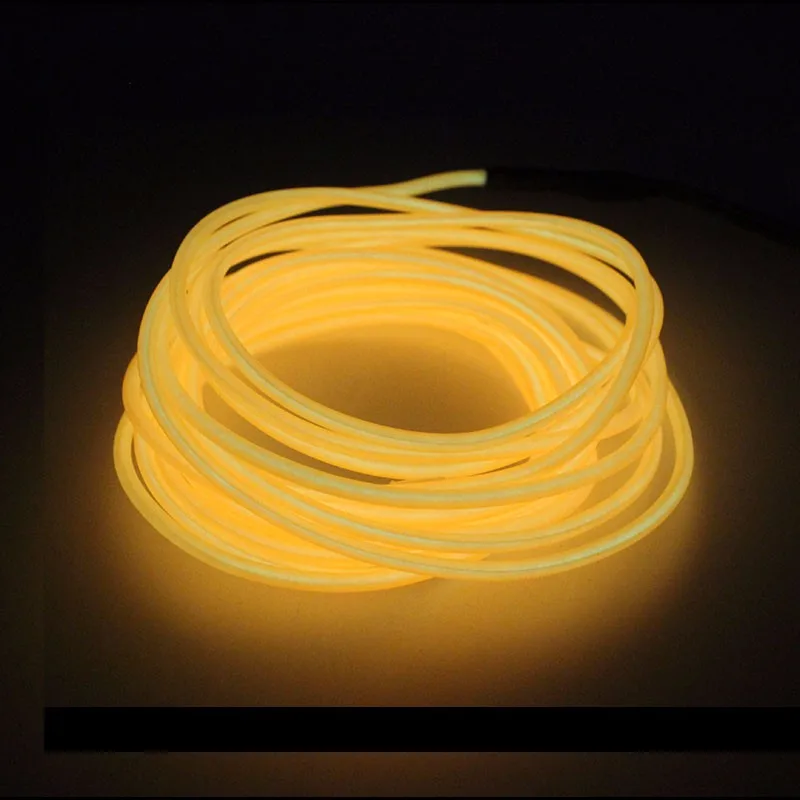

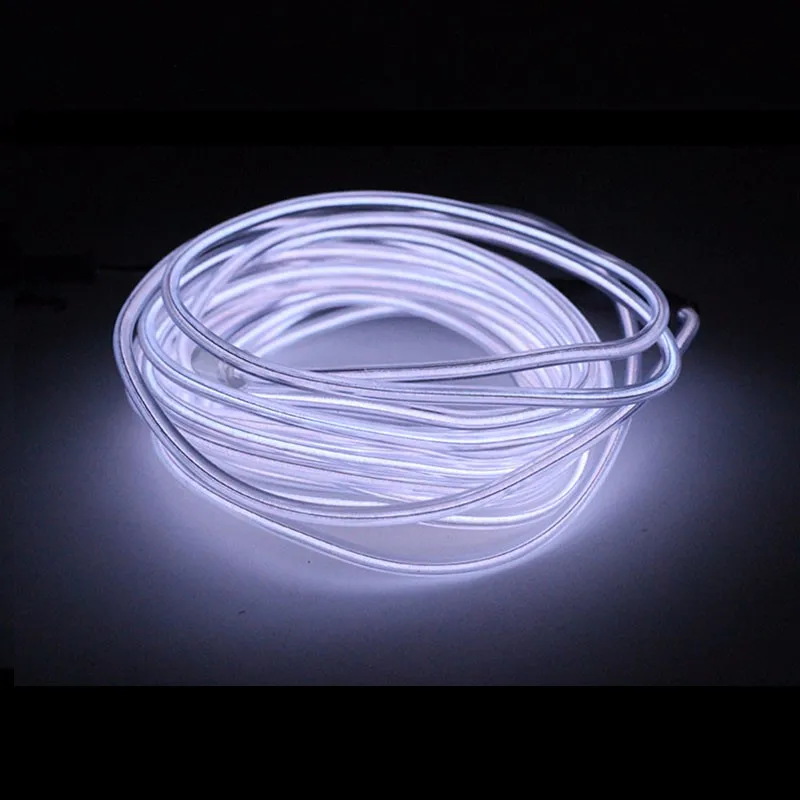

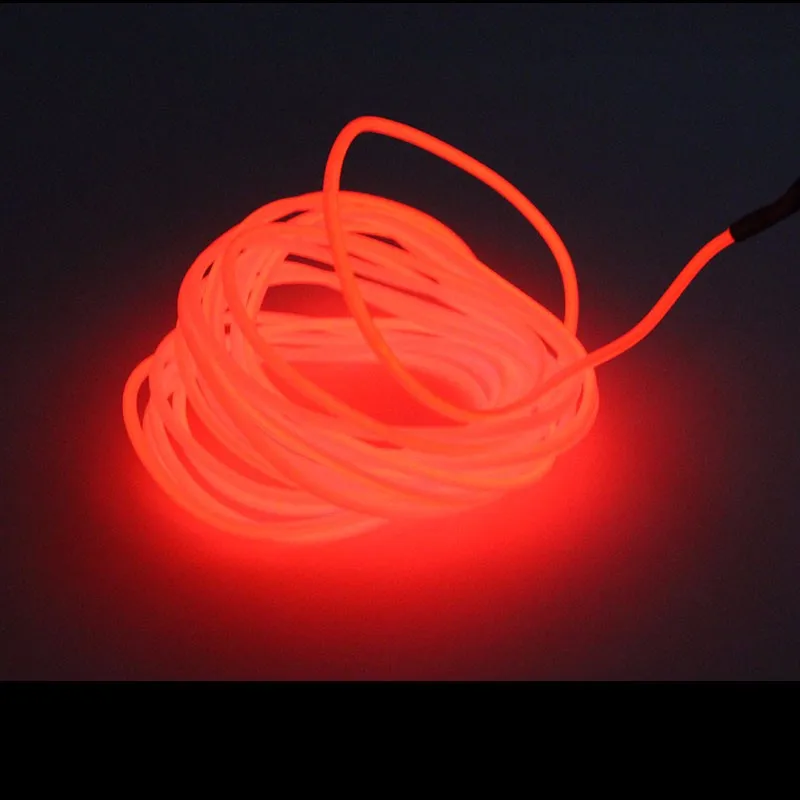

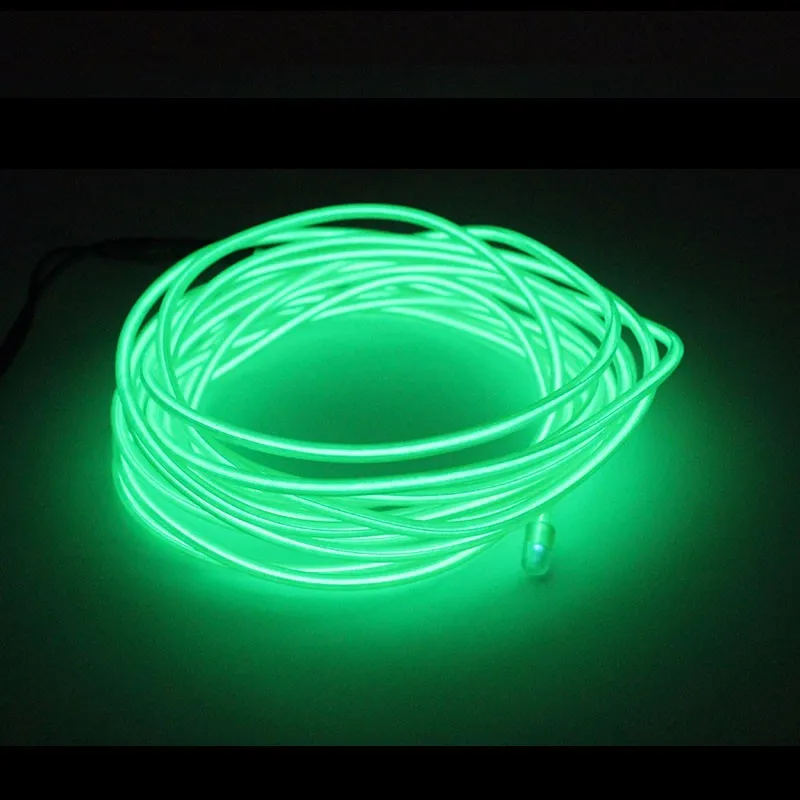

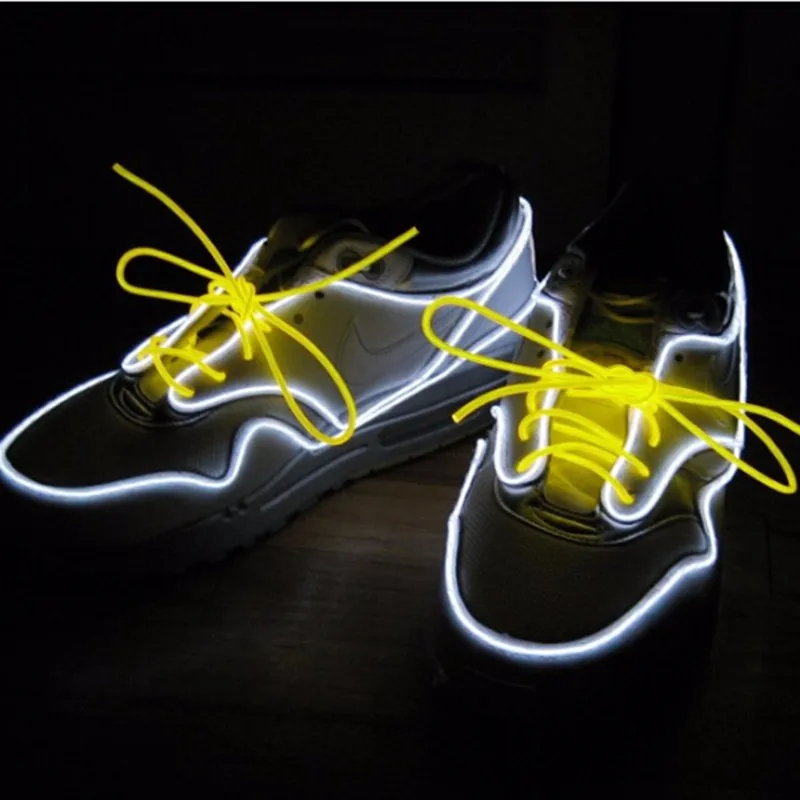

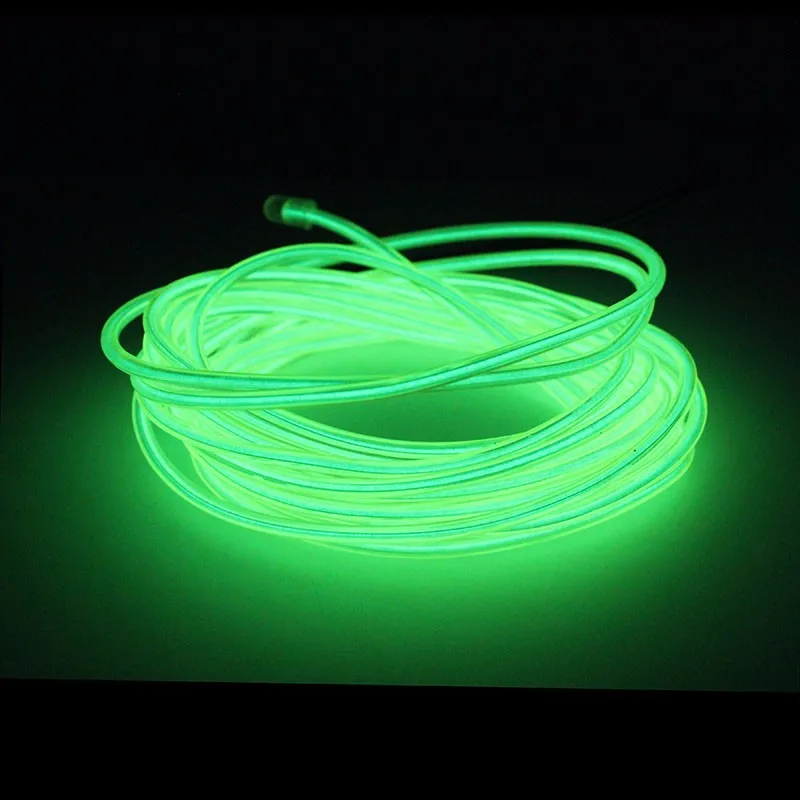

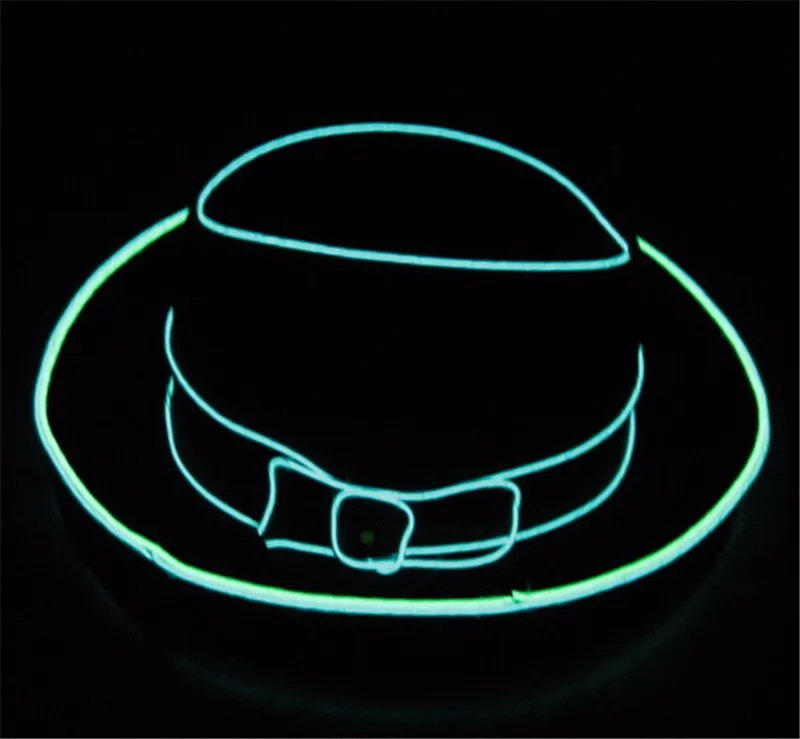

el cold light HD pictures:
