Factory QDX submersible clean water pump for irigation SHIMGE LEO DAYUAN TYPE 1inch 370 550 750w 220v with float switch

TAIZHOU CHANGHONG PUMP CO.,LTD 14yr.

Contacts:Prince Wang Chat

Mobile:86-13065952569

E-mail:prince_wzj@hotmail.com

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

Email： yiwubuy@yiwugo.com

Description
Reviews(/5)

Packaging information

CTN Size: 20 × 15 × 35 cm

G.W./CTN:7.2 kg

QTY/CTN:1 Piece/carton

QUICK DETAILS

Warranty:1 years

Customized support:OEM, ODM, OBM

Brand Name:GREATMAN

Model Number:QDX Series

Place of Origin:China

Application:Other, Family Homes, HVAC OEM, Industrial Boilers, Machining, Submersible

Power Source:Electric

Pressure:normal pressure

Structure:Single-stage Pump

Voltage:220V

Theory:Centrifugal Pump

Standard or Nonstandard:Standard

Shaft:45#STEEL

Strainer:zinc-plated

Winding:cooper

OEM:available

Certification:RoHS,ce

Supply Ability:10000 Piece/Pieces per Month

Packaging & Delivery

Packing in seaworthy cartons

Port:Any port in China

PRODUCT SEPCIFICATION

Product Specifications		Packing&Shipping
Model No.	QDX	MOQ	200Pcs
Power	0.5HP	Logo	GREATMAN,or OEM
Voltage	220V	Packing	Carton package
Frequency	50HZ	Warranty	1 Years
Max.Flow	36l/min	Payment Term	T/T,L/C.Any pay way can support
Max.Head	35m	Delivery Term	35-40 days after receipt the advance payment
Inlet/Outlet	1"*1"	Loading Port	NINGBO,SHANGHAI.According to customer's need
Cable	30cm	Sample	Sample available, you can make trial order to check the details first

Within complete Q.C team and professional equipments, we running efficient well organized computerized systems that ensure products the quality and strict operating 100% online testing.

MATERIAL TABLE

No.	COMPONENTS	MATERIAL	No.	COMPONENTS	MATERIAL
1	Handle	PP	2	Pump body	HT200
3	Top cover	HT200	4	Motor casing	Aluminum
5	O-ring	NBR	6	Mechanical seal	AISI 304SS
7	Impeller	PPO	8	Bearing	Normal
9	Outlet	cast iron	9	Motor shaft	Steel 45#

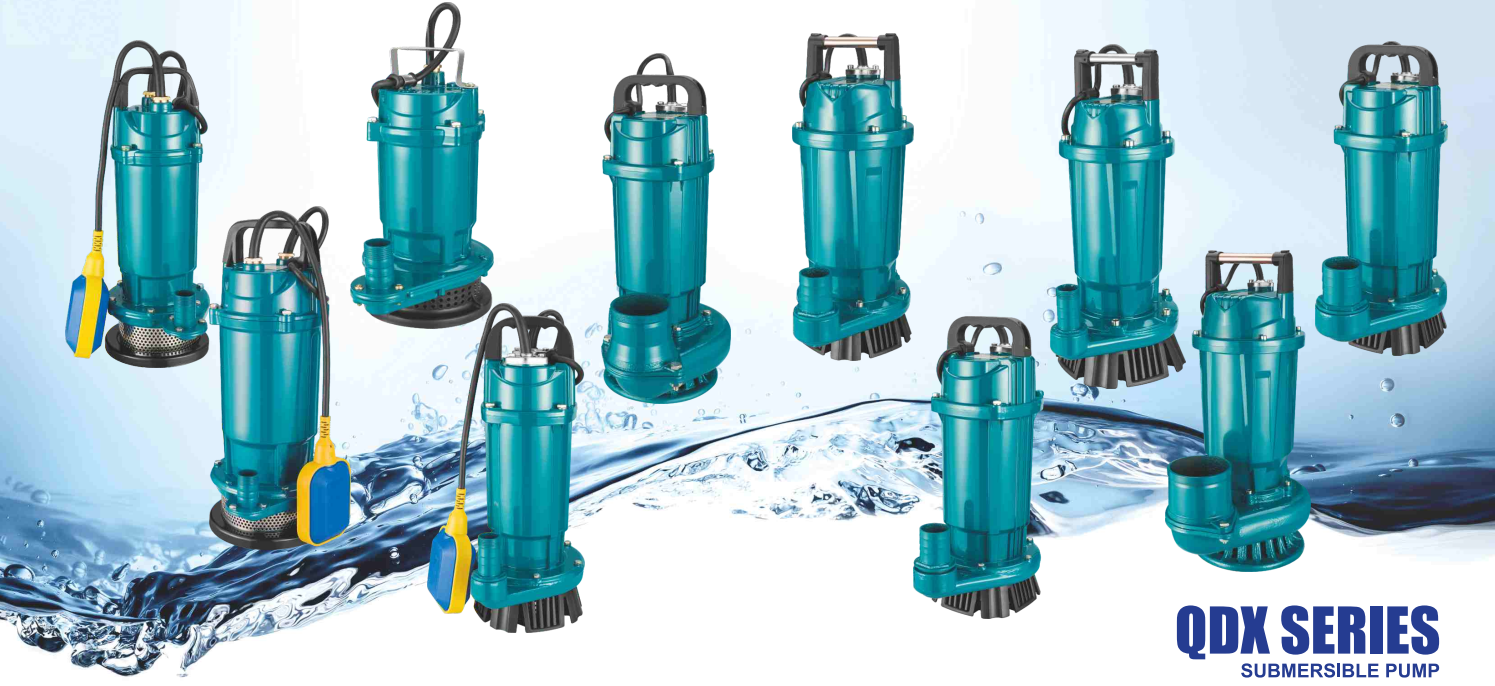

MORE TYPES

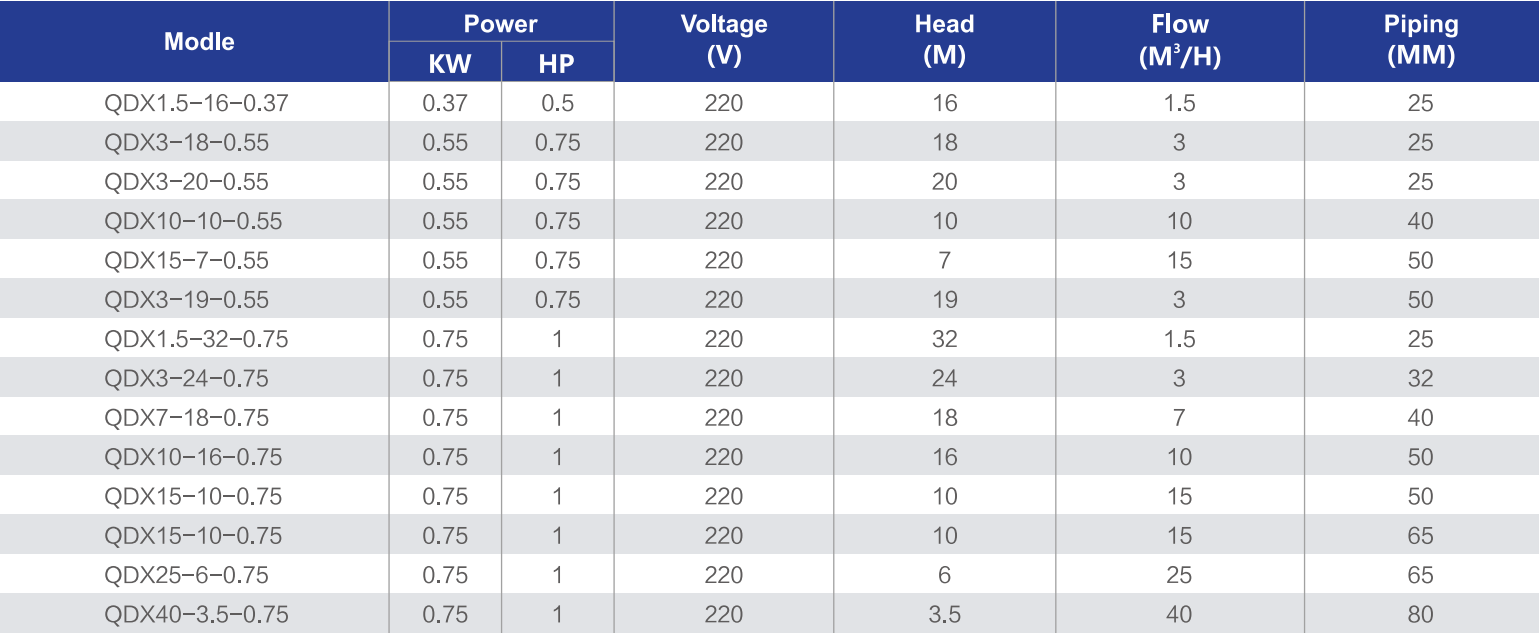

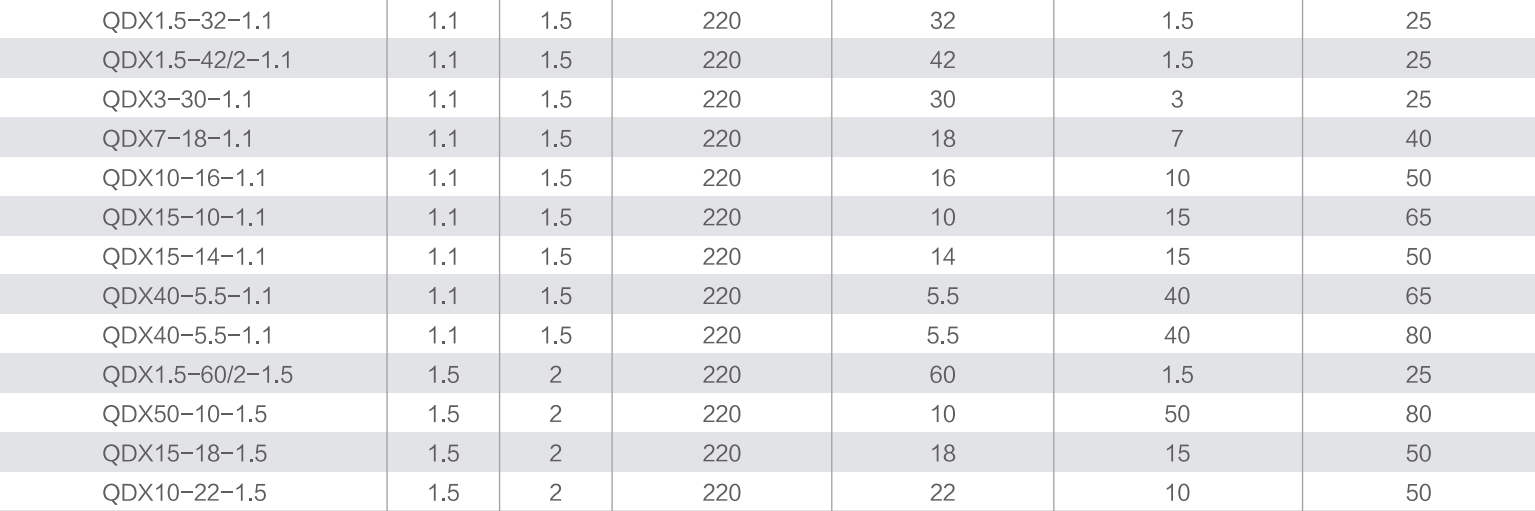

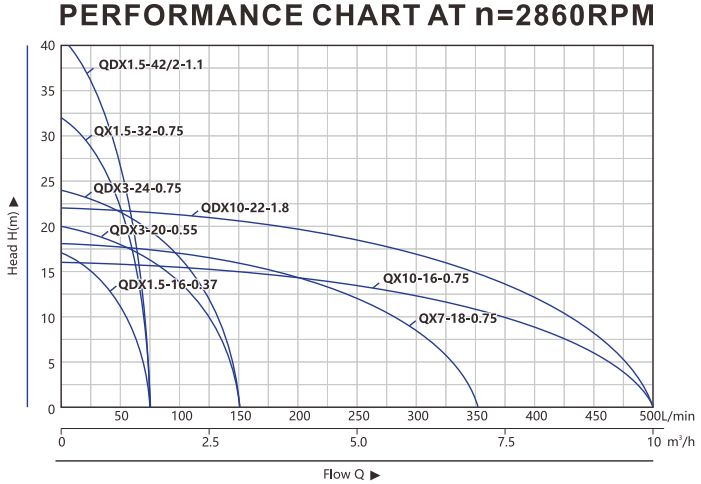

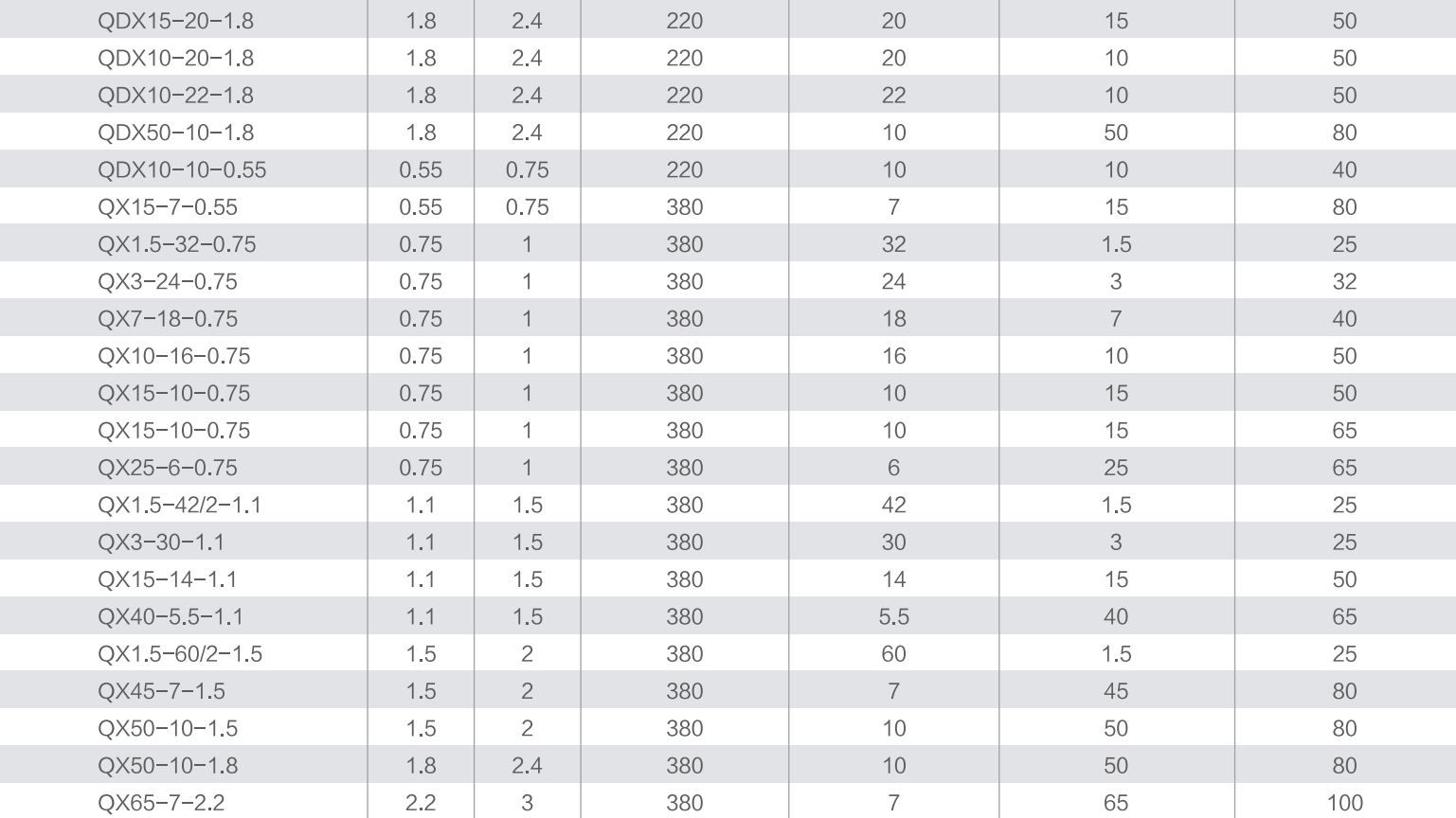

TECHNICAL DATA

Update time：20220525150905
