procurement instructions
this product is a private model, patented product, ultra-long life battery up to 50 minutes, wireless portable, 4800 MAh large capacity battery, KC, ETL, CE, PSE 3C complete Foreign Trade Certification, the product overview of this hair straightener and straight comb is as follows:

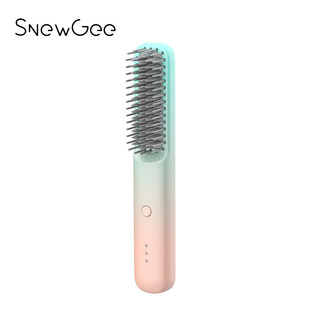

model: GM-WS7
safety, full standard: KC, ETL, CE, and PSE 3C
configuration: bare Metal + color box + manual

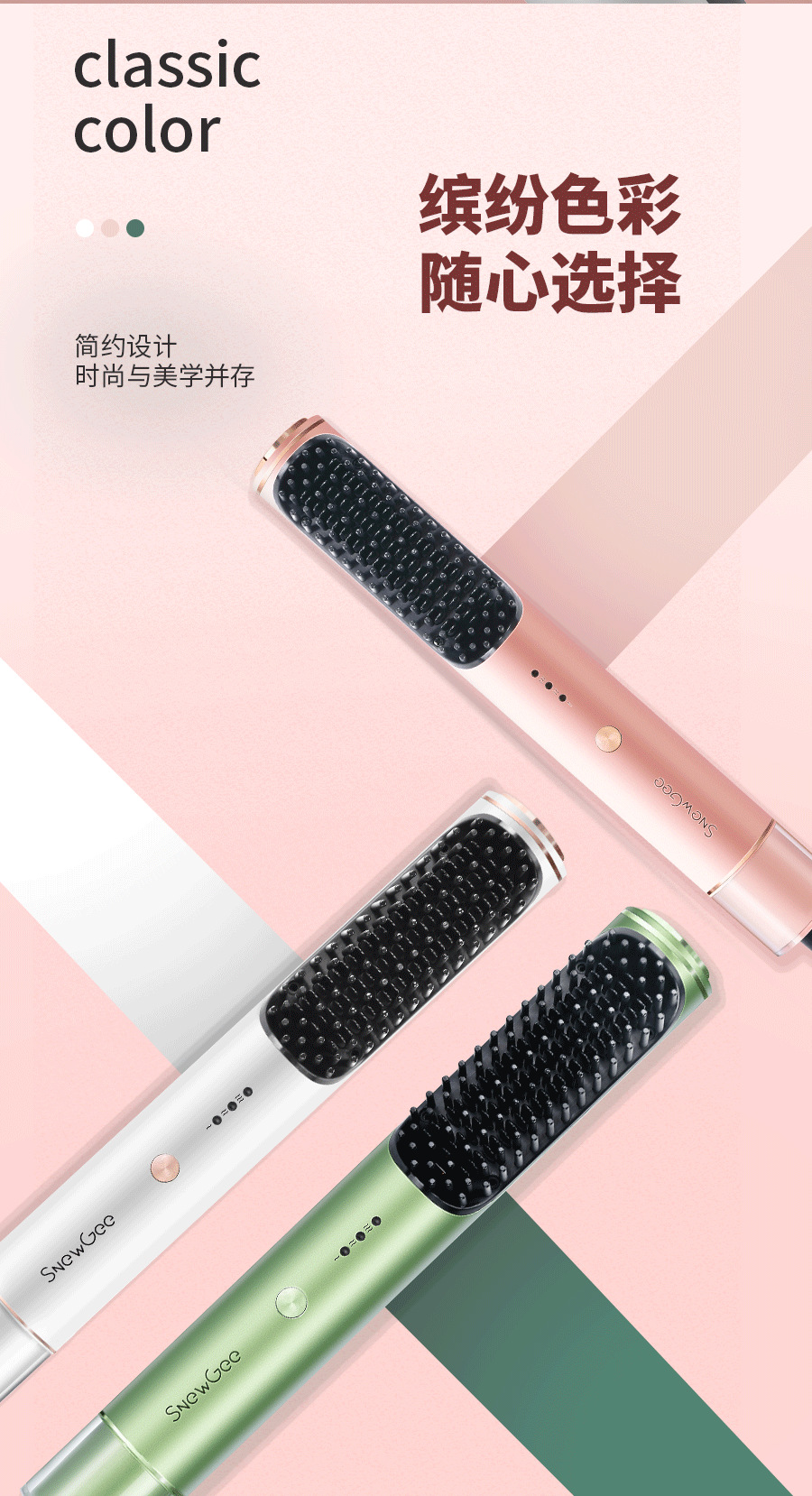

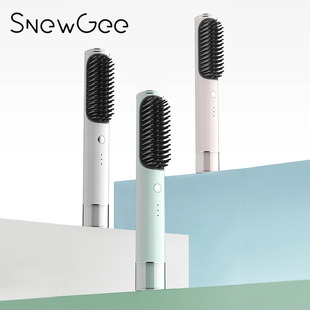

color: white/pink/retro green/black (customizable)
well fixed parameters number: rated input voltage: DC 5v 2A or more
battery: 21700 3C power battery, parallel voltage 3.7V capacity 4800mAh,(4500-5000mAh mixed, with high and low voltage protection)

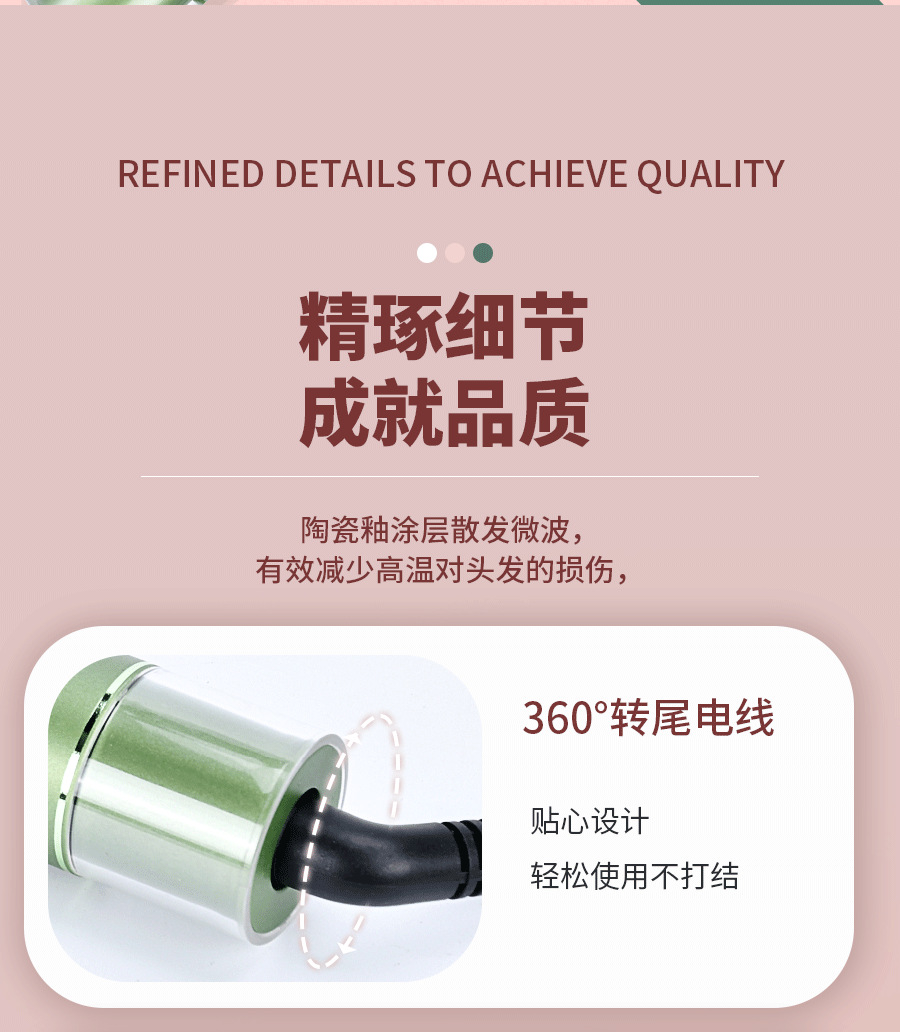

lead: RVBBER AWM I A/B 150°C Black negative pole, red positive pole, outer leakage length L = 35mm, wire outer diameter 3.0mm
MCH specifications: 60*20*1.3mm/resistance 0.3 Ω/pure nickel wire long 80mm line through 1.0mm/set Teflon hose long 75mm
NTC: R:100KΩ±5%, B =3950
gear function: The product has a main power switch. When the switch is turned ON, it is turned ON. The Machine enters the gear selection mode. At this time, the gear indicator light will flash. Press the switch key to select the gear, after selecting the gear, the gear indicator will continue to flash to the specified temperature, and the light can be used when it is always on.
On/Off function: toggle switch to ON, product power ON, toggle switch to OFF, product power OFF

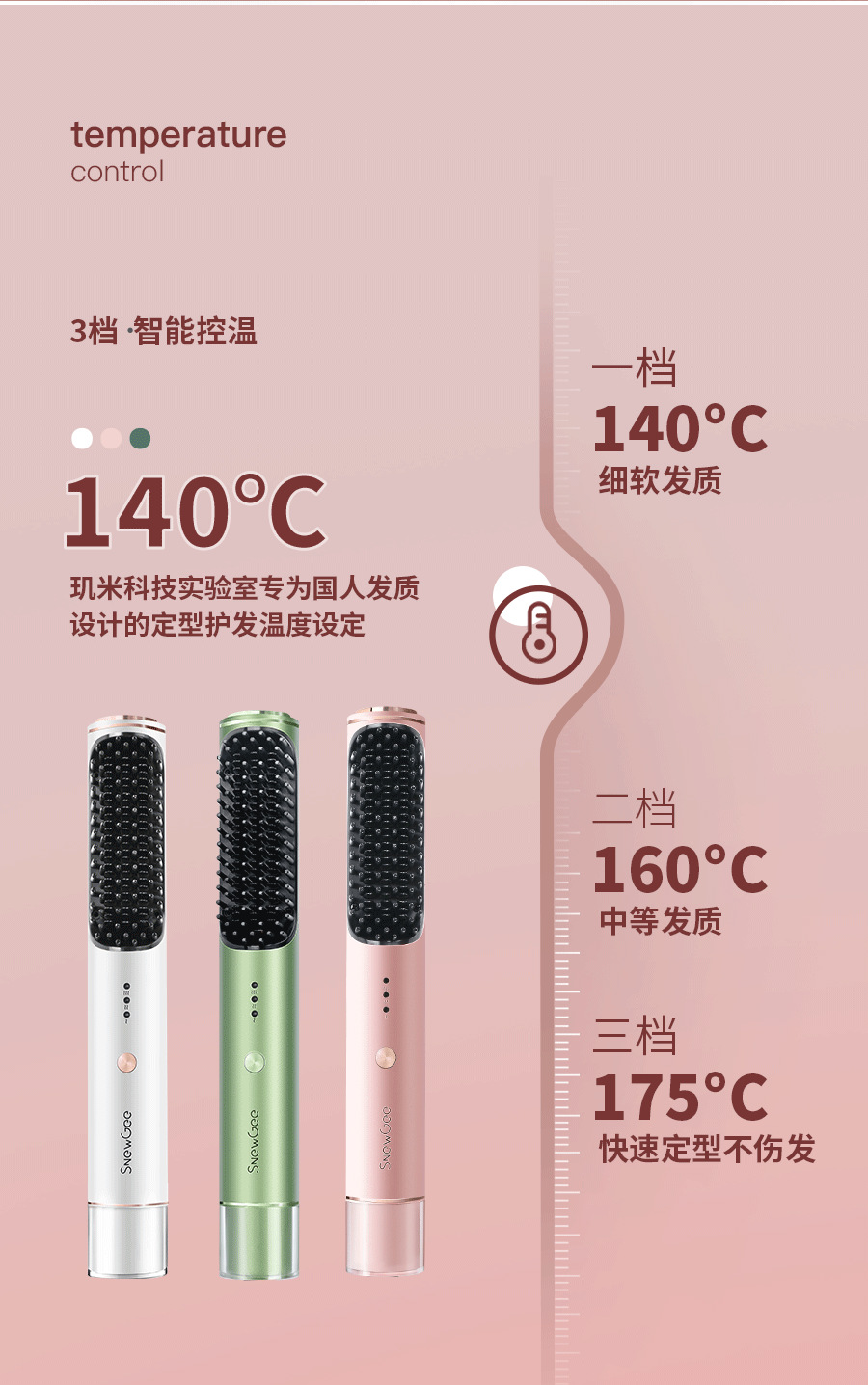

temperature gear: Celsius degree: 1 gear -- 145 ℃;2 gear -- 160 ℃;3 gear -- 180 ℃ (actual temperature 175-185 degrees, ± 5°C
gear switching: After starting up, gently press power button "3 temperature gears to cycle +"/"-",(145 ℃-160 ℃-180 ℃-145 ℃) such cycle, the default setting temperature for startup is 160℃ (without memory function)
display mode: three LED lights display represent three gear positions respectively, and the color is white. After selecting the gear temperature, it will flash until the temperature is stable.
Temperature control error: difference between actual measured temperature and displayed temperature: ± 5 ℃

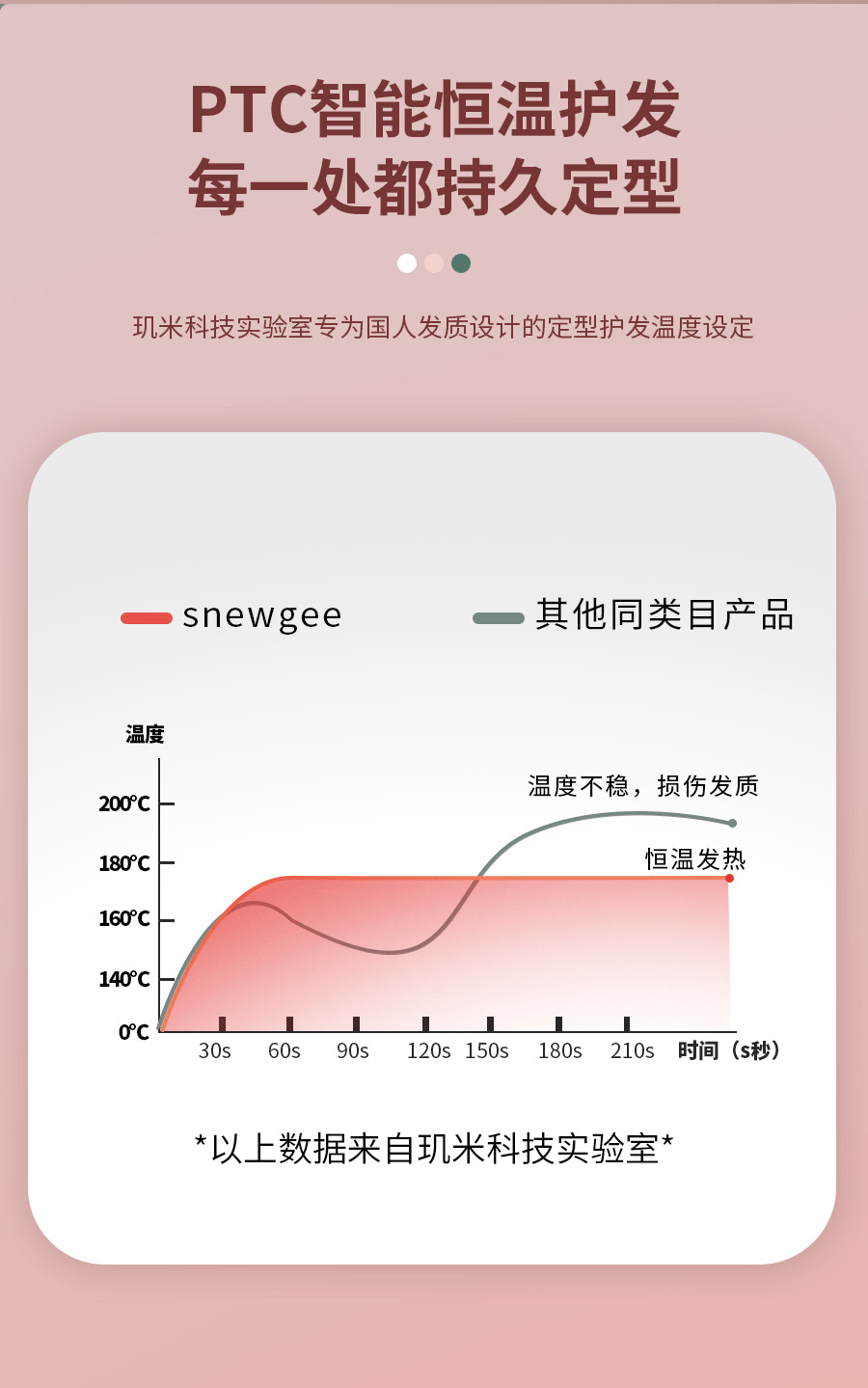

heating rate: when it is adjusted to three gears after startup, the surface temperature of the root of the middle comb tooth is more than 180 ℃ in 3 minutes, and the high temperature of zui is 195 ℃.
Charge and discharge protection: when the protection voltage is 4.2V, the white power light is always on while the power is off and the work is stopped. When the discharge reaches the protection voltage to 2.5V, the three gear indicator lights flash at the same time, power off and stop working. (Protection based on actual voltage)

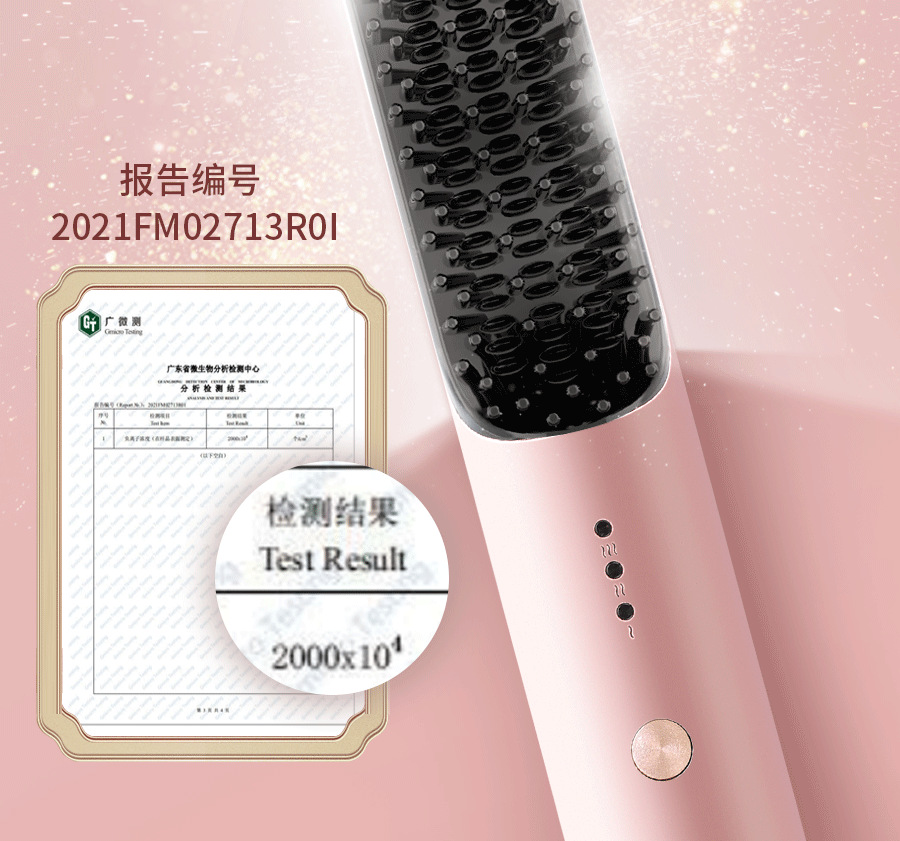

anion:20 million/M3 (20 million zui high customizable/M3)
charging current: 2A, full time about 3 hours
charging display: Insert the TYPE-C plug to enter the charging mode immediately; The gear light starts to flash from the low gear to the gao gear and cycle repeatedly. Until the battery is full of white light constant
automatic shutdown function: the timing starts after the low gear (160 degrees) is turned on, and the machine automatically stops working after working for 20 minutes (± 1 minute).
Normal working environment temperature:-10~50 degrees Celsius
meet safety standards: KC, ETL, CE, and PSE 3C
factory direct sales
recruit distributors, domestic brands, and cross-border e-commerce, and support OEM and ODM customization. After meeting the MOQ customization requirements, support product body color change and LOGO, manual and packaging box printing content customization, at present, some products in the store are not in stock. For more information about the spot situation, please consult Wangwang customer service or contact directly: mr. Xu mobile phone number:13380240311
