Quick Details

Brand Name:GREATMAN
Model Number:JET-100B
Place of Origin:Zhejiang, China
Application:Irrigation and Agriculture, Water Distribution, Water Treatment Solutions
Horsepower:0.6HP-2.5HP
Power Source:Electric
Pressure:5.8BAR, High Pressure
Structure:Single-stage Pump
Cable Length:30CM
Outlet Size:25*25MM
Voltage:220V/380V
Power:0.45KW-2.2KW, Electric
Usage:Water

Theory:Jet Pump

Standard or Nonstandard:Standard

Product name:self-priming jet pump
Certificate:CE /EMC/TUV/GS
Color:Customer Specifications
Warranty:18 Months
Fuel:electric
Certification:CE

Packaging Details:Carton, 1pcs/ctn

Port:Ningbo

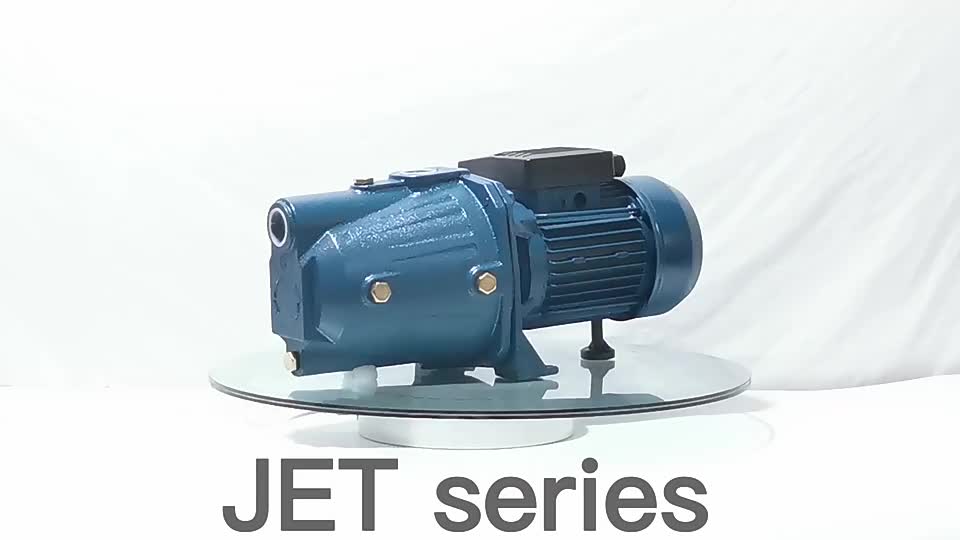

Widely Applicable home use self-priming JET-100L water pump

Products Description

JET-L series are suitable for pumping clean water.

They are particularly suitable for domestic applications such as supply water from well,pool etc,the automatic distribution of water by surge tanks and pressure switch,gardening,and increasing of water pressure.

PRODUCT SPECIFICATIONS

OPERATING CONDITIONS

►Max Suction:9M

►Max Liquid Temperature:50○C

►Max Ambient Temperature:+45○C

PUMP

►PUMP BODY : Cast iron

 ►IMPELLER : Brass/PPO/Stainless steel

 ►FRONT COVER : Cast iron

 ►DIFFUSER Nory1/PPO

 ►MECHNICAL SEAL : Ceramic,graphite and rubber

MOTOR

►Built-in thermal protector for the single phase motor

 ►INSULATION:Class B/Class F

 ►PROTECTION:IP44/IP54
