Brass Ball Valve Miniature Electric Valve L-Type Two-Way Three-Way Electric Ball Valve Dc24v220v 中文版

Brass Ball Valve Miniature Electric Valve L-Type Two-Way Three-Way Electric Ball Valve Dc24v220v

QR code0

[Scan the QR code, view in your mobilephone.]

Updated: 2023-02-25 18:51

EXW Price:

CN ¥ 145 ~ CN ¥ 184 /pcs

The price for this item is to be negotiated. Please contact supplier for further information.

Send Inquiry

Contact

JISUN 13yr.
Main Products:	water tap,valve,shower nozzle
Contacts:	cattleyaChat
Mobile:	86-15067916262
WhatsApp:	+8615067916262
E-mail:	646601471@qq.com
WeChat:	+8615067916262
Address:	19223 , 4 F, 30 Gate, International Trade Mart (District 2).

Click To Contact Yiwugo's Partner To Get Trade Service

Description

Other Products more >>

Pre-purchase instructions

Due to different regions or different logistics methods, please contact customer service before payment to change the freight. Thank you for your support.

QQ图片20151006153310_副本2132

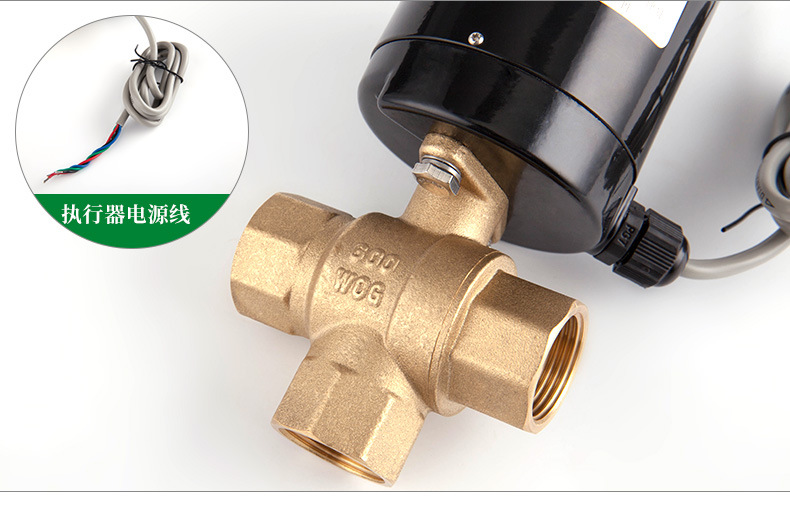

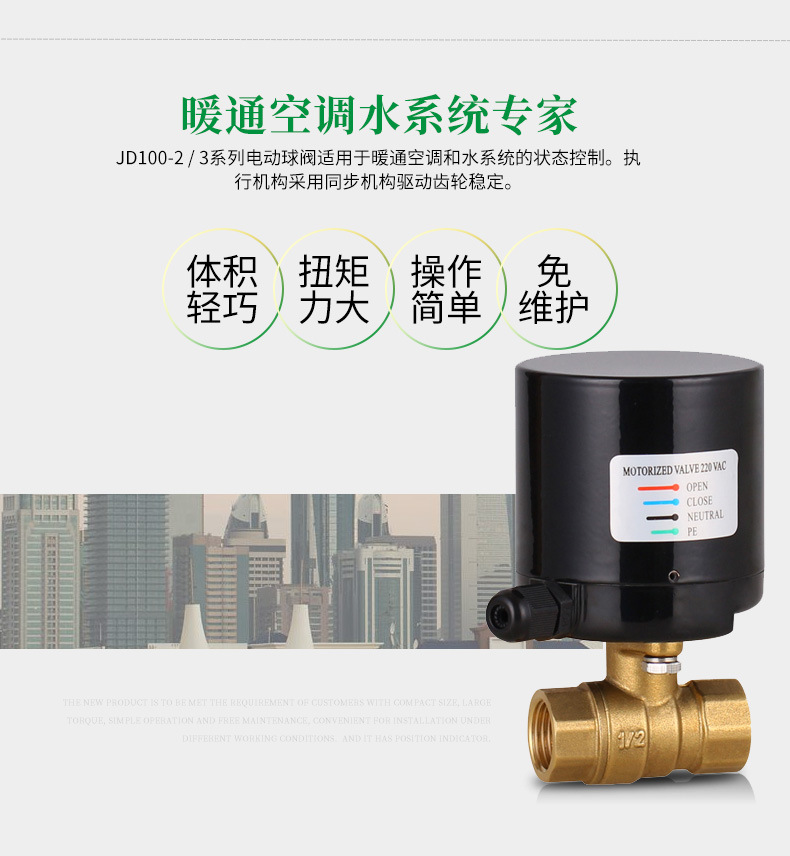

1. Adopt three-wire system or five-wire system, convenient wiring, and can be used with BA system;

2. Fully sealed structure of actuator to prevent short circuit caused by humidity;

3. The motor consumes electricity only when it is running and will not cause overheating;

4. The valve is automatically compressed and sealed, and the seal has the function of automatic compensation;

5. Adopt floating ball and double O-ring structure;

6. The motor has a temperature protector (overload device). When the temperature of the motor reaches 100℃, the actuator will automatically shut down.

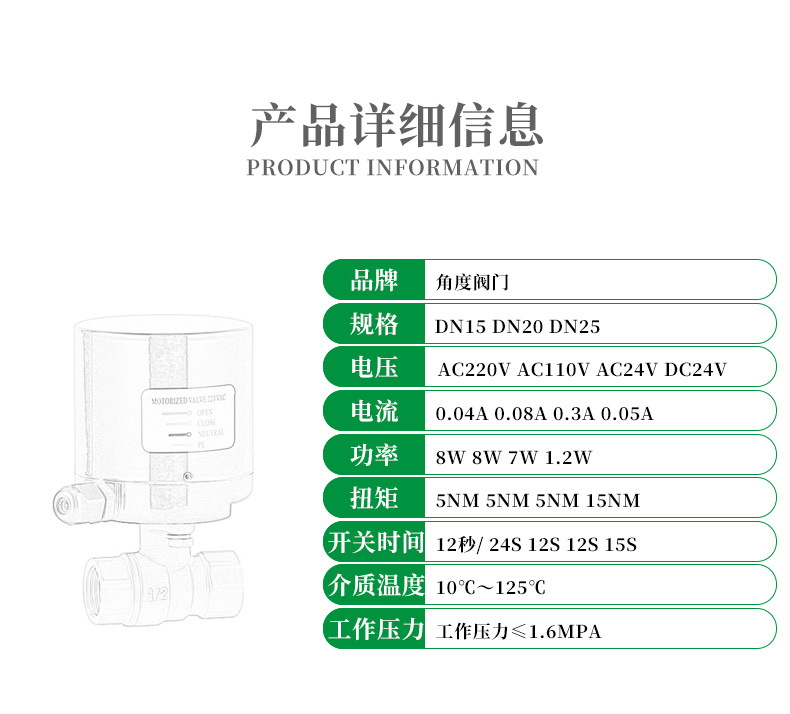

Performance:

1. Power supply: 220V AC/ 110V AC/ 24V DC/ 12V DC

2. Rated current: 0.07A/0.1A/0.12A

3. Motor torque: 4 ~ 16NM

4. Damp test: 90% no Dew (EN60730-1)

5. EMC (electromagnetic compatibility): ce certified

6. Running time: 45s/8s/18s/15s

7. Operating Temperature:-10 ℃ ~ 125 ℃(GH100-1 & GH100-3)

8. Pressure level: PN16(1.6Mpa)

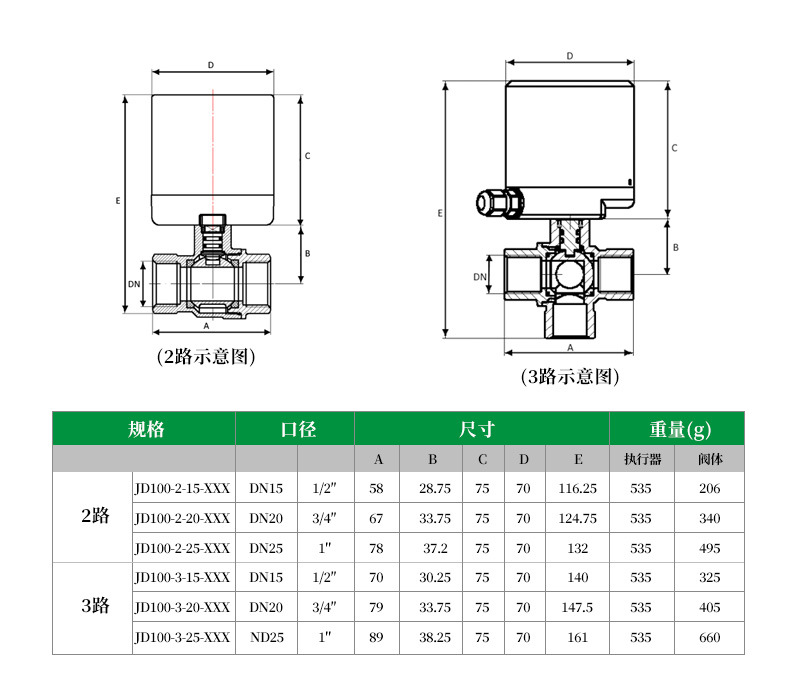

9. Valve caliber: DN15,DN20,DN25(GH100-1 & GH100-3) DN20,DN25(GH100-2)

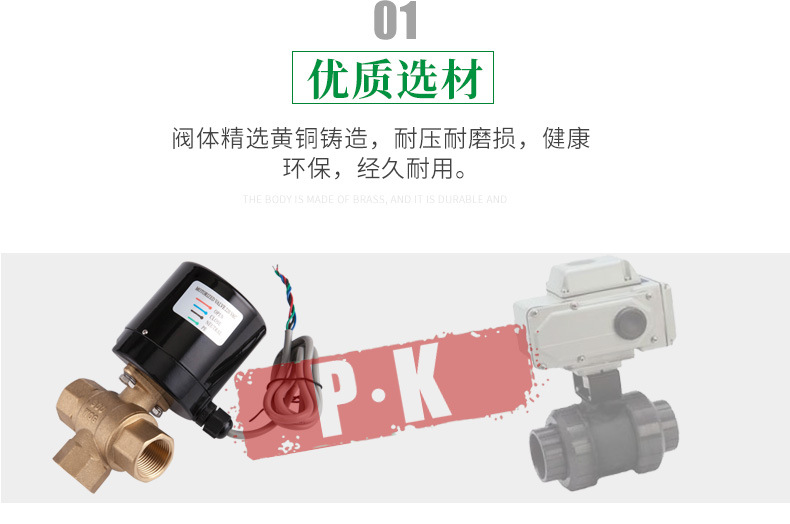

10. Body material: Brass Chrome (GH100-1 & GH100-3)

Product quotation
