Product model: CZK-3632 - analog dial version or digital display version (default to analog dial version upon purchase; please contact customer service before ordering for the desired specification)

Specification: Charging Digital Display Model

Product power: 120W

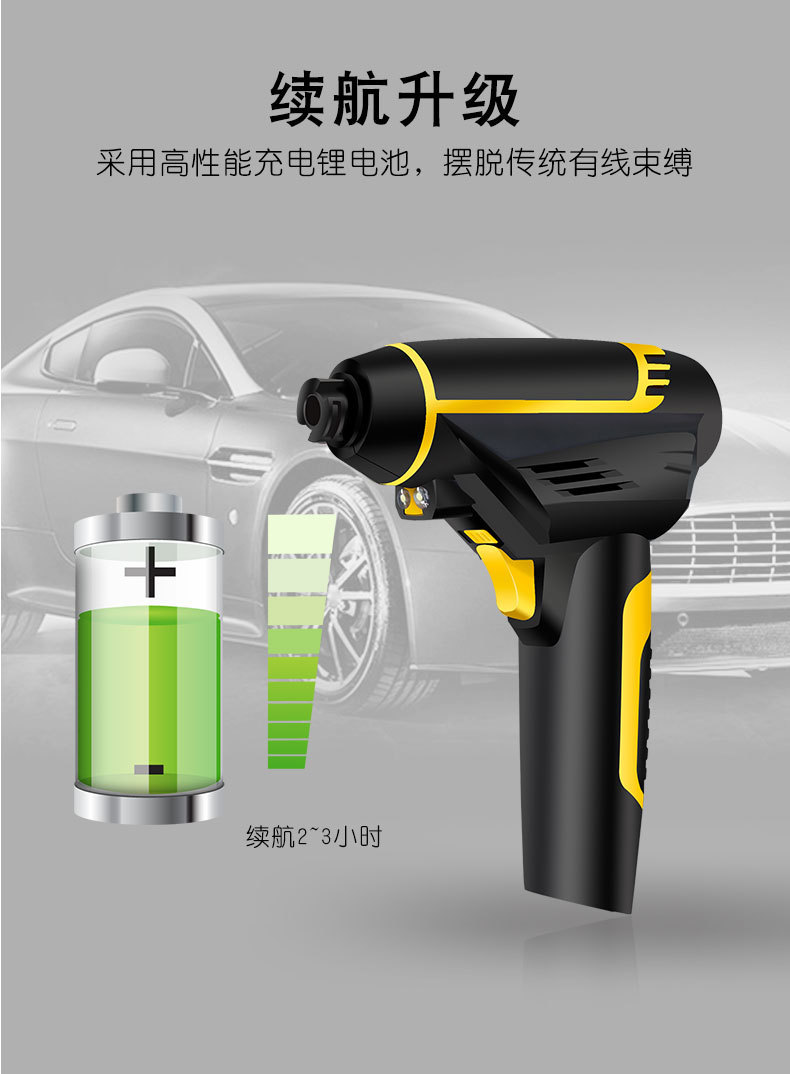

Battery specification: 18650 battery * 2200mAh * 3 pieces, 11.1V

Adapter Voltage: Output 12.6V, Input 100-240VAC

Charging time: 3 hours Inflation time: 4 minutes and 30 seconds One charge: Can charge 3 tires About 35 minutes

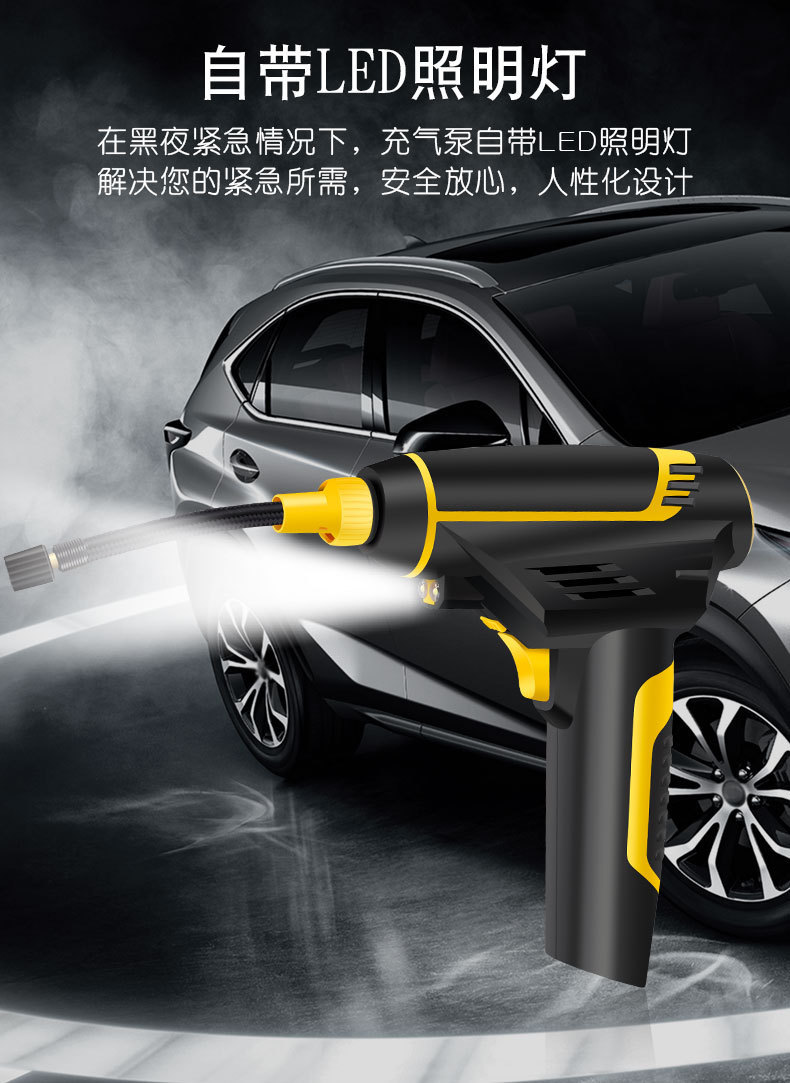

Product features: Inflation / Lighting / Auto-start and stop (digital display model)

Product weight: 1.14kg/unit 19kg/case

Color box size: 27*22.7*7cm External box size: 60*47*33cm (53.5*42.5*32.5 without inner lining)

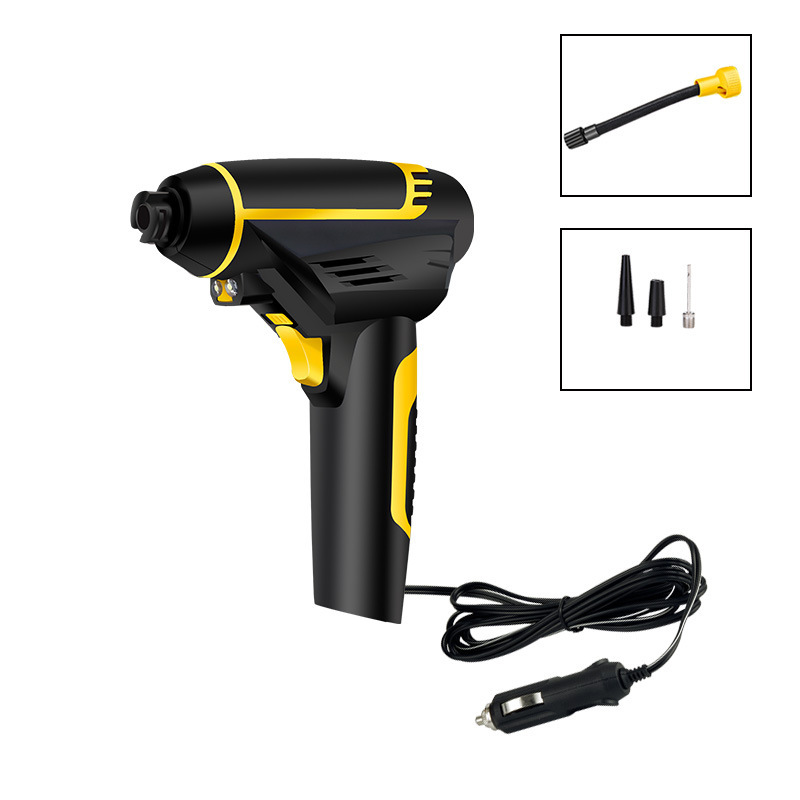

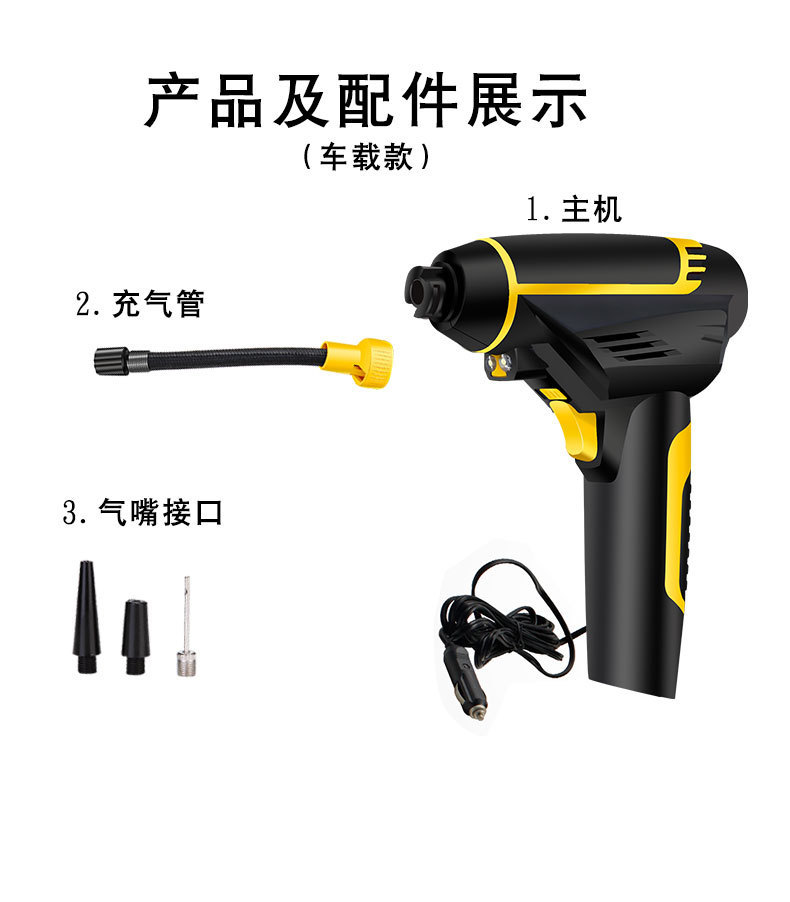

Specification: Car-mounted digital display model

Product power: 120W Cable length: 3 meters Product features: Air filling / Lighting / Auto on/off (digital display model)

Packing Quantity: 16 pieces/case

【Safety Manual】

1. Please start the car engine before use to enhance the power supply, without consuming the car battery power.
2. This machine is limited to use a direct current (DC12V10A) power supply and cannot be used with household high-voltage power.
3. When inflated, please take a 10-minute cooling break after continuous operation to extend the motor's lifespan. For rubber boats, you can continue to operate for 30 minutes.
4. Generally, it takes about 3-6 minutes to reach a normal tire pressure of 220KPA when inflated. Large tires will take longer. If the gauge needle rapidly rises when starting to inflate, it indicates that the air has not been properly pumped into the tire. You must stop the operation and start over, or the gauge and motor may be damaged.
5. When using, do not leave the machine unattended, always pay attention to the tire pressure, and do not allow it to be too saturated.
6. If the car's ashtray is not clean and non-conductive, or if the fuse burns out, the machine cannot operate normally. Please ensure that the ashtray is conductive.
7. This machine should be avoided from moisture, heavy falls, and sand and mud intrusion. It should not be played by children to prevent damage.
8. If there is a stoppage phenomenon when using, it is due to the point-of-use cigarette lighter's insufficient power supply or the cigarette lighter's power-off protection. Our shipment's current detection is above 12A. If this situation occurs, you need to purchase a battery clamp to connect to the battery.
9. (This is very important) The machine starts with a large current. Please do not turn on the power switch when the tires are connected, or it may cause the car's fuse to burn out due to the excessive start-up current. The correct operation is to turn on the power first, wait for the air pump to start working normally, and then connect the tires to inflate. If you need to turn off the power and turn it on again during the operation, you should also remove the air nozzle before turning on the machine, or it may burn out the car's fuse.
