WMC1803 children's bath thermometer manual
Version 3.0(Please read the instructions carefully before using)
parameter:
- ● brand: wenmei test
- ● movement model: WMC1803
- ● temperature measurement range:0~60 ℃/32 ℃-140 ℃ (below 0 ℃ will be displayed L L.L, higher than 60 ℃ will be displayed HH.H)
- ● measurement accuracy: ± 1 ℃, resolution: 0.1 ℃/0.18 ℃
- ● high temperature prompt range: higher38℃(Available in38 ℃ ~ 41 ℃ adjust between, default38℃)
- ● low temperature prompt range: below or equal32.9 ℃
- ● battery: two tablets LR44 ( or AG13) button battery, can be used for about half a year
- ● product material: plastic, electronic components
function:
- ● the water temperature of the bathtub can be measured. When the water temperature is too high or too low lamp light flashing alarm prompt
--- when the water temperature is too high, there is a red backlight flashing prompt and in display in the upper left corner of the display screen" HOT the character.
(You can set it yourself high temperature prompt temperature point)
--- when the water temperature is too low, yes yellow backlight flashing prompt and in display in the lower left corner of the display" COLD"Character.
--- suitable for water temperature range, yes green back light display show and current water temperature.
- ● ℃/F easy unit switching.
- ● power off or replace the battery automatically restore factory settings.
- ● waterproof design of the whole machine.
- ● can be used for baby bathing water playing toy.
Button:
- ● SET: switch, set, and confirm.
- ● +/℃/℉: add a value and click to easily switch the temperature unit and fit SET settings high temperature alarm temperature.
Setting steps:
switch on/off
long press SET key5 seconds shutdown, press any key2 seconds boot, movement contact water automatic boot.
Automatic sleep function: automatic shutdown after 1 hour standby
set high temperature alarm
long press SET key2 enter in seconds high temperature alarm temperature setting interface, alarm" temperature" flashing, press℃/℉" key Loop adjust the value (available in38 ℃ ~ 41 ℃ adjust between, default38℃), press“SET” confirm and return to the temperature interface.
3. Switch℃/℉ unit
in temperature in mode, press"℃/ F" key switch unit of Celsius or Fahrenheit.






Note:
- ● when the water temperature is lower/Equal to 32.9 ℃, yes yellow lights flashing and display in the lower left corner of the display screen COLD character.
- ● as long as the water temperature exceeds the set range, there will be lamp light alarm prompt.
- ● the replaced old batteries cannot be disassembled or discarded at will. They should be recycled according to government regulations and be kept away from children to prevent eating by mistake.
- ● waterproof grade: IP67. The battery can only be put into water after being completely installed according to the instructions.
- ● wait time for all settings without any operation10 seconds, automatically jump to more than 10 seconds temperature mode.

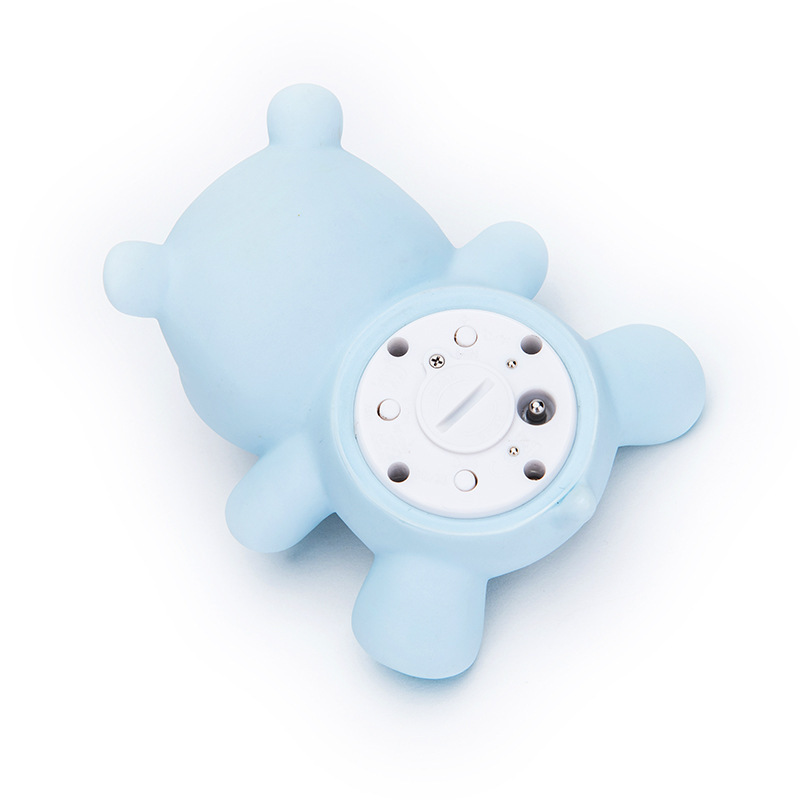

- ● every use front need to use a small amount shower gel cleaning bottom2 metal sensing small contacts to prevent intermittent beating caused by poor induction caused by stains.
The water temperature is higher than the set value (setting range38-41℃, the default value is38℃, power off to restore factory settings), there are red lights flashing and display in the upper-left corner of the display“HOT” character prompt.
