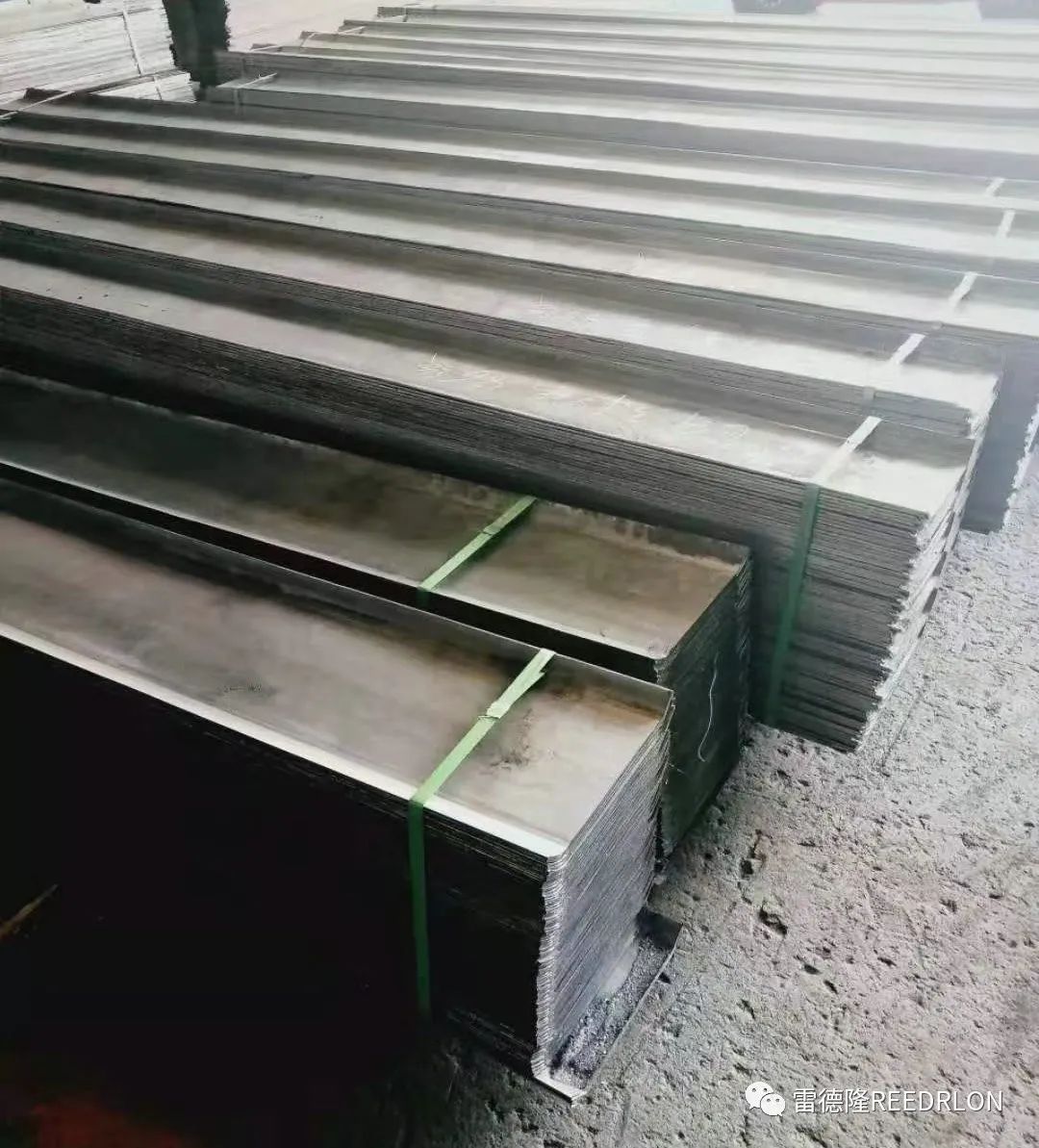

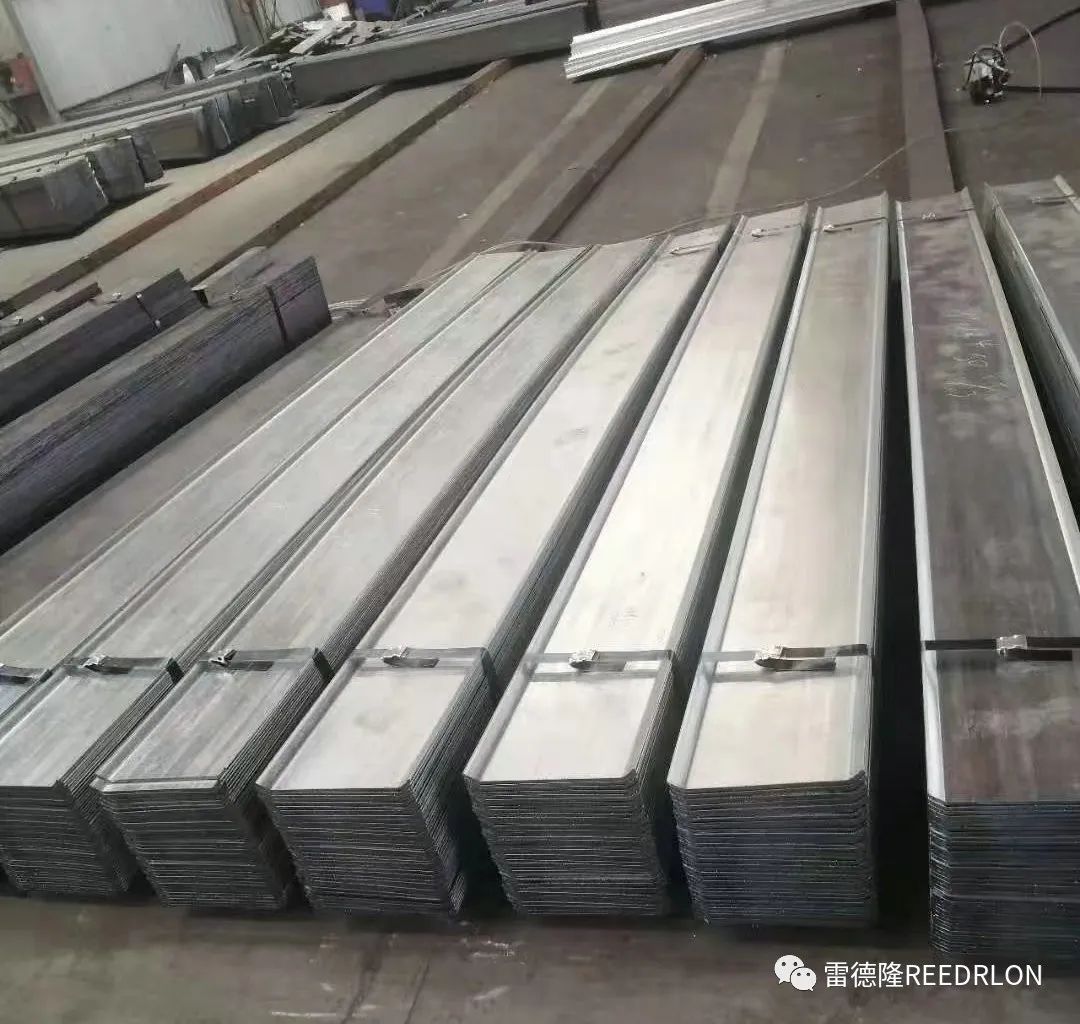

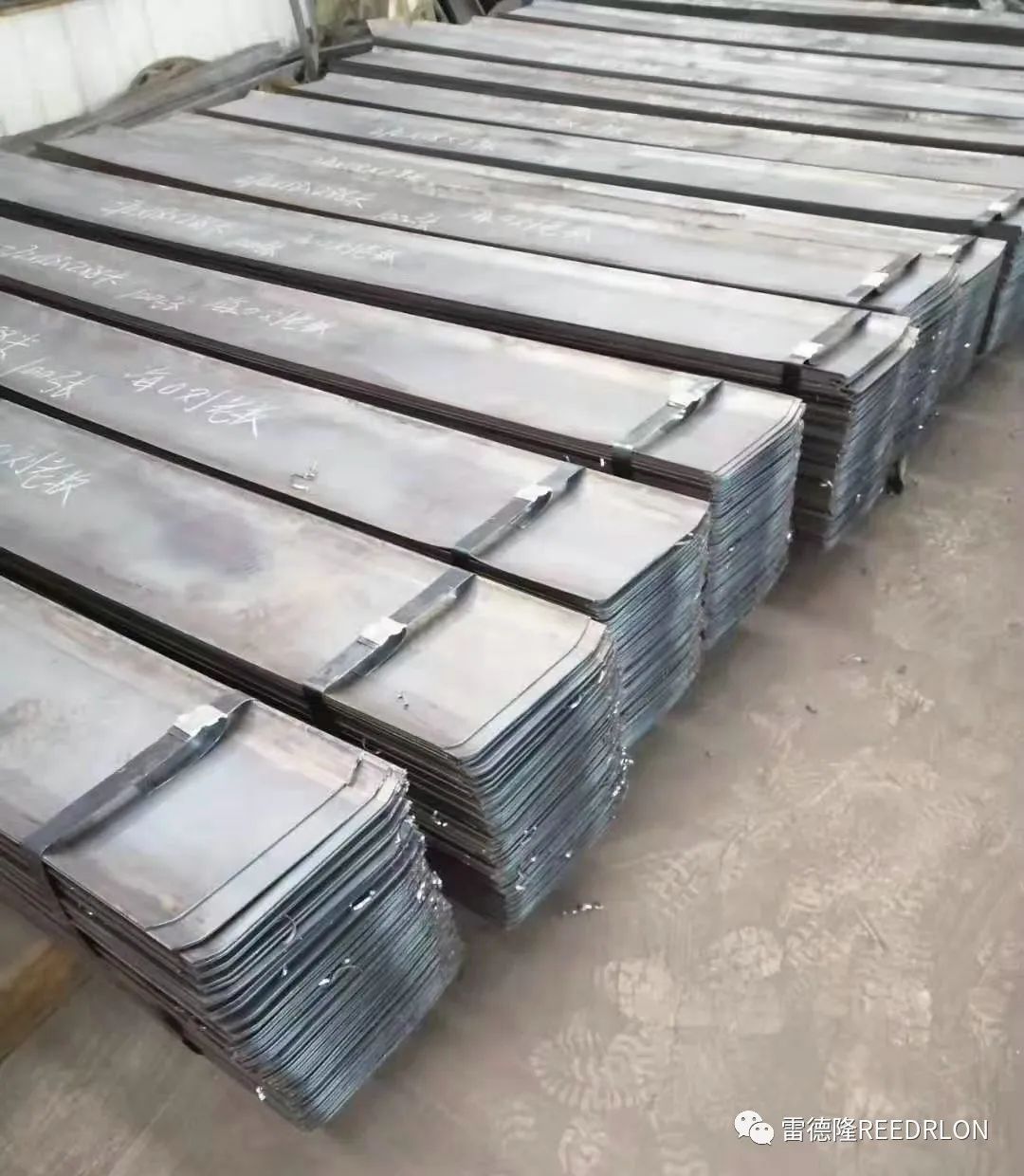

Stopwater steel strip, steel strip stopwater belt/ Steel strip

Alternative name: Stopwater Steel Plate. In box foundation or basement applications, where the concrete for the floor slab, exterior wall panels, and roof panel is poured separately, there will be a construction cold joint when pouring the wall panel concrete next time. When this joint is located below the groundwater level, water seepage can occur. Therefore, technical treatment of this joint is required. There are various methods available, and one commonly used approach is to install a stopwater steel plate.

Thickness: 2mm, 2.5mm, 3mm

Length (long): 3m, 5.8m, 6m

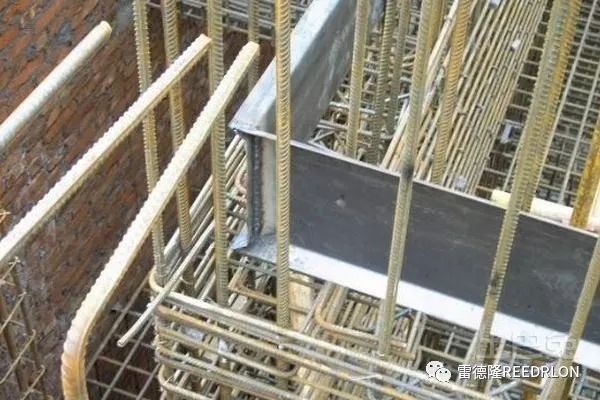

Other name: water stop steel plate. In box foundations or basements, the bottom plate and wall panel, as well as the roof concrete, are poured and compacted separately. When the wall panel concrete is poured again later, a construction cold joint is created. If the joint location is below the groundwater level, water seepage can occur. Therefore, technical treatment is required for this seam. There are various treatment methods, with the most common being the installation of a sealing steel plate (as shown in the overview diagram).

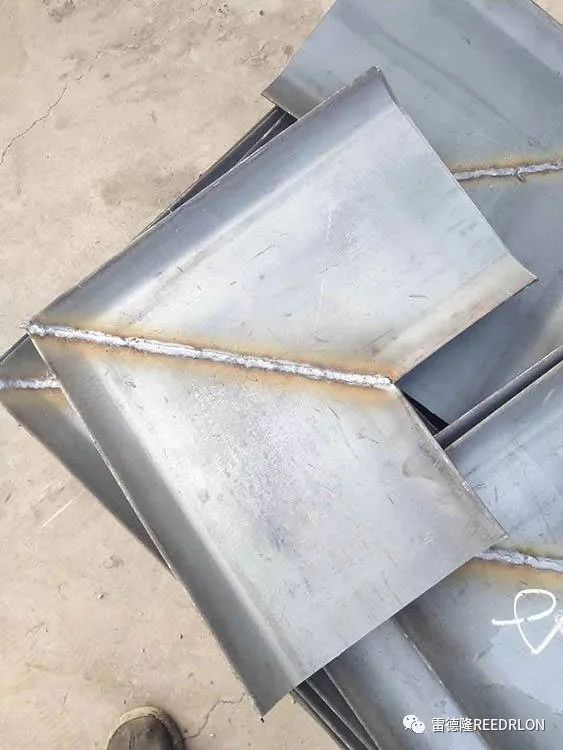

The water-stop steel plate is a steel plate with a width of 300 or 400 mm, placed at construction joints. One end of this plate lifts up, which effectively provides good waterproofing. Typically, the water-stop belt is made from cold-rolled steel plate as the base material, as the thickness of cold-rolled plates is uniform. Hot-rolled plates generally do not have uniform thickness, usually ranging from 2 to 3 mm, and the length is typically processed to 3 meters or 6 meters..

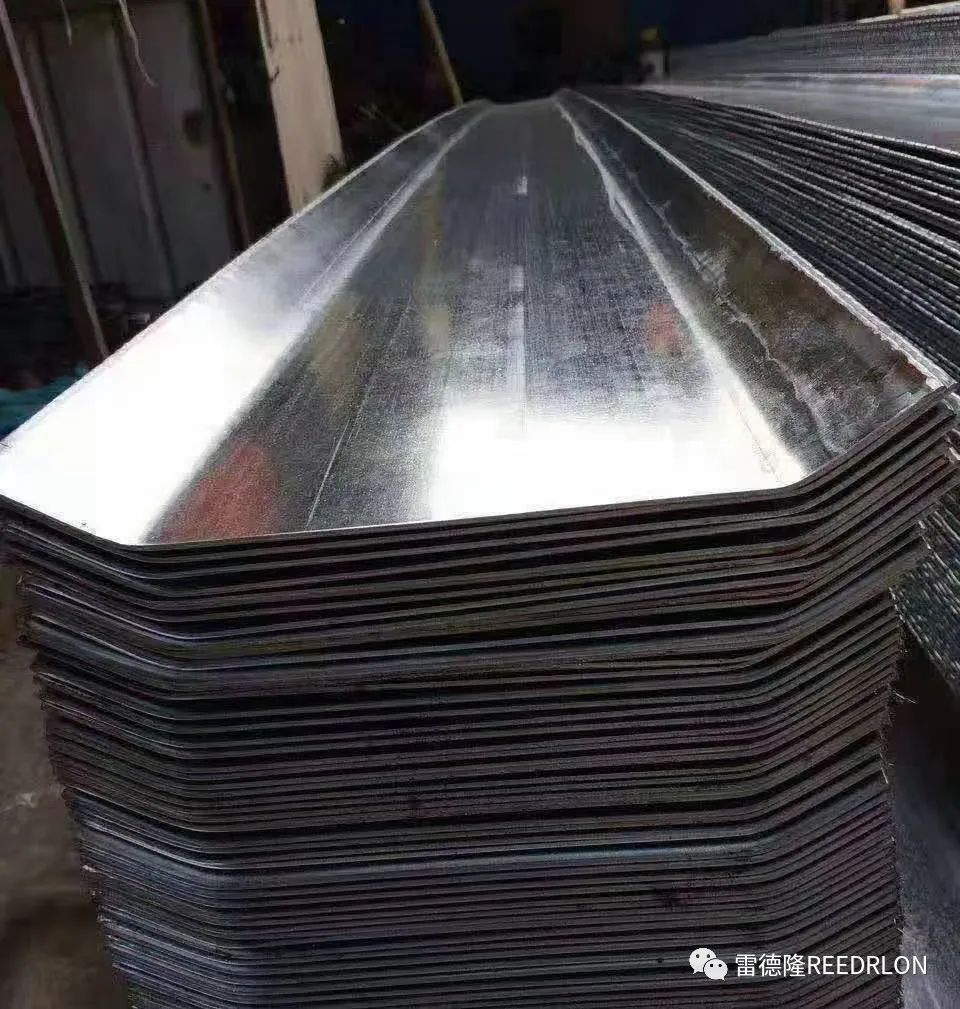

The water stop steel plate is a steel plate with a width of 300 or 400 mm placed at the construction joint location when the horizontal and vertical members of the basement cannot be cast simultaneously. The two ends of the steel plate are bent, which can effectively serve as a waterproof barrier. The typical water stop belt is made from cold-rolled steel plate as the base material, because the thickness of cold-rolled plates can be uniform, whereas hot-rolled plates do not achieve such uniformity. The thickness is generally 2 millimeters or 3 millimeters, and the length is typically processed to 3 meters or 6 meters.

Believe in the power of professionalism!

We take the production of the water-stop belt steel plate very seriously!

For stopwater belts and steel plates, please select Redron!

Redron is with you!!!

Believe in the power of professionalism!

We are committed to producing steel strips!

Good Steel strip, please choose REEDRLON!

REEDRLON with you toghter! !!
