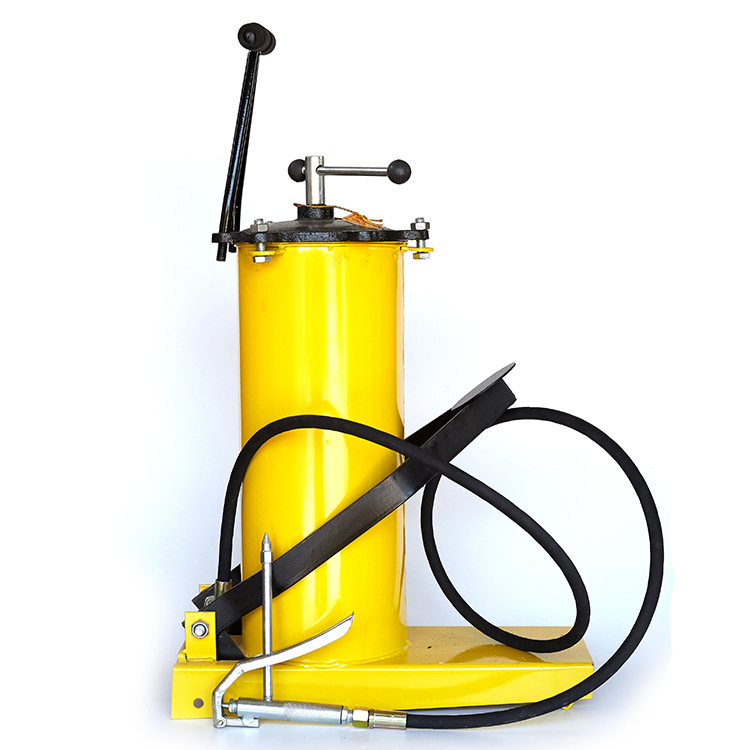

hot sale supply gz-3 type l pedal oiler 10l pedal high pressure oiler butter machine tool

Main Products:

Hardware tools auto repair tool pliers monkey wrench combination spanner socket combination hammer iron scissors pipe pliers tire pressure gun ratchet wrench axe utility knife cable clamp glue

Contacts:

huangchangyongChat

Mobile:

86-13750974129

E-mail:

1136165542@qq.com

WeChat:

13750974129

Address:

68018,68034, 8 Street, 4 F, 100 Gate, International Trade Mart (District 5).

Related items

Description

详情页_02

Buttergun, oiler, metal stamping parts, hardware tools, stainless steel products, power tools, pneumatic tools, metal products

Product, metal container production, and sales. (This business shall be conducted after obtaining the approval of the relevant department, and the business shall be conducted after obtaining the approval of the relevant department).

详情页_03

Product Features

This product features advanced design, simple and rational structure, reliable performance, high oil pressure, and energy-saving advantages.

Product Parameter Instruction

Model	Output Pressure MPa	Output volume g/stroke	Oil barrel storage capacity Kg	Weight (Kg)
GZ-2	30	3	>10	18

Oil storage barrel volume: 10L

High-pressure hose: 2M

Rated working pressure: 20Mpa

Maximum Working Pressure: 30Mpa

Device weight: 18kg

Dimensions: 46*24*58CM

Product Usage Instructions and Precautions

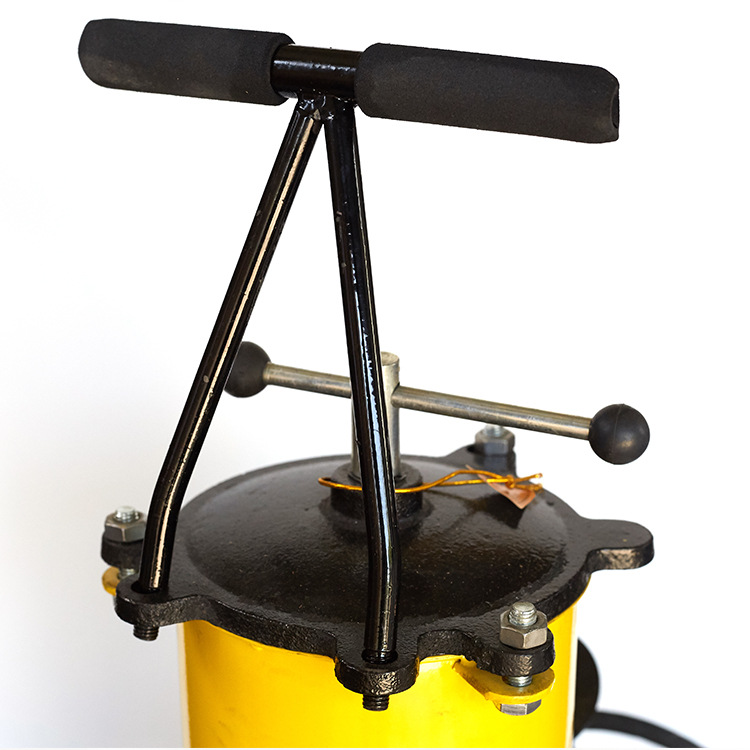

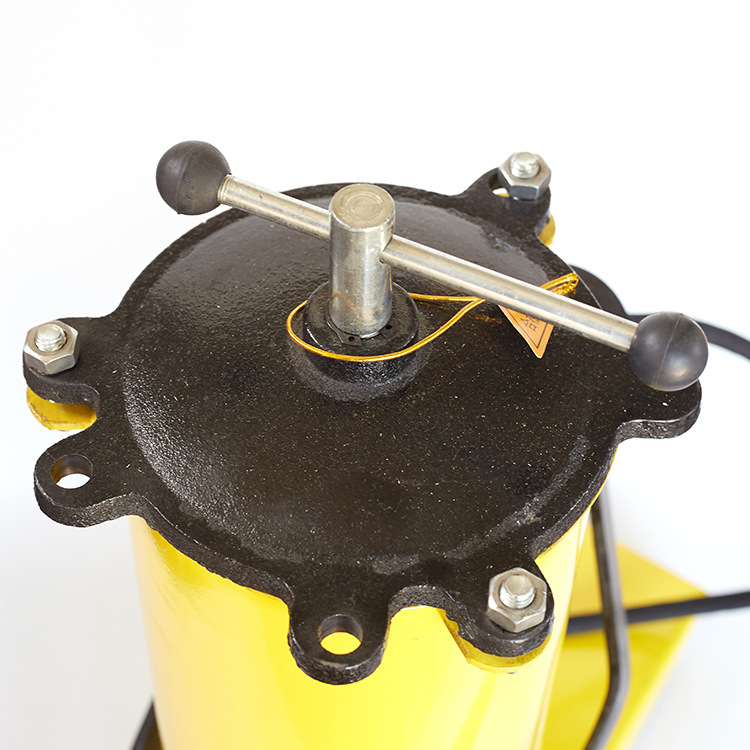

First, rotate the screw shaft handle clockwise to remove the butterfly screw cap. Then, take out the cover and the pressure plate, as well as the skin bowl from the cylinder. Next, unscrew the air release nut, and add lubricating grease into the cylinder (leaving space for the pressure plate and skin bowl). Afterwards, assemble the upper parts back to their original positions and tighten them. Then, rotate the screw shaft handle counterclockwise to loosen the air release screw. Step on the pedal several times, and each time the pedal must rise back to the highest point. Repeat this process to stop the oil from the air release nut. Tighten the screw, and step on the pedal twice or more. This will cause the high-pressure oil tube to generate high pressure. After lifting the oil gun, move the color plate machine, and the oil can be discharged.

If the oil gun does not discharge oil, it is necessary to clean the filter screen and the oil gun nozzle.
