Description

Functional Introduction:

Specialized Electronic Testing Tools for Cars    [Car short-circuit/open circuit locator]
Short circuit/open circuit line finder
    The series of automotive testing tools is suitable for professional automotive maintenance and detection tools, car DIY self-prepared tools, and tools used for on-the-road preparation.

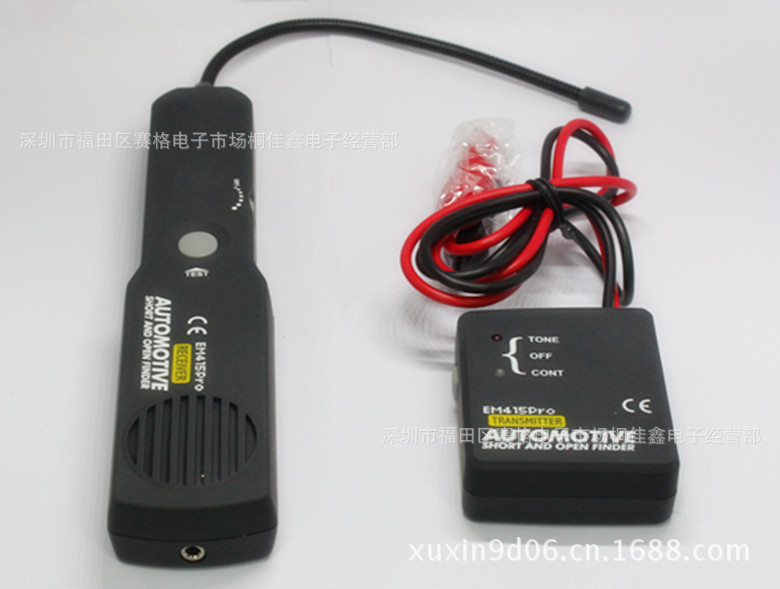

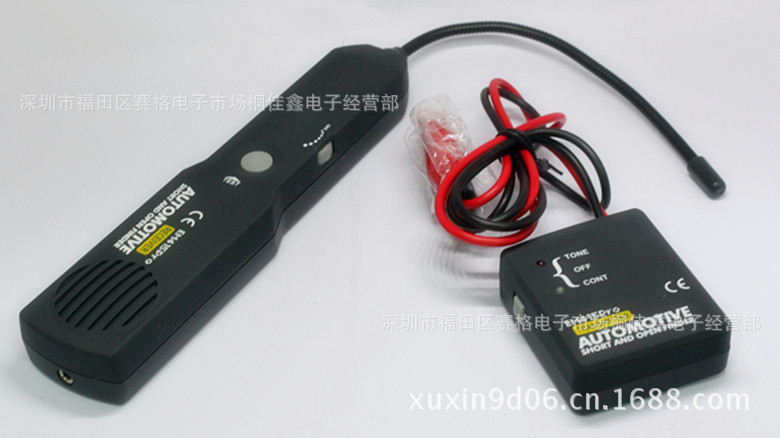

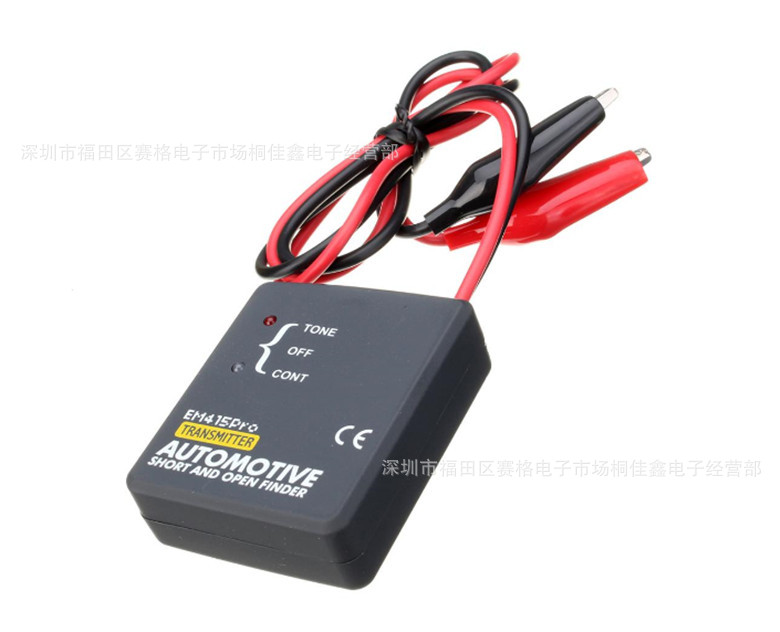

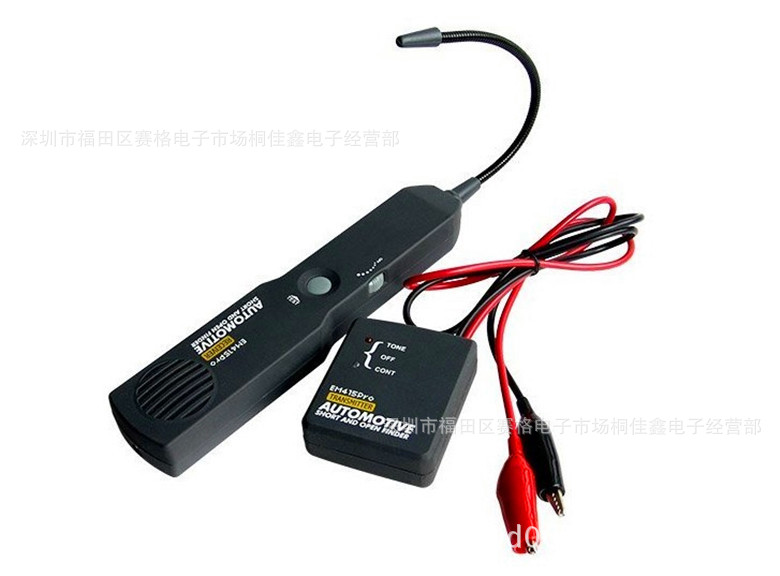

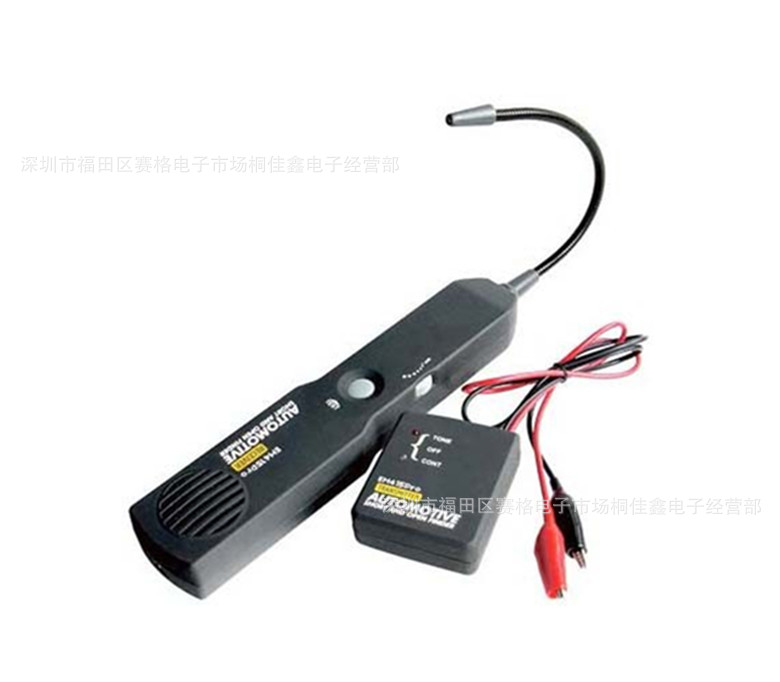

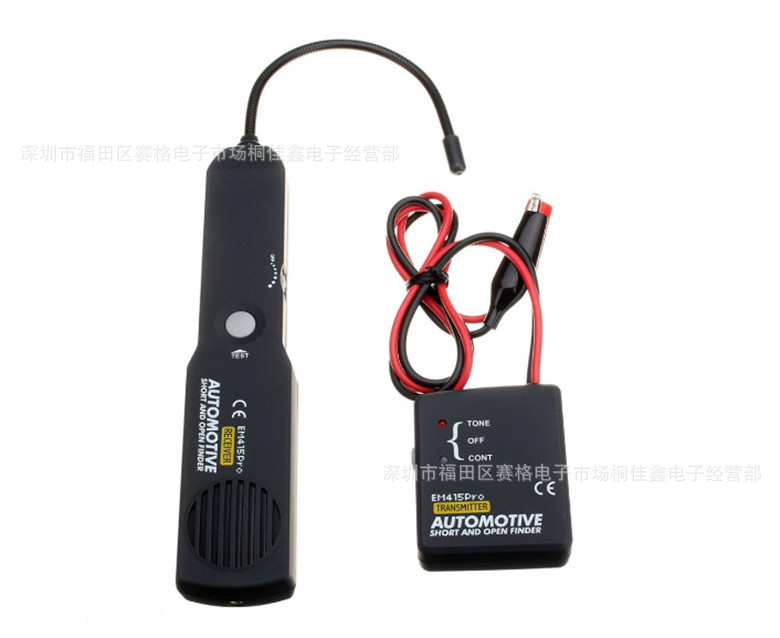

   This instrument can check for cable break points without damaging the insulation, locate short circuits, identify and track wires. The instrument includes an emitter and a receiver.

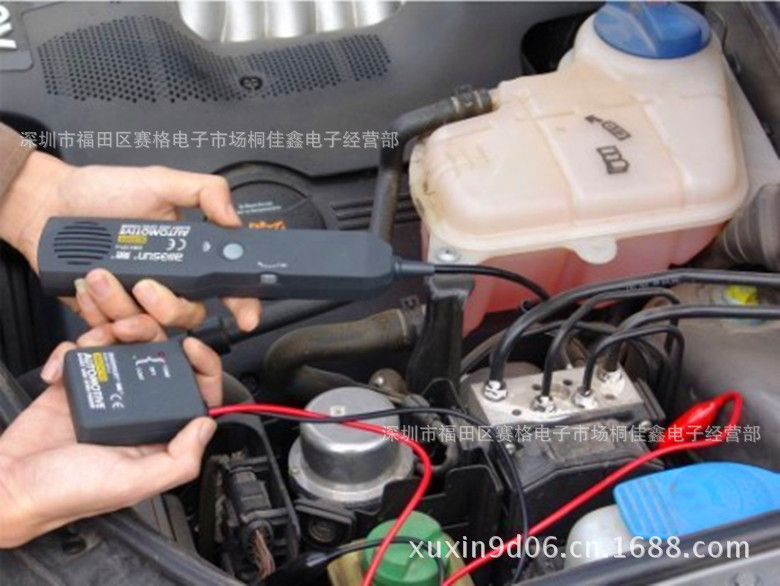

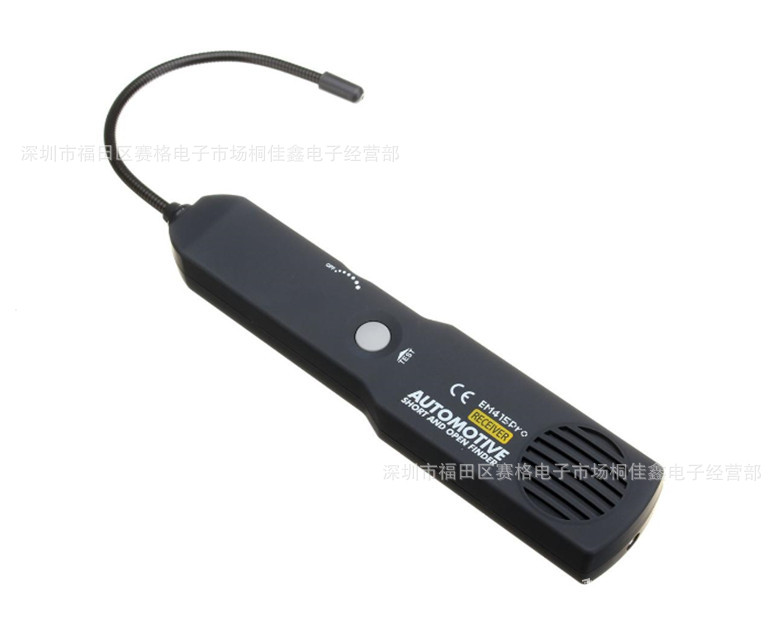

   The curved receiving probe can better detect cables in crowded and narrow environments. The probe can pick up the signal of cables within a certain range based on the characteristics of the circuit and the sensitivity setting. When detecting, place the detector's probe vertically (90 degrees) above or below the cable.

gWmWivOiz9St5JW+ZAY8YBvQnadrKG4kBJUp

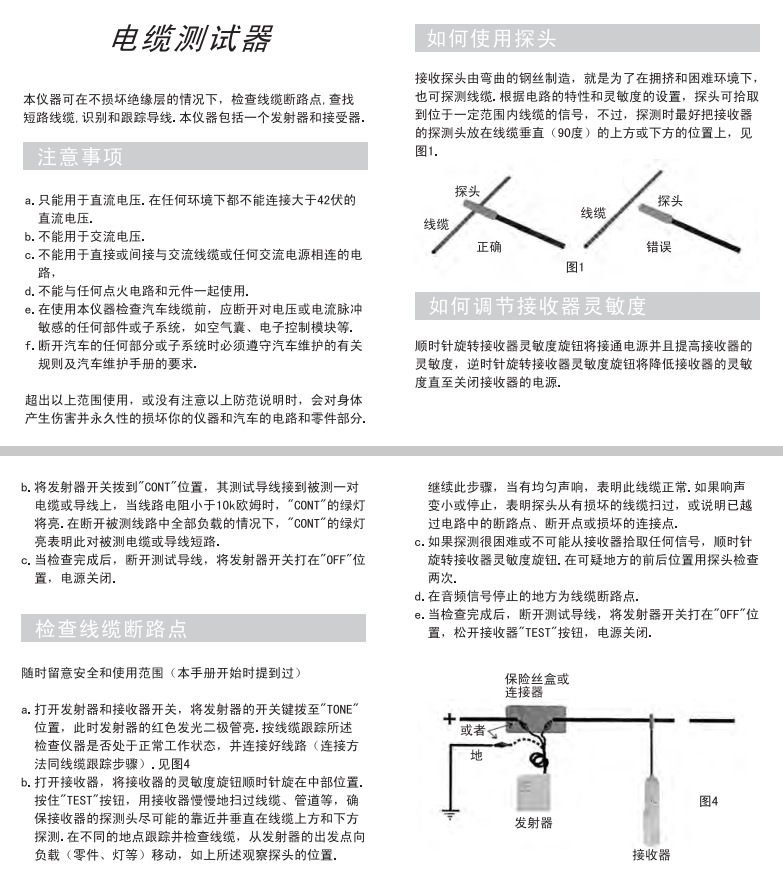

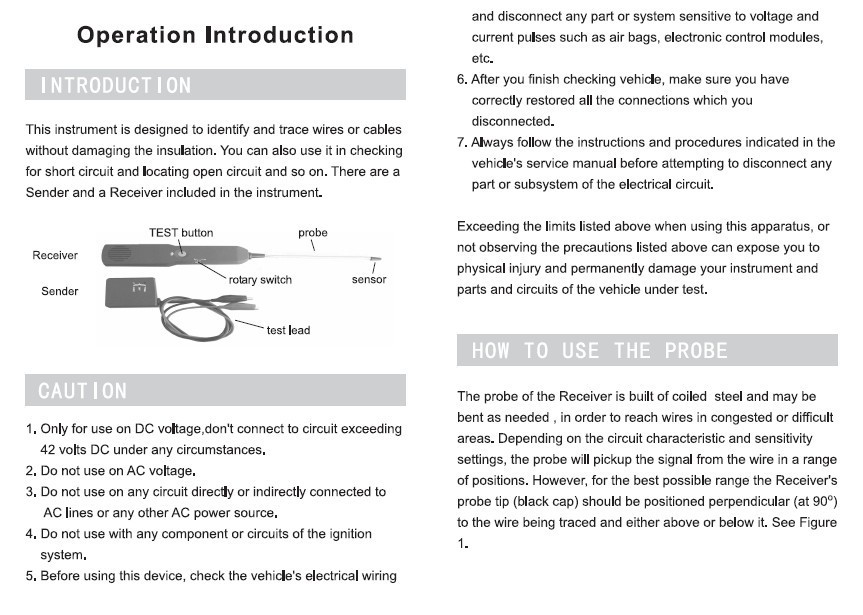

Instruction Manual

1、Can only be used for direct current voltage, and under any environment, cannot connect more than42 volts DC voltage

2、Not for use with AC voltage

3、Not for use directly or indirectly with AC cables or any AC power supply.

4、Cannot be used with any ignition circuits and components.

5、Before checking the car wiring harness with this instrument, any components or subsystems sensitive to voltage or current pulses should be disconnected, such as airbags, electronic control modules, etc.

6、Any part or sub-system of the car must be disconnected in accordance with the relevant rules of car maintenance and the requirements of the car maintenance manual.

This instrument can check for cable break points without damaging the insulation, locate short circuits, identify and track wires. It includes an emitter and a receiver.
