Model: L0403

color: silver white optional

packaging: neutral English packaging

product features:

1. Automatic induction LED door lock lamp uses human infrared sensor technology and automatic light detection technology.
2. When a hand is close to the door lock, the LED light installed above the door lock will automatically illuminate.
3. Make you enter your home conveniently and at ease.
4. There is no need to grope in front of your door in the dark.
5. When you go out, you don't have to lockable door in the dark.

Product specifications:

1. Induction mode: human infrared sensor
2. Induction control: photosensitive inductor (working at night, standby during the day)
3. Sensor sensitive angle: 60 degrees
4. Sensor sensitive distance: within 3 m
5. Power: 1.5V, 1PCs "AA" Lr06 or rechargeable battery (excluding products)
6.LED: high brightness white LED
7. Number of LED pieces: 4
8.LED life: 100000 hours
9. Delay time: the light will be on when the person comes. After the person leaves, the light will be delayed for 5 seconds and will automatically turn off.
10. Standby current:<0.1mA
11. Battery life: the high-performance Lr06 battery can work for more than 6 months (3-5 times/day)
12. Operating Temperature:-5 '- 38 'C
13. Working moisture: 5%-93%

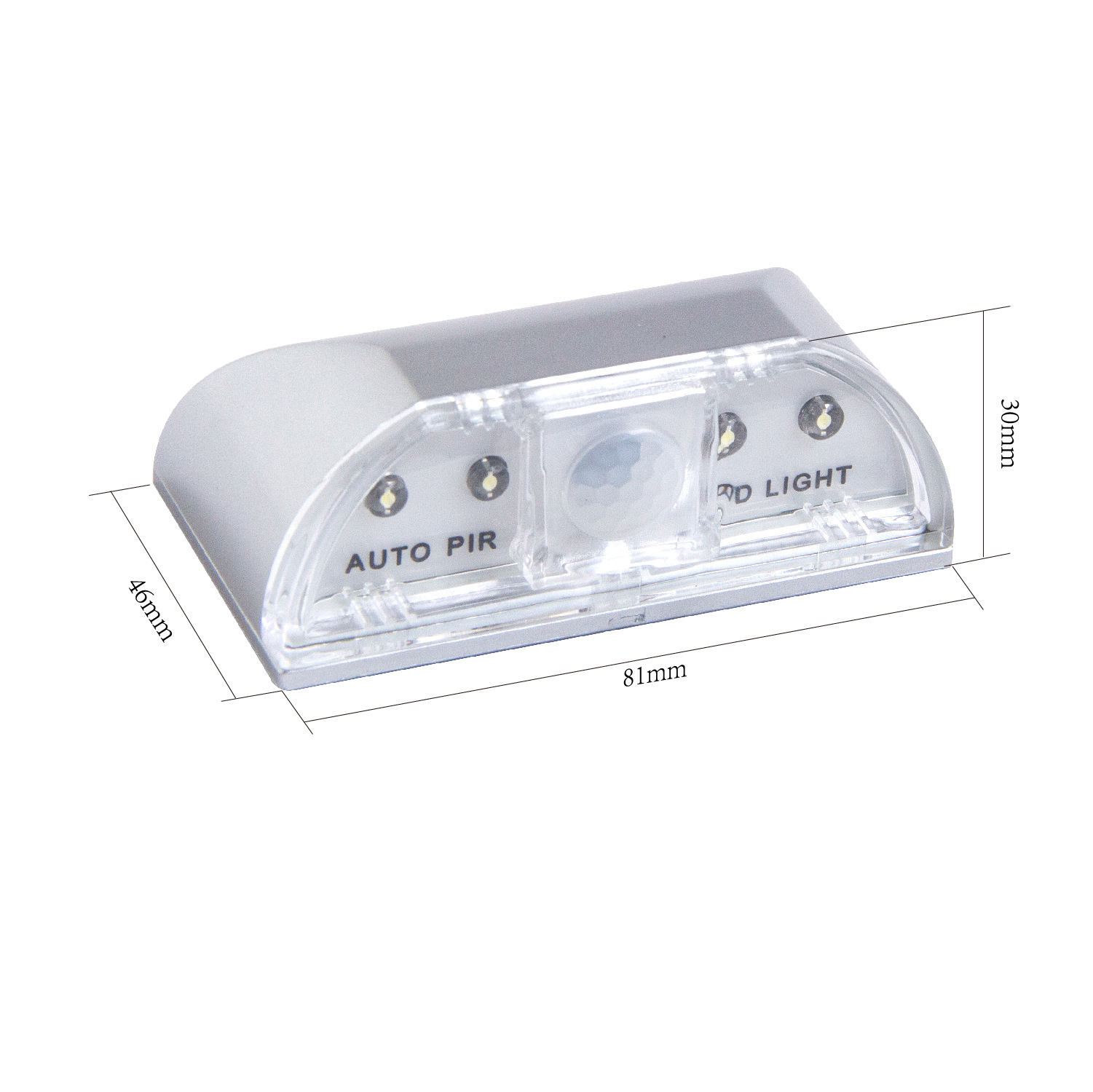

14. Product Size: L * W * H:81*46 * 30mm
15. Weight: 75g

installation method:

1. Use double-sided adhesive tape to fix it (complimentary when leaving the factory)

2. Use m3.0x20mm screws to fix the base (screws need to be provided)

troubleshooting:

1. When the power is turned on, the light is not on.
Solution: A. Check the polarity of battery installation
b. When the ambient light is too bright, the light is in standby work.
C. The battery is out of power, please replace the battery.
2. When the power is turned on, the LED lights flash.
Solution: A. The host needs one to two minutes to stabilize the internal circuit.
B. The battery may have low power. Please replace the battery.

Note:

1. Do not put the product in a place facing the glass door or where the temperature changes dramatically,
2. Because this product uses infrared sensors, it needs a relatively stable environment.
3. Please put the light away from the monitor, TV and other places.
4. Please pay attention to the temperature and humidity of its working environment, otherwise the battery life will be affected.
5. Use LR06(AA) No. 5 battery with good quality.
6. After the light goes out, the delay time is 6-8 seconds, and then work again.
7. Do not directly shoot the eyes of people, especially children.
8. When installing the product, do not install it in a place that is easy for children to get, so as to avoid accidents to children.
