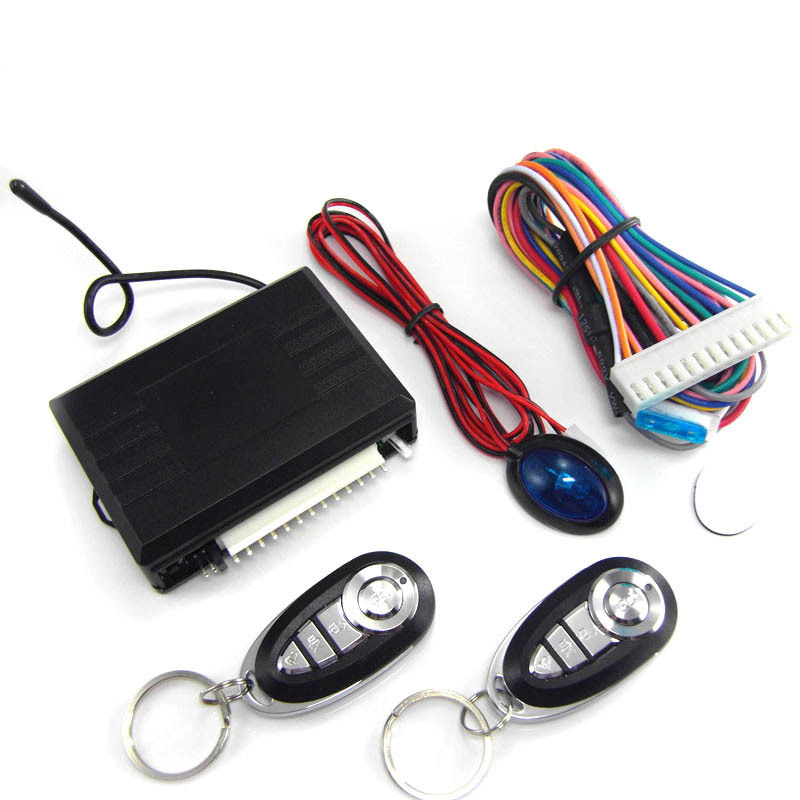

cross-border popular car keyless entry car remote control central lock free key entry system anti-theft device

functions

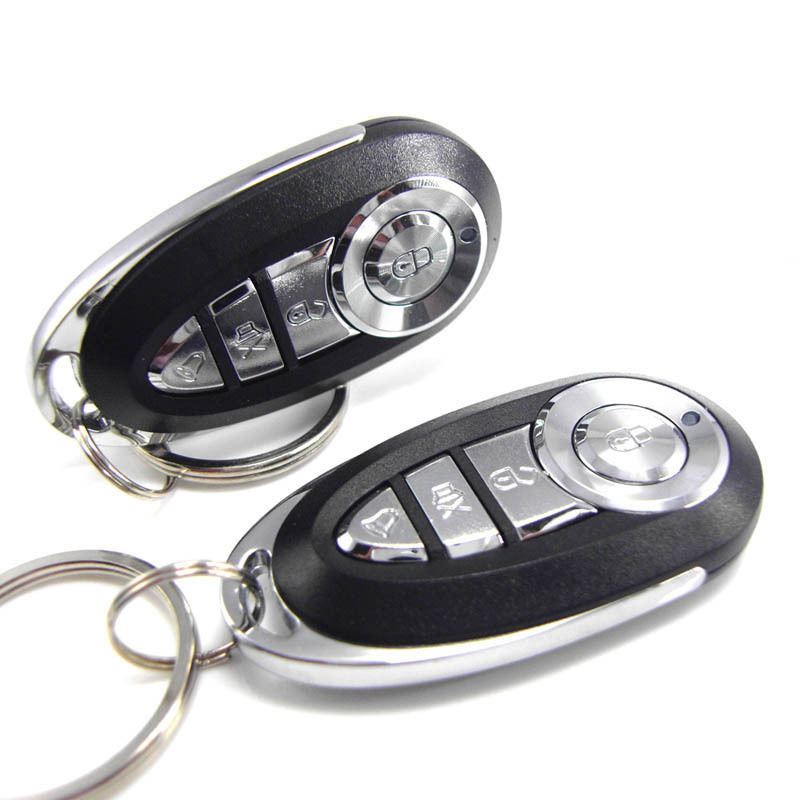

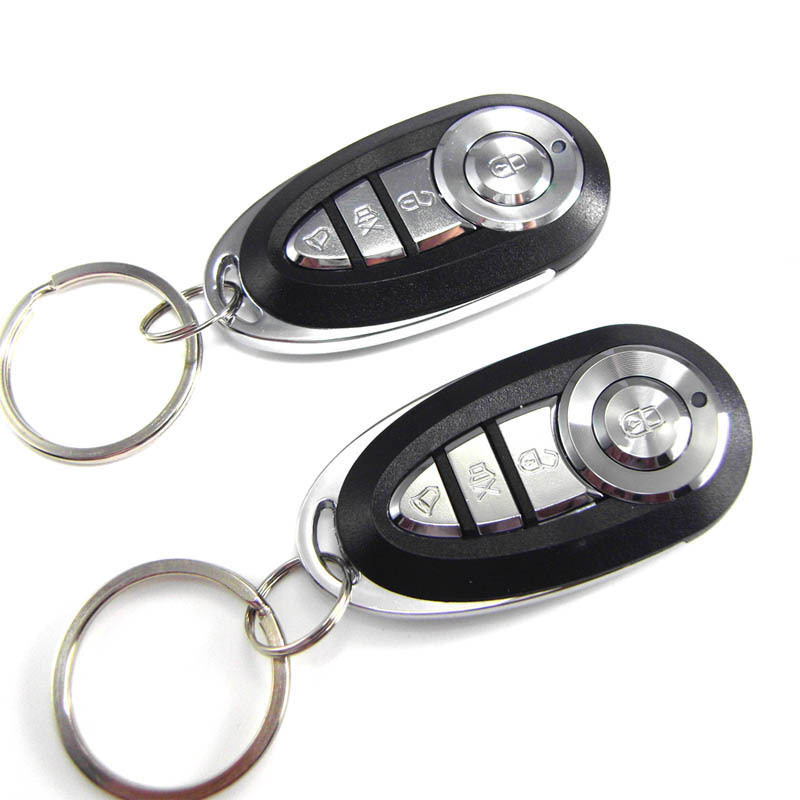

1) Remote Lock
Press the button LOCK on the remote transmitter once to lock, while the parking lights will flash once.
2) Remote Unlock
Press the button on the remote transmitter once to unlock, and the parking lights will flash twice.
3) Car Search
当车辆上锁时，按下遥控发射器上的SIREN按钮一次，车辆会亮起白色停车灯以定位车辆。
will flash 60s or until we press the other button then will stop.
4) 后备箱释放
Press the button MUTE/FLASH /TRUNK on the remote transmitter once to release the trunk while the parking lights are on.
will flash three times.
5) Step on Foot-Brake to Lock / Unlock
Turn the ACC into 'ON' position, and the vehicle will automatically lock when you step on the foot brake.
Turn the ACC into 'OFF' position, the vehicle will unlock.
6) Negative / Positive Output Option for Trunk Release Plug in + for +12V output;
Plug in - for -12V output ( to ground ).
7) Electronic / Pneumatic door lock option
Change the position of JP1 to select electronic and the pneumatic door lock. [if it is set in short circuit, the
The system is equipped with an electronic door lock (0.5s) / if it is set in
open circuit, the system with pneumatic door lock (3.5s)
8) Power window output (yellow color)
"Press"LOCK" button once, turning lights flash once and door lock, now the power window signal output negative.
trigger 25s.

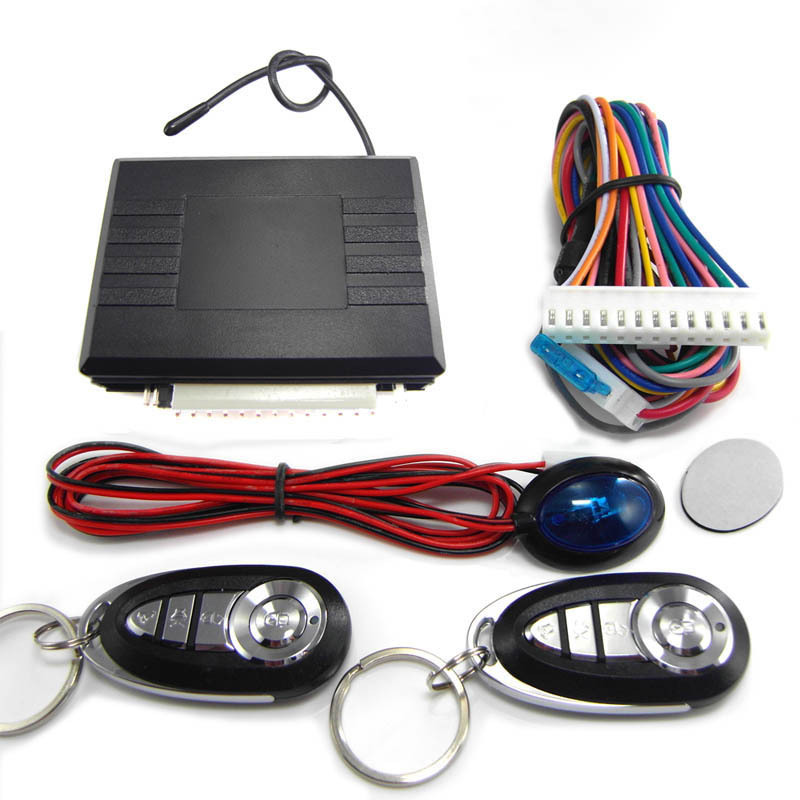

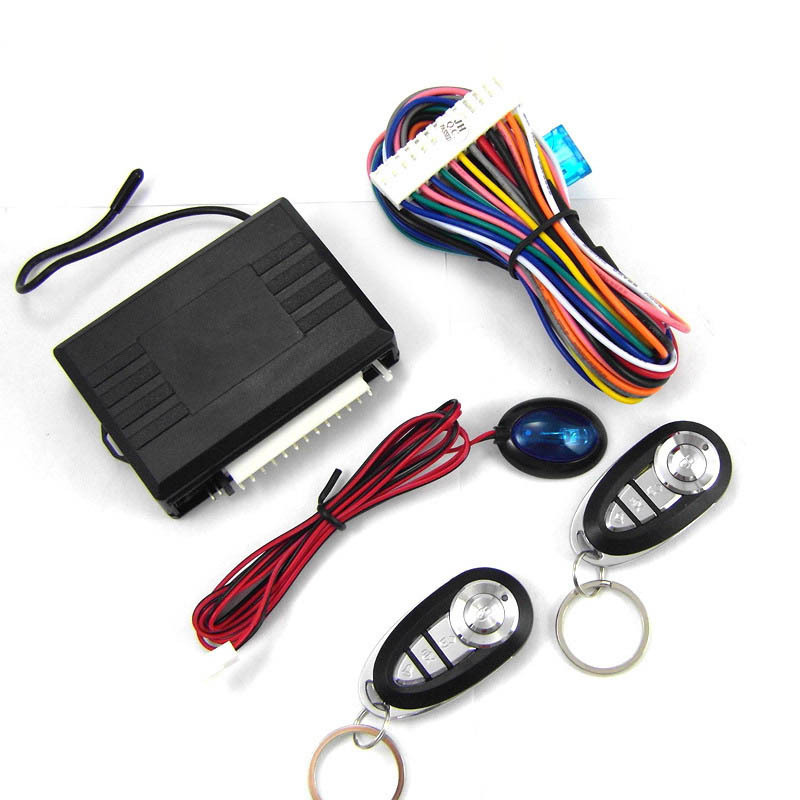

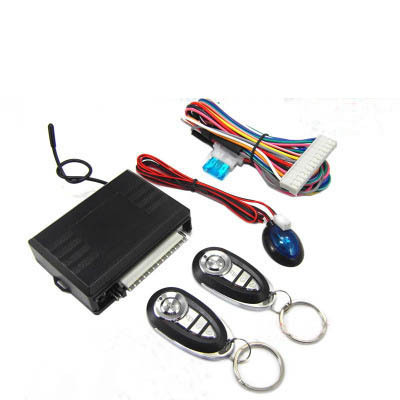

Car Keyless Entry System

1. Lock

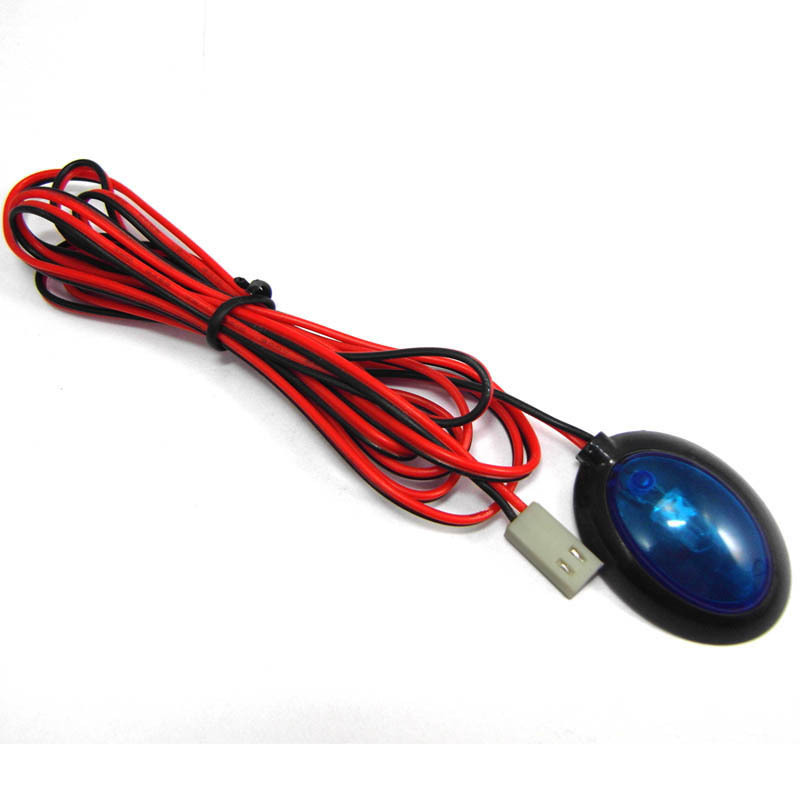

Press the lock button once to turn on the turn signal, which will flash once; at this time, the LED will flash once per second.

2. Unlock

Press D once to unlock, turn the direction lights twice; the LED will turn off.

3.parking assistance" 或 "parking search

Press once in the anti-theft state to confirm the vehicle's location, at the same time, the headlights flash for 60 seconds, with the LED flashing once per second, or press other buttons to stop the headlight flashing.

4.trunk

Press /-/ /D3 seconds to enable the trunk function.

5.Foot brake lockSlashUnlock

Turn the ACC to the ON position, and after 15 seconds, when you step on the brake, the vehicle will automatically lock.

Turn the ACC to the OFF position, the car will shut down, and the vehicle will automatically unlock.

6.Trunk Positive/Negative Output Selection

Insert + for + 12 output.

Insert - for - 12 output (ground wire).

7.Electric lockSlashPneumatic Lock Selection

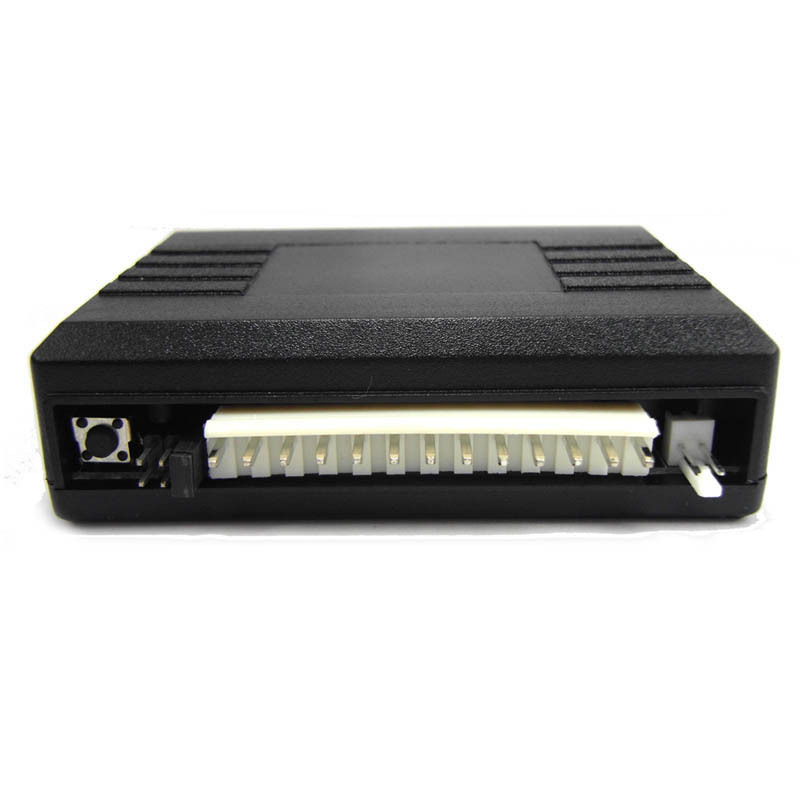

The anti-theft host has the JP1 selection for electric lock and pneumatic lock function. (Short circuit for electric lock: 0.5 seconds / Open circuit for pneumatic lock: 3.5 seconds)

8.Window Up/Down Function

Press the remote control Ï key, the car lights flash once, the central door lock automatically locks, and the window lifting signal is output for 25 seconds at this time.

9.Learning by code(In the state of deactivating the anti-theft")

Press and hold the host learning code button for 1 second, and the turn signal will light up. Meanwhile, press any key on the remote control. Each time you learn a code, the turn signal will flash once.
