Functions:

one. Button1: Fortification

1. 1.      Turn signal flash1 times, horn and horn negative call1 sound, lock, flameout. LED slowly flashing, valid every time you press, but the lock is not closed when you press the second time,
2. 2.      If you are defending the system3 press to remove the speaker and speaker within seconds1 sound, turn off the vibration sensor. Exit when defending again.
3. 3.      Yes ACC press the security lock.

II. Button2: release

1. 1.      Turn signal flash2 times, horn and horn negative call2 sound, unlock, LED slowly flashing, if you do it again press Only unlock.
2. 2.      Yes ACC press the unlock key to unlock the lock.

Three. Button3:( anti-grab)(Programmable) view the feature settings table8

1. Side door anti-grab:

open ACC, if you open and close the main driving door, LED flashing, flashing lights2 times, indicating that the function is activated. If the sound is set, the speaker will call2 second, to enable the anti-grab function, you must connect the anti-grab line to side door negative.

2. Remote control anti-grab:

open ACC, press the star key or mute key3 seconds, lights flashing2 second, the horn and negative horn call two sounds, LED flash, indicating that the function is enabled. If the sound is enabled, the speaker calls2 the function is programmable. (See function settings table8)

3. Ignition anti-grab:

if this function is enabled each time ACC, the system will automatically activate the anti-grab function, no need to open the door, press remote control, after activation, LED flashing, flashing lights2 times, if the sound is turned on, the speaker calls2 sound, function can be set (see programming table10)

4. On-site anti-robbery:

this function is used when the car is out. Additional remote control (2 other than remote control) to stop the car urgently,60 activate within seconds, LED flashing, flashing lights2 second, if the sound is turned on, the speaker will ring2 second, the function can be set (see the function setting table), so the optional remote control will be opened from the car.60 stop the car after seconds.

5. Enter Anti-grab

the system enters the anti-grab mode, and the lights flash.2 times, if the function13 also activated, the speaker will call2 times, LED began to flash slowly,30 seconds later, the car lights flickered and the horn shouted,15 seconds later, if the function14 turn on, sound turn on, current rail cutter (relay) will turn on immediately and send a bad working signal to the engine,15 after seconds, the current rail cutter will be activated again, the engine will be shut down, the door will be locked, and the horn will keep ringing.

6. Exit anti-grab:

disable the anti-grab system before the speaker keeps calling, or trigger the anti-grab60 press the emergency contact button within seconds1 time, then let go.

After the speaker starts to call, or after the anti-grab trigger60 seconds later, open ACC, according to the same number of emergency contacts and security complete sizes (factory default is1 times), and then wait3 seconds to confirm whether it is correct.

Four. Button4: tail box

1. Long press tail box ''or search for cars3 seconds, enable tail box.

2. Press button at the same time* and tail box keys, you will activate the channel3,(Look3 channel function settings)

five. Scare

press button at the same time1 and key2 and continue3 in seconds, activate the scare function. Turn signal and horn negative synchronous flashing, the speaker is long, long flameout, LED slowly flashing. You can only press Cancel to exit.

Six. Mute fortification

press button* once, then Button1 once, the system will mute and defend, turn signal flash1 times, close the lock, no sound.

Seven. Mute withdrawal

press button3 once, then Button2 once, you will withdraw the defense in the silent state, flash twice turn signal, unlock, no sound.

Eight. Automatic fortification (programmable) view the feature settings table1.

Engine shut down, all doors closed30 seconds later, the lights flash1 second, the speaker calls1 sound, LED flashing slowly, if the electric door closing system is set, the door will close automatically.

If the auto-fortification is automatically canceled in the car wash mode.

Nine. The door is not closed. Prompt

during fortification, if there is a fault in an area, the speaker will call3 second, turn signal flash3 times, indicating that there is a problem in a certain area. Side door and tail box are not closed.

Ten. Emergency Alarm

when the system is fortified, ACC, side door is turned on, or the vibration is heavily triggered, the speaker is long, and the direction and speaker are negatively synchronized.30 seconds, if30 it is still turned on after seconds, and the sound and light alarm will continue. You can use the fortification and release keys to pause.

Eleven. Trigger Alarm prompt

when the defense is removed, the speaker will call4 under, the light flashes4 it shows that the car has been invaded again, LED it will flash until the engine is turned on.

Twelve. Automatic secondary re-fortification (Programmable) view the feature settings table5.

1. In the anti-theft state, after remote control is removed, LED the indicator light will flash quickly,90 before the door is opened or the engine is not turned on, the system will defend again, and the speaker will call1 sound, light flashing1 times.

2. If you want to automatically disable the lock. This function is required in the menu.15 enabled in.

XIII. Search for cars

in the fortification state, press1 key, the speaker will call immediately1 sound, flashing lights5 next.

Fourteen. Car repair mode

 1. Open ACC, then press and hold the emergency contact button to continue3 seconds, LED it will grow bright and enterCar repair mode, turn off the sound and light anti-theft, you can only find the car, stop drinking, open tail box, switch the door, lift the window (Channel3), etc.

2. Exit Caddy mode and open ACC, Press emergency release switch, LED off, indicating that the car repair mode is exited.

Fifteen. Emergency release switch to withdraw defense

if remote control is lost or remote control is damaged, use emergency release switch to remove it.

Fortification status, open the driving door, the horn starts to shout, open ACC, in10 press emergency release switch once in seconds, and the speaker continues to call3 seconds. If the security code is correct, the system will remove the defense. (Security Code factory default1 times)

sixteen. LED indicator light

seventeen. How to enable remote control(Programmable) view the feature settings table16.

Keep pressing button, remote control red LED the light will flash1 times,3 after seconds, it will always be on2 seconds, release remote control push button, the remote control will6 sends a set of signals to the receiver in seconds.

When remote control runs out of power, Red LED the light will flash constantly to prompt the replacement of the battery.

How to disable remote control:

keep pressing remote control, Red LED the light will flash1 times, and then goes out,3 seconds later, LED light flashing5 and then release the button.)

18. Vibration sensor trigger

 1. Slightly triggered by vibration, Horn and negative Horn5 sound, turn signal flash2 times.

 2. The vibration is triggered again, turn signal and the negative Horn are flashing synchronously, and the horn is long30 seconds.

Nineteen. Side door anti-false trigger

the door is not closed, the speaker is long, and the direction is in negative sync with the speaker.30 seconds, if30 still open after seconds, will continue to sound and light alarm6 times,3 after minutes, the horn will be turned off, and the system will exclude this active area and protect the car through other sensors.

Twenty. Vibration anti-false trigger(Programmable) view the feature settings table7.

Select programming ON light touch hair10 times, re-trigger5 second, the system will exclude this activation area and protect the car through other sensors.

  Twenty-one. Function settings (programming)

1. ACC -ON-OFF.

2. In ACC ON-OF 7 press the emergency release button within seconds.6 times.

3. The car lights are on, and the horn is ringing1 second, the surface enters the function setting mode, and10 select the function you need to set within seconds, if10 if no function is set within seconds, the system will automatically exit the function setting mode.

4. In the first10 the number of times that the emergency release button corresponds to the function you want to set within seconds, and how many sounds the speaker will call accordingly. For example, if you want to set the system to automatically close the door when anti-theft, Press emergency release2 second, the speaker will call2 times.

5. After selecting the function, if you want to activate the secondary function, press remote control1 number key, speaker will call1 times, LED the light is on and the surface is set successfully. Turn off this function and press remote control.2 number key, Speaker call2 times, LED the light goes out, you have10 you can set activation or shutdown in seconds. If you do not set any, the system will automatically exit the setup mode. The Speaker calls5 second, the light goes out.

6. If you want to set other functions, repeat4 and5 to activate or disable.

7. Complete the settings and wait10 seconds, or ACC hit ON, horn call5 sound, lights off.

Twenty-two. Electric selection (skipping selection)

electric lock0.5 seconds, steam lock3.5 seconds, factory default0.8s, you can use skipping1.

Twenty-three. Pair Channel3 function settings(Programmable) please check the function setting table11

channel3 it is a channel independent of tail box.2, this design is by pressing button at the same time3 and Button4 for other optional modules, such as automatic engine startup or window lifting.

Channel3 yes3 you can use these signals.

A.  Pause signal: Press button at the same time3 and Button4 continuous3 seconds and then let go. You can get a pause signal. If you press the button all the time, the pause can last.25 seconds, or until you release the button.

B. Continuous signal: Press button at the same time3 and Button4 continuous3 in seconds, you can get a continuous signal and press button again.3 and Button4, then let go and close the output.

C. Permanent signal: Press button at the same time3 and Button4 continuous3 let go in seconds, you can get a permanent signal to continue30 seconds. You can set the table by using the function above.11 to set.

Twenty-four. Channel3 function settings

A. Pause signal: Press button1, horn call1 voice confirmation.

B. Continuous signal: Press button2, horn call2 voice confirmation.

c. Permanent signal: Press button3, horn call3 voice confirmation.

Twenty-five. Intermittent (automobile) negative horn output(Programmable) please check the function setting table12

this function can be set4 different uses, but only one of them can be selected.

A. Top light: when the system is removed, top light is turned on. If the system starts flashing when it blocks drinking or invades the speaker.

B. Current rail cutter: When fortification occurs, the system sends out a continuous output that can be used for the second current rail cutter or to activate other additional sensors.

C.Window module: When fortification, the system will output one30 the second output can be used to connect additional window-lifting modules.

D. Intermittent sound of car horn: when the system starts to make sound when it is invaded, the car horn will make intermittent sound, and when the system is under fortification, it will be called1 sound, if the defense is removed, it is called2 sound, can work simultaneously with alarm horn (Independent)

twenty-seven. Remote control learning code and additional remote control learning code.

The system is the most learned4 remote control, please pay special attention! When you learn remote control, the previous remote control will be cleared. Therefore, please set all remote controls at the same time, so that the lost remote control will be cleared from the system memory, the remote control must learn the code at the last time.

Click step to enter remote control code learning:

 1. Open ACC

 2. In the first5 within seconds, Press emergency contact6 second, the horn will shout1 voice confirmation,10 learn remote control within seconds, if10 no code learning within seconds, or ACC OFF the system exits the code learning status and the speaker calls2 sound, the remote control that the system has memorized is not cleared

3. Press remote control1 number key, speaker will call1 voice Confirmation. From this point on, the old remote control memory is clear.

4. To learn the next remote control, repeat the steps3 OK. The speaker will call2 voice confirmation, if learning the first3 yes, the speaker will call3 voice confirmation. No.4 after learning, the system exits the code learning mode.

5. Turn off ACC, or10 after seconds, the system automatically exits the code learning mode, and the speaker calls2 voice confirmation.

6. If the ignition is enabled and the car repair mode is enabled, follow the steps.1 to5.

7. To learn the on-site anti-grab remote control, first set the alarm remote control remote control, close the on-site anti-grab remote control, press and hold the remote control button and release it, the system will make many sounds to indicate that the remote control is remembered.

Twenty. Ba'an complete sizes

    factory default is1

    can be removed or opened ACC, and press Emergency Contact button to enter a security code to contact anti-grab.

1. Open ACC 3 second, then the first3 second handle ACC hit OFF, all steps must be in7 completed in seconds.
2. Loudspeaker1 second, now the car is in the password setting state.
3. Press the emergency contact button, how many times your password is,1-9 optional. (Factory default is1)
4. when you set the emergency release button, the speaker will call the same number of times and then exit the setting mode.

      Remember the security code to prevent defense from being triggered or anti-grab from being triggered.

Features:
Anti-hijacking by driver's door
ACC ON and remote control
Output to activate window roll-up module
Remote arming
Silent arming
Auto rearming
Auto arming
Remote trunk release
Safety door lock by ignition
Panic/vehicle locator
Emergency override
Valet mode
Led status indicator
Code learning
Suitable for electric lock and air lock

Specification:

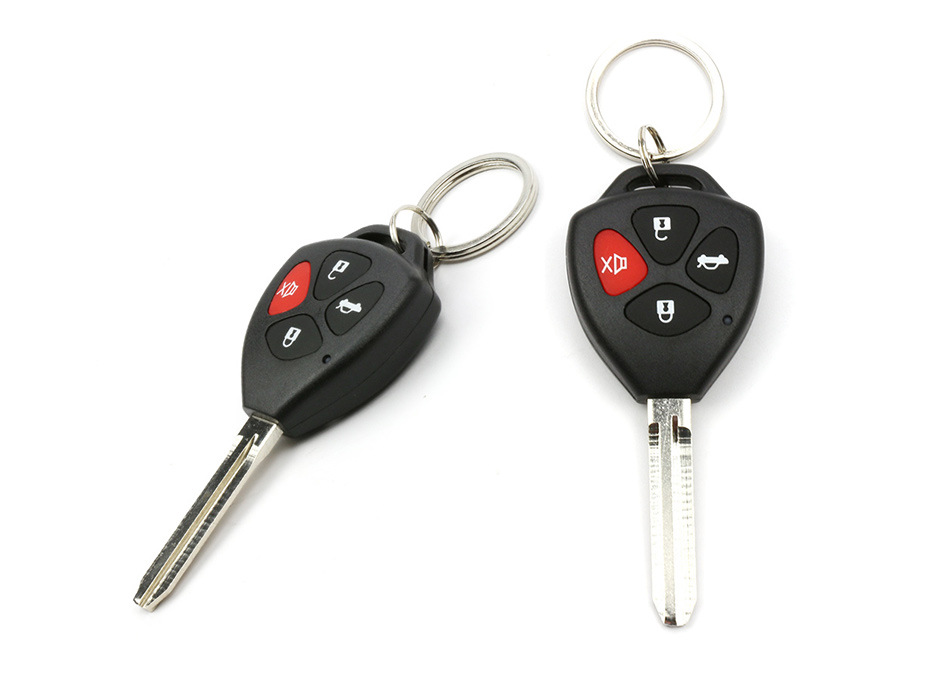

2 transmitters with 4 button and blue Led
Learning 4 transmitters (codes)
Transmitters frequency 433.92MHz

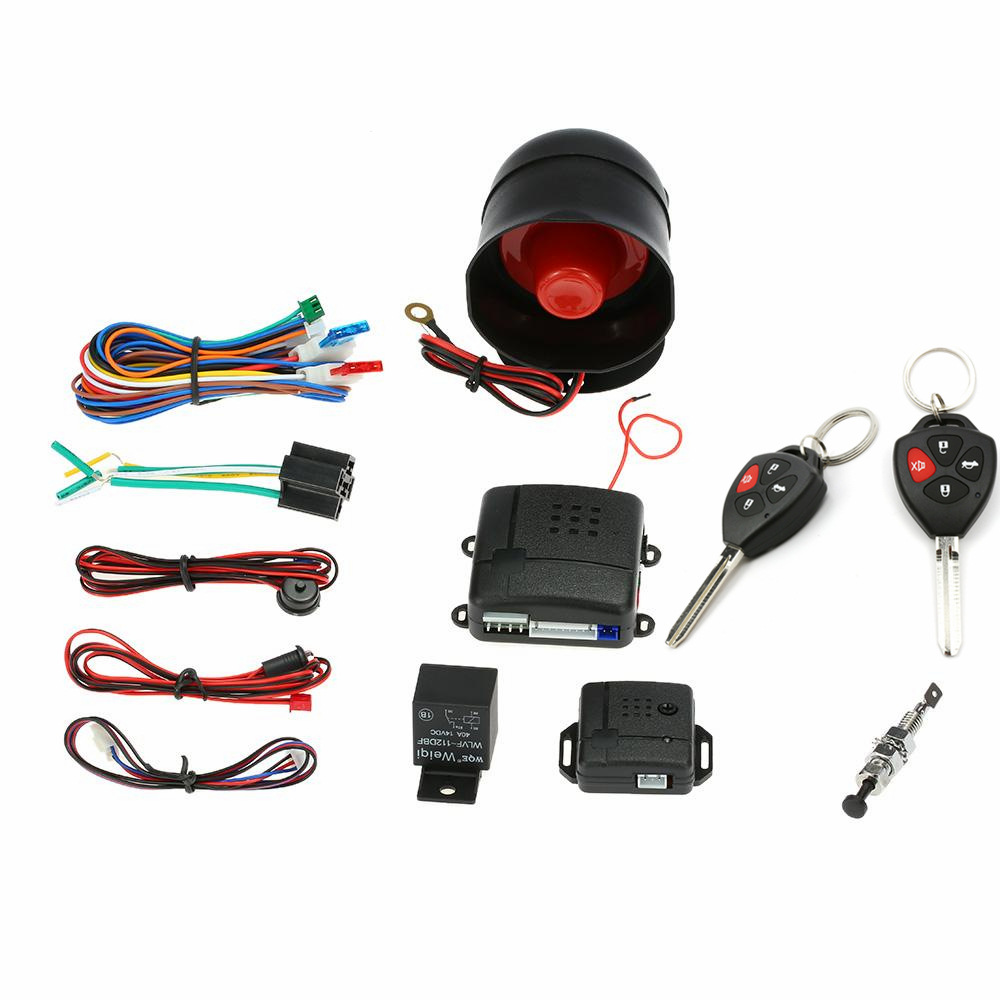

Products package:

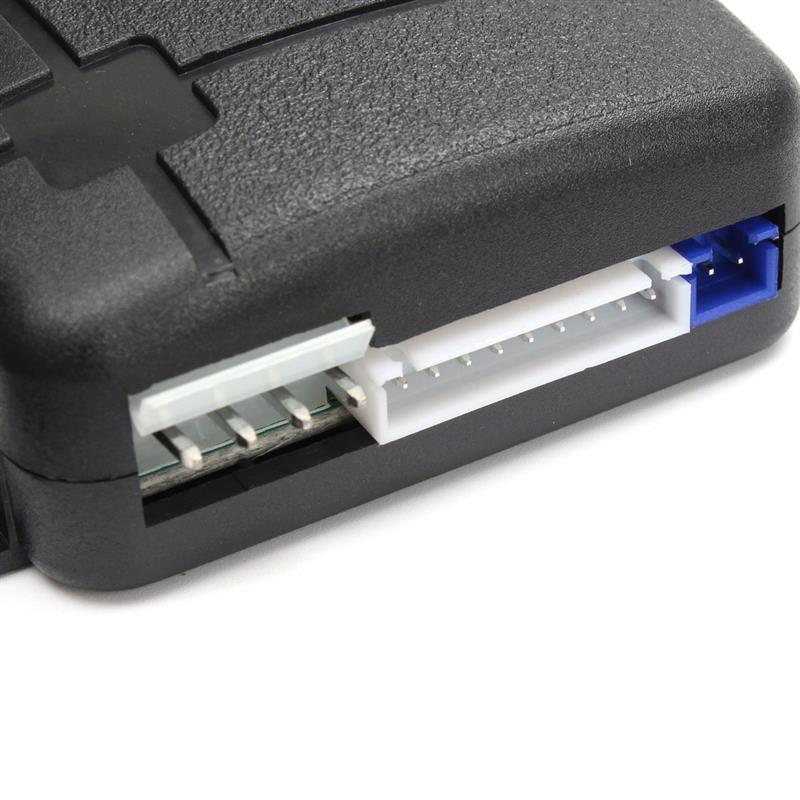

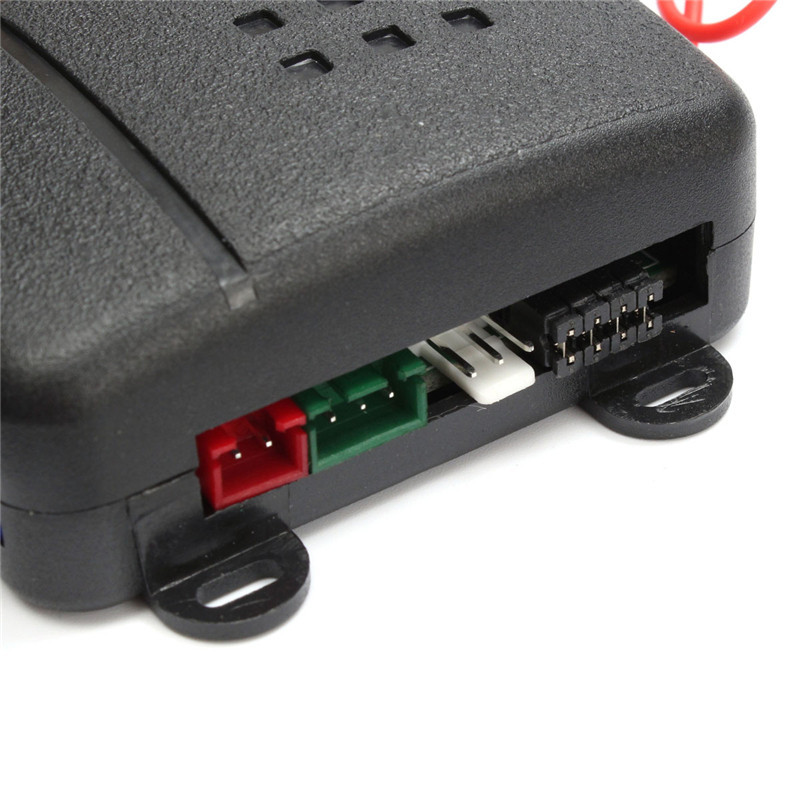

1 x Main Control Unit
2 x Remote Control
1 x LED connection wire
1 x Engine Killer Relay
1 x Shock sensor

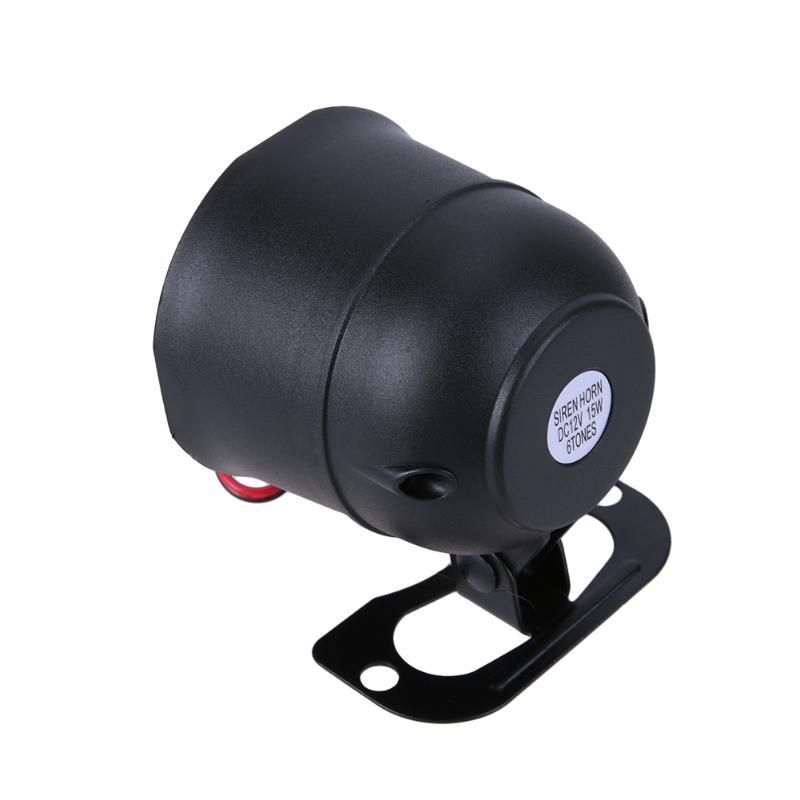

1 x Siren
1 x Wiring set
1 x Manual
