◆ real-time tracking

◆ vibration/displacement/overspeed alarm

◆ main power cut off alarm

◆ geographical fence

◆Historical route

◆ remote oil cutting and refilling

◆ AGPS positioning

features and product parameters

terminal size: 31x31x57mm weight: 50g backup battery: 3.7V 100 mA

network: GSM/GPRS network frequency band: 850/900/1800/1900Mhz

GPS module: MTK2503

GPS sensitivity:-159dBm

GPS positioning accuracy: 10m

first positioning Time: Cold Start 45-120 seconds

hot start: 35 seconds hot start: 1 second

operating voltage: 10-50V input

battery: Built-in lithium battery 3.7V 110 mA

storage Temperature:-40℃ to + 85℃

operating temperature:-20 ℃ to +55 ℃

usage: mainly used for car/motorcycle/battery car

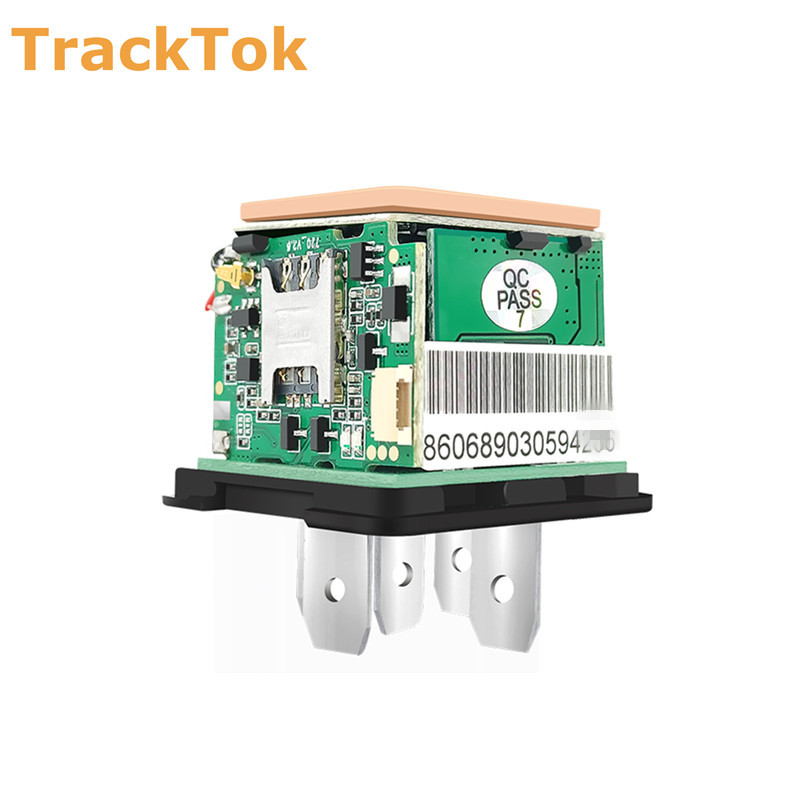

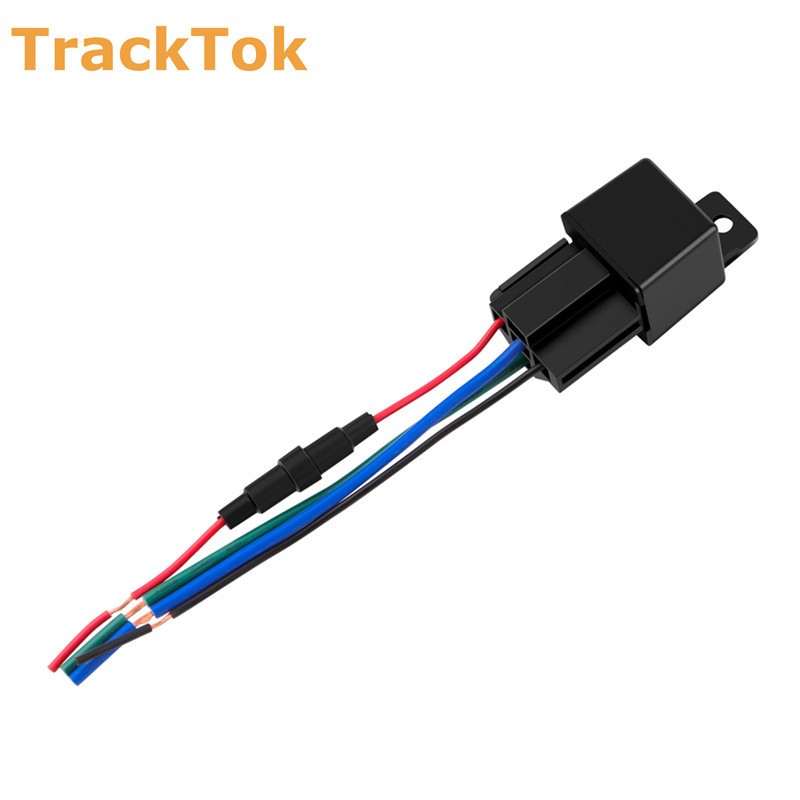

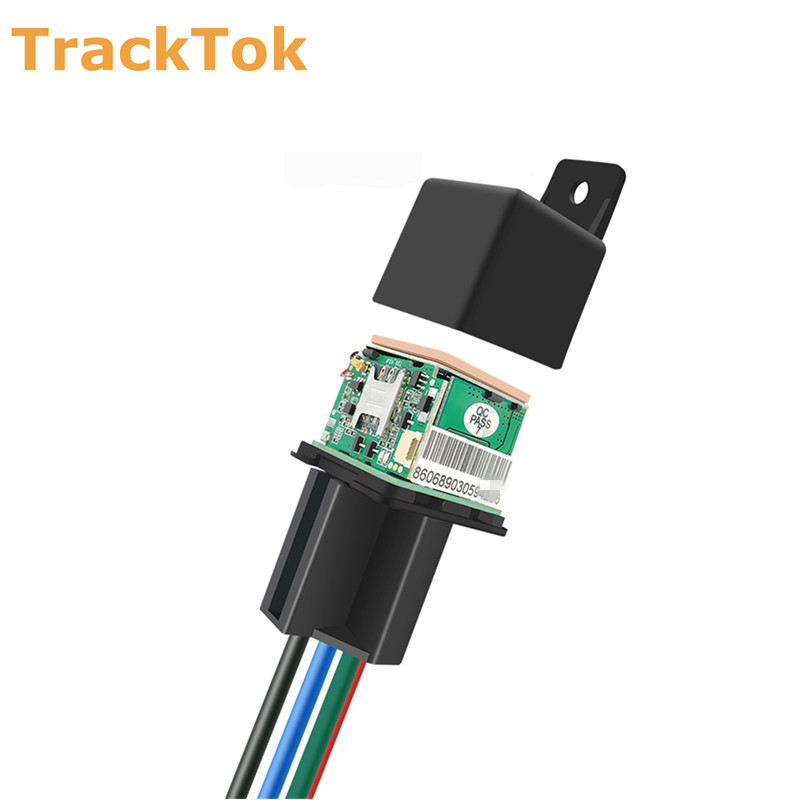

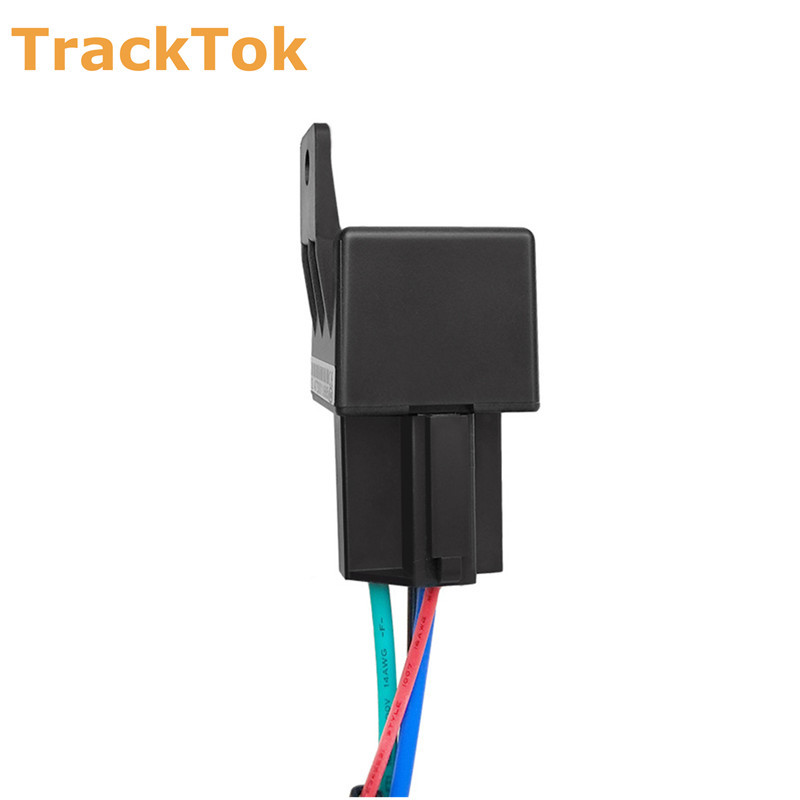

1. Relay appearance, built-in GPS and GSM antenna

2. Vehicle GPS locator, waterproof performance IPX-6
3. Support mobile phone Android and Apple APP query function

4. Read location information and remaining power through B/S and mobile APP client
5. Support SMS parameter setting and query functions
6. Support base station auxiliary positioning function, support low power mode, long standby time
7. Support Chinese address resolution
8. Support automatic storage and supplementary reporting in blind areas
9. Support SMS alarm function

quick operation:

1. Need to bind a mobile phone

2. Download mobile APP

3. Enter the platform account and password to log on

4. The function of the interface can view real-time positioning, historical trajectory, electronic fence, etc.
