◆ real-time positioning

◆ vibration/displacement/overspeed alarm

◆ main power cut off alarm

◆ geographical fence

◆ historical track

◆ remote oil cut-off and re-oil

features and product parameters

terminal size: 31x31x57mm

weight: 50g Battery: 3.7V

network: GSM/GPRS

network frequency band: 850/900/1800/1900Mhz

GPS sensitivity:-159dBm

GPS positioning accuracy: 10m

first positioning Time: Cold Start 45-120 seconds

hot start: 35 seconds hot start: 1 second

operating voltage: 10-50V input

storage Temperature:-40℃ to + 85℃

operating temperature:-20 ℃ to +55 ℃

usage: mainly used for car/motorcycle/battery car

the device is connected to the car, the device will automatically charge when the power is insufficient, do not take it off by yourself

query method: supports online platform query, Mobile APP query, and SMS query.

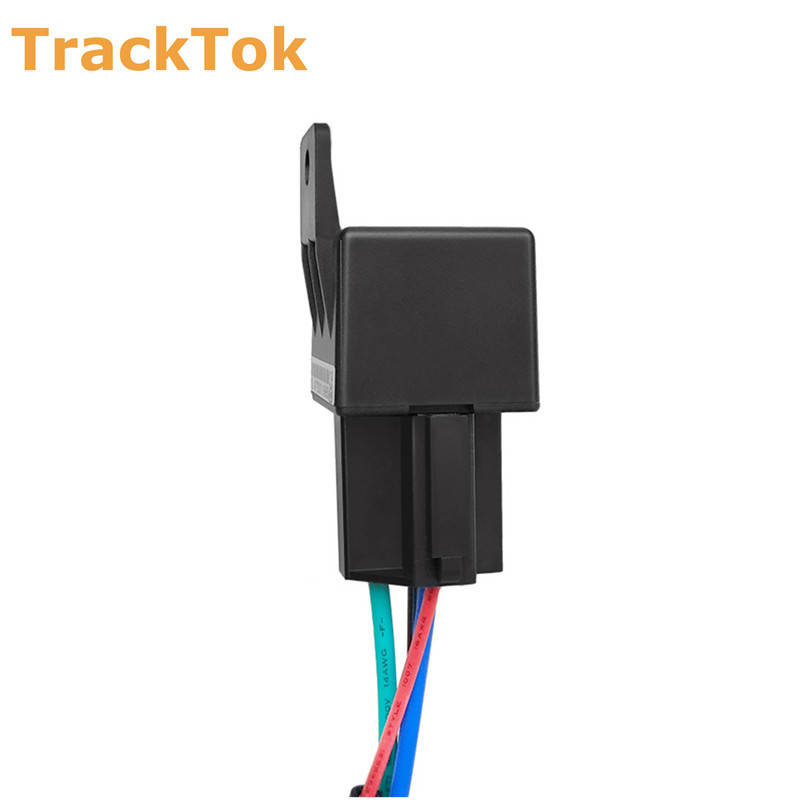

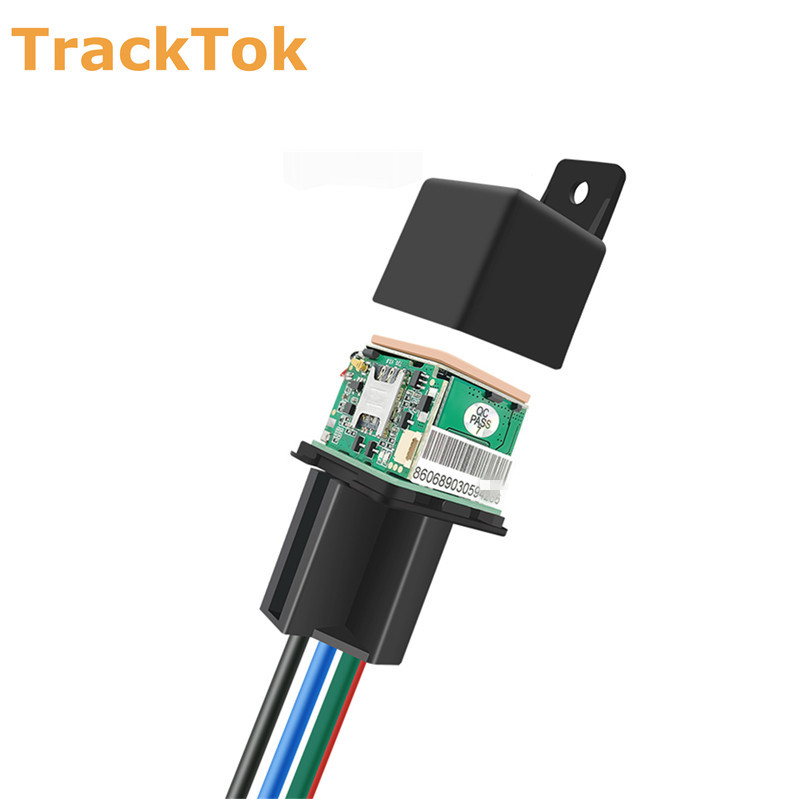

1. Relay appearance, built-in GPS and GSM antenna

2. Vehicle GPS locator, waterproof performance IPX-6
3. Support mobile phone Android and Apple APP query function

4. Read location information and remaining power through B/S and mobile APP client
5. Support SMS parameter setting and query functions
6. Support base station auxiliary positioning function, support low power mode, long standby time
7. Support Chinese address resolution
8. Support automatic storage and supplementary reporting in blind areas

quick operation:

1. Need to bind a mobile phone

2. Download mobile APP

3. Enter the platform account and password to log on

4. The function of the interface can view real-time positioning, historical trajectory, electronic fence, etc.
