Description

Functional Introduction:

1. Press the remote lock key once, the doors are locked, the turn signal flashes once, the horn sounds once, the LED indicator flashes, and the window lifting signal outputs for 25 seconds.

Press the unlock button on the remote control once, the door will unlock, the turn signal will flash twice, the horn will sound twice, and the LED indicator will not light up.

3, long press the trunk key or the fourth button on the remote control, the trunk signal output, open the trunk function, this is a negative trunk output, some cars are positive trunk, need to add a relay to convert to a positive trunk signal.

4, long press the unlock button, can also open the trunk function

5, electric locks and pneumatic locks can be selected through the jump pins on the board line, and the factory default is electric locks (0.5 seconds).

Press the third or fourth button on the remote control once, and the direction lights flash three times, followed by the horn sounding three times, to activate the vehicle locating warning function.

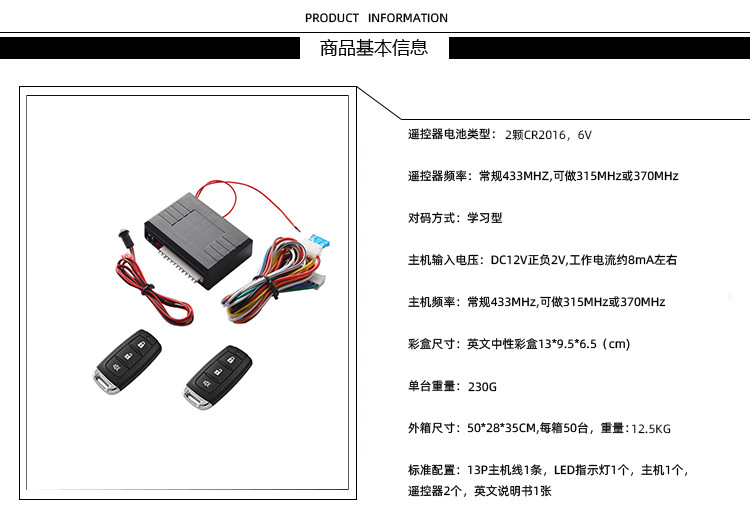

Product Packaging Parameters:

The size of the single product color box is 13*9.5*6.5CM.

The outer box size is 50*28*35CM.
Weight is 12.5KG per box, 50 pieces per box

Shelf Life: 14 months

Three. Product Details

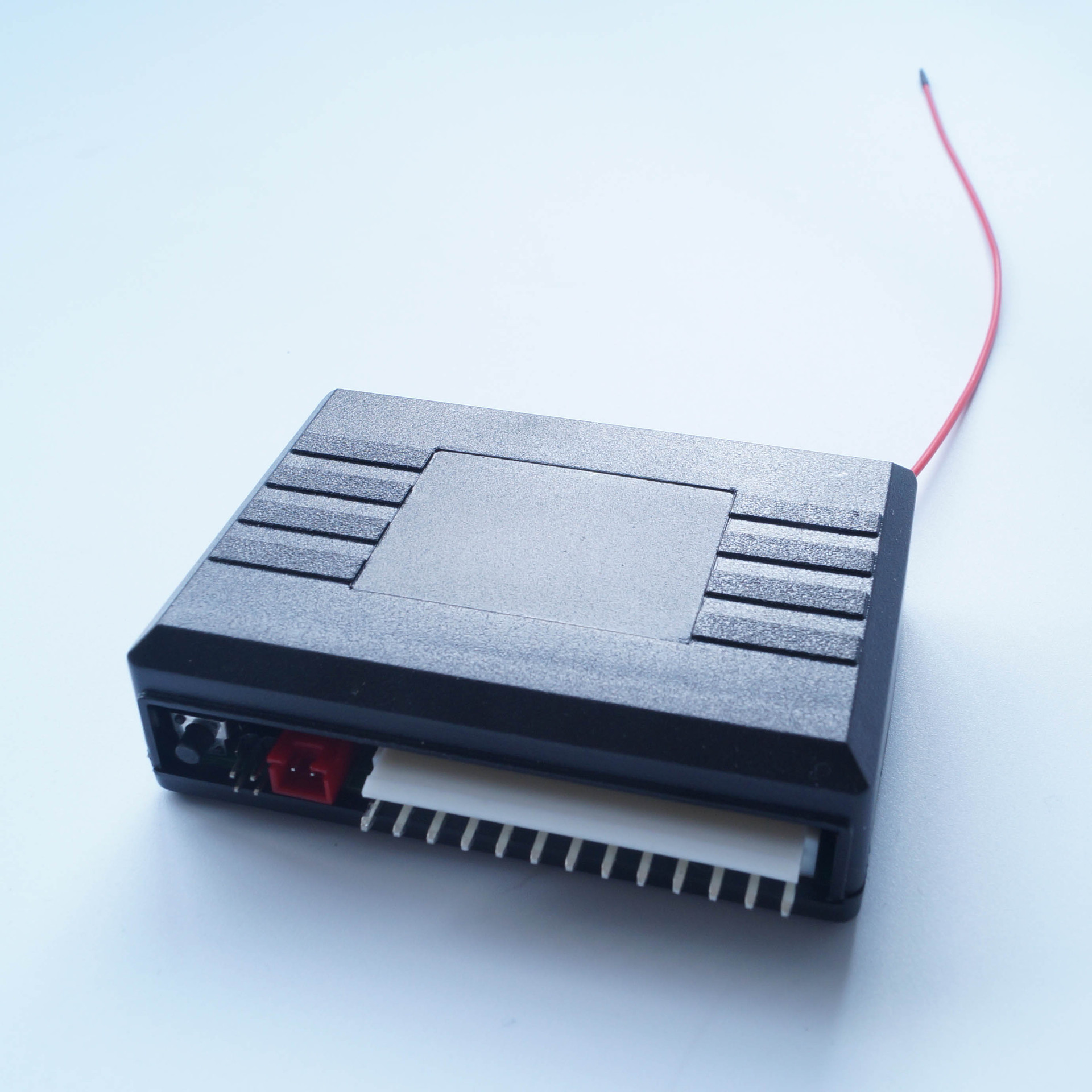

TSK-405Q main unit:

Neutral English packaging, custom packaging boxes are available for orders of 1000 units or more.

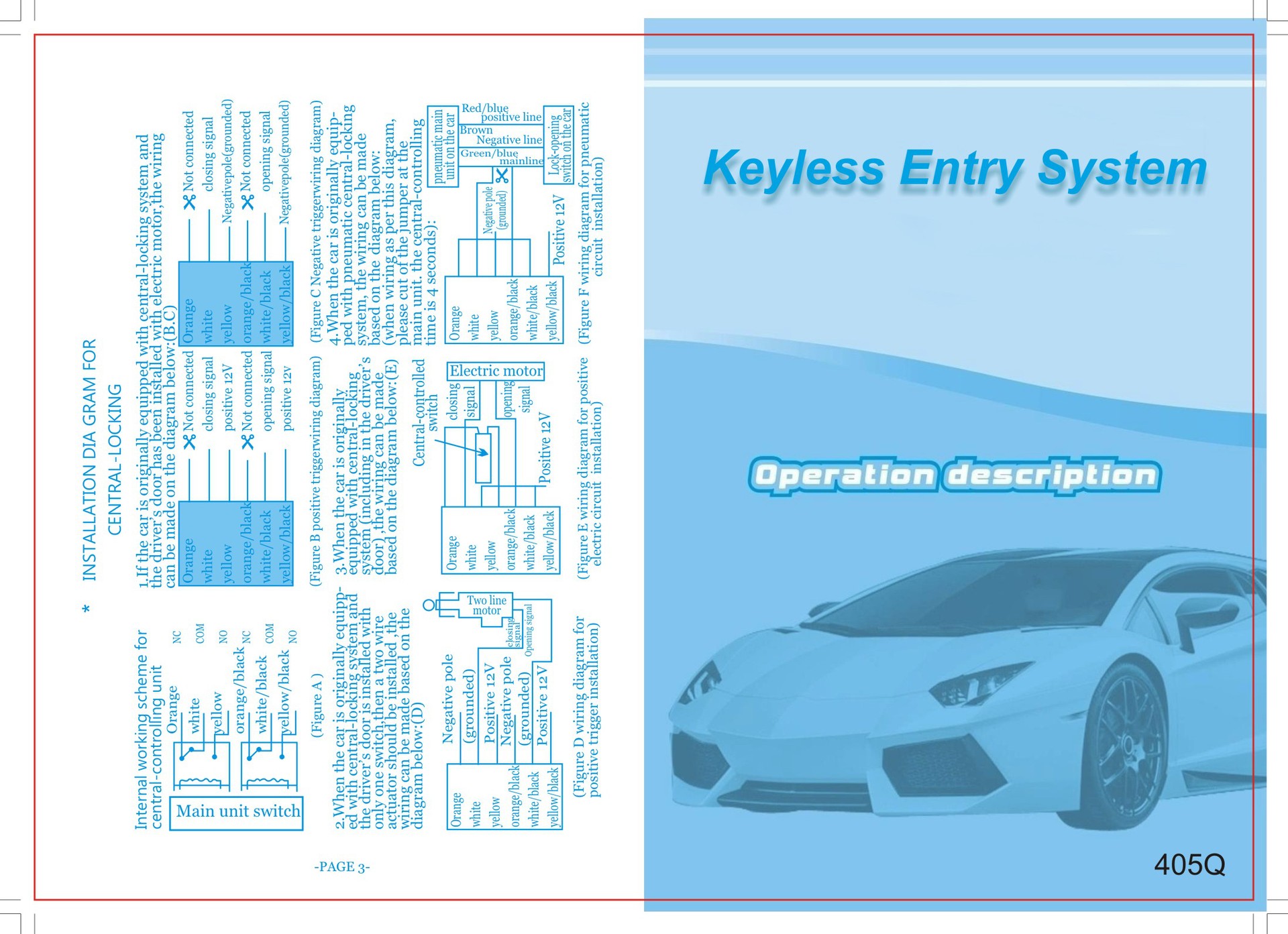

Chapter 4: Installation Instructions and Wiring Diagrams
