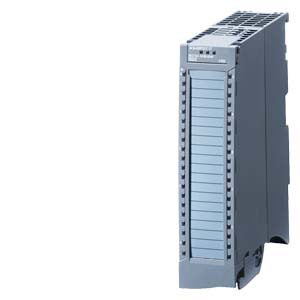

SIMATIC S7-1500, analog input module AI 8xU/I/RTD/TC ST, 16-bit resolution, accuracy 0.3%, 8 channels, divided into groups, each group 8, 4 channels common mode voltage 10V when measured with temperature sensor RTD; Diagnosis; Process alarm includes feed element, shield bracket and shield terminal: front connector (screw terminal or embedded) order separately | |
| general information | ||
| product Type mark | AI 8xU/ I /RTD/TC ST | |
| hardware function status | FS04 | |
| firmware version | V2.0.0 | |
| ● updatable firmware | yes | |
| product Features | ||
| ● I & M data | yes; I & M0 to I & M3 | |
| ● variable measurement range | no | |
| ● variable measurement value | no | |
| ● measurement range adjustment | no | |
| with package | ||
| ● STEP 7 TIA port, configurable/integrated, from version | V12 / V12 | |
| ● STEP 7 configurable/integrated, from version | V5.5 SP2/- | |
| ● GSD version PROFIBUS or later | V1.0 / V5.1 | |
| ● GSD version PROFINET or later | v2.3 / - | |
| operation mode | ||
| ● oversampling | no | |
| ● MSI | yes | |
| CiR configuration in operation | ||
| you can change parameter assignment in RUN mode. | Yes | |
| can be calibrated in RUN mode | yes | |
| power supply voltage | ||
| voltage type of power supply | DC | |
| rating (DC) | 24V | |
| allowed range, lower limit (DC) | 20.4v | |
| allowed range, upper limit (DC) | 28.8V | |
| reverse polarity protection | yes | |
| input current | ||
| current consumption, maximum | 240 mA; 24V DC power supply | |
| sensor power supply | ||
| 24V sensor power supply | ||
| ● Short Circuit Protection | yes | |
| ● output current, maximum | 20 mA; Maximum 47 mA per channel, duration <10 s | |
| power | ||
| power output from backplane bus | 0.7W | |
| power loss | ||
| power loss, typical | 2.7W | |
| analog input | ||
| number of analog inputs | 8 | |
| ● current measurement | 8 | |
| ● voltage measurement | 8 | |
| ● When measuring resistance/resistance thermocouple | 4 | |
| ● When measuring thermocouple | 8 | |
| voltage input allowed input voltage (damage limit), maximum | 28.8V | |
| current input allowable input current (damage limit), maximum | 40 mA | |
| constant measured current of resistance sensor, typical value | 150 Ohm,300 Ohm,600 Ohm,Pt100,Pt200,Ni100:1.25 mA,6000 Ohm,Pt500,Pt1000,Ni1000,LG-Ni1000:0.625 mA,PTC:0.472 mA | |
| technical unit of temperature measurement, adjustable | yes; °C/°C/K | |
| input range (rated value), voltage | ||
| ● 0 to +5V | no | |
| ● 0 to +10V | no | |
| ● 1V to 5V | yes | |
| ● input resistance (1V to 5V) | 100 k? | |
| ● -1v to +1v | yes | |
| ● input resistance (-1V to +1V) | 10 M? | |
| ● -10V to +10V | yes | |
| ● input resistance (-10V to +10V) | 100 k? | |
| ● -2.5V to +2.5V | yes | |
| ● input resistance (-2.5V to +2.5V) | 10 M? | |
| ● -25 mV to +25 mV | no | |
| ● -250 mV to +250 mV | yes | |
| ● input resistance (-250 mV to +250 mV) | 10 M? | |
| ● -5V to +5V | yes | |
| ● input resistance (-5V to +5V) | 100 k? | |
| ● -50 mV to +50 mV | yes | |
| ● input resistance (-50 mV to +50 mV) | 10 M? | |
| ● -500 mV to +500 mV | yes | |
| ● input resistance (-500 mV to +500 mV) | 10 M? | |
| ● -80 mV to +80 mV | yes | |
| ● input resistance (-80 mV to +80 mV) | 10 M? | |
| Input range (rated value), current | ||
| ● 0 to 20 mA | yes | |
| ● input resistance (0 to 20 mA) | 25 ?; Plus about 42Ohm for overvoltage protection through PTC | |
| ● -20 mA to +20 mA | yes | |
| ● input resistance (-20 mA to +20 mA) | 25 ?; Plus about 42Ohm for overvoltage protection through PTC | |
| ● 4 mA to 20 mA | yes | |
| ● input resistance (4 mA to 20 mA) | 25 ?; Plus about 42Ohm for overvoltage protection through PTC | |
| input range (rating), thermocouple | ||
| ● Type B | yes | |
| ● input resistance (type B) | 10 M? | |
| ● Type C | no | |
| ● Type E | yes | |
| ● input resistance (Type E) | 10 M? | |
| ● Type J | yes | |
| ● input resistance (Type J) | 10 M? | |
| ● Type K | yes | |
| ● input resistance (Type K) | 10 M? | |
| ● Type L | no | |
| ● Type N | yes | |
| ● input resistance (Type N) | 10 M? | |
| ● Type R | yes | |
| ● input resistance (Type R) | 10 M? | |
| ● Type S | yes | |
| ● input resistance (Type S) | 10 M? | |
| ● Type T | yes | |
| ● input resistance (Type T) | 10 M? | |
| ● type TXK/TXK(L) conforms to GOST | no | |
| input range (rated value), resistance thermometer | ||
| ● Cu 10 | no | |
| ● Cu 10 conforming to GOST | no | |
| ● Cu 50 | no | |
| ● Cu 50 conforming to GOST | no | |
| ● Cu 100 | no | |
| ● Cu 100 conforming to GOST | no | |
| ● Ni 10 | no | |
| ● Ni 10 conforming to GOST | no | |
| ● Ni 100 | yes; Standard/climate | |
| ● input resistance (Ni 100) | 10 M? | |
| ● Ni 100 conforming to GOST | no | |
| ● Ni 1000 | yes; Standard/climate | |
| ● input resistance (Ni 1000) | 10 M? | |
| ● Ni 1000 conforming to GOST | no | |
| ● LG-Ni 1000 | yes; Standard/climate | |
| ● input resistance (LG-Ni 1000) | 10 M? | |
| ● Ni 120 | no | |
| ● Ni 120 conforming to GOST | no | |
| ● Ni 200 conforming to GOST | no | |
| ● Ni 500 | no | |
| ● Ni 500 conforming to GOST | no | |
| ● Pt 10 | no | |
| ● Pt 10 conforming to GOST | no | |
| ● Pt 50 | no | |
| ● Pt 50 conforming to GOST | no | |
| ● Pt 100 | yes; Standard/climate | |
| ● input resistance (Pt 100) | 10 M? | |
| ● Pt 100 conforming to GOST | no | |
| ● Pt 1000 | yes; Standard/climate | |
| ● input resistance (Pt 1000) | 10 M? | |
| ● Pt 1000 conforming to GOST | no | |
| ● Pt 200 | yes; Standard/climate | |
| ● input resistance (Pt 200) | 10 M? | |
| ● Pt 200 conforming to GOST | no | |
| ● Pt 500 | yes; Standard/climate | |
| ● input resistance (Pt 500) | 10 M? | |
| ● Pt 500 conforming to GOST | no | |
| input range (rated value), resistance | ||
| ● 0 to 150 Ohm | yes | |
| ● input resistance (0 to 150 ohm) | 10 M? | |
| ● 0 to 300 ohm | yes | |
| ● input resistance (0 to 300 ohm) | 10 M? | |
| ● 0 to 600 ohm | yes | |
| ● input resistance (0 to 600 ohm) | 10 M? | |
| ● 0 to 3000 Ohm | no | |
| ● 0 to 6000 Ohm | yes | |
| ● input resistance (0 to 6000 Ohm) | 10 M? | |
| ● PTC | yes | |
| ● input resistance (PTC) | 10 M? | |
| Thermocouple (TC) | ||
| temperature compensation | ||
| -Parameterizable | yes | |
| -Internal temperature compensation | yes | |
| -External temperature compensation using RTDs | yes | |
| -0°C comparison point temperature compensation | yes; You can set a fixed value. | |
| -Module reference channel | yes | |
| wire Length | ||
| ● shielding, maximum | 800 m; In U/I, 200 m at R/RTD and 50 m at TC | |
| analog value composition at input | ||
| integration and conversion time/resolution per channel | ||
| ● resolution with overmodulation (digits including symbols), maximum | 16 bit | |
| ● parameterized integration time | yes | |
| ● integral time (ms) | 2,5 / 16,67 / 20 / 100 ms | |
| ● Basic conversion time, including integration time (ms) | 9 / 23 / 27 / 107 ms | |
| -Additional switching time for disconnection monitoring | 9ms (for R/RTD/TC measurement) | |
| -Additional Conversion time for resistance measurement | 150 Ohm, 300 Ohm, 600 Ohm, Pt100, Pt200, Ni100: 2 ms, 6000 Ohm, Pt500, Pt1000, Ni1000, LG-Ni1000, PTC: 4 ms | |
| ● suppression of interference voltage at interference frequency f1 (unit Hz) | 400 / 60 / 50 / 10Hz | |
| ● offset calibration time (each module) | basic conversion time of the slowest Channel | |
| measured value filtering | ||
| ● parameterizable | yes | |
| ● level: None | yes | |
| ● level: weak | yes | |
| ● grade: Medium | yes | |
| ● level: Strong | yes | |
| sensor | ||
| signal sensor connection | ||
| ● used for voltage measurement | yes | |
| ● current measurement as a two-wire measuring transmitter | yes | |
| -Double-line measurement of the load of the frequency converter, maximum value | 820? | |
| ● current measurement as a four-wire measuring transmitter | yes | |
| ● For resistance measurement using two-wire interface | yes; Only for PTC | |
| ● Resistance measurement using three-wire interface | yes; All measurement ranges outside PTC; Internal compensation of cable resistance | |
| ● Resistance measurement using four-wire interface | yes; All measurement ranges outside PTC | |
| error/precision | ||
| linear Error (related to input range),(+/-) | 0.02% | |
| temperature error (related to input range),(+/-) | 0.005 %/K; 0.02 ± % /K for TC type T | |
| crosstalk between input terminals, maximum | -80 dB | |
| repetition accuracy in the starting state at 25°C (related to the input range),(+/-) | 0.02% | |
| internal compensated temperature failure | ± 6°C | |
| operating error limits over the entire temperature range | ||
| ● voltage, related to the input range,(+/-) | 0.3% | |
| ● Current, related to the input range,(+/-) | 0.3% | |
| ● Resistance, related to the input range,(+/-) | 0.3% | |
| ● Resistance Temperature, related to the input range,(+/-) | Ptxxx standard: ± 1.5 K,Ptxxx climate: ± 0.5 K,Nixxx standard: ± 0.5 K,Nixxx climate: ± 0.3 K | |
| ● thermocouple, related to the input range,(+/-) | type B: > 600°C ± 4.6 K, Type E: > -200°C ± 1.5 K, Type J: > -210°C ± 1.9 K, Type K: > -200°C ± 2.4 K, type N: > -200°C ± 2.9 K, Type R: > 0°C ± 4.7 K, Type S: > 0°C ± 4.6 K, type T: > -200°C ± 2.4 K | |
| basic error limit (Operation error limit at 25°C) | ||
| ● voltage, related to the input range,(+/-) | 0.1% | |
| ● Current, related to the input range,(+/-) | 0.1% | |
| ● Resistance, related to the input range,(+/-) | 0.1% | |
| ● Resistance Temperature, related to the input range,(+/-) | Ptxxx standard: ± 0.7 K,Ptxxx climate: ± 0.2 K,Nixxx standard: ± 0.3 K,Nixxx climate: ± 0.15 K | |
| ● thermocouple, related to the input range,(+/-) | type B: > 600°C ± 1.7 K, Type E: > -200°C ± 0.7 K, Type J: > -210°C ± 0.8 K, Type K: > -200°C ± 1.2 K, type N: > -200°C ± 1.2 K, Type R: > 0°C ± 1.9 K, Type S: > 0°C ± 1.9 K, type T: > -200°C ± 0.8 K | |
| fault voltage suppression f = n x (f1 +/- 1 %),f1 = interference frequency | ||
| ● series interference (interference peak <Input range rating), minimum | 40 dB | |
| ● parallel voltage, maximum | 10V | |
| ● Common Code interference, minimum | 60 dB | |
| isochronous mode | ||
| beat synchronization (Application to Port synchronization) | no | |
| alarm/diagnosis/status information | ||
| diagnostic function | yes | |
| alarm | ||
| ● diagnostic alarm | Yes | |
| ● limit value alarm | yes; Two upper limits and two lower limits respectively | |
| diagnostic Information | ||
| ● power supply voltage monitoring | yes | |
| ● disconnection | yes; Only 1 ... 5V,4 ... 20 mA,TC, R, and RTD | |
| ● overflow/underflow | yes | |
| diagnostic display LED | ||
| ● RUN LED | yes; Green LED | |
| ● ERROR LED | yes; Red LED | |
| ● power supply voltage monitoring (PWR-LED) | yes; Green LED | |
| ● Channel Status Display | yes; Green LED | |
| ● For Channel diagnosis | yes; Red LED | |
| ● used for module diagnosis | yes; Red LED | |
| potential isolation | ||
| potential separation of channels | ||
| ● between channels | no | |
| ● group points between channels | 8 | |
| ● between the Channel and the backplane bus | yes | |
| ● between the Channel and the power supply voltage of electronic components | yes | |
| allowable potential difference | ||
| between input terminals (UCM) | DC 20V | |
| between the input and MANA (UCM) | 10V DC | |
| insulation | ||
| insulation Test, use | 707V DC (test type) | |
| standards, licenses, certificates | ||
| applicable to AMS2750-compliant applications | yes; For more information about compliance statements, see online support documentation 109757262. | |
| Applicable to CQI-9-compliant applications | yes; Based on AMS 2750 E | |
| environmental requirements | ||
| operating ambient temperature | ||
| ● horizontal installation, minimum | 0°C | |
| ● horizontal installation, maximum | 60°C | |
| ● vertical installation, minimum | 0°C | |
| ● vertical installation, maximum | 40°C | |
| distributed operation | ||
| start by priority | no | |
| size | ||
| width | 35 mm | |
| height | 147 mm | |
| depth | 129 mm | |
| weight | ||
| weight, about | 310g | |
| other | ||
| tips: | additional basic faults and noise during integration time = 2.5ms: Voltage: ± 250mV (± 0.02%), ± 80mV (± 0.05%), ± 50mV (± 0.05%), resistance: 150Ohm ± 0.02%, resistance thermometer: Pt100 climate: ± 0.08K, Ni100 climate: ± 0.08K, thermocouple: type B, R, S: ± 3K, Type E, J, K, N, T:± 1K | |
| last modification: | 2019/4/12 | |
