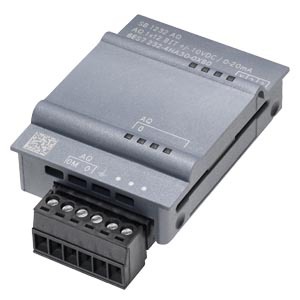

| SIMATIC S7-1200, digital I/O SB 1223,2DI/2DQ,5V DC 200kHz | ||
| general information | ||
| product Type mark | SB 1223,DI 2x5 VDC/DQ 2x5 VDC 200 kHz | |
| input current | ||
| DC 5V from backplane bus, typical value | 35 mA | |
| power loss | ||
| power loss, typical | 0.5W | |
| digital input | ||
| number of digital inputs | 2; Current supply | |
| ● In the component | 2 | |
| input voltage | ||
| ● input voltage type | DC | |
| ● rating (DC) | 5V | |
| ● For signal "0" | (L+ - 1.0V DC) ... L+ | |
| ● For signal "1" | 0V ...(L+ - 2.0V DC) | |
| input current | ||
| ● For signal "0", maximum value (allowed closed circuit current) | 2.2 mA | |
| ● For signal "1", minimum value | 5.1 mA | |
| input delay (when the input voltage is rated) | ||
| for standard input | ||
| -Parameterizable | yes; 0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 μs;0.05 / 0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 ms | |
| for alarm input | ||
| -Parameterizable | yes | |
| for technical functions | ||
| -Parameterizable | yes | |
| wire Length | ||
| ● shielding, maximum | 50 m; Shielded twisted pair | |
| digital Output | ||
| number of digital outputs | 2; Electronic MOSFETs (current consumption/current supply) | |
| ● In the component | 2 | |
| short circuit protection | no | |
| on-off capability of output terminal | ||
| ● maximum value of resistance load | 0.1 A | |
| load resistance range | ||
| ● upper limit | 7? | |
| Output voltage | ||
| ● rating (DC) | 5V | |
| ● maximum value for signal "0" | 0.2V | |
| ● For signal "1", minimum value | L+ - 0.7V DC | |
| ● For signal "1", maximum value | 6V | |
| output Current | ||
| ● For the allowable range of signal "1", the maximum value | 0.1 A | |
| wire Length | ||
| ● shielding, maximum | 50 m | |
| alarm/diagnosis/status information | ||
| diagnostic display LED | ||
| ● used for input status | yes | |
| ● used for output status | yes | |
| protection level and protection category | ||
| protection level in accordance with EN 60529 | ||
| ● IP20 | yes | |
| environmental requirements | ||
| open Air | ||
| ● maximum drop | 0.3 m; Five, in the shipping package | |
| operating ambient temperature | ||
| ● minimum | -20°C | |
| ● maximum value | 60°C | |
| ● horizontal installation, minimum | -20°C | |
| ● horizontal installation, maximum | 60°C | |
| ● vertical installation, minimum | -20°C | |
| ● vertical installation, maximum | 50°C | |
| ambient temperature during transportation/storage | ||
| ● minimum | -40°C | |
| ● maximum value | 70°C | |
| air pressure meets IEC 60068-2-13 standard requirements | ||
| ● storage/transportation, minimum | 660 hPa | |
| ● storage/transportation, maximum | 1 080 hPa | |
| relative air humidity | ||
| ● non-condensing operation at 25°C, maximum | 95% | |
| machinery/materials | ||
| shell material (front) | ||
| ● Plastic | yes | |
| size | ||
| width | 38 mm | |
| height | 62 mm | |
| depth | 21 mm | |
| weight | ||
| weight, about | 35g | |
| last modification: | 2019/4/12 | |
