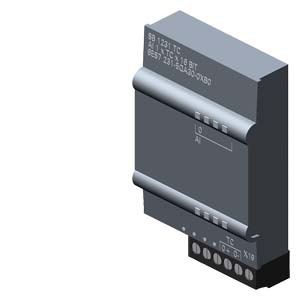

SIMATIC S7-1200, analog input, SB 1231 TC,1 AI Thermocouple Type J or K | |
| General information | ||
| Product Type mark | SB 1231,AI 1x16 bit TC | |
| Power supply voltage | ||
| Rating (DC) | ||
| ● DC 24V | Yes | |
| Input current | ||
| Current consumption, typical value | 5 mA | |
| DC 5V from backplane bus, typical value | 20 mA | |
| Power loss | ||
| Power loss, typical | 0.5W | |
| Analog input | ||
| Number of analog inputs | 1; Thermocouple | |
| Current input allowable input voltage (damage limit), maximum | ± 35V | |
| Voltage input allowed input voltage (damage limit), maximum | ± 35V | |
| Technical unit of temperature measurement, adjustable | Celsius degree/Fahrenheit degree | |
| Input range | ||
| ● voltage | Yes | |
| ● Current | No | |
| ● thermocouple | Yes; J, K, T, E, R & S, B, N, C, TXK/XK(L); Voltage range: ± 80 mV | |
| ● Resistance thermometer | No | |
| ● Resistance | No | |
| Input range (rated value), voltage | ||
| ● -80 mV to +80 mV | Yes | |
| ● input resistance (-80 mV to +80 mV) | ≥ 1 megohm | |
| Input range (rating), thermocouple | ||
| ● Type J | Yes | |
| ● input resistance (Type J) | 1200°C | |
| ● Type K | Yes | |
| ● input resistance (Type K) | 1372°C | |
| Thermocouple (TC) | ||
| Temperature compensation | ||
| -Parameterizable | No | |
| Analog output | ||
| Number of analog outputs | 0 | |
| Wire Length | ||
| ● shielding, maximum | 100 m; Shielded twisted pair | |
| Analog value composition at input | ||
| Measurement principle | Integration | |
| Integration and conversion time/resolution per channel | ||
| ● resolution with overmodulation (digits including symbols), maximum | 15 bit; + symbol | |
| ● parameterized integration time | No | |
| ● suppression of interference voltage at interference frequency f1 (unit Hz) | 85 dB at 10/50/60 / 400Hz | |
| Measured value filtering | ||
| ● parameterizable | Yes | |
| Error/precision | ||
| Temperature error (related to input range),(+/-) | 25 ℃ ± 0.1%, to 55 ℃ ± 0.2% all measurement range | |
| Repetition accuracy in the starting state at 25°C (related to the output range),(+/-) | 0.5% | |
| Fault voltage suppression f = n x (f1 +/- 1 %),f1 = interference frequency | ||
| ● Common Code interference, minimum | 120 dB | |
| Alarm/diagnosis/status information | ||
| Alarm | Yes | |
| Diagnostic function | Yes; Readable | |
| Alarm | ||
| ● diagnostic alarm | Yes | |
| Diagnostic Information | ||
| ● disconnection | Yes | |
| Diagnostic display LED | ||
| ● used for input status | Yes | |
| ● for maintenance | Yes | |
| Protection level and protection category | ||
| Protection level in accordance with EN 60529 | ||
| ● IP20 | Yes | |
| Standards, licenses, certificates | ||
| CE Mark | Yes | |
| CSA license | Yes | |
| FM license | Yes | |
| RCM(C-TICK format) | Yes | |
| Environmental requirements | ||
| Open Air | ||
| ● maximum drop | 0.3 m; Five, in the shipping package | |
| Operating ambient temperature | ||
| ● minimum | -20°C | |
| ● maximum value | 60°C | |
| ● horizontal installation, minimum | -20°C | |
| ● horizontal installation, maximum | 60°C | |
| ● vertical installation, minimum | -20°C | |
| ● vertical installation, maximum | 50°C | |
| Ambient temperature during transportation/storage | ||
| ● minimum | -40°C | |
| ● maximum value | 70°C | |
| Air pressure meets IEC 60068-2-13 standard requirements | ||
| ● operation, minimum | 795 hPa | |
| ● operation, maximum | 1 080 hPa | |
| ● storage/transportation, minimum | 660 hPa | |
| ● storage/transportation, maximum | 1 080 hPa | |
| Relative air humidity | ||
| ● non-condensing operation at 25°C, maximum | 95% | |
|
|
||
| Connection Technology | ||
| Required front plug | Yes | |
| Machinery/materials | ||
| Shell material (front) | ||
| ● Plastic | Yes | |
| Size | ||
| Width | 38 mm | |
| Height | 62 mm | |
| Depth | 21 mm | |
| Weight | ||
| Weight, about | 35g | |
