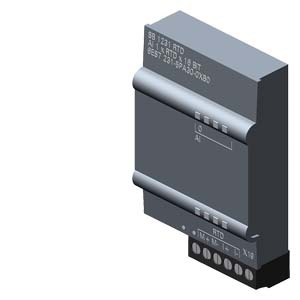

SIMATIC S7-1200, analog input, SB 1231RTD,1 AI RTD, PT 100 and PT1000 | |
| general information | ||
| product Type mark | SB 1231,AI 1x16 bit RTD | |
| power supply voltage | ||
| rating (DC) | ||
| ● DC 24V | yes | |
| input current | ||
| current consumption, typical value | 5 mA | |
| DC 5V from backplane bus, typical value | 20 mA | |
| power loss | ||
| power loss, typical | 0.5W | |
| analog input | ||
| number of analog inputs | 1; Resistance thermometer | |
| current input allowable input voltage (damage limit), maximum | ± 35V | |
| technical unit of temperature measurement, adjustable | celsius degree/Fahrenheit degree | |
| input range | ||
| ● voltage | yes | |
| ● Current | no | |
| ● thermocouple | no | |
| ● Resistance thermometer | yes; Platinum (Pt) | |
| ● Resistance | yes; 150 Ω, 300 Ω, 600 Ω | |
| input range (rated value), voltage | ||
| ● input resistance (-80 mV to +80 mV) | > = 10MOhm | |
| input range (rated value), resistance thermometer | ||
| ● Pt 100 | yes | |
| ● input resistance (Pt 100) | 100? | |
| ● Pt 1000 | yes | |
| ● input resistance (Pt 1000) | 1,000? | |
| ● Pt 200 | yes | |
| ● input resistance (Pt 200) | 200? | |
| ● Pt 500 | yes | |
| ● input resistance (Pt 500) | 500? | |
| Input range (rated value), resistance | ||
| ● 0 to 150 Ohm | yes | |
| ● 0 to 300 ohm | yes | |
| ● 0 to 600 ohm | yes | |
| thermocouple (TC) | ||
| temperature compensation | ||
| -Parameterizable | no | |
| analog output | ||
| number of analog outputs | 0 | |
| wire Length | ||
| ● shielding, maximum | 100 m; Shielded twisted pair | |
| analog value composition at input | ||
| measurement principle | integration | |
| integration and conversion time/resolution per channel | ||
| ● resolution with overmodulation (digits including symbols), maximum | 15 bit; + symbol | |
| ● parameterized integration time | no | |
| ● suppression of interference voltage at interference frequency f1 (unit Hz) | 85 dB at 10/50/60 / 400Hz | |
| error/precision | ||
| temperature error (related to input range),(+/-) | 25 ℃ ± 0.1%, to 55 ℃ ± 0.2% all measurement range | |
| repetition accuracy in the starting state at 25°C (related to the output range),(+/-) | 0.05% | |
| fault voltage suppression f = n x (f1 +/- 1 %),f1 = interference frequency | ||
| ● Common Code interference, minimum | 120 dB | |
| alarm/diagnosis/status information | ||
| alarm | yes | |
| diagnostic function | yes; Readable | |
| alarm | ||
| ● diagnostic alarm | yes | |
| diagnostic Information | ||
| ● disconnection | yes | |
| diagnostic display LED | ||
| ● used for input status | yes | |
| ● for maintenance | yes | |
| protection level and protection category | ||
| protection level in accordance with EN 60529 | ||
| ● IP20 | yes | |
| standards, licenses, certificates | ||
| CE Mark | yes | |
| CSA license | yes | |
| FM license | yes | |
| RCM(C-TICK format) | yes | |
| environmental requirements | ||
| open Air | ||
| ● maximum drop | 0.3 m; Five, in the shipping package | |
| operating ambient temperature | ||
| ● minimum | -20°C | |
| ● maximum value | 60°C | |
| ● horizontal installation, minimum | -20°C | |
| ● horizontal installation, maximum | 60°C | |
| ● vertical installation, minimum | -20°C | |
| ● vertical installation, maximum | 50°C | |
| ambient temperature during transportation/storage | ||
| ● minimum | -40°C | |
| ● maximum value | 70°C | |
| air pressure meets IEC 60068-2-13 standard requirements | ||
| ● operation, minimum | 795 hPa | |
| ● operation, maximum | 1 080 hPa | |
| ● storage/transportation, minimum | 660 hPa | |
| ● storage/transportation, maximum | 1 080 hPa | |
| relative air humidity | ||
| ● non-condensing operation at 25°C, maximum | 95% | |
| concentration of harmful substances | ||
| ● SO2 when RH < 60%, no condensation | sulfur dioxide: < 0.5 ppm; Hydrogen sulfide: < 0.1 ppm;RH < 60% non-condensate | |
| connection Technology | ||
| required front plug | yes | |
| machinery/materials | ||
| shell material (front) | ||
| ● Plastic | yes | |
| size | ||
| width | 38 mm | |
| height | 62 mm | |
| depth | 21 mm | |
| weight | ||
| weight, about | 35g | |
