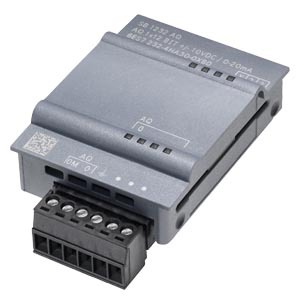

SIMATIC S7-1200, analog output, SB 1232,1 analog output, +/-10V DC(12-bit resolution) or 0-20mA(11-bit resolution) | |
| General information | ||
| Product Type mark | SB 1232,AO 1x12 bit | |
| Input current | ||
| DC 5V from backplane bus, typical value | 15 mA | |
| Output voltage | ||
| Measure the power supply voltage of frequency converter | ||
| ● ICC, IDD, maximum | 25 mA | |
| Power loss | ||
| Power loss, typical | 1.5W | |
| Analog input | ||
| Number of analog inputs | 0 | |
| Analog output | ||
| Number of analog outputs | 1 | |
| Cycle time (all channels), maximum | Voltage: 300μs (R), 750μs (1 uF) current: 600μs (1 mH), 2 ms (10 mH) | |
| Output range, voltage | ||
| ● -10V to +10V | Yes | |
| Output range, current | ||
| ● 0 to 20 mA | Yes | |
| Load resistance (within the rated output range) | ||
| ● minimum value of voltage output terminal | 1,000? | |
| ● maximum value of current output terminal | 600? | |
| Wire Length | ||
| ● shielding, maximum | 100 m; Shielded twisted pair | |
| Analog value composition of output terminal | ||
| Conversion principle | Differential | |
| Integration and conversion time/resolution per channel | ||
| ● resolution with overmodulation (digits including symbols), maximum | 12 bit | |
| Error/precision | ||
| Temperature error (related to output range),(+/-) | 25°C ± 0.5%, to 55°C ± 1% | |
| Alarm/diagnosis/status information | ||
| Alarm | Yes | |
| Diagnostic function | Yes | |
| Diagnostic display LED | ||
| ● used for output status | Yes | |
| Protection level and protection category | ||
| Protection level in accordance with EN 60529 | ||
| ● IP20 | Yes | |
| Standards, licenses, certificates | ||
| CE Mark | Yes | |
| CSA license | Yes | |
| FM license | Yes | |
| RCM(C-TICK format) | Yes | |
| Environmental requirements | ||
| Open Air | ||
| ● maximum drop | 0.3 m; Five, in the shipping package | |
| Operating ambient temperature | ||
| ● minimum | -20°C | |
| ● maximum value | 60°C | |
| ● horizontal installation, minimum | -20°C | |
| ● horizontal installation, maximum | 60°C | |
| ● vertical installation, minimum | -20°C | |
| ● vertical installation, maximum | 50°C | |
| Ambient temperature during transportation/storage | ||
| ● minimum | -40°C | |
| ● maximum value | 70°C | |
| Air pressure meets IEC 60068-2-13 standard requirements | ||
| ● storage/transportation, minimum | 660 hPa | |
| ● storage/transportation, maximum | 1 080 hPa | |
| Relative air humidity | ||
| ● non-condensing operation at 25°C, maximum | 95% | |
|
|
||
| ● SO2 when RH < 60%, no condensation | Sulfur dioxide: < 0.5 ppm; Hydrogen sulfide: < 0.1 ppm;RH < 60% non-condensate | |
| Machinery/materials | ||
| Shell material (front) | ||
| ● Plastic | Yes | |
| Size | ||
| Width | 38 mm | |
| Height | 62 mm | |
| Depth | 21 mm | |
| Weight | ||
| Weight, about | 40g | |
