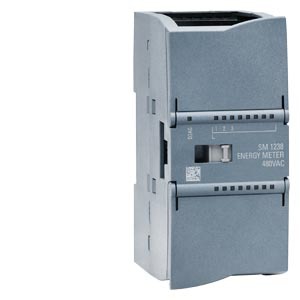

SIMATIC S7-1200, analog input, SM 1238 Energy Meter 480V AC, electric table module, used for data acquisition, in 1 and 3 phase grid (TN,TT) to 480V AC; Current range: 1A,5A; collect voltage, current, phase angle, power, energy value, frequency; Channel diagnosis
|
general information
|
product Type mark
|
SM 1238,AI meter 480 VAC
|
firmware version
|
V2.0
|
product Features
|
● voltage measurement
|
yes
|
-Transformer
|
yes
|
● current measurement
|
yes
|
-No current transformer
|
no
|
-Current Transformer
|
yes
|
● Energy Measurement
|
yes
|
● frequency measurement
|
yes
|
● power measurement
|
yes
|
● active power measurement
|
yes
|
● reactive power measurement
|
yes
|
● I & M data
|
yes; I & M 0
|
● clock synchronization mode
|
no
|
with package
|
● STEP 7 TIA port, configurable/integrated, from version
|
V13 SP1
|
operation mode
|
● Periodic measurement
|
yes
|
● non-periodic measurement
|
yes
|
● non-cyclic measurement access
|
yes
|
● fixed defined measurement group
|
yes
|
● freely defined measurement groups
|
yes
|
CiR configuration in operation
|
you can change parameter assignment in RUN mode.
|
Yes
|
can be calibrated in RUN mode
|
yes
|
installation method/installation
|
installation location
|
horizontal and vertical
|
power supply voltage
|
power Specifications
|
power supply via voltage measurement channel L1
|
voltage type of power supply
|
AC 100 - 277V
|
allowed range, lower limit (AC)
|
90V
|
allowed range, upper limit (AC)
|
293v
|
power Frequency
|
● allowed range, lower limit
|
47Hz
|
● allowed range, upper limit
|
63Hz
|
power loss
|
power loss, typical
|
0.6W
|
address range
|
address space of each module
|
● address space of each module, maximum
|
124 bytes; 112 bytes input/12 bytes Output
|
time
|
runtime counter
|
● existence
|
yes
|
analog input
|
cycle time (all channels), typical value
|
50 ms; The time when all measured values and calculated values (periodic and non-periodic data) are continuously updated.
|
Alarm/diagnosis/status information
|
alarm
|
● diagnostic alarm
|
yes
|
● limit value alarm
|
yes
|
● process alarm
|
no
|
diagnostic display LED
|
● power supply voltage monitoring (PWR-LED)
|
yes
|
● Channel Status Display
|
yes; Green LED
|
● For Channel diagnosis
|
yes; Red Fn LED
|
● used for module diagnosis
|
yes; Green/red DIAG-LED
|
integration function
|
measurement function
|
● voltage measurement method
|
TRMS
|
● current measurement method
|
TRMS
|
● measurement collection method
|
no gap
|
● voltage waveform
|
sine or distortion
|
● buffer of measured variables
|
yes
|
● parameter length
|
74 byte
|
● measured value collection bandwidth
|
2 kHz; Higher harmonic: 39 / 50Hz,32 / 60Hz
|
measuring range
|
-Frequency measurement, minimum
|
45Hz
|
-Frequency measurement, maximum
|
65Hz
|
voltage measurement input
|
-Measurable power supply voltage between phase line and zero line
|
277 V
|
-Measurable power supply voltage between live wires
|
480V
|
-Measurable power supply voltage between phase line and zero line, minimum
|
90V
|
-Measurable power supply voltage between phase line and zero line, maximum
|
293v
|
-Measurable power supply voltage between live wires, minimum value
|
155V
|
-Measurable power supply voltage between live wires, maximum
|
508V
|
-Voltage measurement category conforms to IEC 61010-2-030
|
CAT II;CAT III, ensure safety level at 1.5 kV
|
-Internal resistance of live wire and zero wire
|
3.4 M?
|
-Power consumption of each phase line
|
20 mW
|
-Anti-shock voltage capability 1.2 / 50 & micro;s
|
1 kV
|
current measurement input
|
-Measurable relative current at alternating current, minimum
|
1%; The value of 5 A is based on the secondary rated current.
|
-Measurable relative current at alternating current, maximum
|
100%; The value of 5 A is based on the secondary rated current.
|
-Continuous current at alternating current, maximum allowed
|
5 A
|
-Apparent power consumption of each phase line when the measurement range is 5A
|
0.6 V·A
|
-The time period of the measured value of short-term withstand current intensity is 1s.
|
100 A
|
-Input impedance measurement range: 0 to 5 A
|
25 m ?; Terminal
|
-Zero Point suppression
|
optional parameters: 2 ... 250 mA, default value: 50 mA
|
-Surge tolerance
|
10 A; 1 minute
|
accuracy level conforms to IEC 61557-12
|
-Voltage measurement variable
|
0,2
|
-Current measurement variable
|
0,2
|
-Apparent power measurement variable
|
0.5
|
-Active power measurement variable
|
0.5
|
-Reactive power measurement variable
|
1
|
-Power coefficient measurement variable
|
0.5
|
-Effective work measurement variable
|
0.5
|
-Invalid work measurement variable
|
1
|
-Neutral line current measurement specifications
|
0.5; Calculated value
|
-Phase measurement variable
|
± 1 °; Not collected by IEC 61557-12
|
-Frequency measurement variable
|
0.05
|
potential isolation
|
potential separation of channels
|
● between the Channel and the backplane bus
|
yes; 3700V AC (type inspection) CAT III
|
insulation
|
insulation Test, use
|
2300V AC 1 minute long (type inspection)
|
environmental requirements
|
operating ambient temperature
|
● horizontal installation, minimum
|
-20°C
|
● horizontal installation, maximum
|
60°C
|
● vertical installation, minimum
|
-20°C
|
● vertical installation, maximum
|
50°C
|
size
|
width
|
45 mm
|
height
|
100 mm
|
depth
|
75 mm
|
weight
|
weight (excluding packaging)
|
165g
|
other
|
data for selecting current transformers
|
● Current Transformer load power x/1A, minimum
|
depending on cable length and cross section, see Product Manual
|
● Current Transformer load power x/5A, minimum
|
depending on cable length and cross section, see Product Manual
|
