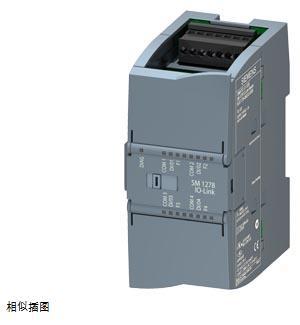

| SIMATIC S7-1200, SM1278 IO-Link, 4xIO-Link main station | ||
| general information | ||
| product Type mark | SM 1278 4xIO link, host | |
| power supply voltage | ||
| rating (DC) | ||
| ● DC 24V | yes | |
| allowed range, upper limit (DC) | 28.8V | |
| power loss | ||
| power loss, typical | 1W | |
| alarm/diagnosis/status information | ||
| diagnostic function | yes | |
| protection level and protection category | ||
| protection level in accordance with EN 60529 | ||
| ● IP20 | yes | |
| standards, licenses, certificates | ||
| FM license | yes | |
| RCM(C-TICK format) | yes | |
| environmental requirements | ||
| open Air | ||
| ● maximum drop | 0.3 m; Five, in the shipping package | |
| operating ambient temperature | ||
| ● minimum | -20°C | |
| ● maximum value | 60°C | |
| ● horizontal installation, minimum | -20°C | |
| ● horizontal installation, maximum | 60°C | |
| ● vertical installation, minimum | -20°C | |
| ● vertical installation, maximum | 50°C | |
| ● allow temperature change | 5°C to 55°C,3°C/minute | |
| ambient temperature during transportation/storage | ||
| ● minimum | -40°C | |
| ● maximum value | 70°C | |
| air pressure meets IEC 60068-2-13 standard requirements | ||
| ● storage/transportation, minimum | 660 hPa | |
| ● storage/transportation, maximum | 1 080 hPa | |
| relative air humidity | ||
| ● non-condensing operation at 25°C, maximum | 95% | |
| connection Technology | ||
| required front plug | yes | |
| machinery/materials | ||
| shell material (front) | ||
| ● Plastic | yes | |
| size | ||
| width | 45 mm | |
| height | 100 mm | |
| depth | 75 mm | |
| weight | ||
| weight, about | 150g | |
