Product Introduction

Italy head HC-D4/7 multiway valve, hydrocontrol multiway valve it is mostly used for drilling rig multiway valve folding arm crane multiway valve and other engineering vehicles with multiway valve, flow rate 80L/MIN bearing peak pressure 350bar, split piece multiway valve can be combined with different numbers of valve bodies from 1 to 12 pieces. The control mode can be manual Spring reset control, steel ball positioning control, hydraulic control or electro-hydraulic control.

The function of Zhongwei can be either Y-type or O-type. The working piece can be added with 2 overload oil filling valves, and the rated value can be unloaded when working under different loads.

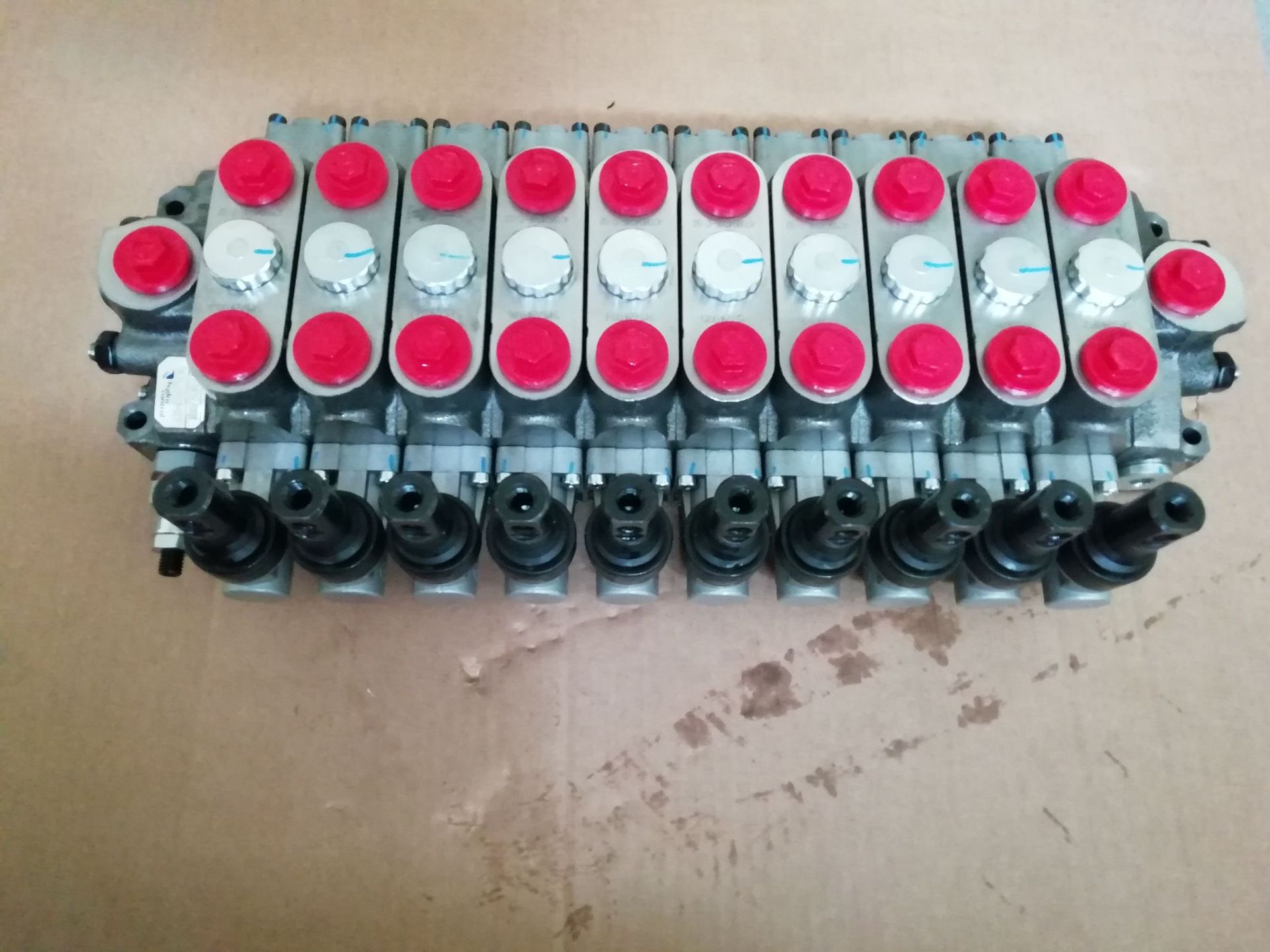

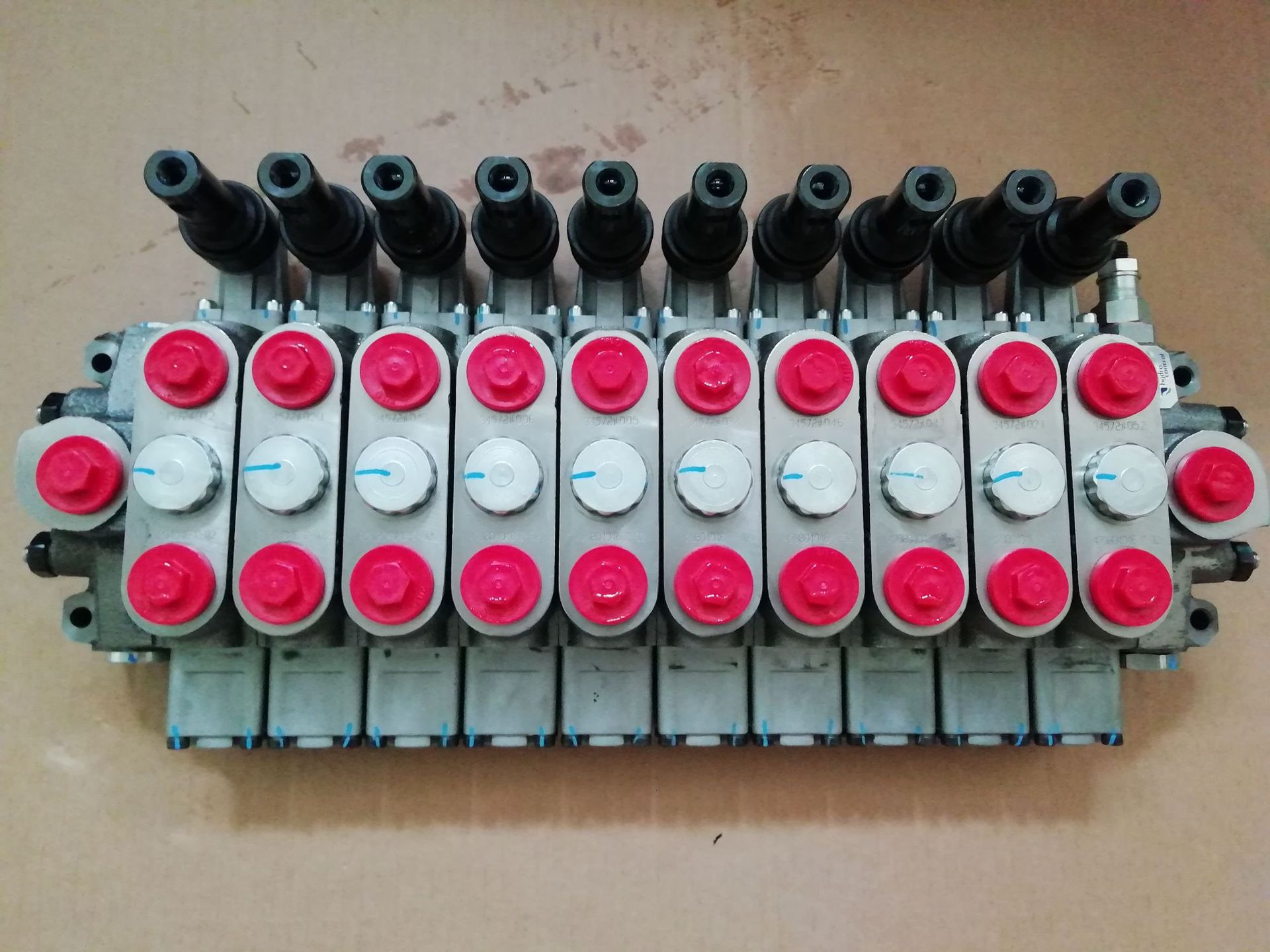

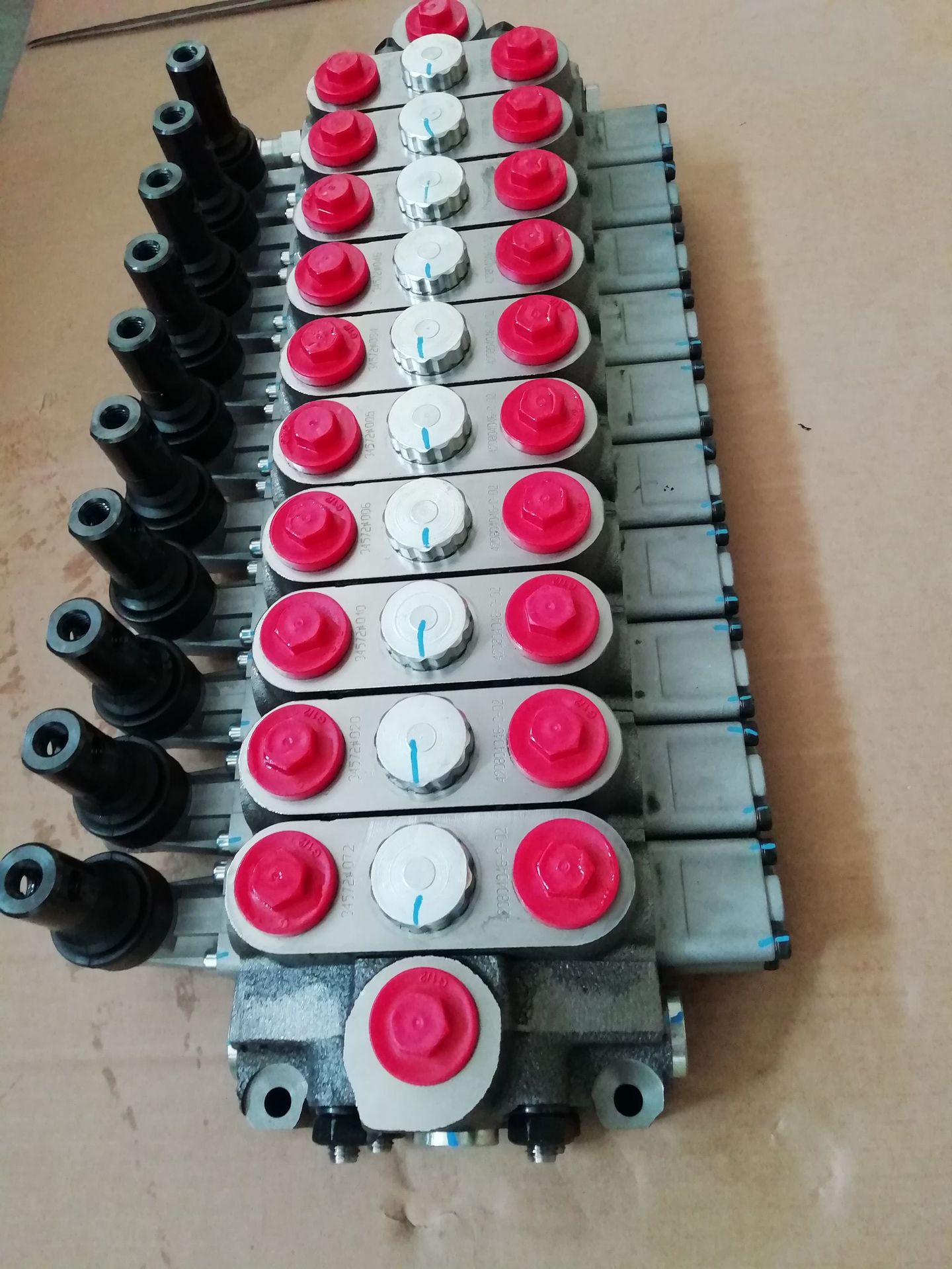

Real shooting

effect picture

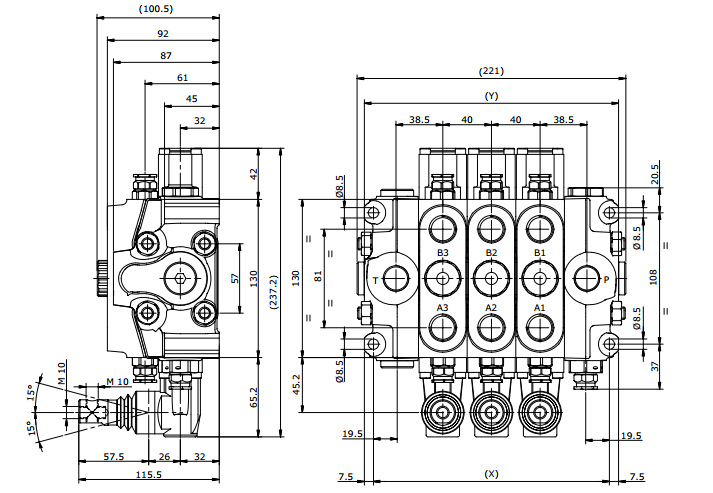

HC-D4/7 multiway valve technical parameters are as follows

the code is HC-D4/7 IL (301)160 W001AH001F001A * 7 * * *

mechanism form: parallel 7-piece split multiway valve

conventional model description: W001A indicates that the valve core is a double-acting valve core, O-type median function, H001 indicates standard handle box control, F001A indicates standard end cover

rated pressure: 350bar

rated flow: 80l/min

control mode: manual control switch

connection port: all PABT are inch screw thread G1/2"

other functions: you can choose to have the bridge function. In the middle, the hydraulic oil can be guided to another hydraulic component through the HC-D4 valve oil return plate.

Applicable occasions: all kinds of engineering vehicles, drilling rig, coal mine machinery, metallurgical industry hydraulic system, etc.

Body packing: carton or wooden case, packaging suitable for transportation

For more product technical information, please contact our customer service staff, welcome to consult.

Purchase instructions:
please consult customer service to confirm the price and inventory quantity before purchasing.
