Support OEM customization
| Project specification Project Specifications | Detailed parameters Specification | ||
| Brand | |||

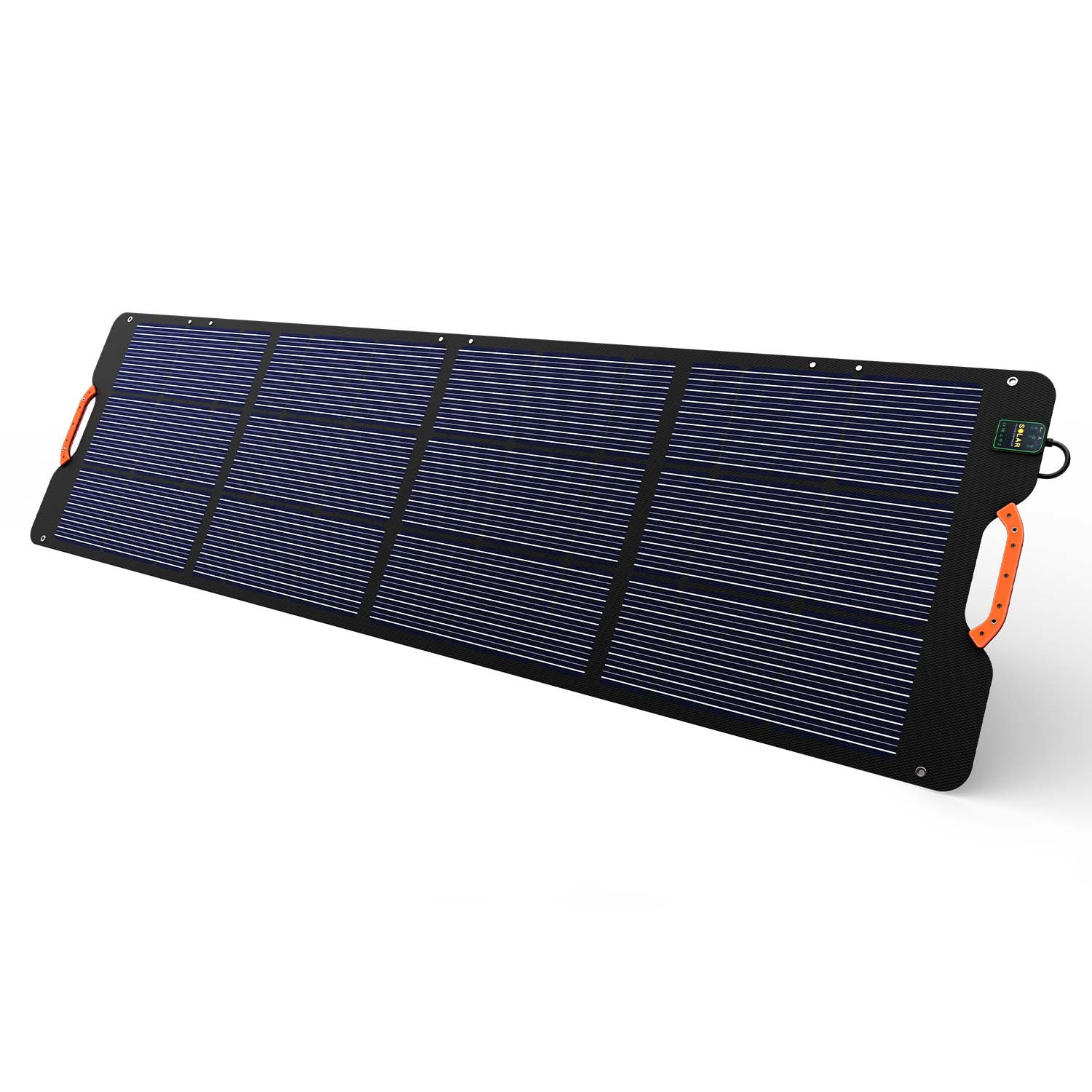

| Model | SP200 | ||
| Product ID | |||
| Peak Power | 200W(50W * 4) | ||
| Solar Cell Type Cell Type | MonoCell(166*166mm) | ||
| Conversion efficiency Conversion efficiency | 23.4% | ||
| Maximum operating voltage maximum operating voltage Vmp | 18V | ||
| Maximum Work current Imp | 11.1A | ||
| Open circuit voltage Voc | 21.6v | ||
| Short circuit current Isc | 13.3A | ||
| Output Port | MC4 | ||
| Operating temperature Working temperature | -10 ℃ ~ 65 ℃ | ||
| storage environment temperature storage ambient temperature | -10 ℃ ~ 65 ℃ | ||
| Light transmittance Total transmittance | 97% | ||
| Water penetration Moisture permeability | 40℃/90%RH g/M² .Day | ||
| Water absorption rate absorption rate | 2.5%(24h) | ||
| Test standard conditions | Am1.5 25 ℃ 1000W/㎡ | ||

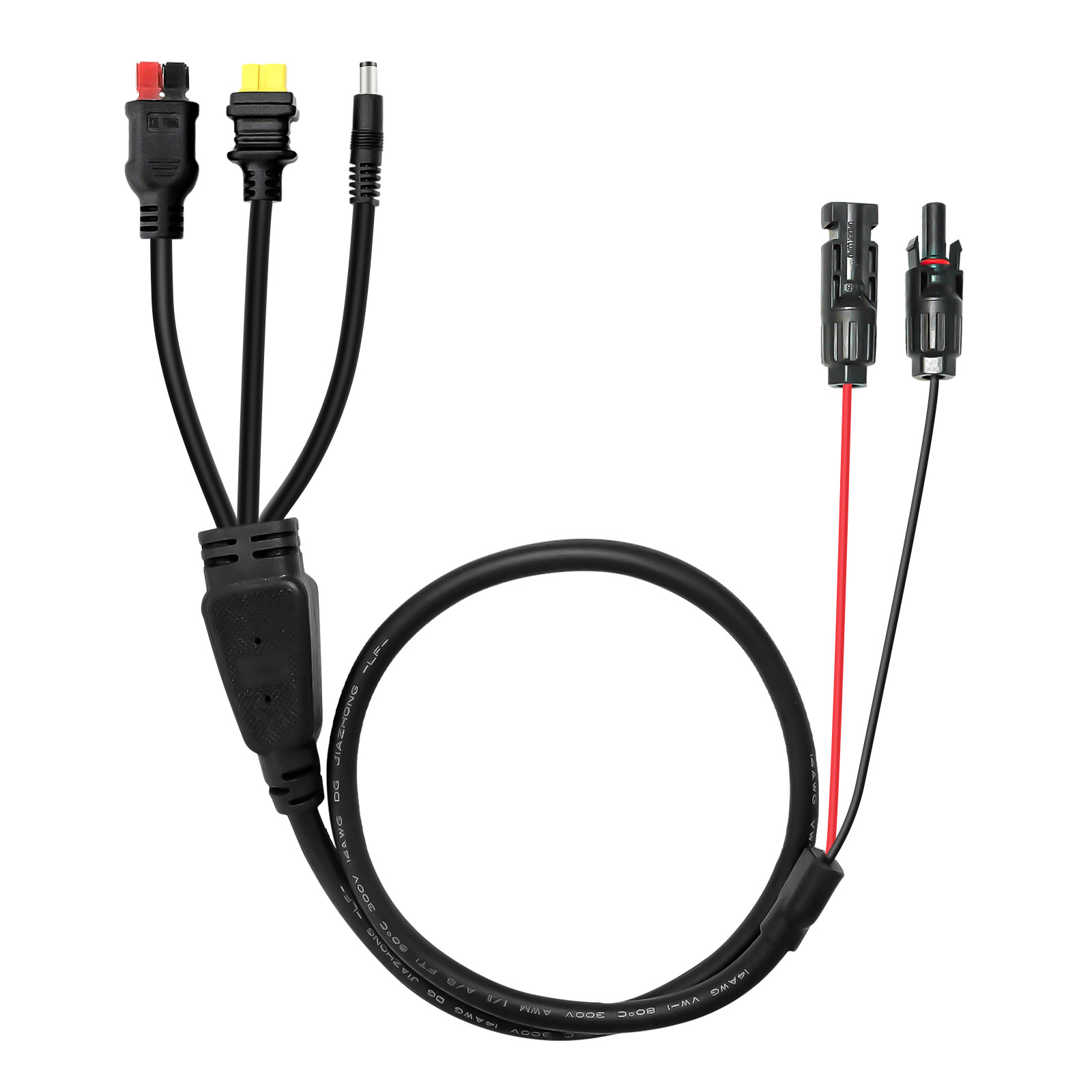

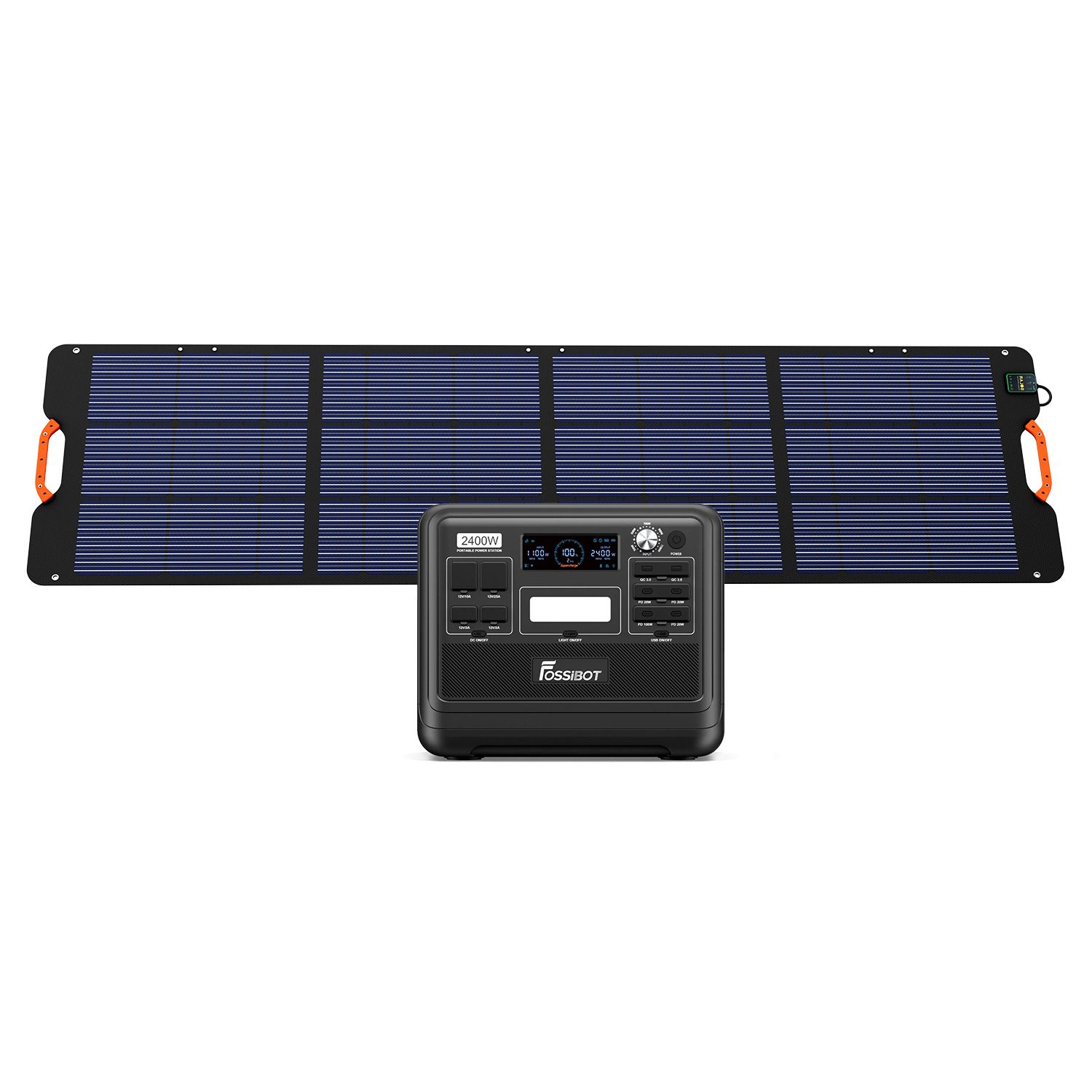

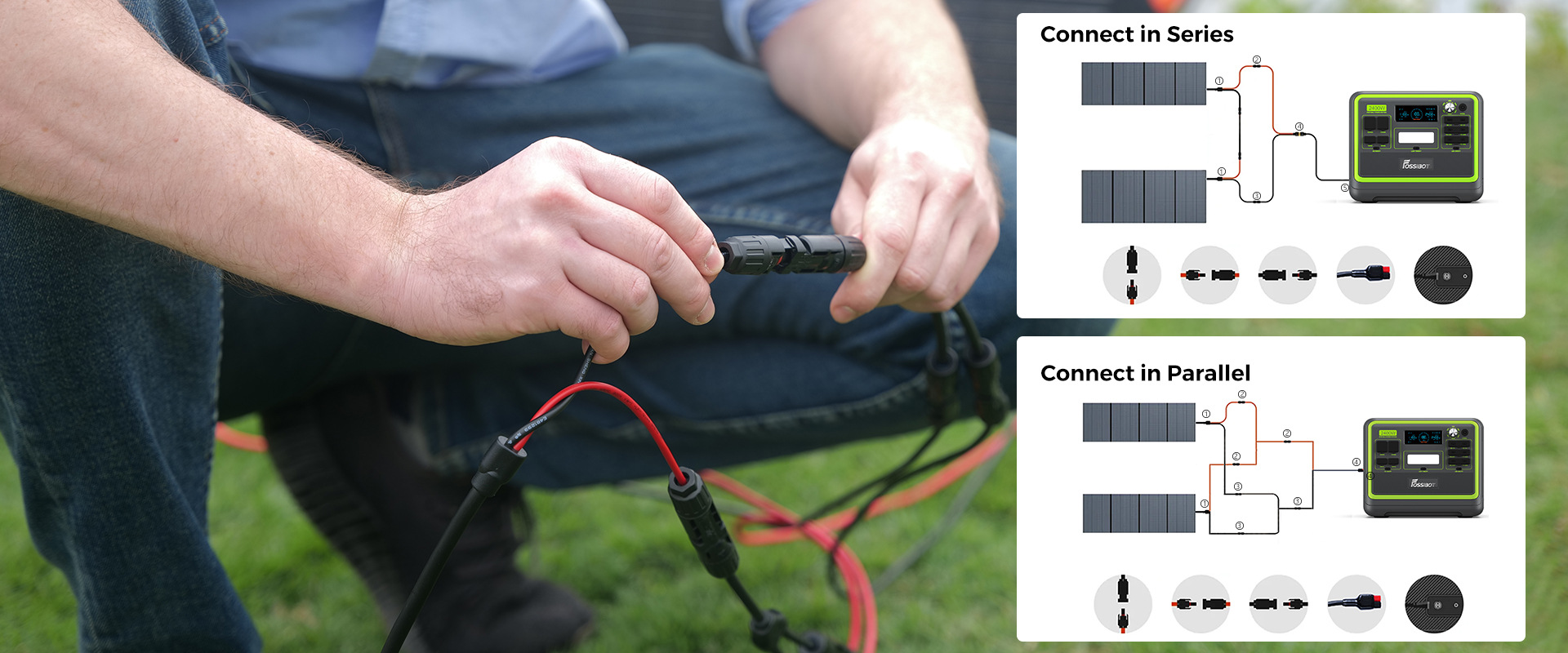

| One drag three adapter cable One-to-three transfer wiring | Applicable to all FOSSIBOT power supply products, but also to other brands of energy storage power supply | ||

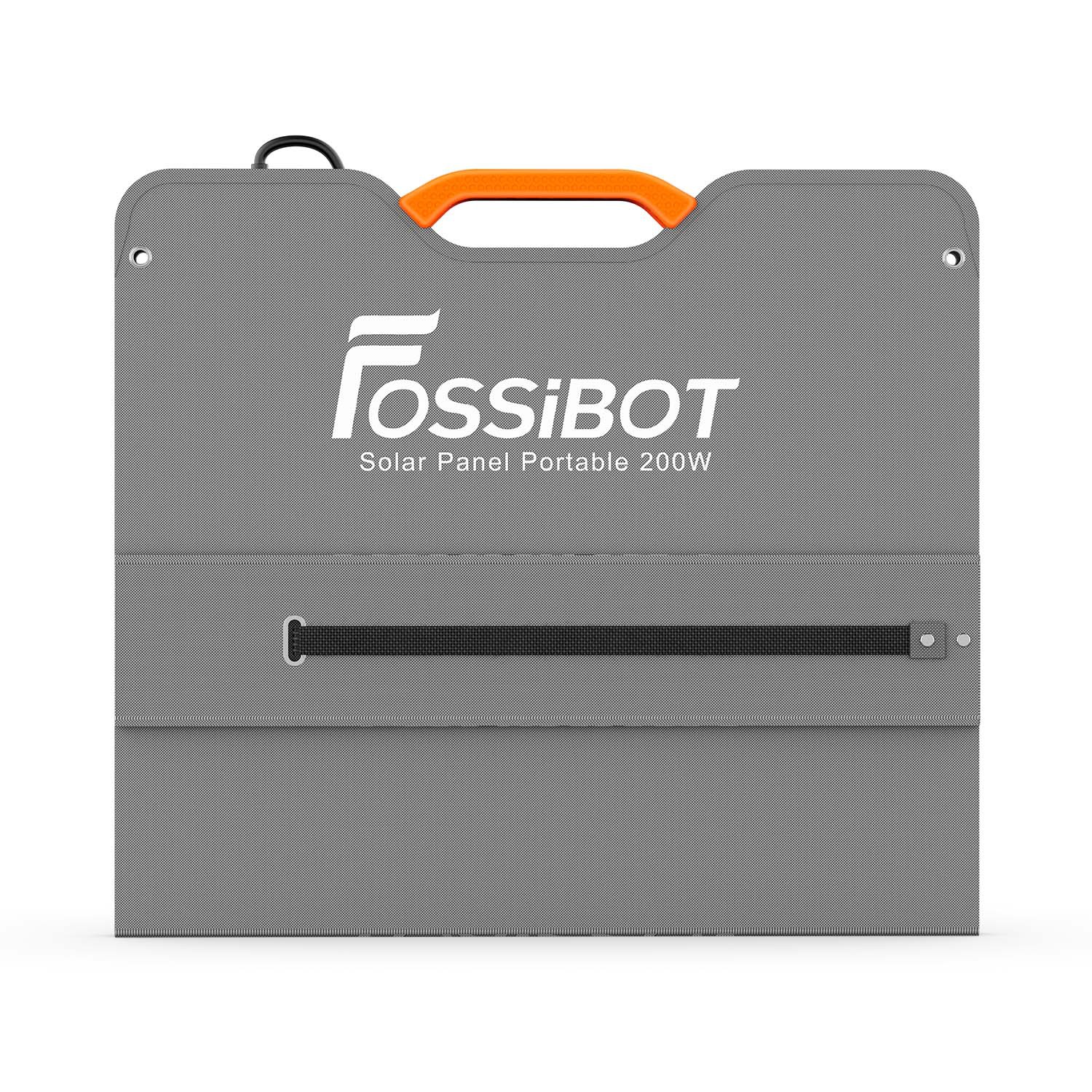

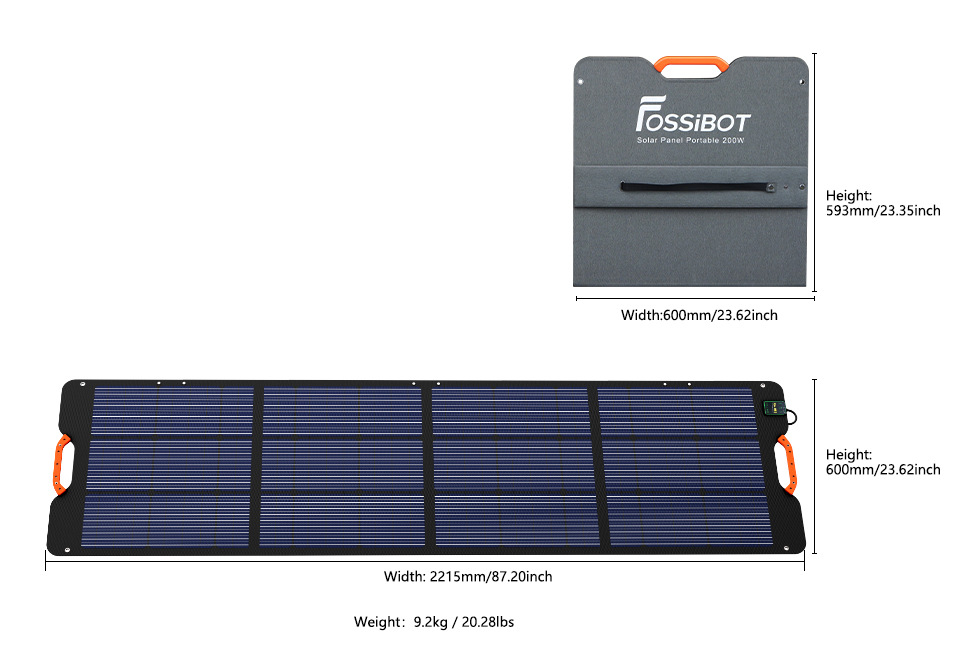

| Folded Size | 590 * 600 MM | ||
| Expand Size Unfolded Size | 2218 * 600 MM | ||
| Net Weight | 8.35KG | ||
| Package weight Package weight | 10.4KG | ||
| Packing Size Package Size | 710*120 * 690mm | ||
| Packing Size (2 pieces) Package Size | 710*250 * 740mm | ||
| Package weight (pack of 2) Package weight | 22.2KG | ||
