screw korean car reversing rear view car camera ccd hd night vision waterproof

Car rearview camera, car rearview camera CCD, high-definition parking rearview camera, parking and reverse assistance

Specification:
1. Pixel: 728 (H) * 492 (V)
2. Power Supply: DC 12V
3. Viewing Angle: 150 degrees
4. Image Sensor: 3089 CMOS Camera
5. Television System: NTSC (PAL optional).
Horizontal resolution: 520 TV lines
7. Synchronization System: Internal
Signal-to-Noise Ratio: > 48 dB
9. Electronic shutter: 1/60 to 1/100,000 seconds
10. Video Output: 1.0Vpp, 75Ohm
11. White Balance: Auto
12. Waterproof rating: IP68

Image Sensor: CMOS
TV System: NTSC / PAL
Horizontal resolution: 480 lines
Pixel: 688 (H) * 488 (V)
Lens: 18.5 mm
Viewing Angle: 170 degrees
Synchronization. System: Internal
Signal-to-Noise Ratio: > 48dB
Electronic shutter: 1/50 to 1/100,000 seconds
Video output: 1.1Vpp, 75Ohm
White Balance: Auto
Power Supply: DC 12V
Working temperature: -40 to + 80°C, maximum 95% RH
Storage temperature: -40 to + 105°C, maximum 95% RH
Waterproof Rating: IP68

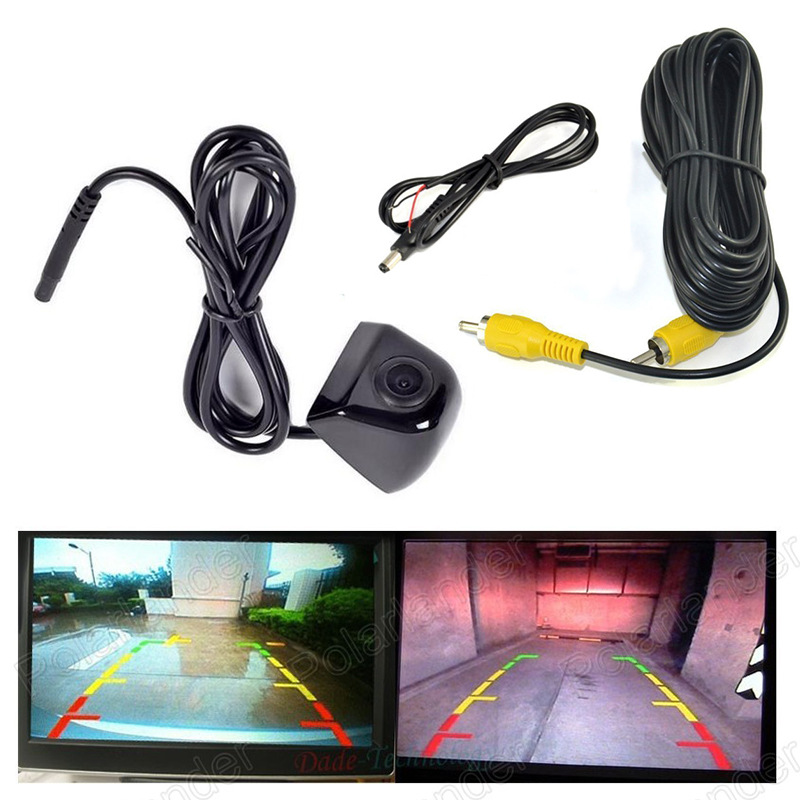

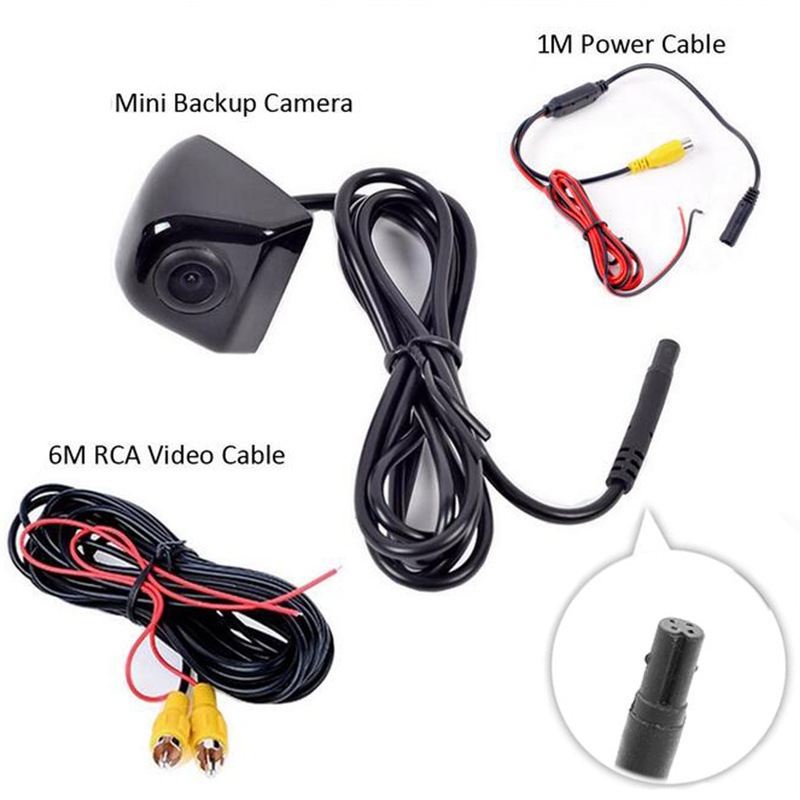

The meal package includes:
1 X Car Rearview Camera
1 X Video Cable 1M
1 X RCA Power Cable 6M

Characteristics:
*Intelligent reverse trajectory tracking parking line camera.
*No path box required, no CANBUS or OBD interface, built-in reversible track module.
* Import CMOS chip reversible trajectory, clear, stable image quality, night vision effect is good.
* Import 150 ultra-wide-angle lens, waterproof, dustproof, anti-fog, anti-vibration.
Wide-angle, image recognition technology, trajectory reversal.
