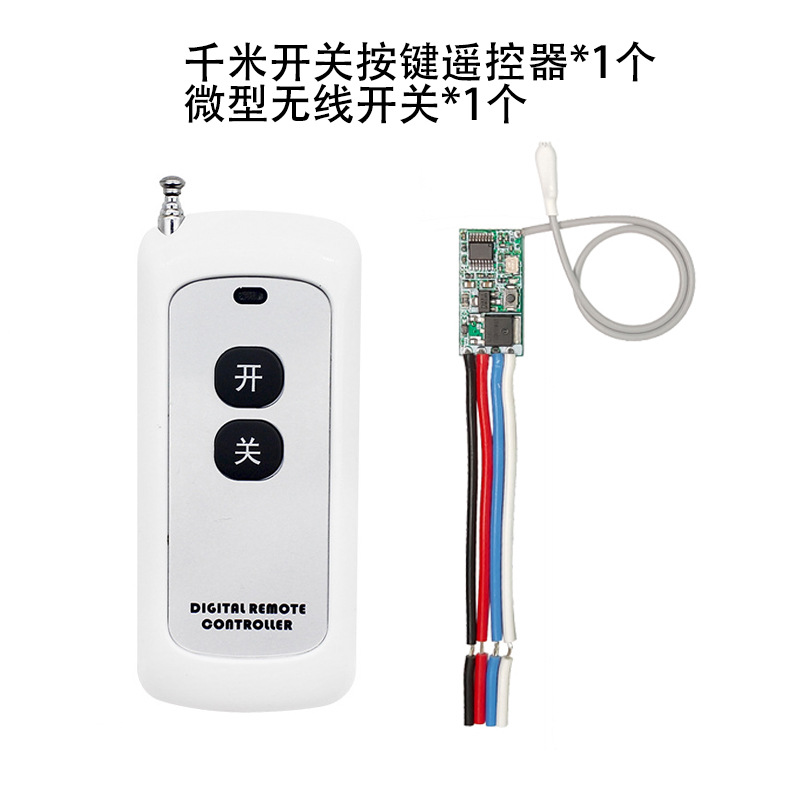

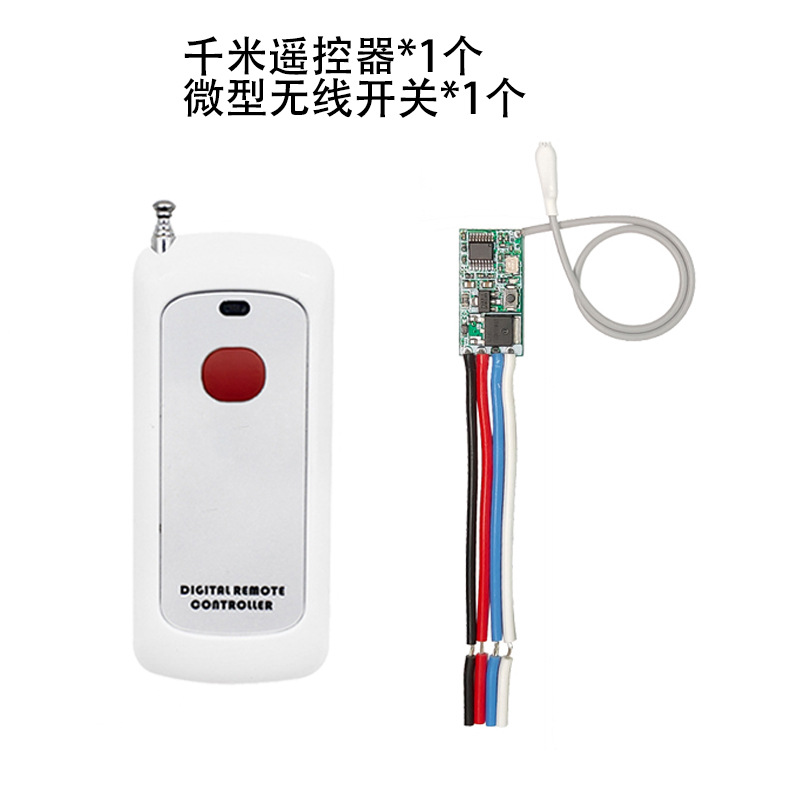

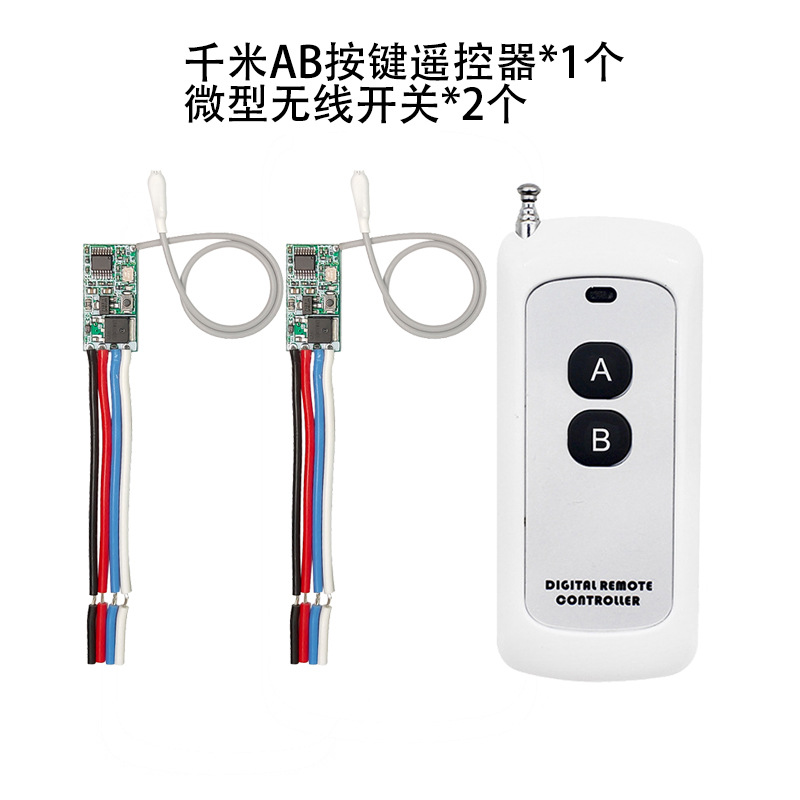

One, Product Parameters

Working Voltage: DC 3.6V~24V
Maximum Load: 2A (Maximum Load Power: 48W)

Static Current: 3.6mA ~ 5.5mA (6.08mA)

Working Frequency: 433MHz (Customizable in batches at 315MHz)
Sensitivity: ≥-107dBm
Output Voltage: Input DC3.6V~DC24V, Output DC3.6V~DC24V
Modulation mode: ASK (Amplitude Shift Keying)
Dimensions: 25.5mm x 13mm x 5mm (Length x Width x Height) Miniature Size
Supported encoding format: 1527 learning code

Number of remotes stored: ≤10

Work Mode: Point Motion, Self-Lock, Mutual Lock

Working temperature: -20~80°C

Input Voltage = Input Voltage (controlled by MOS tube at the negative pole)

Learning method: button learning (press once for point motion, press twice for self-locking, press three times for mutual locking)

Work Mode: Point Motion, Self-Lock, Mutual Lock

In function mode, a module can store at most5"A function, for example:

The module can remember5个"点动键" 或者 "记住5对"互锁键"，或记住5"个"自锁键" 可以是 "Individual Latch Key"，也可以是混合的 "Individual Locking Key"。5A function, such as remembering two point movement keys, two self-locking keys, and a pair of mutual locking keys.

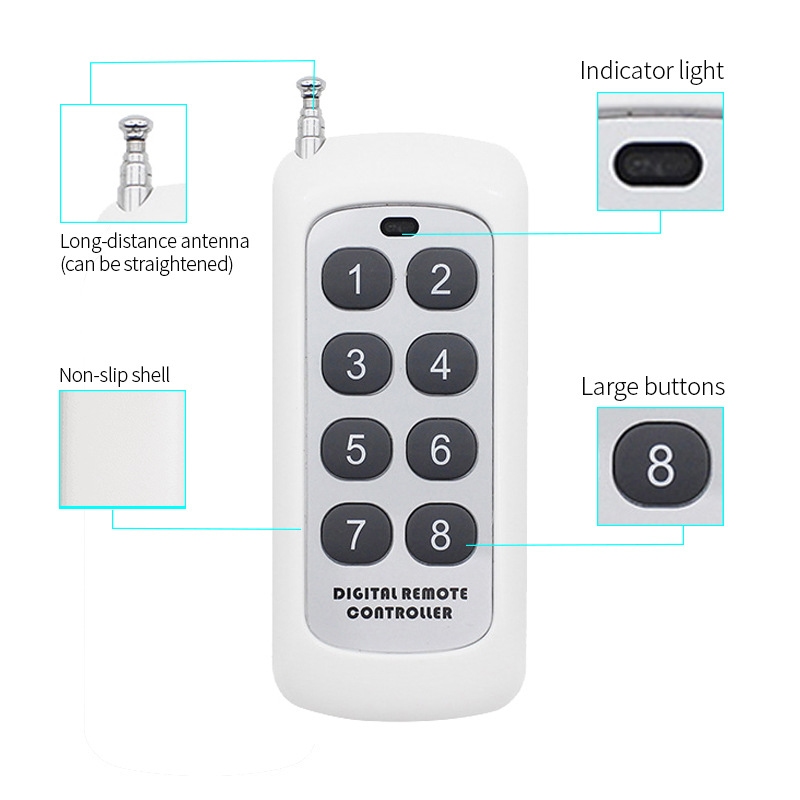

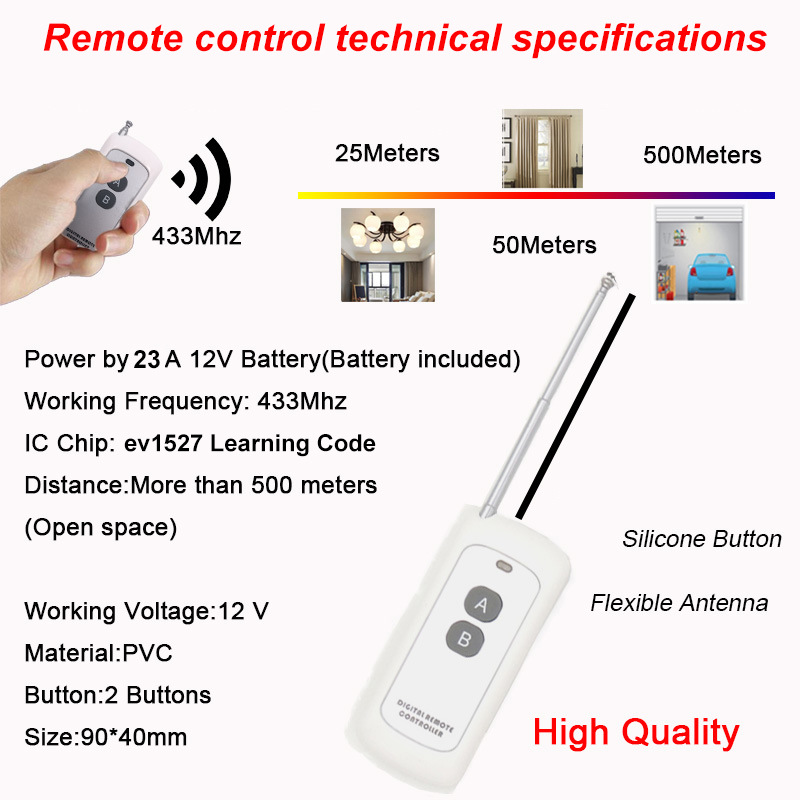

Remote control distance: about 30 meters in open space, can be used across walls.

Application Scope

LEDLamp,LEDString lights, Christmas tree string lights, light control switch

The button time requirement is 0.8 seconds or more, and if pressed too quickly, the signal may not be received.

Please ensure to read the wiring instructions carefully to avoid short circuits.

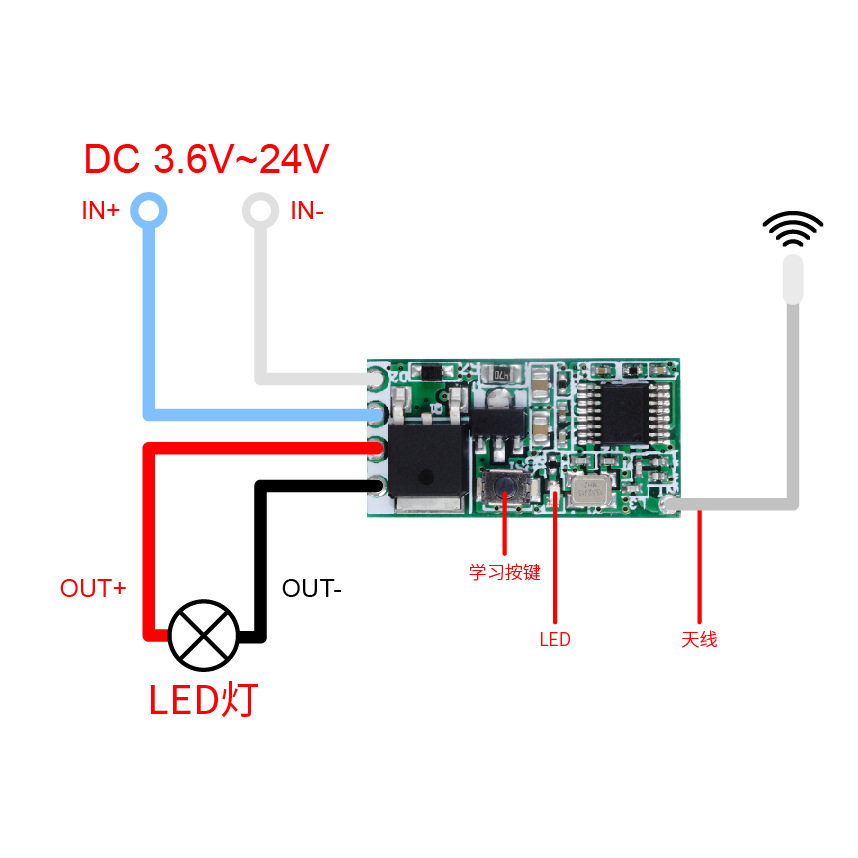

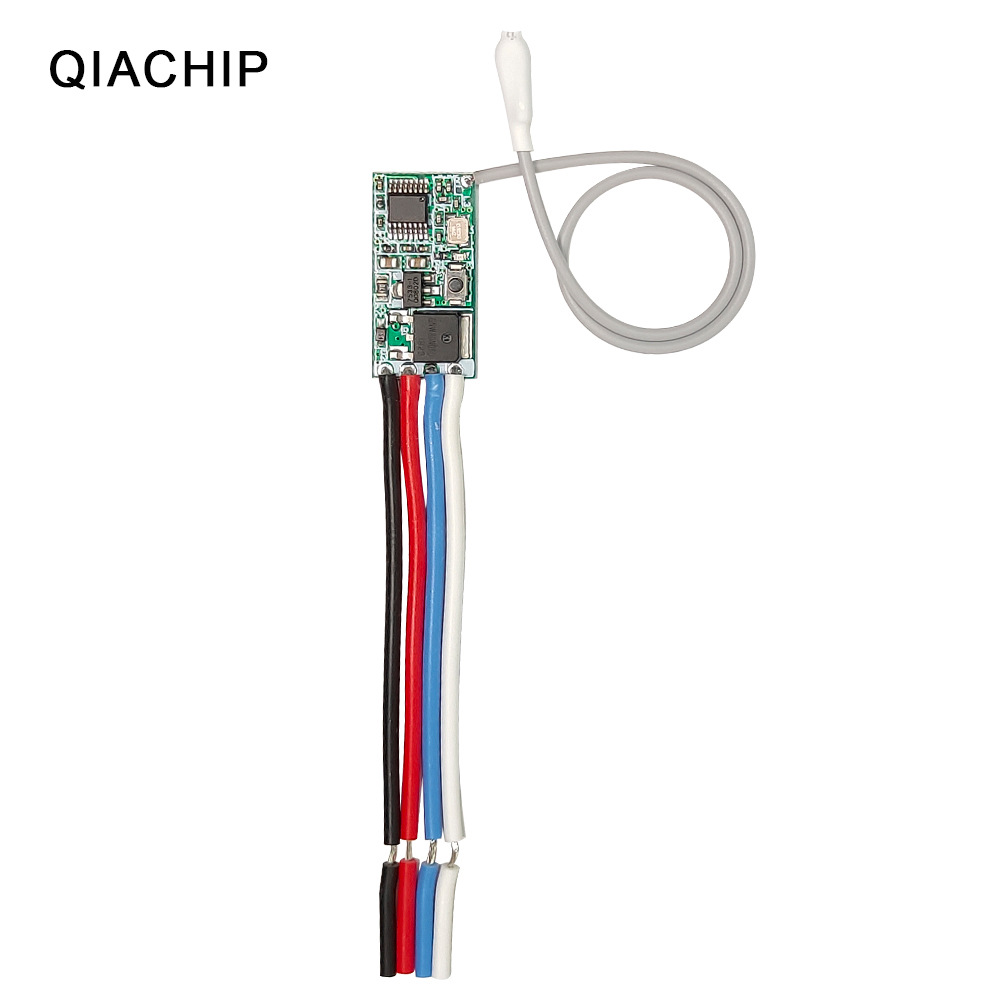

Negative (-anode)Red (+ positive)Power Input Terminal

White (-Anode)"Yellow (+Positive).Load Output End

1. Output Working Mode (Divided into 3 types: Point Motion / Self-locking / Mutual Locking)

A、Point Motion: (Press to turn on, release to turn off)

B、Latch-on: (Press the remote to turn on, press again to turn off)

C、Interlock: (Press the first button on the remote to turn on, press the second button to turn off)

II. Usage Method

1) Set to point movement: Press the learning code key once (approximately 2 seconds). When the red light turns on, you can code the remote control within 8 seconds.

2) Set to self-locking: Press the learning code key twice (approximately 2 seconds). When the red light is lit for 8 seconds, the remote control can be coded.

3) Set for mutual lock: Press the learning code key three times (approximately 2 seconds). When the red light lights up, you can code the remote control within 8 seconds.

4) Clear Code Function: Press the Learning Button 8 times, the LED indicator flashes 6 times, and the clear code is completed.

Please note: When switching to a different working mode, please turn off the power and then reconnect to clear the code and perform the matching process.
