What kind of plug do you need? Just note it in your order.

PCR-3115 has a maximum weighing capacity of 300kg.

The maximum weighing capacity of PCS-2126 is 200kg.

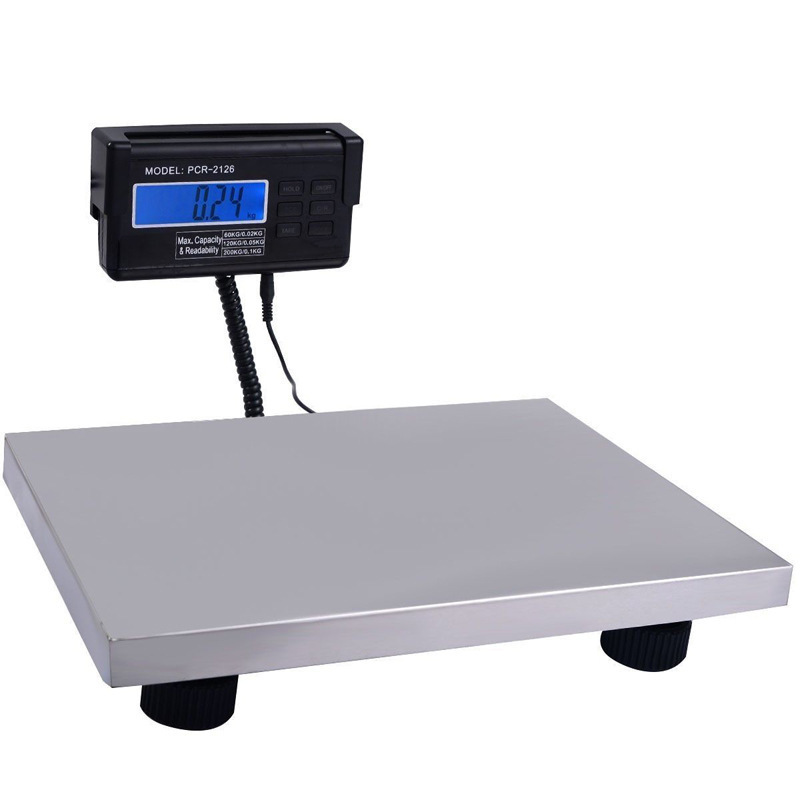

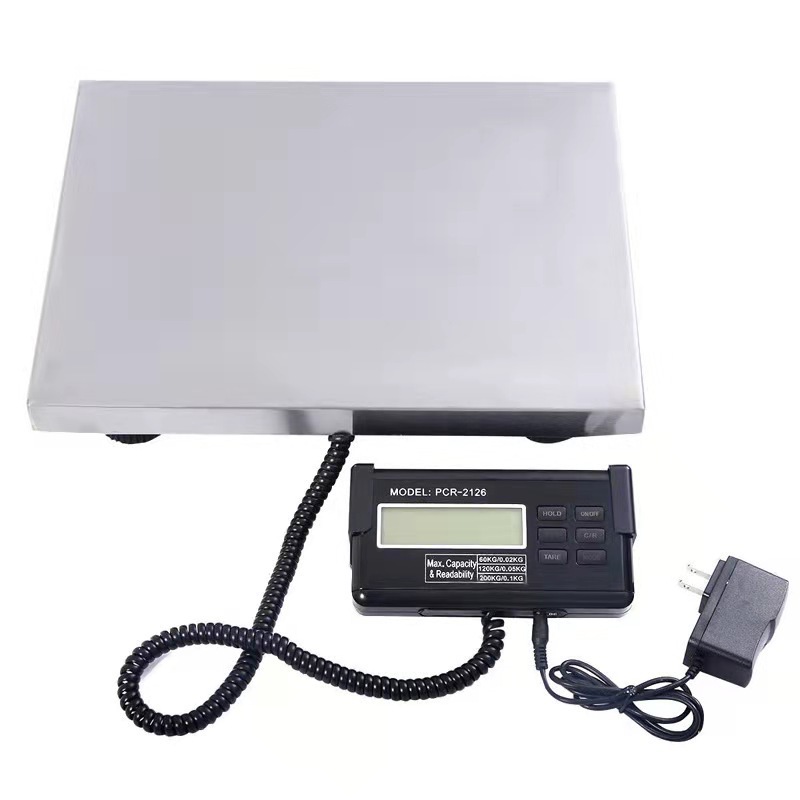

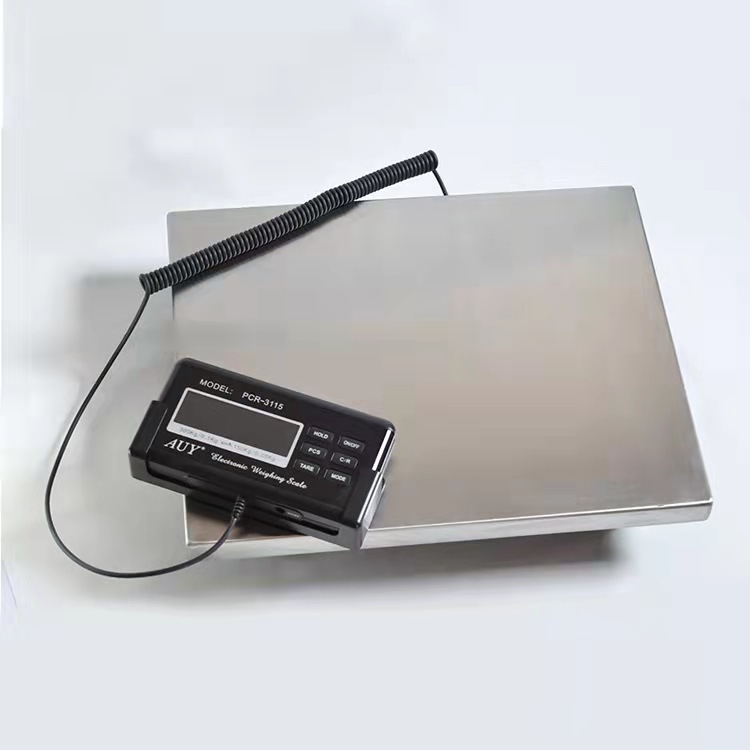

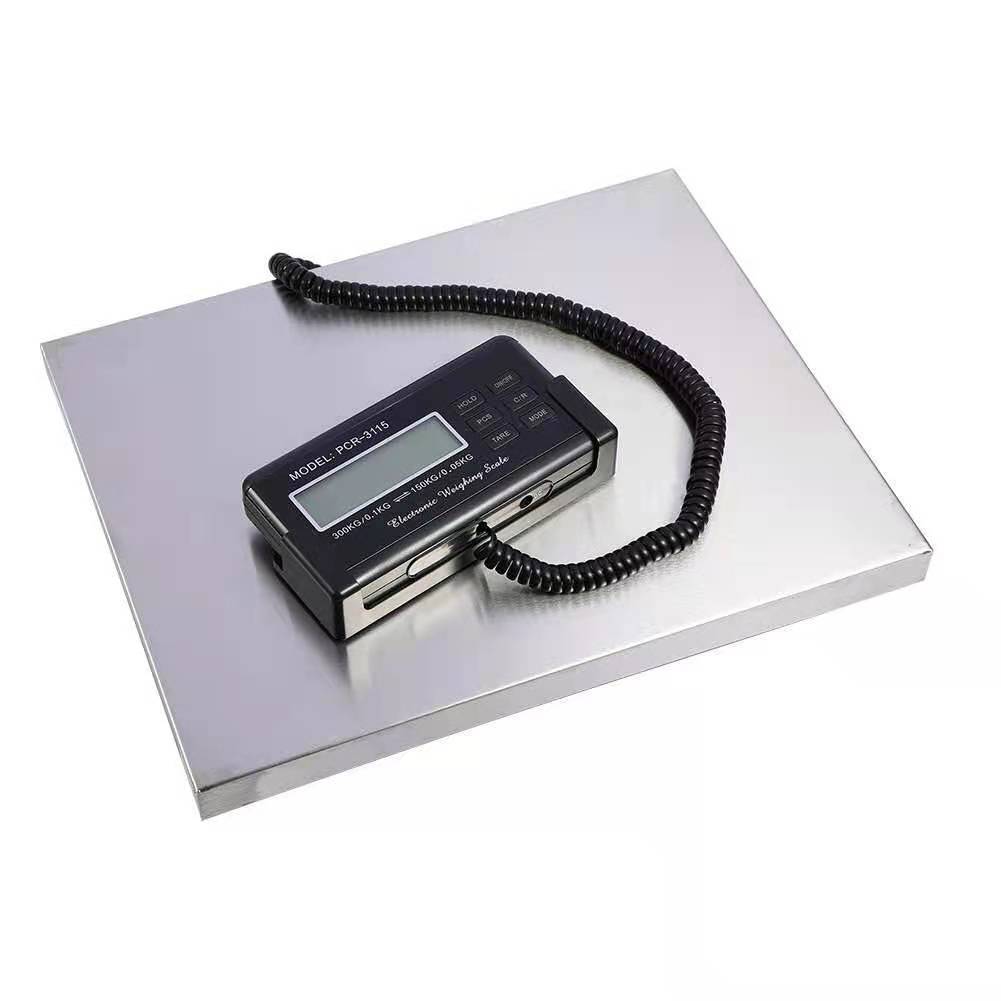

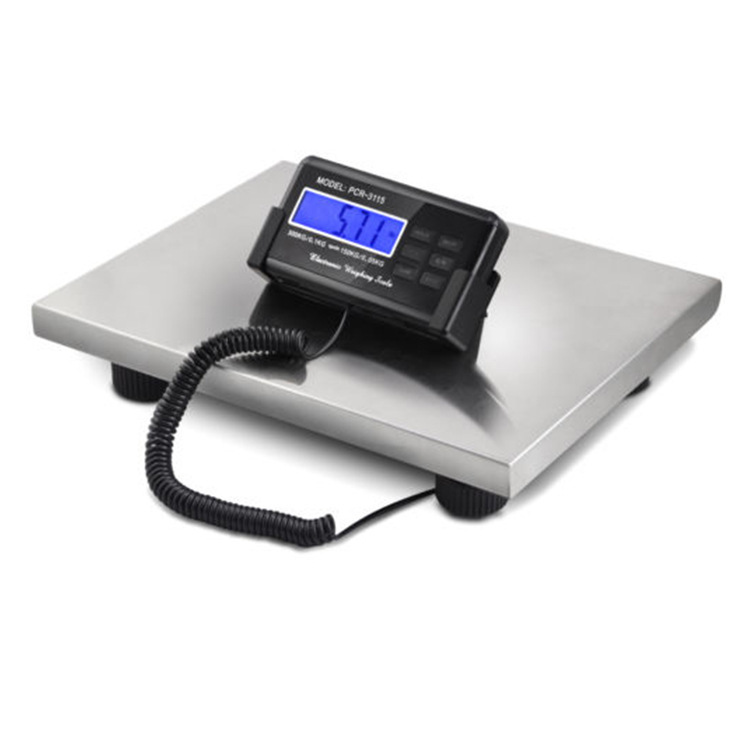

All-stainless steel waterproof countertop, ABS plastic waterproof and corrosion-resistant base, hidden handle for convenient carrying without affecting the appearance, adjustable support feet. Display controller with wide band view and blue (or white) backlight LCD display, multi-quantity.The multi-precision switching function allows one scale to function as two or more scales with different measuring ranges and accuracies, making it convenient to use and offering high value for money.

Product Specifications and Instructions

Multiple range and precision can be switched instantly, three types of weight unit conversion function, skin removal function, overweight and low battery warning, automatic energy-saving shutdown (when using batteries).

Power source: 4*AA batteries (5th size) or power adapter included.

Scale platform size: 30*38*8CM

Individual packaging size: 42.5*34.5*10.5CM

A box of 4 units, net weight: 13KG

 Gross Weight: 16KG

Crate Size: 48*45*37CM

6大功能：

ON/OFF (Power/Switch) TARE (Reset) MODE (Mode/Single Conversion) C/R (Range Conversion) HOLD (Lock) PCS (Count) Key

 CRS Series Bench Scale Range and Accuracy Chart

1.6

1.6

1.6

Key Tips

1. The scale should be placed on a hard, flat surface.

2. Avoid placing it in a place with strong electricity or magnetic fields.

3. Do not use in places with significant temperature changes.

4. Do not remove any components. Any damage caused by this is not covered by the warranty.

5. Clean with a mild cleaner.

6. This scale is suitable for operation at a temperature range of 30°C to 12°C.

Battery Requirements

This scale battery is suitable for an AC power adapter or 4 AAA batteries (not included), please ensure the battery is placed into the scale.

Note: 1) When removing or replacing the battery, do not forcefully open the battery cover.

       2) If you do not use the scale for more than a month, please remove the battery.

Function buttons:

"ON/OFF": Press this button to turn on or off the scale.

"MODE": Press this button for calibration or to select the unit of weight.

TARE": 去皮按键，按这个键可以去除物体的重量。

"HOLD": Press this button to keep the data from being changed.

"C/R": Conversion function (range and precision)

"PCS": Counting function

Weighing:

1. First, preheat the scale by turning it on for about 20 seconds, then turn it off. If you are ready to use the scale, turn it back on.

2. The screen will flash for 2-3 seconds, and then it will display '0.00'. When it displays '0.00', it is ready to use.

3. Unit Conversion Function: When the scale is turned on and the screen displays '0', the first unit is 'kg'. Press the MODE key to select other units. Pressing the MODE key once will convert the unit once. The unit conversion sequence is kg-oz-lb.

4. Do not put items weighing more than the scale's capacity on the platform. If the weight is too heavy, it will display 'H', and if the overload is excessive, it may cause damage to the scale. Any damage caused by this is not covered by the warranty.

5. Items should not be placed on the scale for more than 10 seconds, or the next weight measurement may not be accurate, and the scale needs to be recalibrated.

If you turn on the scale but it doesn't show '0.00', press the 'TARE' key to reset it to zero.

. When the display shows '0.00', place a box or item on the scale platform. At this time, the LCD display will show the weight of the goods. Then press the 'TARE' key, and the display will re-show '0.00'. At this time, you can place your goods in the box to obtain the accurate weight of the item.

Another method is to place the box or frame on the scale platform before turning on the scale. When the machine is turned on, it will display '0.00'. This is to put your items in the box or frame, and you can weigh the items. However, if you choose this method, once your items or the frame or box moves, the weighing data may not be accurate. To get the reading to '0.00', you need to press the 'TARE' key.

6.C/R key: Converts between different ranges and different accuracies. Press the 'C/R' key, and the scale's range will change. At the same time, the accuracy of the scale will also change due to the change in range. As long as you press this key, both the range and the accuracy of the scale will change. Different versions of scales have different ranges/accuracies, and a scale has at least three versions of range/readability.

7. PCS Key: Counting Function

Counting function: Press the 'PCS' key in the weighing state, the scale will switch to the counting state. Press it again, and it will switch back to the weighing state.

Sample Counting Initialization: Every time this counting function is used, the user must first perform initialization. First, press the 'PCS' key to convert the weighing mode to the counting mode, at which point the screen will display '0'. Then, press the 'PCS' key to enter the sample collection step, at which point it will display 'PC25', meaning the sample collection quantity is 25 pieces. At the same time, pressing the 'PCS' key again will display 'PC50', and then pressing the 'PCS' key again will display 'PC100'. Once you have confirmed the quantity of sample collection, place an equal number of items on the scale platform. Then press the 'PCS' key, and wait for the display to show the number of items. After taking these items off the scale platform, the initialization process of the counting function is complete. At this point, the user can place different quantities of objects of the same weight on the scale platform, and then the counting can be performed.

Correction Explanation

This scale is calibrated before leaving the factory. However, if there are significant changes due to environmental factors or humidity (including seasonal changes), it may need to be recalibrated. In this case, please follow the following method to test the scale: place a standard weight on the scale platform, and if the weight error exceeds the prescribed range, please follow the following method to calibrate:

E250"），然后按下ldquoMODErdquo键，显示屏就会显示ldquoE500rdquo，表示校正重量为500kg。E250", then place the 50kg weight on the scale, wait until the screen shows "Good", and then the scale will automatically turn off. At this point, the calibration is complete.

Technical parameters

Style

PCR-3115

PCR-2126

Weighing Modes

PrecisionMode Precision Mode

High Capacity Mode

PrecisionMode Precision Mode

Secondary Capacity Mode

High Capacity Mode

High Capacity Mode

最大量程

Readability of Units in Different Systems

150kg/0.05kg

300kg/0.1kg

60kg/0.02kg

120kg/0.05kg

200kg/0.1kg

5290 ounces/0.1 ounces

10582oz/1oz

2116 ounces/0.1 ounces

4233oz/0.1oz

7055oz/1oz

330lb/0.01lb

660lb/0.1lb

132lb/0.01lb

264lb/0.01lb

441lb/0.1lb

150KG lifting capacity is 200g, 300KG lifting capacity is 400g

Solve the problem:

The weight of 'H' exceeded the scale's maximum measurement range, and accurate data could not be obtained.

-E"/不显示重新换电池
