Description

additional tax points for invoicing, contact customer service for details

undefined

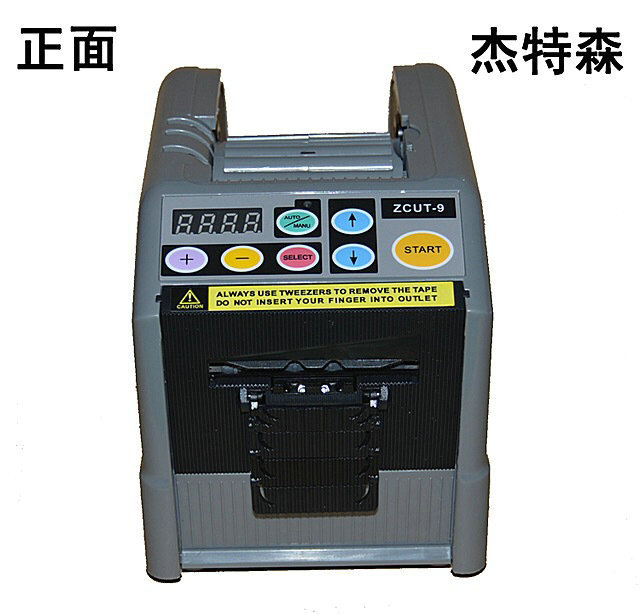

adhesive tape cutter model: zcut-9

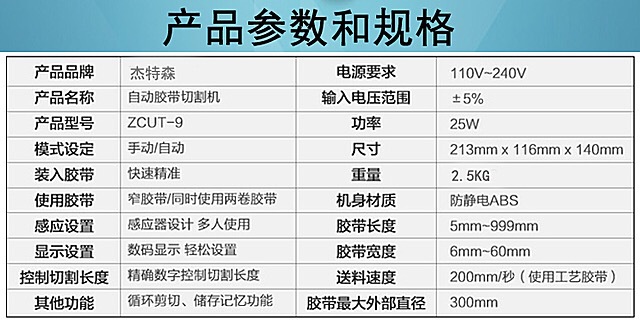

product technical parameters:

adhesive tape cutter cutting length: 5-999mm

adhesive tape cutter cutting width: 6-60mm

adhesive tape cutter use tape: filament tape, hard tape, acetate, glass wallpaper, double-sided adhesive, nomex, sealing adhesive, transparent tape, craft tape, masking tape and plastic adhesive tape, etc.

adhesive tape cutter can cut off non-stick objects: surface protective film, paper adhesive tape, insulating film, aluminum foil, copper foil, etc.

tape transmission speed: 200mm/second (process tape)

maximum outer diameter of tape: 300 mm

adhesive tape cutter accessories: power cord, 2a fuse (internal ac plug), separator, guide plate, tweezers and blade oil

adhesive tape cutter body material: prevent charged abs resin

adhesive tape cutter rated: ac100v 50/60hz 25w

adhesive tape cutter body size: 116mm(w)x140 mm(h)x213 mm(d)

adhesive tape cutter weight: 2.5kg

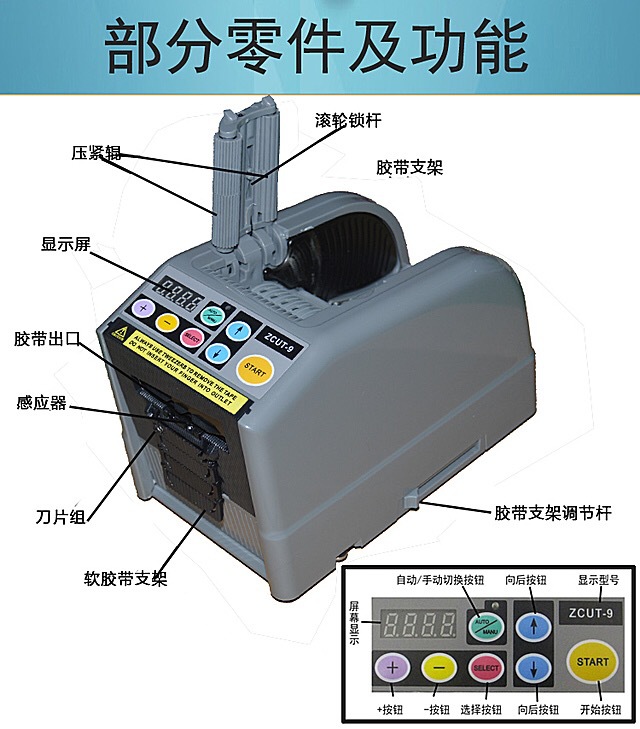

product features:

no roller design

the maximum cutting width is 60mm.

memory function (you can freely set six groups of different lengths for supply before work)

the film can be easily fixed through the elastic film auxiliary shaft.

preset, loop, and job count functions

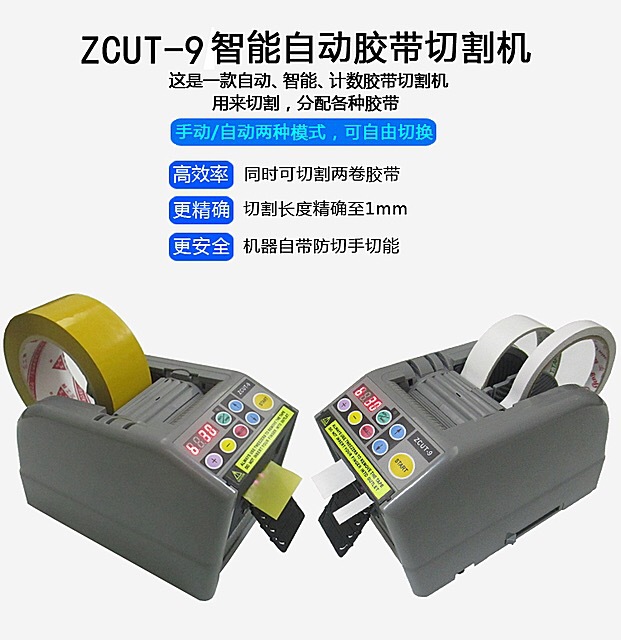

two rolls of tape can be used at the same time.

protective device with safety protection baffle at the knife edge

accurate digital control of cutting length

no need to adjust due to tape thickness

built-in pliers, lubricating oil, partition board for ease of use

anti-static abs material

improve safety. after the warning device is operated and the adhesive paper machine is suspended, even if bulkhead is removed, the adhesive paper machine

it will not operate immediately. you need to press the start key again before it can be used normally.

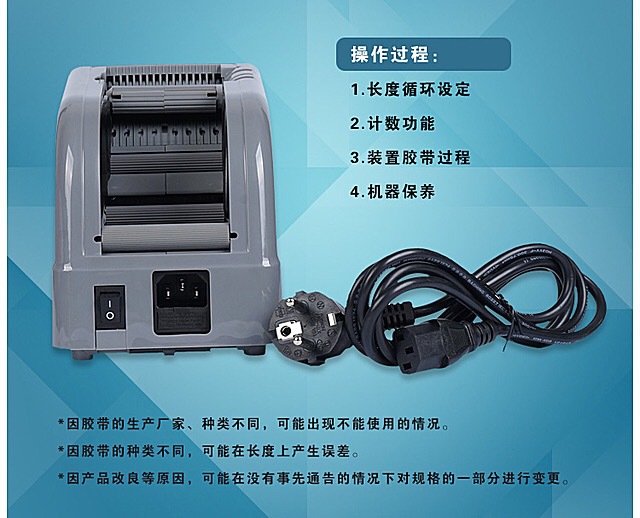

operation process:

1. length cycle setting-2. counting function-3. device tape process-4. machine maintenance

* due to different manufacturers and types of tape, it may not be used.

* due to different types of tape, errors may occur in length.

* due to product improvement and other reasons, some specifications may be changed without prior notice.

zcut-9 adhesive paper machine is another new type after zcut-7 adhesive paper machine. after modification, the maximum cutting width is increased to 60mm.

adhesive tape cutter types:

type	model	cutting length	cutting width	maximum outer diameter	suitable for adhesive tape	parameter (w × l × h)mm	weight
	m-1000	20-999mm	7-50mm	180mm	adhesive	137 × 245 × 150mm	2.4kg
	m-1000s	5-999mm	3-50mm	180mm	adhesive	137 × 245 × 150mm	2.4kg
	m-2000	20-999mm	7-50mm	180mm	adhesive	137 × 245 × 150mm	2.4kg
	tda-080	40-999mm	13-80mm	200mm	adhesive	168 × 229 × 360mm	11kg
	ed-100	5-999mm	7-50mm	180mm	adhesive	140 × 151 × 240mm	2.45kg
	zcut-2	11-59mm	3-25mm	130mm	adhesive	130 × 165 × 170mm	2.8kg
	zcut-8	9-61mm	3-25mm	150mm	adhesive	120 × 150 × 250mm	2.2kg
	zcut-870	15-70mm	3-25mm	150mm	adhesive	126 × 150 × 258mm	2.2kg
	zcut-9	5-999mm	6-60mm	300mm	adhesive or not	116 × 140 × 213mm	2.5kg
	zcut9rp	5-999mm	6-60mm	over 300mm	adhesive or not	116 × 140 × 213mm	2.5kg
	hj-3	9-61mm	5-25mm	150mm	adhesive	120 × 150 × 250mm	2.2kg
	rt-3000	9-61mm	5-25mm	150mm	adhesive	120 × 150 × 250mm	2.2kg
	rt-5000	5-999mm	6-50mm	300mm	adhesive or not	115 × 140 × 215mm	2.8kg
	rt-7000	5-999mm	6-60mm	300mm	adhesive or not	116 × 140 × 213mm	2.5kg
	rt7000rp	5-999mm	6-60mm	over 300mm	adhesive or not	116 × 140 × 213mm	2.5kg

faq

q: how long is the service life of blades and blade components?

a: the service life of the blade and blade assembly is completely different due to the type of adhesive tape and the number of cuts in a day. although there is a reference value for the service life, it varies depending on the model. please contact us for details.

q: what type of tape can be cut?

a: our company has a complete range of products, which can cope with all kinds of adhesive tapes. even the adhesive tapes of the same material may have cutting difficulties due to different manufacturers. if you decide the type of tape to be used, please contact our company.

q: do all models have sample machines?

a: sample machines are always available for zcut-9, zcut-6 and zcut-3, but zcut-3080, 3150 and 3250, etc., which must be tested with sample tape before ordering, basically do not have sample machines.

q: the new generation model of zcut-7 is zcut-9. what are the differences between them?

a: compared with zcut-7, zcut-9 is mainly different from the following 6 points.
1st, zcut-9 tape installation becomes simple.
secondly, the width of the tape is 60mm.
thirdly, with a tape holder, even the slightly sticky and non-sticky tape will not fall down after cutting, but will be fixed.
fourth, the tape is not easy to tangle, reducing the number of repairs.
fifth, use the auxiliary base to tilt the machine so that the tape can be easily removed.
sixth, be able to remember 6 different lengths.

q: can i replace only the blade of the blade assembly?

a: only the entire blade assembly can be replaced. because compared with the abrasion and passivation of the blade itself, the plastic frame of the supporting blade is damaged more often.

q: how long is the service life of the engine?

a: according to the type, material and the number of times of opening of the tape in a day, the service life will also be different, but it is designed with a durability of at least 5 million times.

q: can i cut polyimines?

a: if it is above 50 micro, there is no problem at all. moreover, even if it is 35 micro, it can be cut as long as the width is above 30mm. just according to different manufacturers, some may not be cut, please consult us.

详情页(1)_11

详情页(1)_14
