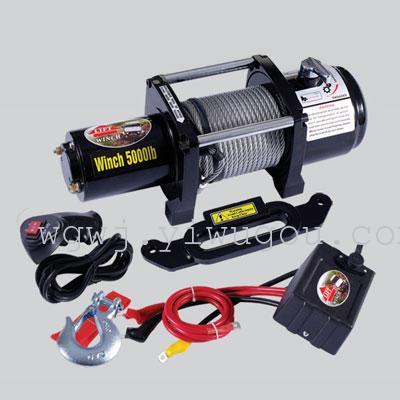

5000lb Electric Winch 12V/24V Car Trailer Winch

Yijie Hardware Tools 4yr.

Contacts:Miao Miao Chat

Mobile:86-18958491560

E-mail:635890701@qq.com

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

Email： yiwubuy@yiwugo.com

Description
Reviews(/5)

品牌:中性	型号:P5000	电机:1.3kw/1.7hp (12V) pemanent magnet
加工定制:是	电压:12V/24V	拉力:5000磅
类型:电动	外形尺寸:49×19×34.5cm	绞绳长度:20
重量:26

电动绞盘主要用于越野汽车、农用汽车、ATV运动车、游艇以及其他特别车辆，是车辆、船只的自我保护及牵引装置，可在雪地、沼泽、沙漠、海滩、泥泞山路等恶劣环境中进行车辆自救、互救，并可能在其他条件下，进行清障、拖拉物品、安装设施等作业，是水油、水交、环保、林来、交通、公安、边防及其他户外运动不可缺少的安全装置。

P6000(12/24V)

6000 lbs Electric Winch

6000 LBS FEATURES AND SPECIFICATIONS

Rated Line Pull	6000LBS (2948kgs) single line
Motor	1.3kw/1.7hp (12V) pemanent magnet
Control	Remote switch, 12ft(3.7m)lead
Gear train	3 Stage Planetary
Gear train ratio	218:1
Clutch	Sliding Ring Gear
Braking Action	Automatic In-The-Drum
Drum Size	Φ2.5"×5.5" (Φ63.5×140m)
Cable	9/32" of 66ft diameter (Φ7.2mm×20m)
Remote Control	Included
Battery	Recommended:650CCA minimum for winching
Battery Leads	2 gauge,72"(183mm)
Finish	Black powder coat
Overall Dimensions	17.9"×6.1"×8.6"(456mm×156mm×215mm)
Mounting Bolt Pattern	166.4mm×114.3mm
Weight	N.W.29kgs G.W.32Kgs
Packing Size	49×19×34.5cm 1PC/CTN

6000LBS LINE SPEED AND AMP DRAW (FIRST LAYER) 12V

Line Pull	lbs	NO LOAD	1000	3000	5000
Line Pull	kg	NO LOAD	454	1361	2721
Line Speed	ft/min	12.0	10.0	7.5	3.3
Line Speed	m/min	3.7	3.2	2.3	1
Motor	Amps	4.5	90	150	280

6000LBS LINE PULL AND CABLE CAPACITY

Layers of cable		1	2	3
Rated line pull per layer	lbs	6000	5500	3700
Rated line pull per layer	kg	2722	1905	1678
Cumulative cable capacity	ft	14.7	29.5	66
Cumulative cable capacity	m	4.5	9.0	20
