1. Product Overview:

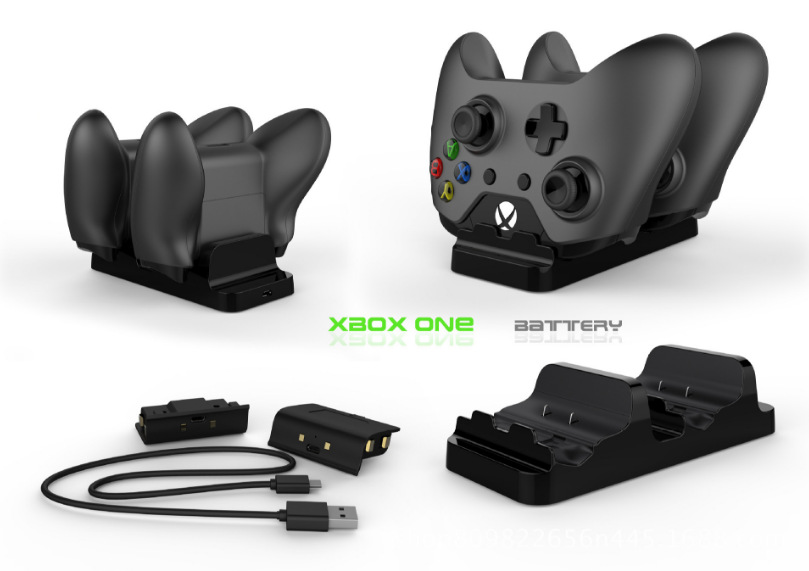

TYX-532 XBOX ONE手柄双充 is a charging product designed to meet the charging needs of the XBOX ONE controller. This product is equipped with two battery packs that can be installed separately to power the XBOX ONE controller. It also comes with a USB charging cable, which can be connected to the battery pack's MICRO interface through a standard DC5V USB output device or fire bull interface to charge the battery pack. When the battery is already installed in the XBOX ONE controller, it can be charged directly by the dual-charging base of this product.

This product uses a standard DC5V input voltage, which makes it easier to obtain power from the USB interface of the XBOX series console, a computer's USB interface, or other 5V power adapters. It does not require a dedicated PS4 power supply or its special power adapter.

II. Instructions for Use:

1. Charge the battery pack directly.

1.1 Connect the USB cable to a device with a standard DC5V USB output or a fire wire interface.

1.2 Then connect the MICRO plug of the USB charging cable to the MICRO interface of the battery pack to charge the battery directly:

1.3 When charging the battery pack, the indicator light of the battery pack will be lit. The normal charging time is approximately 2-6 hours, depending on the remaining battery charge.

1.4 This product is equipped with a single indicator light for the battery pack. The light color is blue. The indicator light is lit to indicate that the battery pack is normally connected to the power supply and will not display a fully charged state. The normal charging time to saturation is approximately 4 hours.

1.5 Charging completion requires disconnecting the battery pack from the power supply continuously, and after disconnecting the power supply, the indicator light will go out.

1.6 battery pack can be charged using the above methods whether it is not installed on the handle or has been installed on the handle. When the battery pack is installed on the handle, users can operate the game while charging through the above methods.

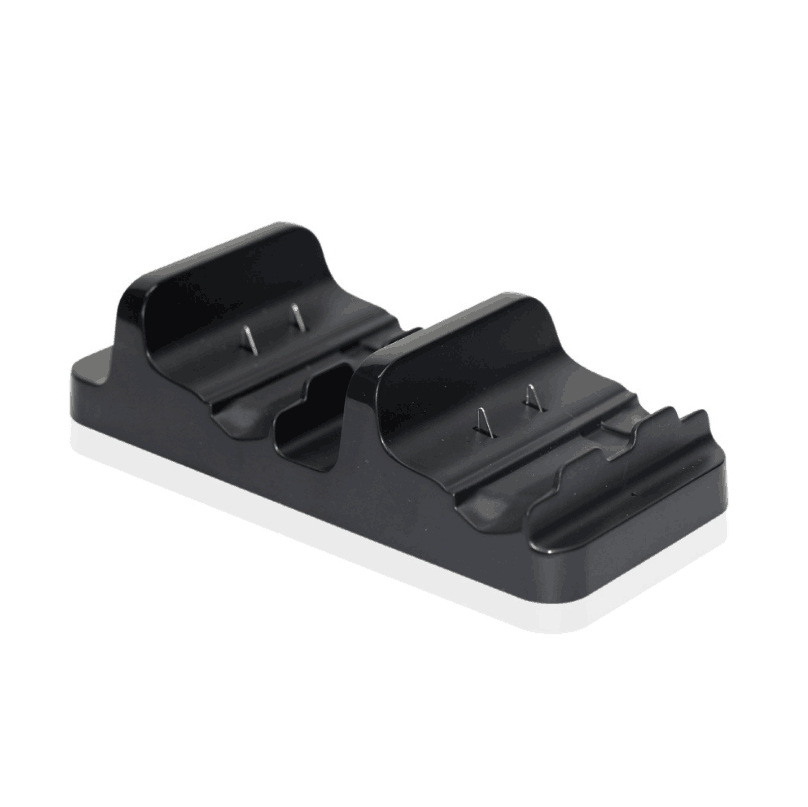

2. Charge the battery pack through the dual-charging base: (when the battery pack is already installed on the Xbox One controller)

2.1 Connect the USB cable to a device with a standard DC5V USB output or a fire wire interface.

2.2 Then connect the MICRO plug of the USB charging cable to the MICRO interface of the dual charging base of this product.

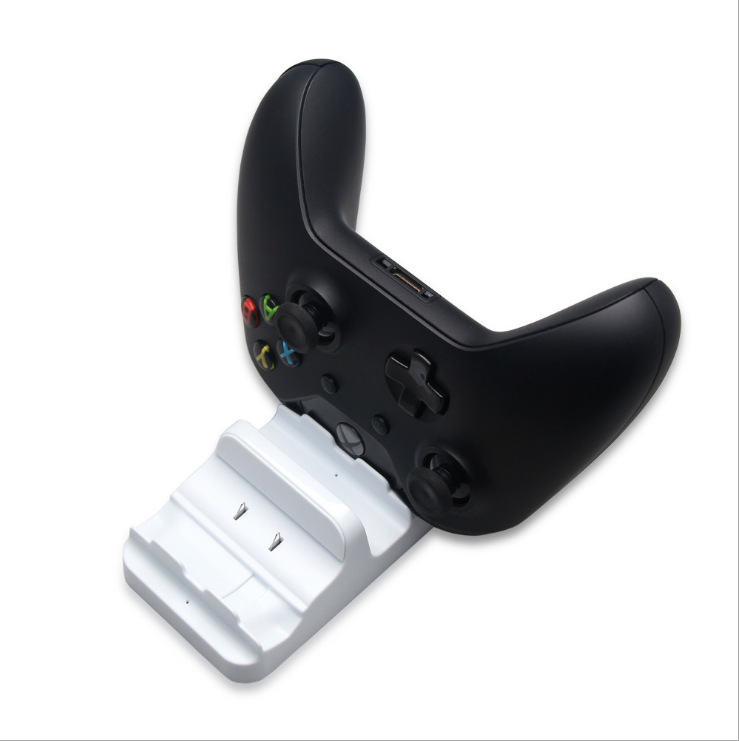

2.3 Finally, place the XBOX ONE controller with the battery pack installed into the charging slot of the dual-charging base of this product, and charge the battery pack installed on the controller through this product's dual-charging base.

2.4 This product's dual charging base lights up the corresponding charging slot indicator light when charging the battery pack on the controller. The normal charging time is approximately 2-6 hours, depending on the remaining battery level of the battery pack on the controller.

The 2.5 product indicator light is a single-light indicator, with a blue light color. When the indicator light is lit, it indicates that the handle is normally connected to the power source of the dual-charging base. It does not show the charging saturation state of the battery pack on the handle. Normal charging saturation can be completed in about 4 hours.

2.6 Charging is complete when the controller is removed from the dual charger base. After removing the controller, the corresponding indicator light for the charging slot will turn off.

2.7 This product can charge two Xbox One controllers that have already been installed with battery packs simultaneously.

2.8 When charging the XBOX ONE controller with this product, it is necessary to use the battery pack provided with this product.

Section Three: Technical Specifications

1. Applicable scope: Suitable for original Xbox One controllers.

2、Input Voltage: DC5V

3. Charging Current: 300 mA

4. Battery pack output voltage: DC 2.4V

Battery capacity: 600mAh

6. Product Material: ABS.

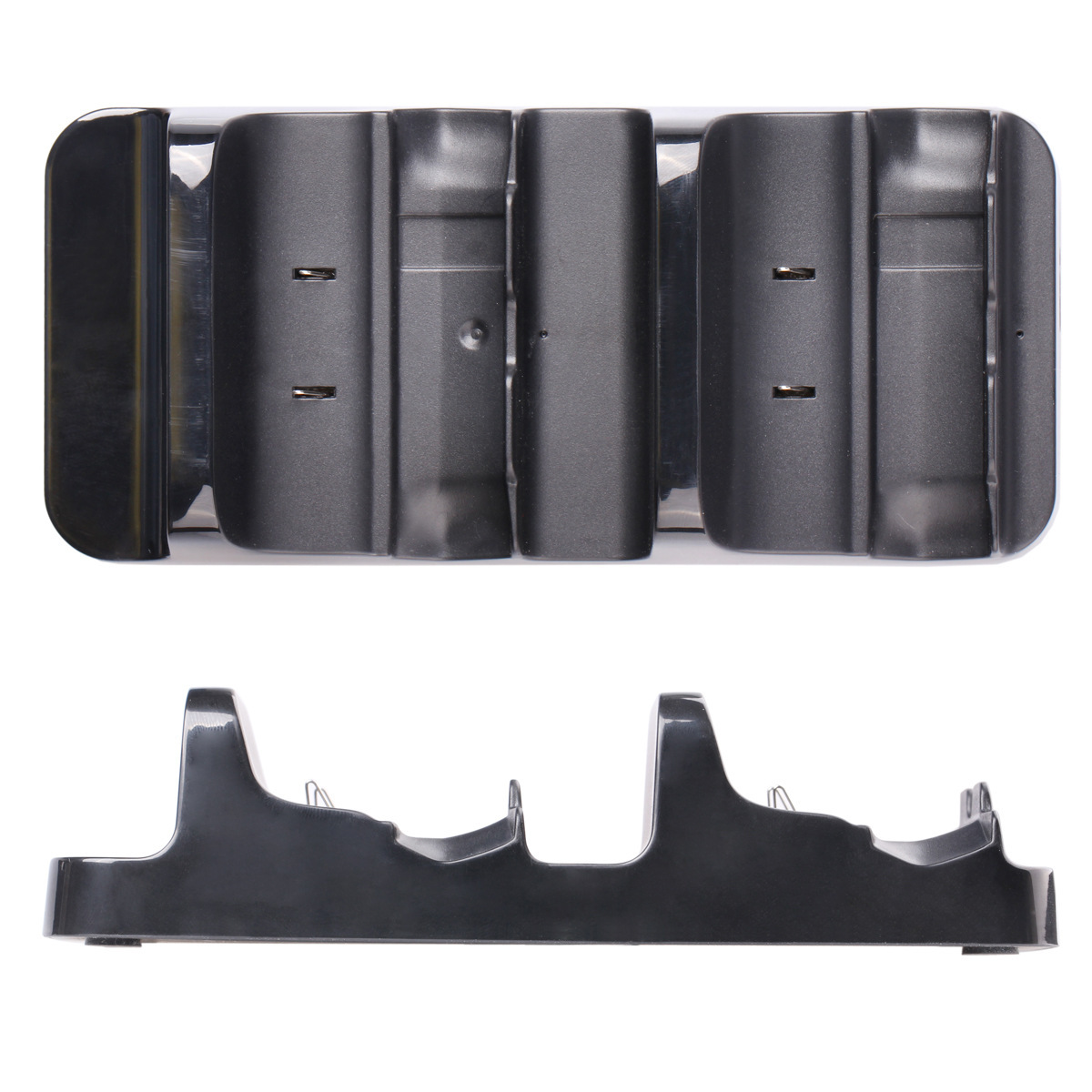

Product Size: 139*63*36MM

Product weight: 200g

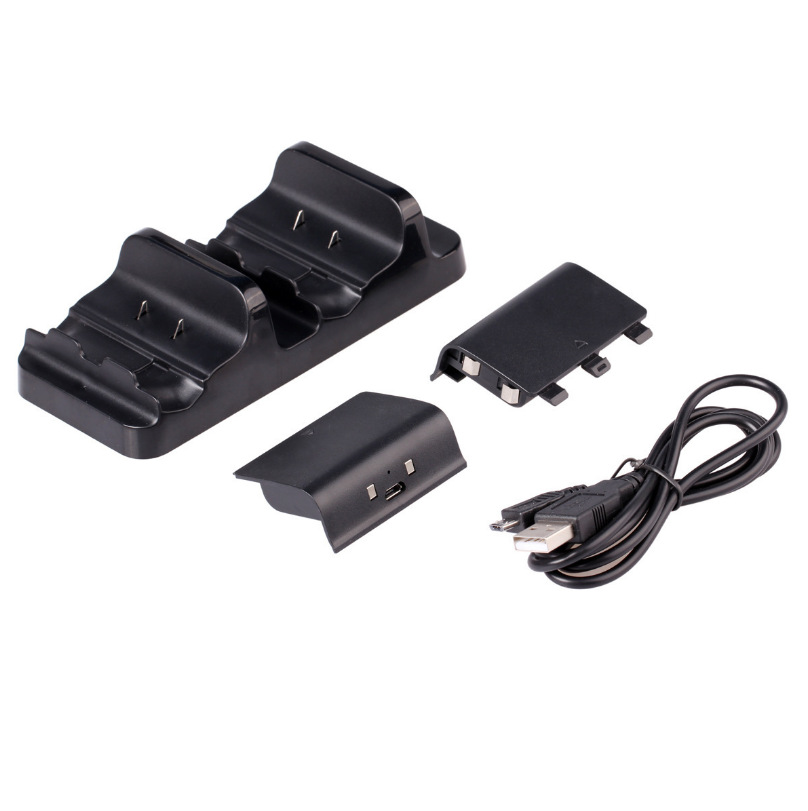

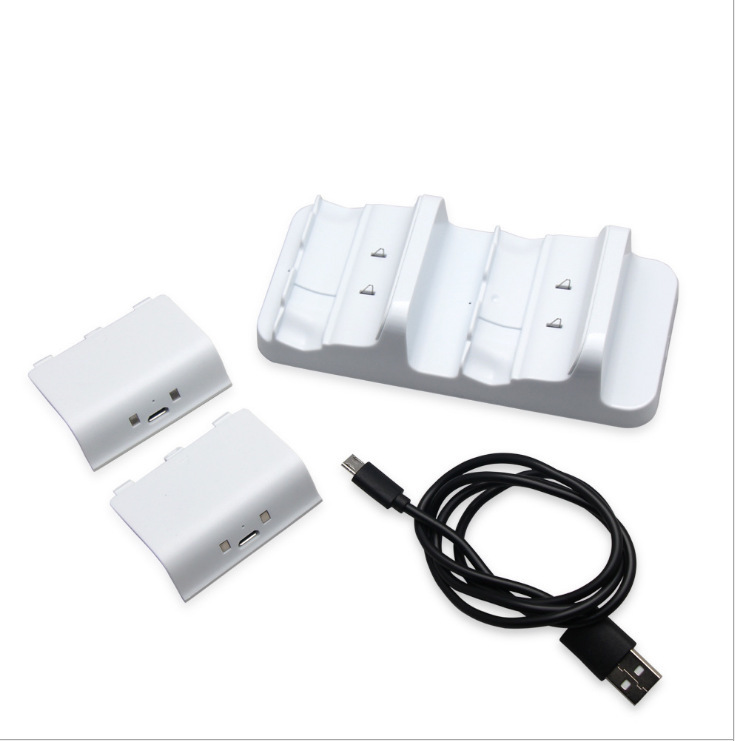

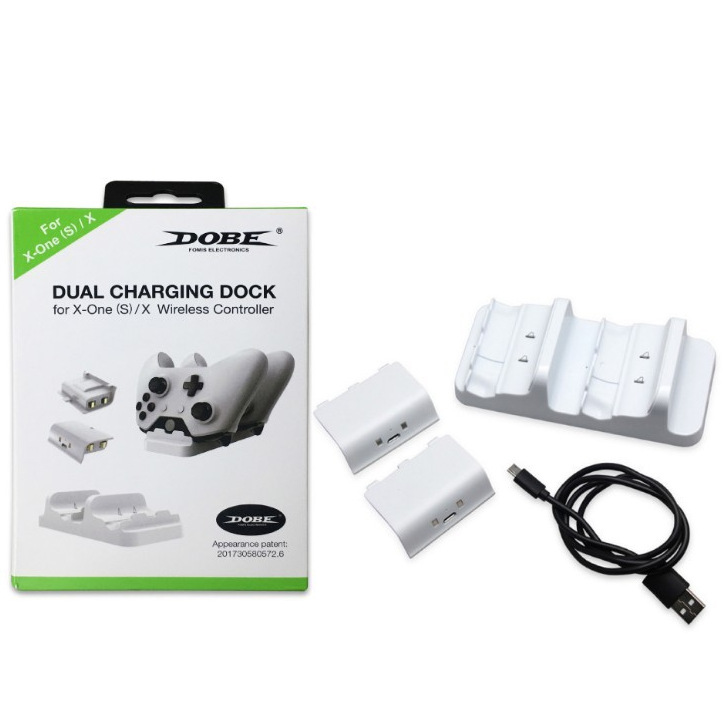

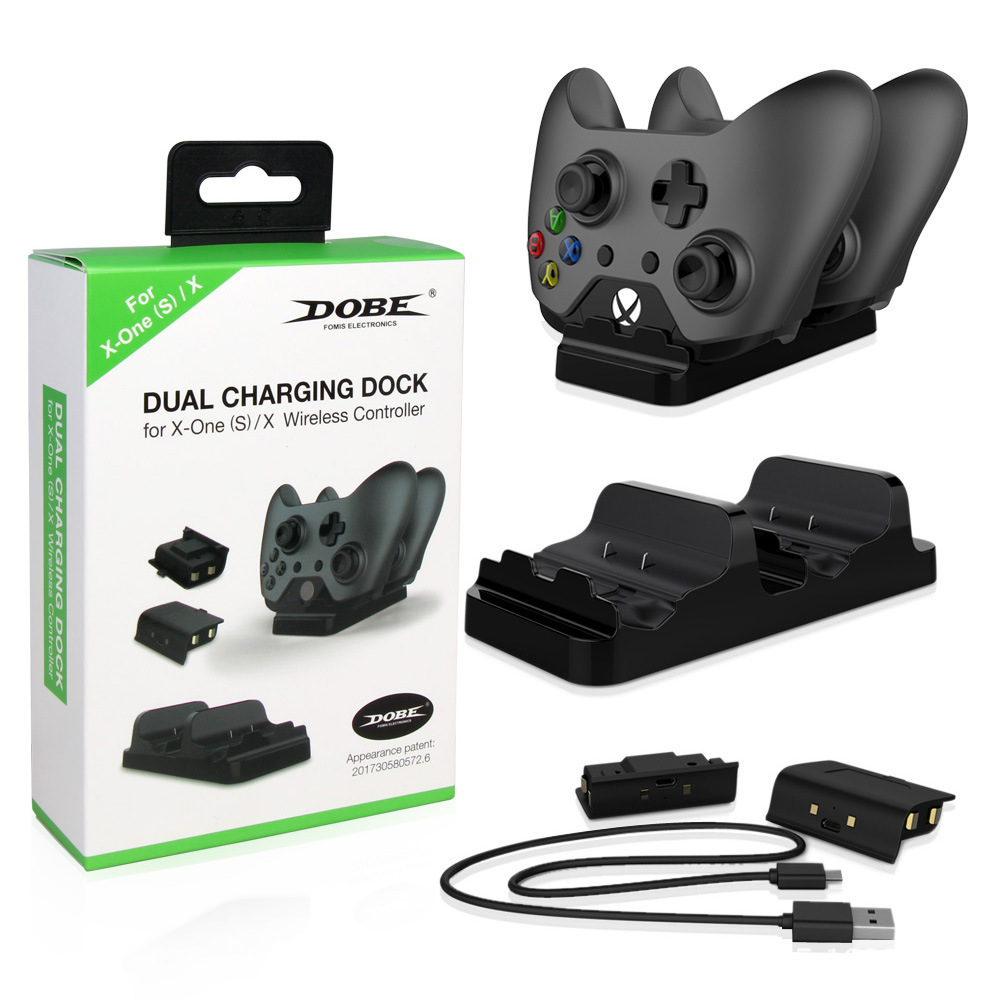

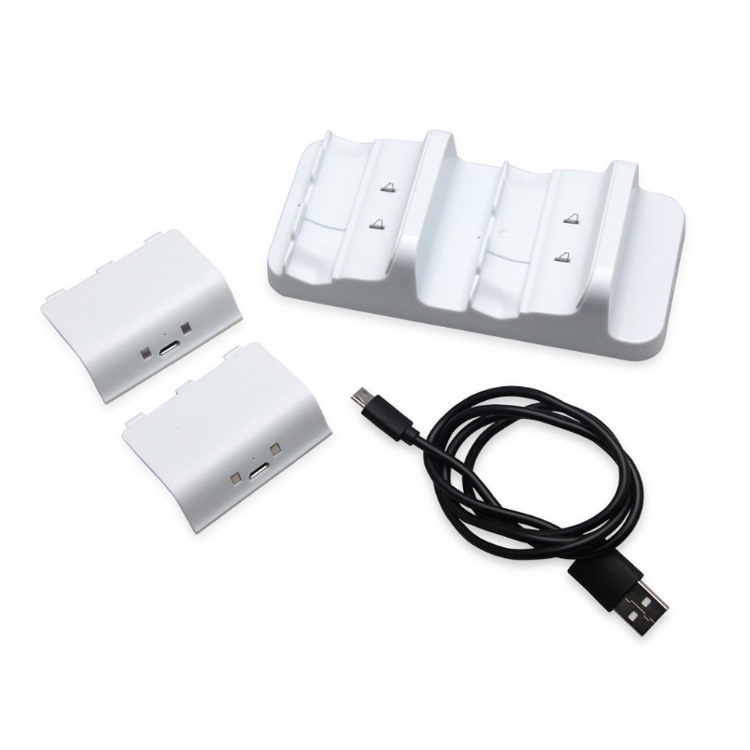

9. Product Accessories: 1 x Dual Charging Stand, 1 x Charging Cable. Battery Pack: 2 PCS
