1. Product parameters

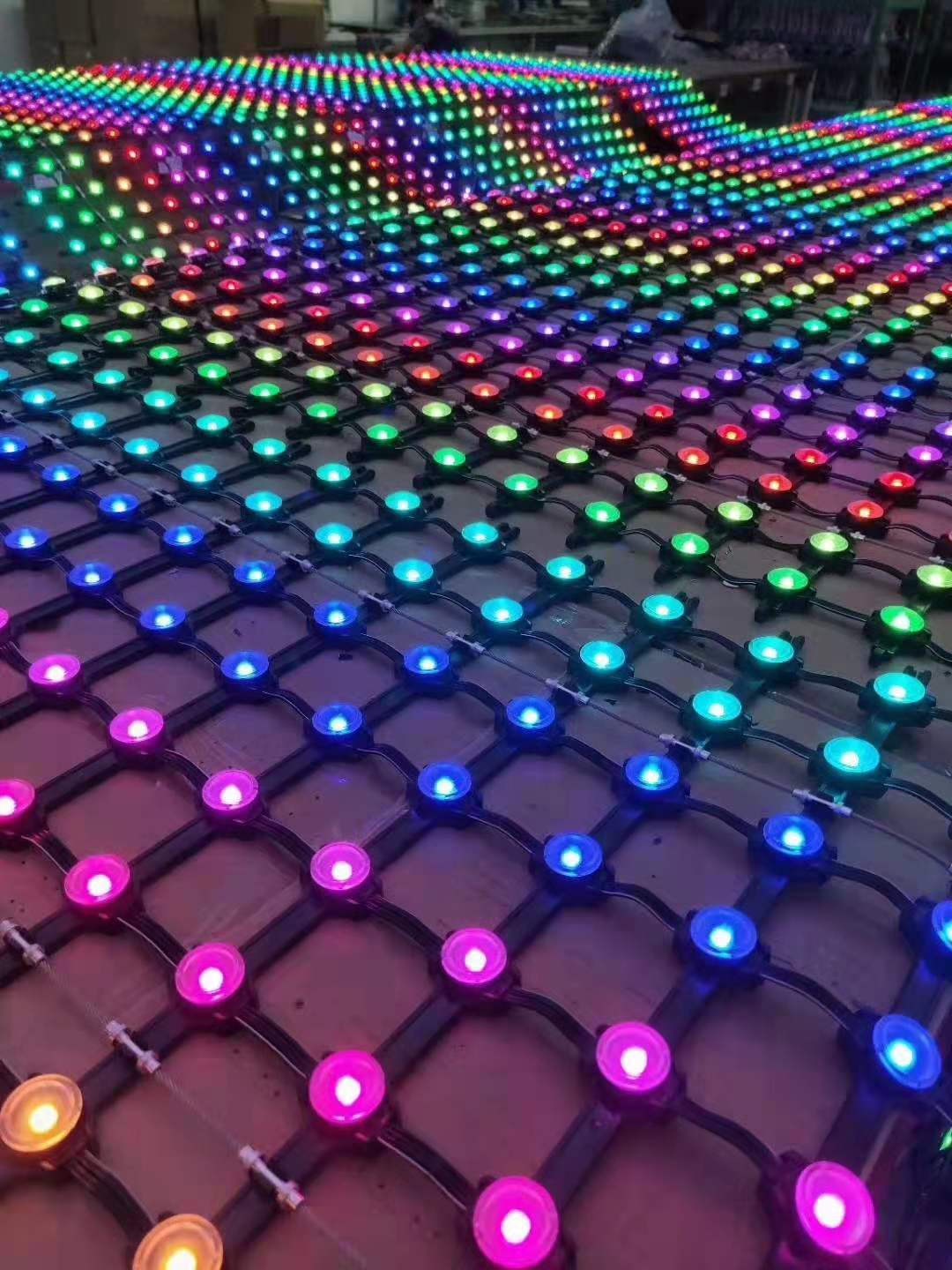

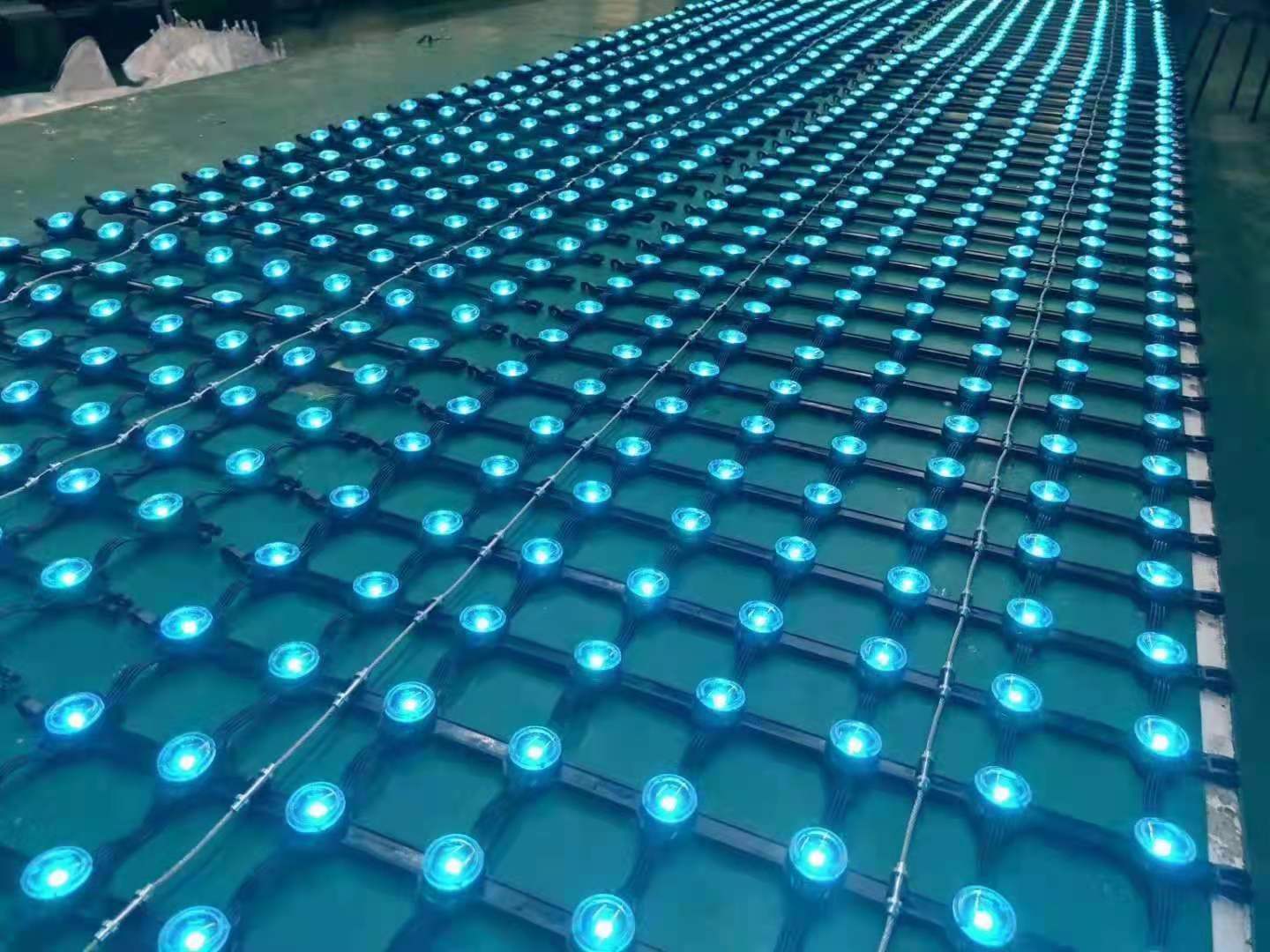

Product Name: 2cm full color Engineering point light source
LED chip: San'an, crystal chip
Led quantity: 5050
Rated Voltage: DC12V;
Power: 0.3W
LED driver: DMX512/1908
Light source life:>50,000H
Assembly process: Assembly + glue filling
Glue material: PU cream glue
Waterproof grade: IP68
Ambient temperature:-40℃- 70℃
2. Product description:
3cm full color point light source series products LED lighting project team is a full color point light source with glue filling shell designed for outdoor lighting.
Application scope:

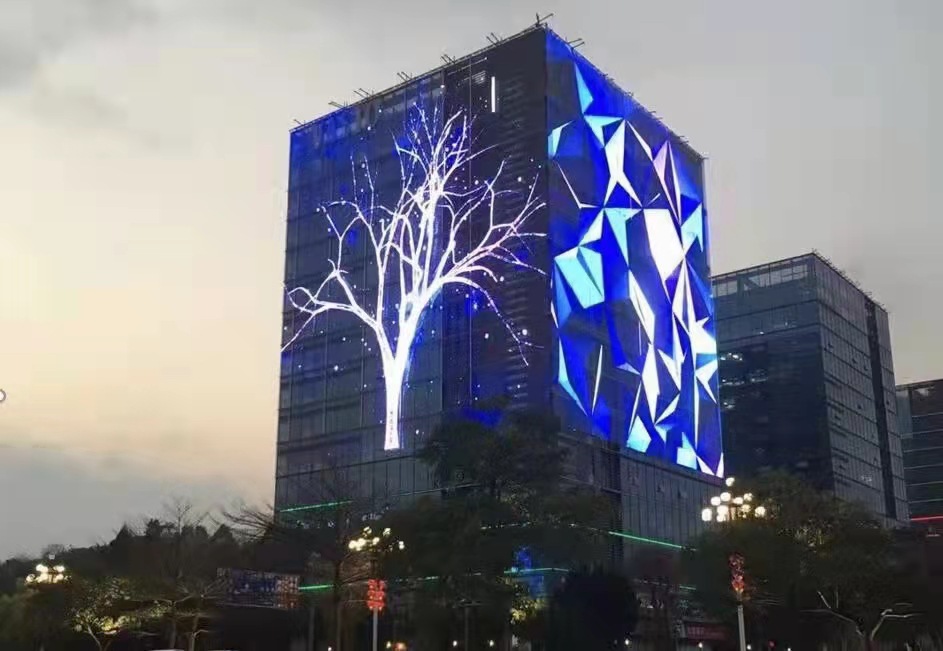

★Indoor and outdoor architectural outline decorative lighting;
★Club, KTV, large signboard font, surrounding border background decoration;
★Hotels, hospitals, stadiums, museums, commercial district buildings, tunnels, scenic spots and other commercial places.
Product Features
★Beautiful, generous and elegant;
★Lamp beads adopt brightness light source, green and energy saving;
★Based on SMD patch characteristics, the light attenuation is small, the luminous angle is ≥ 120 °, and the consistency is good;
★Integrated buckle direct plug-in connection design;
★It adopts full potting waterproof design of high thermal conductive adhesive imported from Germany, which is not easy to yellow. It has full waterproof, anti-corrosion, anti-acid and alkali, anti-UV, and the protection level is IP67, which enhances the service life and adaptability of the product;
★The product is flexible, flexible in application, and multiple installation methods are optional. Each string of point light source can be spliced at will, and the installation is firm and the maintenance is convenient;
★Belt
III. LED reliability test reliability experiment items and conditions
|
Serial Number |
Test items |
Test conditions |
Sample quantity |
Accept/reject |
|
1 |
Life Test |
Test current: 100mA temperature: 25℃ test time: 1000 hours |
30 |
0/1 |
|
2 |
High temperature lighting |
Environment temperature: 55℃ current: 100mA test time: 240 hours |
30 |
0/1 |
|
3 |
High temperature and humidity |
Temperature: + 85℃ humidity: 60% RH test time: 240 hours |
30 |
0/1 |
|
4 |
Hot and cold impact |
-40℃ ~ + 100℃ 20min 10s 20min test time: 100 cycles |
30 |
0/1 |
|
5 |
High temperature storage |
High temperature: 100℃ test time: 1000 hours |
30 |
0/1 |
|
6 |
Low temperature storage |
Low Temperature:-40℃ test time: 1000 hours |
30 |
0/1 |
|
7 |
Reflow soldering |
260 ℃(Max.), no more than 10 seconds |
30 |
0/1 |
Profile installation or steel wire buckle installation, beautiful and elegant, does not affect the appearance of the building;
