Features and advantages:

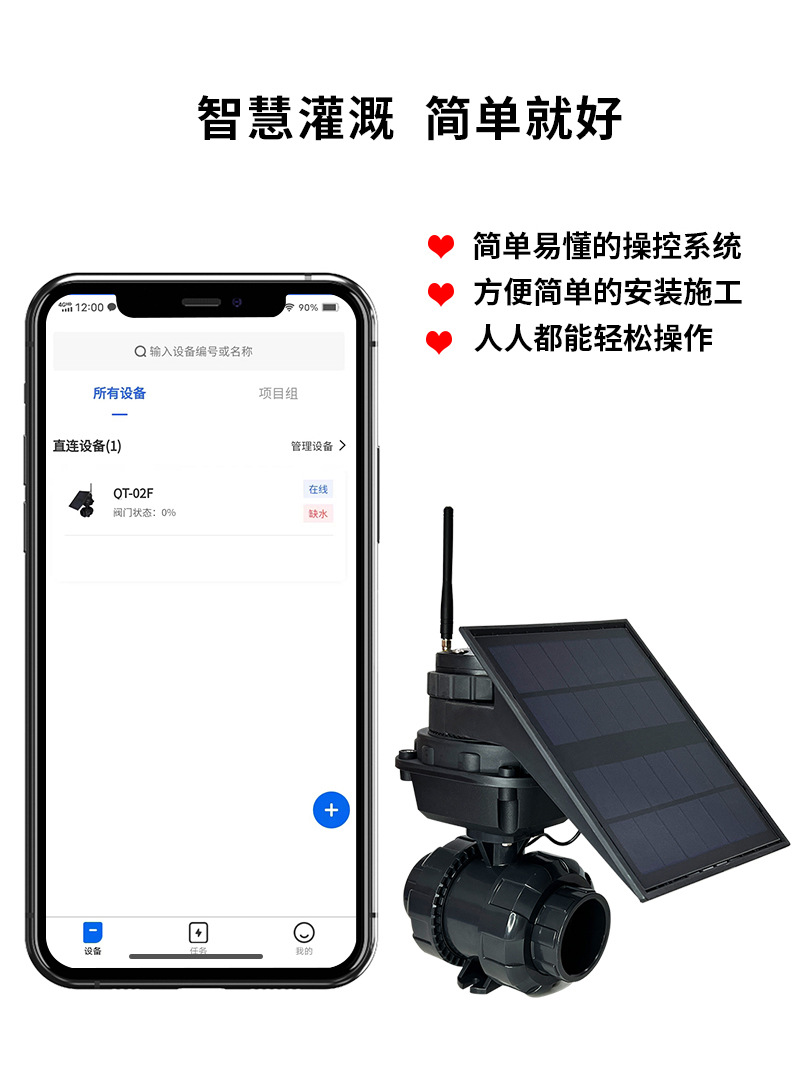

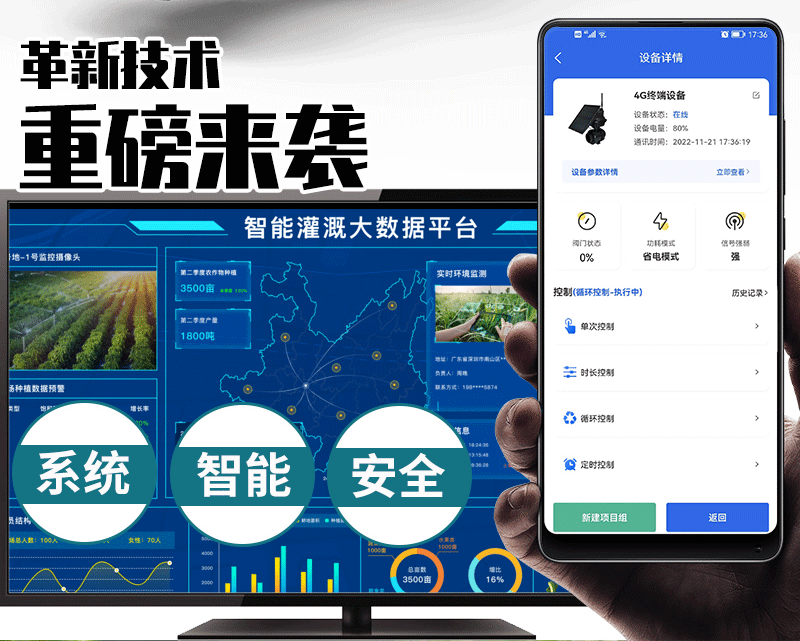

1. Remote control of mobile phone APP or computer, no need to install control cabinet, easier to install and use

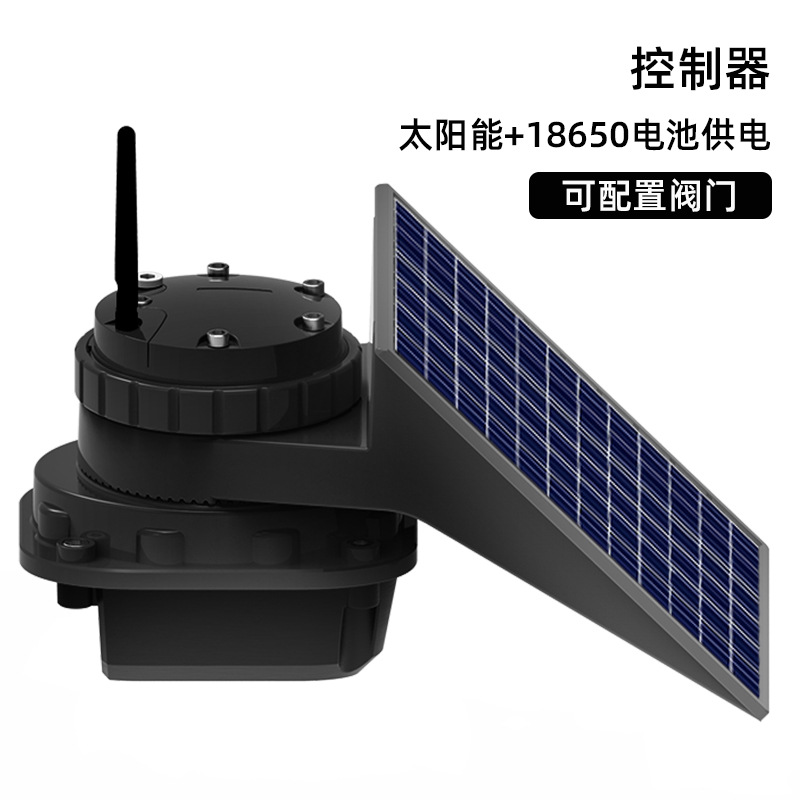

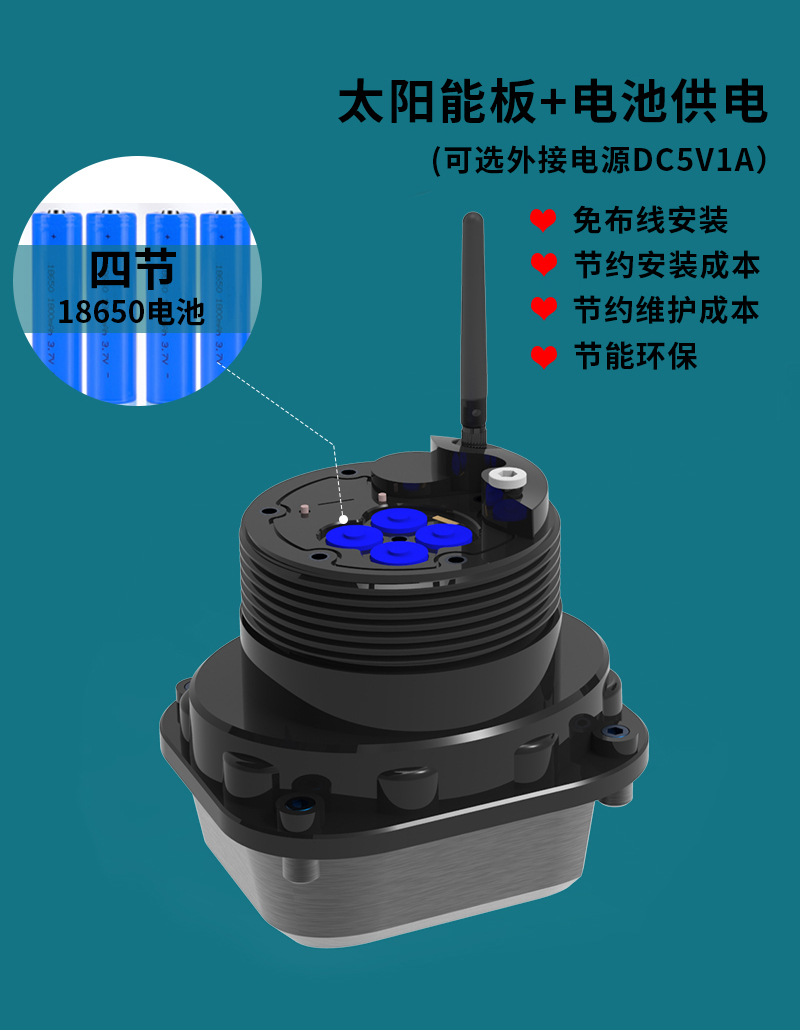

2. Battery power supply, 8.5W solar panel replenishes the power of 4 18650 batteries to meet the daily power consumption. Continuous rainy weather conditions can maintain the power demand of the controller for 25 days.
3. It can be charged by external DC5-30V power supply.
4. Empty call function, the device responds in time, at the same time, it saves more energy, saves electricity and has longer battery life.
5. The operation control function is relatively more comprehensive to meet different irrigation needs.
① single control, the controllable equipment keeps a valve state until the next switch valve command is issued.
② duration control, the amount of irrigation time can be controlled;
③ capacity control, when the flow meter is connected, the water consumption can be controlled for irrigation. For example, a capacity of 100 liters of water can be set on the APP. When 100 liters of water is poured, the valve will be automatically closed.
④ loop control, this operation function can be used for multiple times of irrigation within one day
⑤ timing Control, edit the scheduled irrigation plan, and automatically enable irrigation at the set time.

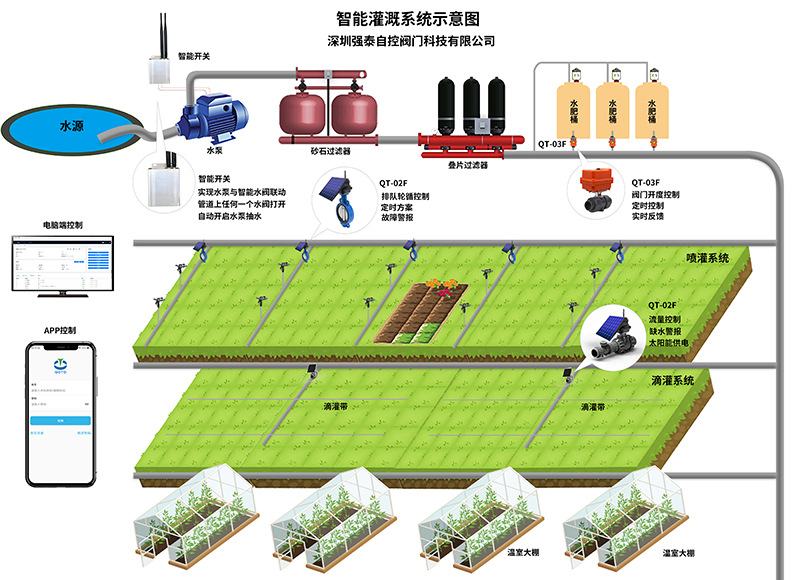

6, round-Robin irrigation function, multiple devices are queued for irrigation in sequence. When the water pump and frequency converter are connected, the water pump can be linked to set the opening pressure value of each valve.
7, group control, multiple devices perform single/duration/capacity/loop group control to facilitate simultaneous use of multiple devices.
8. Functions such as fault warning, pipeline water shortage warning (after being connected to the flowmeter), and low-power warning make you feel more at ease when using
9. When watering is enabled, the valve status is fed back to the mobile phone or computer in real time, and the valve switch situation can be known without on-the-spot inspection.
10. Intelligent linkage function, which can be linked with other smart equipment to realize automatic irrigation,
11. Control the opening percentage of the valve, that is, the opening degree of the valve. Keep the drip irrigation zone pressure stable through the regulating valve, so you can make

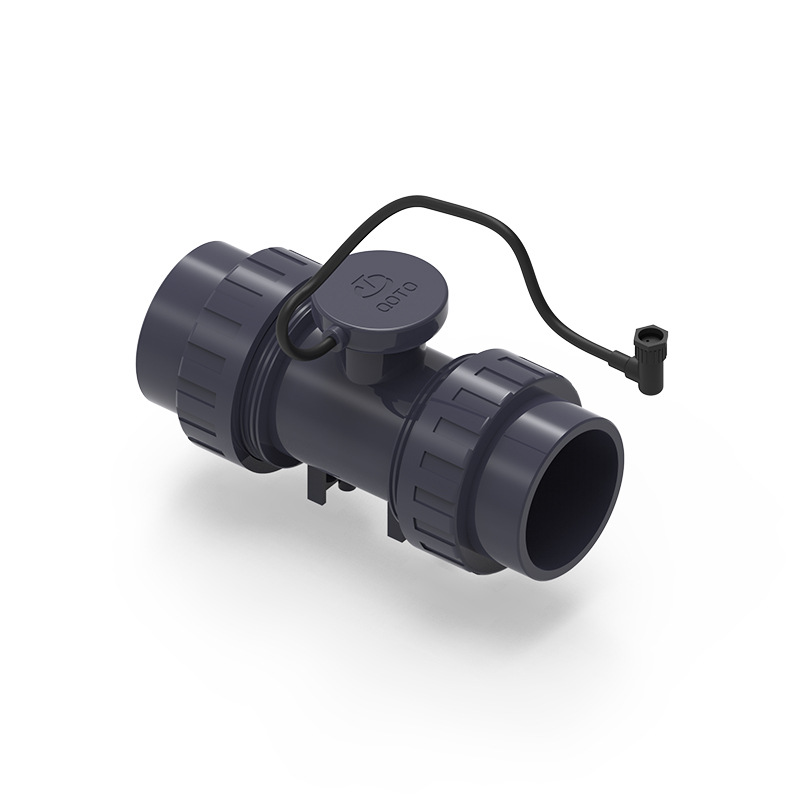

12. Reserve the interface between the flow meter and pressure meter, connect the flow meter, control the irrigation water consumption, and record the statistical water consumption; Connect pressure meter to know the pipeline pressure data.
13. Delayed watering function in rainy and snowy days
14. Personnel management function, setting sub-accounts and assigning management devices,
15. External antenna: in some environments with poor signal, the antenna can be lengthened to ensure the normal communication of the equipment.
16. Signal Strength Indication
17. Zero pressure switch valve
18. The protection level is ip66. it can be installed and used outdoors,
19. Lora, 4G, and NB-iot communication protocols are optional,
20. Switch valve will not cause water hammer and reduce damage to valves, pipelines and nozzles.

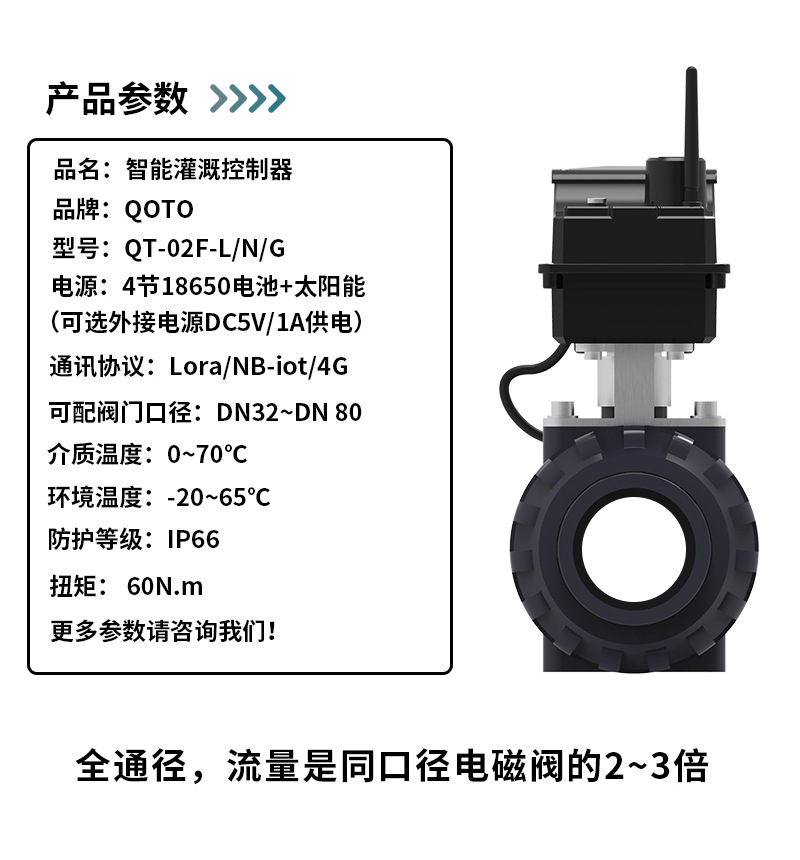

21. Controller torque 60N.m, the valve will become more and more tight after being used for a period of time. The torque of the controller is required to be plus-sized. The design torque safety factor of our controller is 2-3 times that of the valve, ensure that the valve can be properly switched under long-term use.

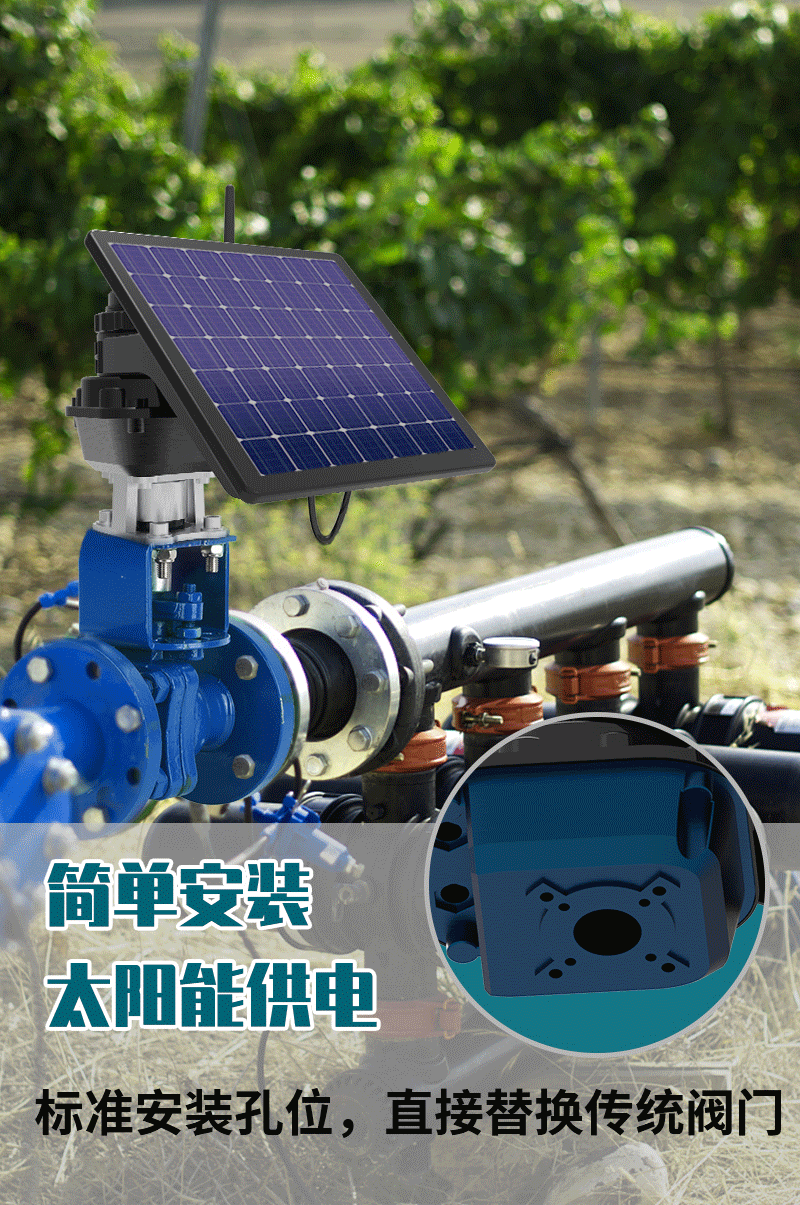

22. The controller adopts standard installation screw hole position, which is suitable for most valves on the market and is convenient for valve replacement and maintenance.
23. Full diameter, not easy to block the valve, long service life.
