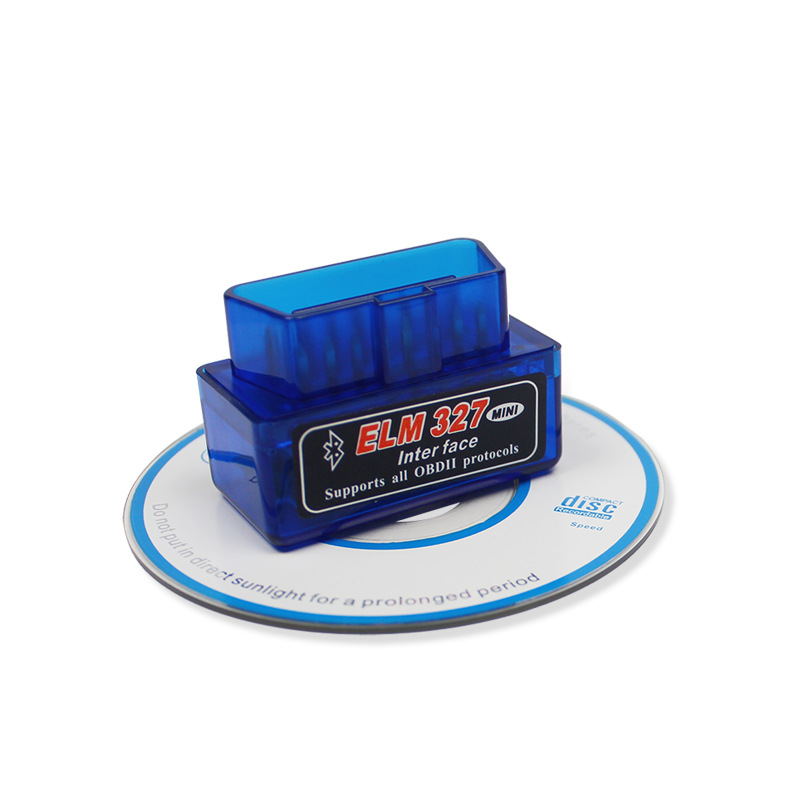

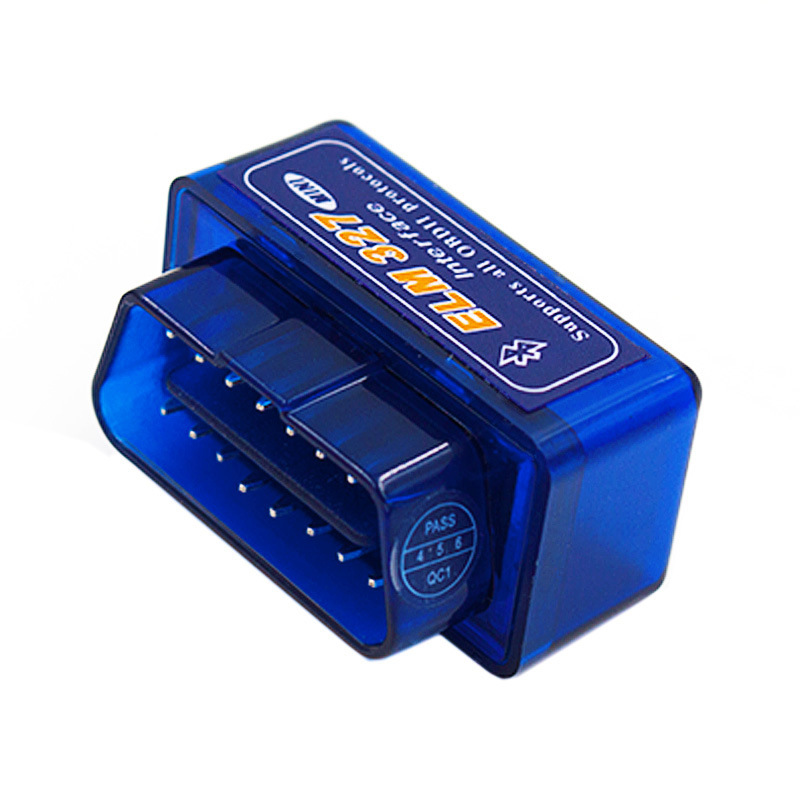

Mini OBD2 Bluetooth Scanner for Multi-brands CAN-BUS compatible with ELM327 Bluetooth. Supports all OBD2 protocols and works on Android and Symbian. Used to read diagnostic trouble codes, including generic and manufacturer-specific codes, and display their meanings (over 3000 generic code definitions in the database).

Mini OBD2 Bluetooth Scanner for Multi-brands CAN-BUS as same as ELM327 Bluetooth.

Top 4 Reasons To Get Mini OBD2 Bluetooth Scanner:
1. Version: V2.1
Works with all OBD-II compliant vehicles
3. Wireless (Bluetooth)
Supported protocols:
1. SAE J1850 PWM (41.6 Kbaud) (no)
2. SAE J1850 VPW (10.4Kbaud) (no)
3. ISO 9141-2 (5 baud init, 10.4 Kbaud)
4. ISO 14230-4 KWP (5 baud init, 10.4 Kbps)
5. ISO 14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO 15765-4 CAN (11-bit ID, 500 kbps)
7. ISO 15765-4 CAN (29-bit ID, 500 Kbps)
8. ISO 15765-4 CAN (11-bit ID, 250 Kbps)
9. ISO 15765-4 CAN (29-bit ID, 250 Kbps)

Mini OBD2 Bluetooth Scanner Functions:

1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2: Clear trouble codes and turn off the MIL ("Check Engine" light)
3: Display current sensor data, including:
4: Engine RPM
5: Calculated Load Value
6: Coolant Temperature
7: Fuel System Status
8: Vehicle Speed
9: Short Term Fuel Trim
10: Long Term Fuel Trim
11: Intake Manifold Pressure
12: Timing Advance
13: 进气温度
14: Air Flow Rate
15: 绝对节气门位置
16: Oxygen sensor voltages / associated short term fuel trims
17: Fuel System status
18: Fuel Pressure
19: Many others

Support System: Android and Windows
Working Voltage: 9v ~ 16v
Working Current: 35mA
Standby Current: 25mA
Operating temperature: -40 ℃- 85 ℃
Working Humidity: less than 60%
Size: 45mm * 25mm * 65mm

Compatible systems:
Software support platform: Windows XP, Windows 7/8, Android, Symbian.

Compatible software:
Window : ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.
Android: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc.
Symbian : OBDScope

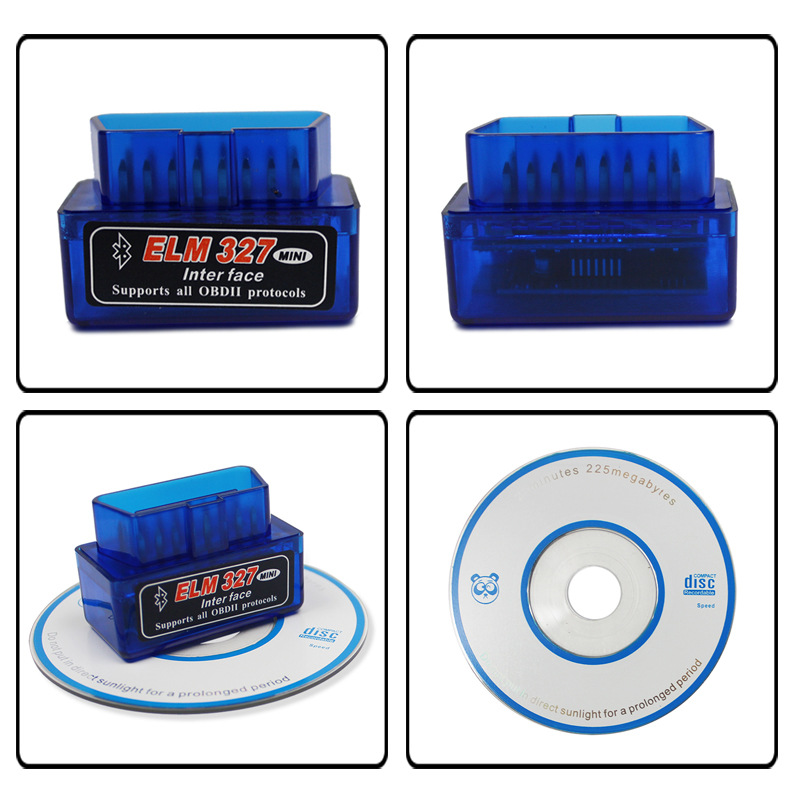

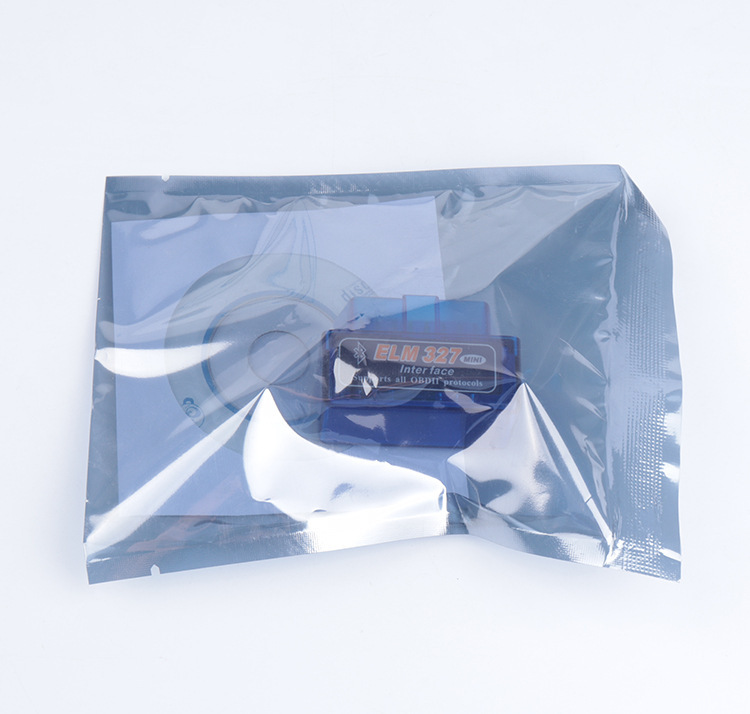

Package List:
1pc x Mini OBD2 Bluetooth 5.0 Scanner
1pc x CD

Supported protocols:
1. SAE J1850 PWM (41.6K baud) (Unsupported)
2. SAE J1850 VPW (10.4 Kbaud) (Unsupported)
3. ISO9141-2 (5 bps initialization, 10.4 kbps)
4. ISO 14230-4 KWP (5 baud initialization, 10.4 kbps)
5. ISO 14230-4 KWP (Quick Start, 10.4 Kbaud)
6. ISO 15765-4 CAN (11-bit ID, 500 kbps)
7. ISO 15765-4 CAN (29-bit ID, 500 Kbaud)
8. ISO 15765-4 CAN (11-bit ID, 250 kbps)
9. ISO 15765-4 CAN (29-bit ID, 250 Kbaud)

Mini OBD2 Bluetooth Scanner Features:

1: Read diagnostic fault codes for both generic and manufacturer-specific, and display their meanings (over 3000 generic code definitions in the database).
2: Clear the fault code and turn off the MIL (Check Engine) indicator
3: Display the current sensor data, including:
4: Engine RPM
5: The calculated load value
Coolant Temperature
7: Fuel System Status
8: Vehicle Speed
9: Short-term fuel trimming
10: Long-term fuel trim
11: Intake Manifold Pressure
12: Time Advance
13: Air Intake Temperature
14: Air Flow
15: Absolute Throttle Position
16: Oxygen Sensor Voltage / Related Short-Term Fuel Trim
17: Fuel System Status
18: Fuel Pressure
19: Other functions, etc....

Mini OBD2 Bluetooth Scanner Specifications:
Supported systems: Android and Windows
Working Voltage: 9v-16v
Working Current: 35mA
Standby Current: 25mA
Working temperature: -40℃ to 85℃
Work humidity: less than 60%.
Size: 45mm * 25mm * 65mm

Compatible systems:
Software supports platforms: IOS, Windows XP, Windows 7/8, Android, Symbian.

Compatible Software:
Window：ScanMaster-ELM，ScanTool.net，PCMSCAN ELM等" "Windows：ScanMaster-ELM，ScanTool.net，PCMSCAN ELM etc.
Android：Torque，DashCommand，OBD汽车医生，Auto Doctor，迷你OBD，EOBD等
Symbian：OBDScope
