P3 Outdoor Full Color Led Display Screen Unit Panel Module Outdoor Hd Small Spacing Electronic Advertising Large Screen 中文版

P3 Outdoor Full Color Led Display Screen Unit Panel Module Outdoor Hd Small Spacing Electronic Advertising Large Screen

P3 Outdoor Full Color Led Display Screen Unit Panel Module Outdoor Hd Small Spacing Electronic Advertising Large Screen P3 Outdoor Full Color Led Display Screen Unit Panel Module Outdoor Hd Small Spacing Electronic Advertising Large Screen P3 Outdoor Full Color Led Display Screen Unit Panel Module Outdoor Hd Small Spacing Electronic Advertising Large Screen P3 Outdoor Full Color Led Display Screen Unit Panel Module Outdoor Hd Small Spacing Electronic Advertising Large Screen
QR code0
[Scan the QR code, view in your mobilephone.]
  • Updated: 2023-06-10 17:25
EXW Price:
50pcs ~99pcs   CN ¥ 138 /pcs
100pcs ~499pcs   CN ¥ 137 /pcs
Above 500pcs   CN ¥ 135 /pcs
Send Inquiry
Contact
Main
Products:
LED广告标牌
Contacts: 张艺宁Chat
Mobile: 86-18857980286
E-mail:
Address: 17733B, 10 Street, 3 F, 38 Gate, International Trade Mart (District 2).

3_副本

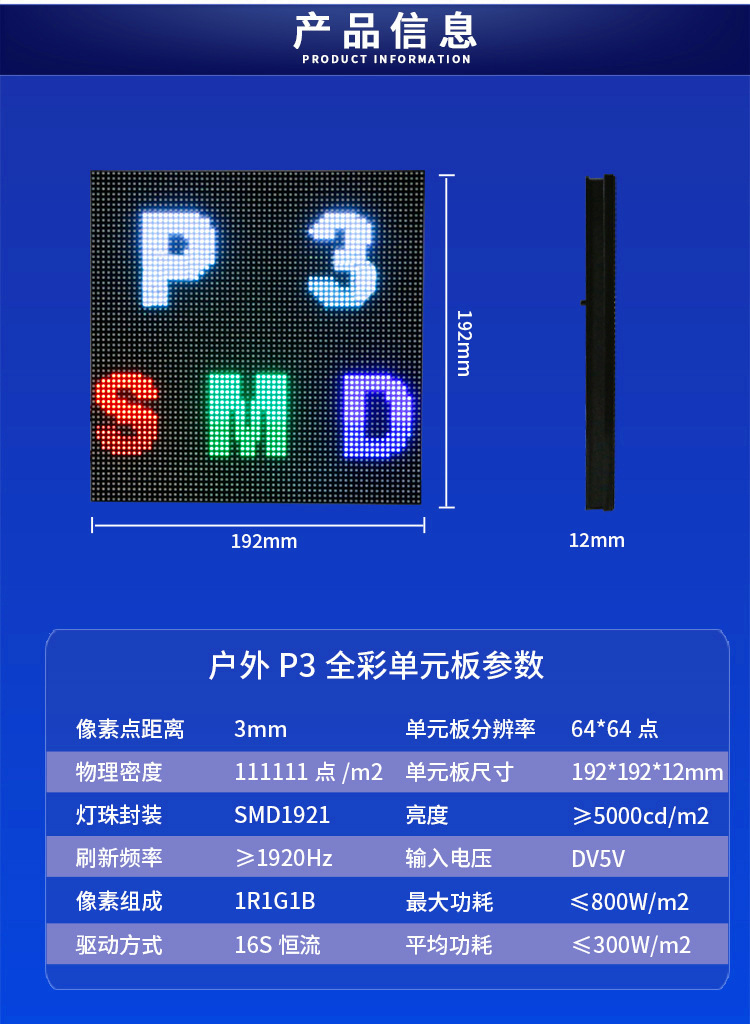

Main technical parameters of outdoor P3-16S LED display
Module Main parameters
Physical point spacing 3mm physical density 111111 points/㎡ luminous point color 1R1G1B
Cell Board size 192X192mm cell board resolution 64*64=4096 DOTS cell board weight 0.37 LEDs
Drive IC:FM6126/MBI5124 drive mode: 1/16 scan module maximum power consumption <25W
Main parameters of unit box
Unit box size 576 × 576mm box resolution 192*192 box area 0.332m2
Die-cast aluminum box weight 10.5KG ± 0.05KG
Main technical parameters of display screen
Best sight distance 3M ~ 60m visual angle horizontal angle 140 ° optional vertical ≥ 120 ° optional
White balance brightness ≥ 4000cd/㎡ maximum power consumption <800w/㎡ average power consumption <350W/㎡
Operating voltage (AC110/220V optional) switching frequency 50/60Hz refresh frequency: 1000~1920HZ
System Control mode: synchronous control display card: DVI graphics card
Brightness adjustment method
Brightness induction automatic adjustment: 16-level adjustable software manual adjustment: 100-level adjustable 100
Computer operating system
WIN98, WINXP, WIN2000,Win7/8,etc
Video signal
RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc.
Control system
PCTV card (optional optional)+ DVI graphics card + Main control card + optical fiber transmission (optional optional)
Average failure-free time-5000 hours life: 75000-100000 hours pixel out-of-control rate <0.0002 pieces
Project Category: PH3-16S package form: Three-in-one LED packaging mode: 1919undefined
