Product Features

The area of the home or office is too large, the distance is far away, and the multi-sided wall is blocked, the wireless network signal becomes weaker, and the signal is always intermittent.

Balcony, kitchen, toilet and other places where routers cannot reach, there is always a dead corner of signal, and internet entertainment and surfing cannot follow one's inclinations,

at this time, the wireless network Wifi amplifier is needed to solve the problem.

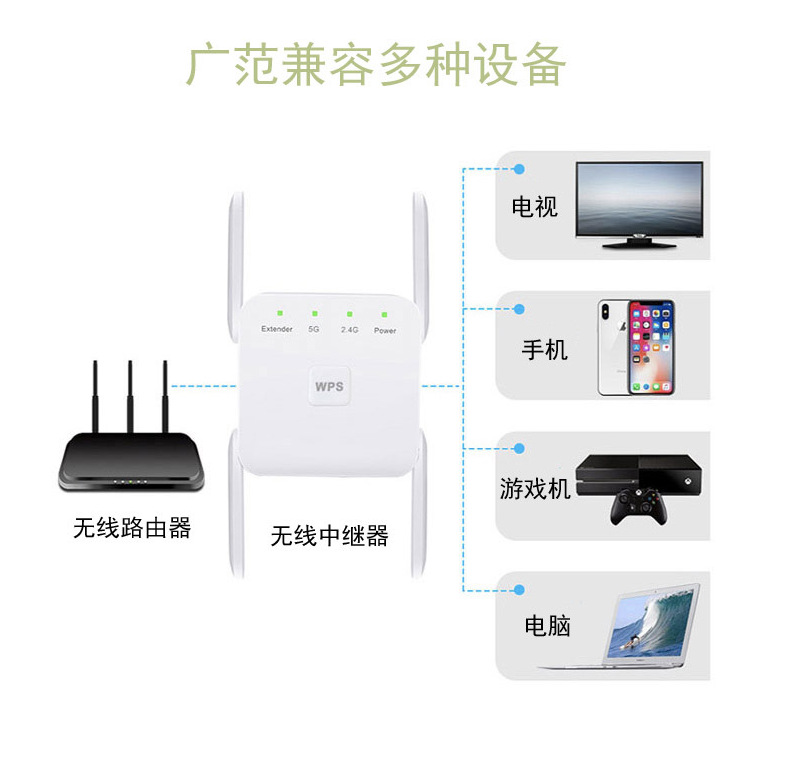

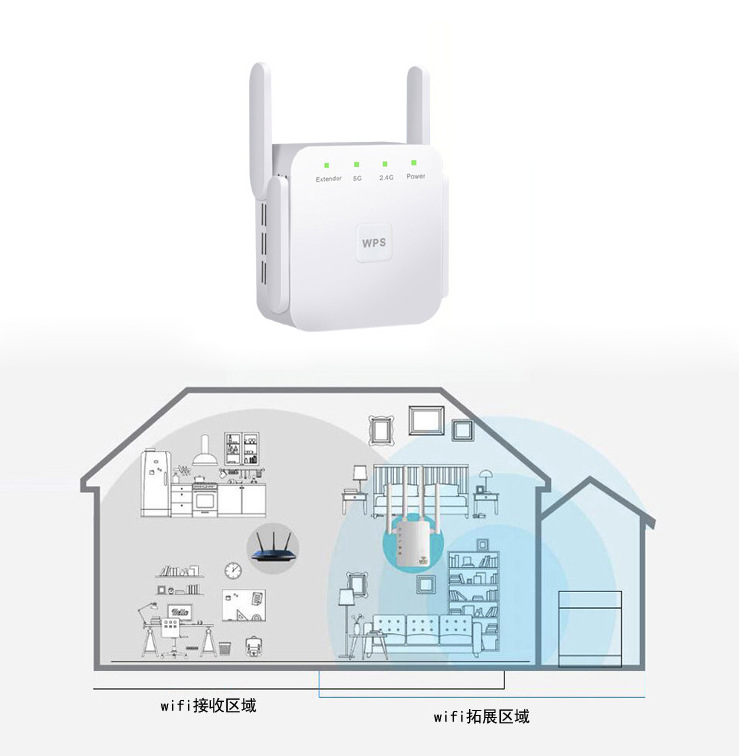

Wireless Network Wifi amplifier is to amplify the Wifi signal in the lobby of the home to the room, kitchen or balcony, making these local networks

the network signal can be used normally and smoothly. The home needs to be equipped with a network and a router before it can be used.

Compliant with 5G:IEEE 802.11a(54Mbps),IEEE 802.11ac(867Mbps)

2.4G:IEEE 802.11b(11Mbps),IEEE 802.11G (54Mbps),IEEE 802.11n(300Mbps) standard, plug-in design.

Signal frequency: 2.4GSSID:Wifi-2.4G-XXXX

signal frequency: 5GSSID:Wifi5G-XXXX

IP address: 192.168.188.1

password: admin

Product Description

strong expansion, high-speed WiFi enjoy worry-free

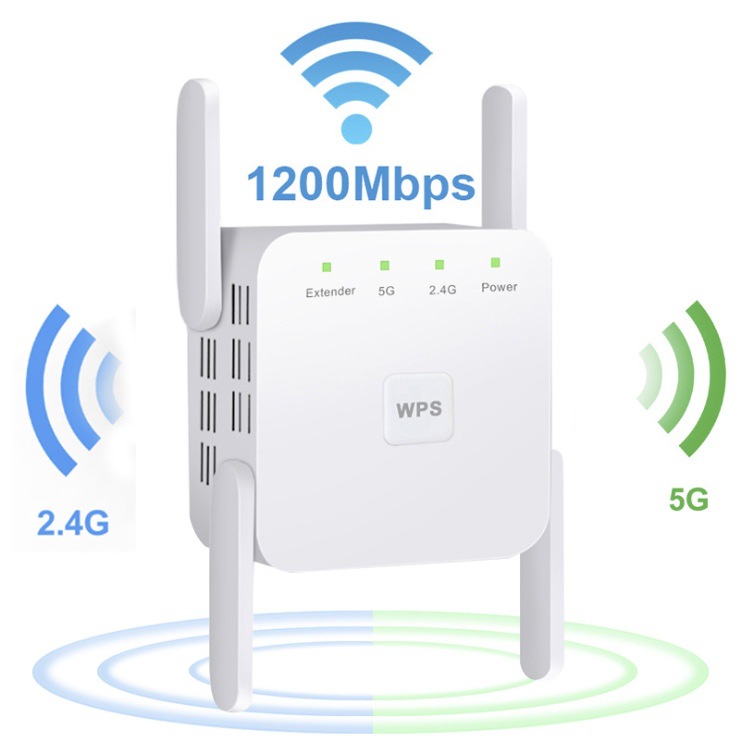

dual-band extender is used with dual-band routers to give full play to the high performance of the two frequency bands and use up the broadband potential,

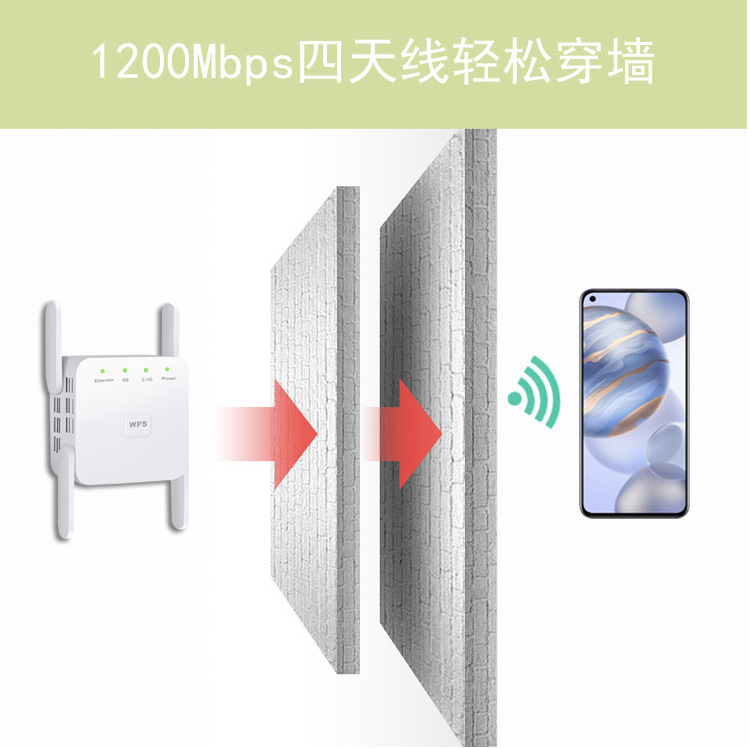

expand the dual-frequency signal to open the bow around the 2.4GHz and 5GHz signals, with an external dual antenna and a built-in dual antenna. The signal is stronger and covers farther, covering every corner of the home!

Product specifications

product Model: WD-R1203U

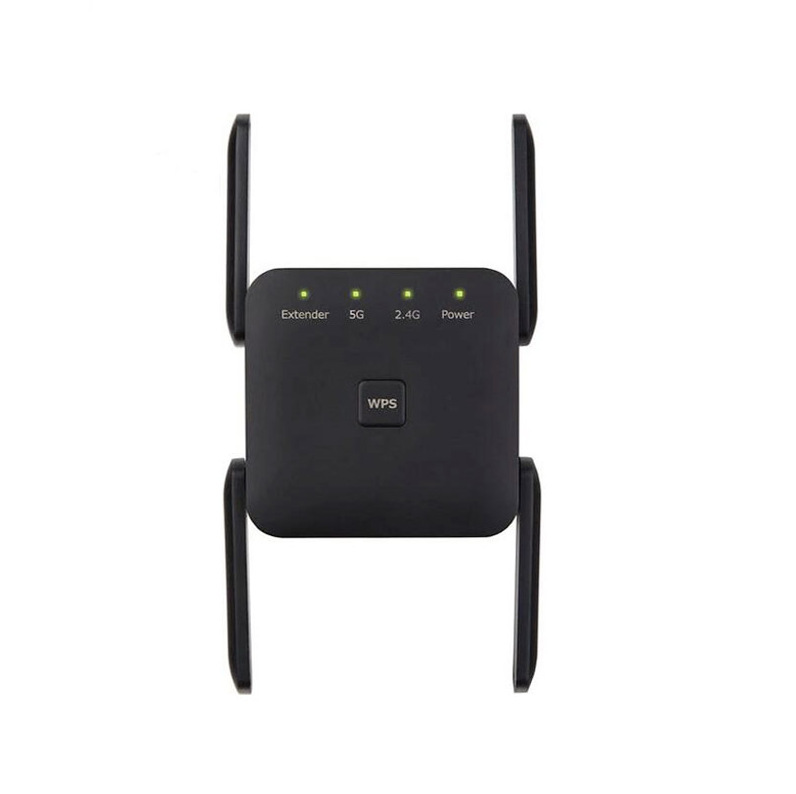

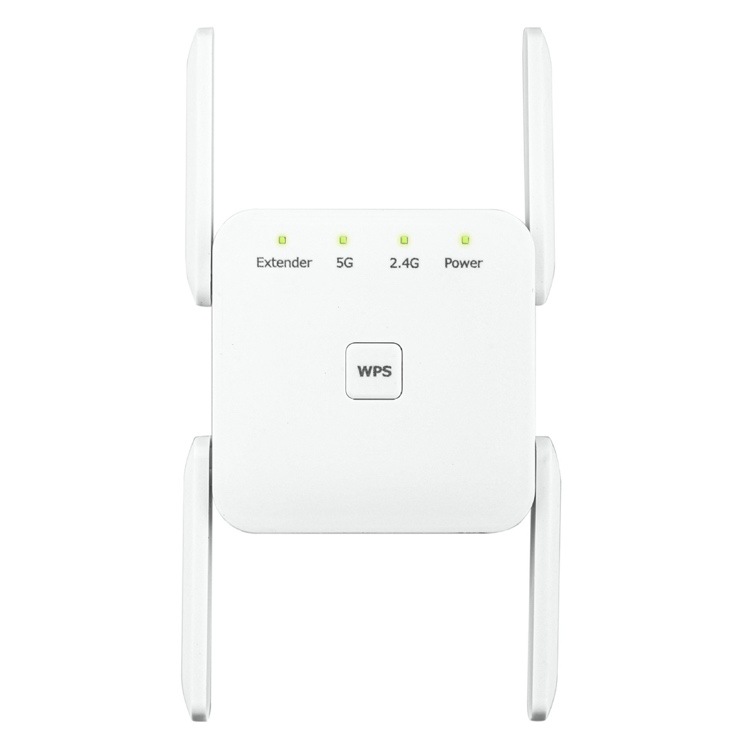

product color: white and black

product material: ABS + PC material

transmission Rate: 1200Mbps

bare Metal weight: 127g

full set weight: 177.5G

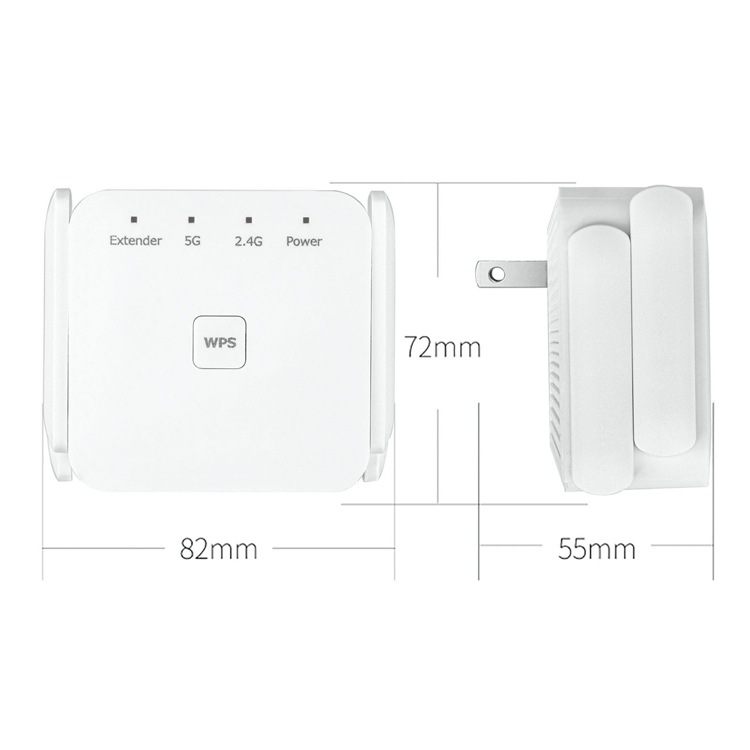

product Size: 82x72x55mm

packing size: 90x75x78mm

packing quantity: 100 pcs/carton

packing size: 480x330x410mm

packing weight: 18KG/box

product Accessories: 1 * Repeater 1 * English Manual 1 * packing box

product Agreement: 5 GHz11ac: Up to 867Mbps(dynamic).11a: Up to 54Mbps(dynamic)

2.4GHz11n: Up to 300Mbps(dynamic).11g: Up to 54Mbps(dynamic).11b: Up to 11Mbps(dynamic).

Product features: WiFi signal expansion, L-Port WiFi signal transmission, wireless to Wired.

Step-by-step connection instructions of 1200M-WIFI amplifier

1. First check the four digits behind the MAC on the back of the amplifier, which is the name Number of the amplifier.

2 .. plug in the power supply and light the first and fourth lights

3. Wait for one minute and start setting when the lights of the second, third and fourth are on

4. Turn on the phone settings, enter WLAN, and connect the amplifier name No. WIFI_XXXX

5. The mobile phone has been connected to the amplifier WIFI_XXXX. Currently, WLAN cannot be used on the Internet.

6. Open the mobile browser, enter 192.168.188.1, you can select Chinese display

7. Enter the password admin to log on to the amplifier management interface.

8. Find the WIFI name to be enlarged (your original WIFI name)

9. Enter the password to enlarge the WIFI (your original WIFI password)

10. Set the WIFI name and password after amplifier extension (can not be modified)

11. Click start connection, wait for one minute, observe all four lights on, set

12. Return to the mobile phone settings, enter WLAN, and click connect to your original WIFI name-pro-5G to complete the connection.

If your router has WPS button, you can plug in the WIFI amplifier, press WPS button of the router first, and then press WIFI amplifier

WPS button, wait 2 minutes to connect.

If you cannot find the amplifier name number, you can reset it. After the amplifier is plugged in, use the configured pin cushion amplifier bottom hole for 10 seconds.

After the indicator light changes, restore the factory settings and search for the name number, or press the WPS key of the amplifier for 10 seconds, release it for a few seconds, and wait for the indicator light.

After the change, restore the factory settings and search for the name number.
