product Details:

dual-frequency repeater is mainly used to provide free wifi service in large areas such as factories,
For example, communities, streets, etc., ordinary enhancer can expand the distance to 500 meters.
If there is more repeater or more power repeater, the range will be further expanded;

the repeater supports 2.4G and 5G wireless network connections at the same time. It can support
2.4g or 5G transmission speed can reach 300m. It has 4 antennas and provides wireless
Performance, transmission rate, and stability technologies automatically avoid channel conflicts and channel selection characteristics.

Main features:

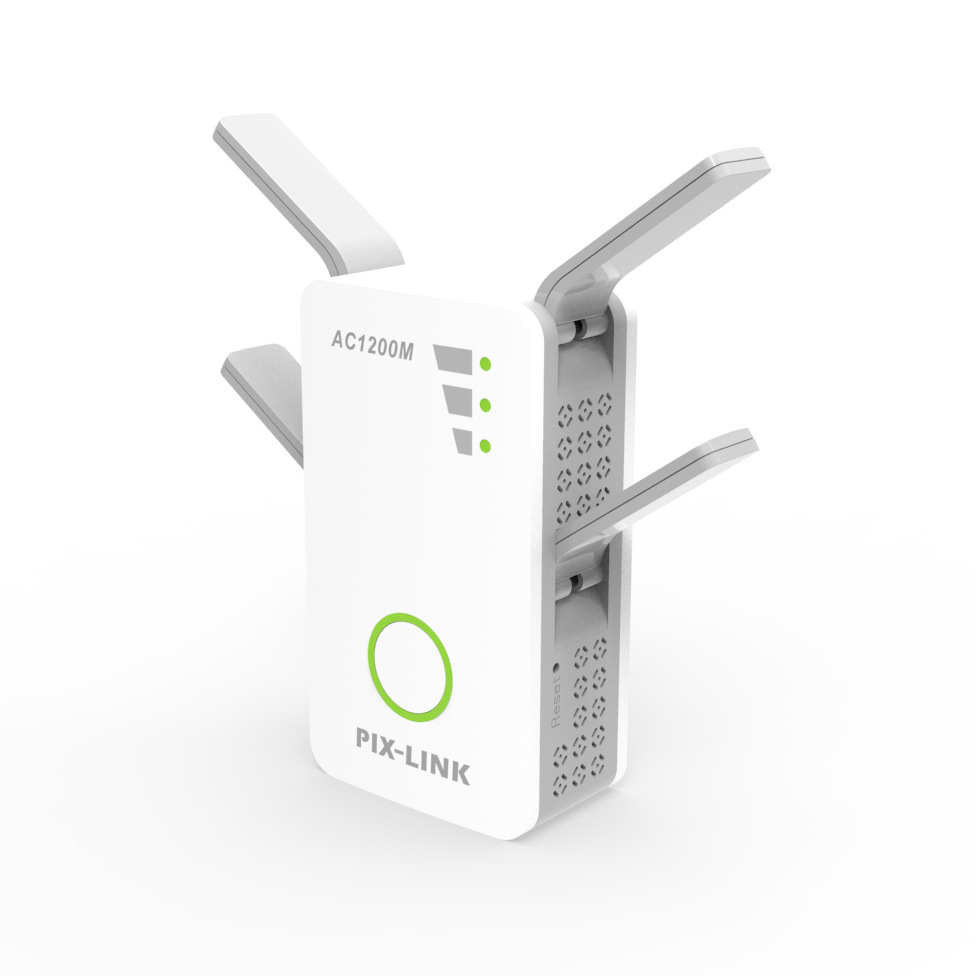

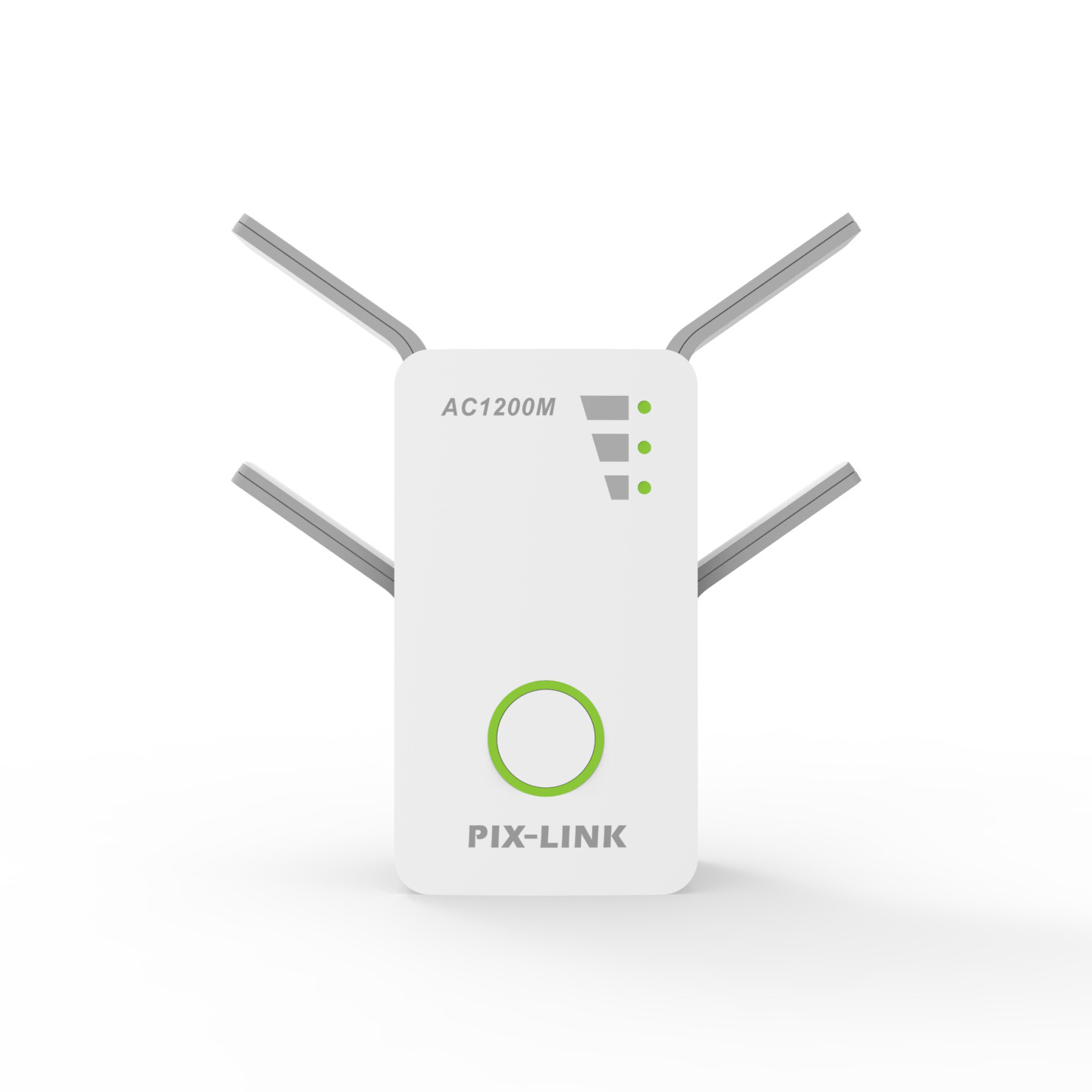

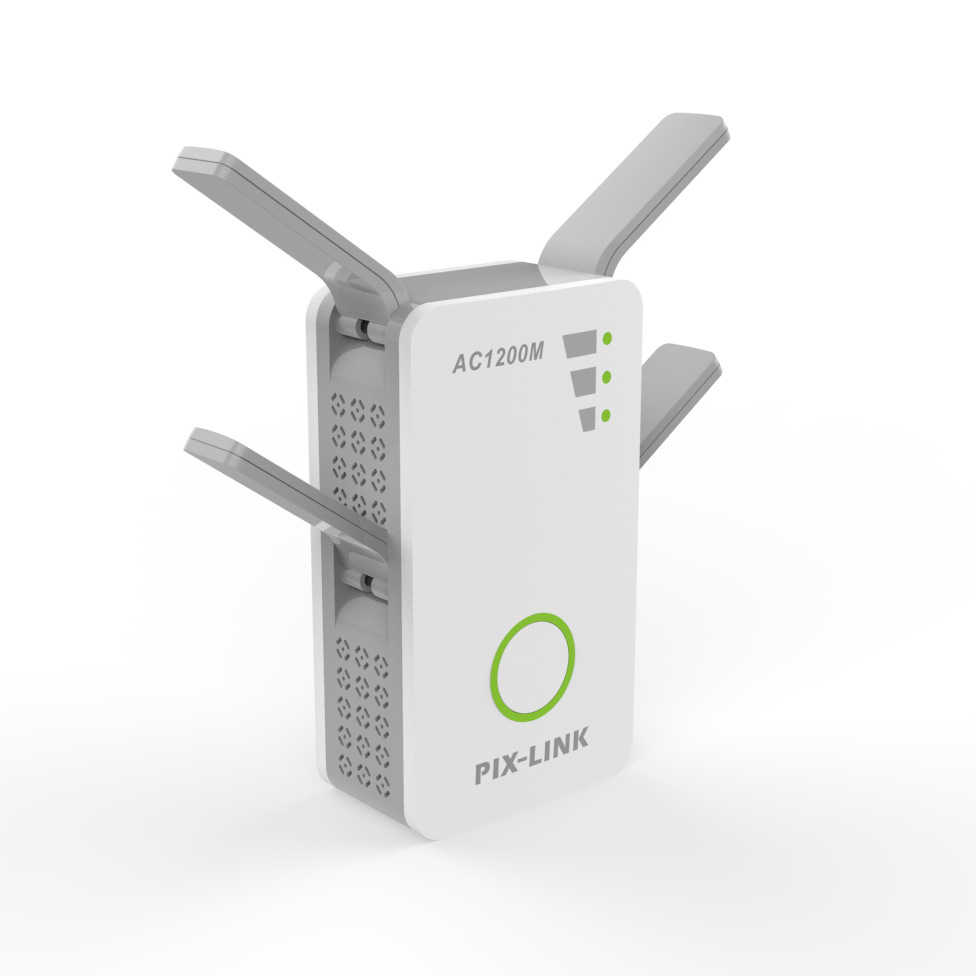

Equipped with four external antennas, support 2.4GHz / 5GHz dual-band WiFi,WiFi speed up to 1200Mbps, expand and strengthen your wireless signal, eliminate dead zone, let you enjoy the wireless freedom anywhere in your home.

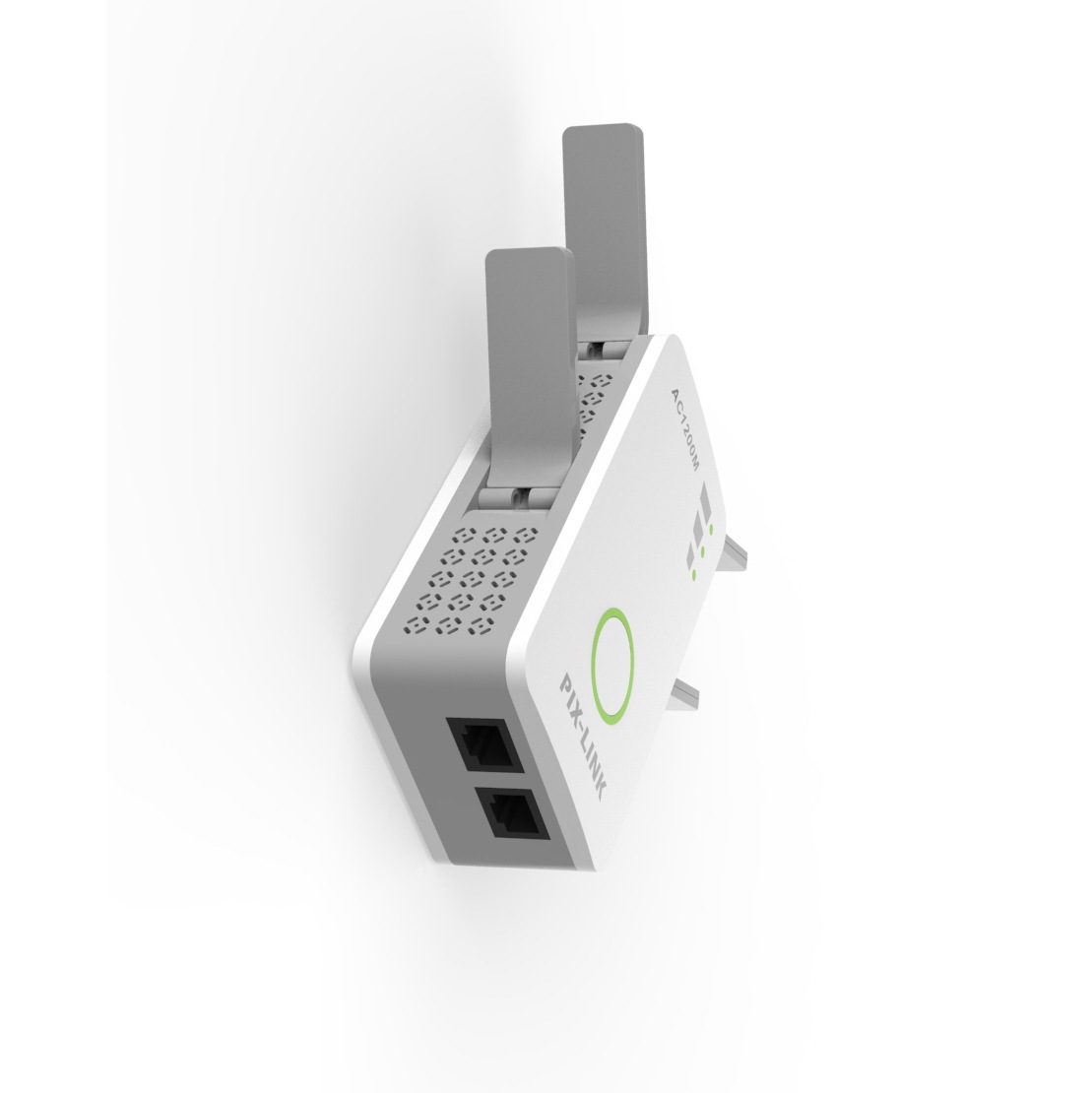

Ethernet port (100Mbps/10) allows extender to connect wired devices as a wireless adapter. You can directly connect devices such as Xbox,PC or Mac, which can keep multiple simultaneous HD streaming media, online games and other content consumption without delay

-Encryption
With the WPS function, you can easily implement wireless encryption settings by pressing the WPS button to ensure your network, prevent others from stealing the network and proactively defend against threats from others.

-Multifunctional
Support router, client, repeater, AP,WISP operation mode, can meet your different needs, whether at home, cafes, shopping malls, and other public places, are the choice of entertainment

-Stability
Double-sided heat dissipation design ensures fast cooling of Extender during work, improving service life and stability of WiFi

-Material
Using plastic shell, no harm, anti-collision, wear-resistant, more durable, don't worry about changing the router now, removable plug design, can let you choose the use

-Plug and play
Easy to install and use, small size and wall-mounted design make it easy to deploy and move flexibly, and does not occupy your space at all, allowing you to manage network settings, including parental control and media sharing items, from any Android or iOS device

performance parameters:
-Interface: WAN port, LAN port (1 x 10 / 100Mbps)
-Input power: AC 100 - 240V,50 / 60Hz
-Signal rate: 2.4GHz: up to 300Mbps; 5GHz: up to 867Mbps (dynamic)
-Coverage area: 100m
-Wireless: Supports 64/128-bit WEP, WPA-PSK/WPA2-PSK, and 802. 1x
Number of USB interfaces: not supported
Standards and protocols: Wi-Fi 802.11a,Wi-Fi 802.11b/g/n
VPN: Yes
WAN port: 1
Wi-Fi supported frequency: 2.4G and 5G
Wired transmission rate: 100Mbps/10

hardware features

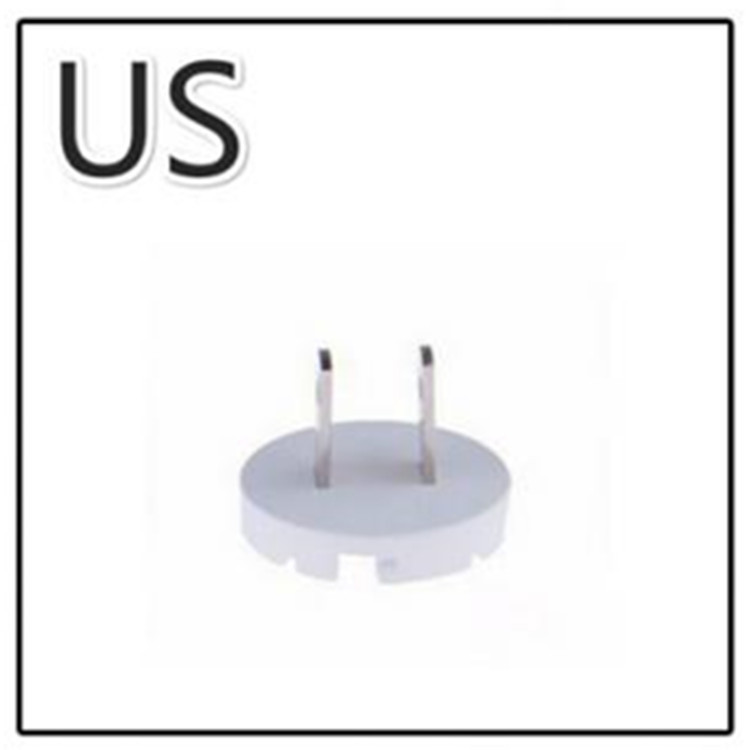

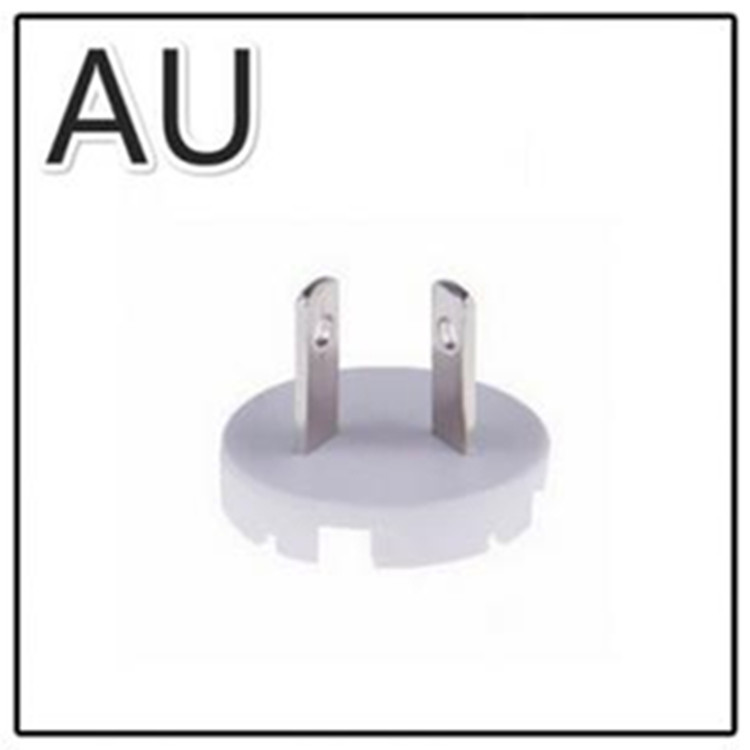

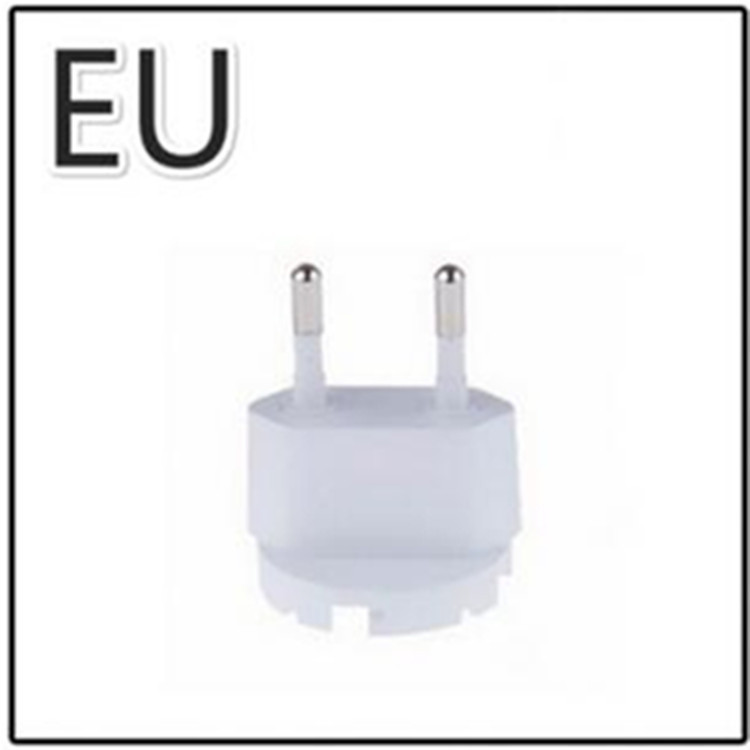

Plug Type: European standard, British Standard, American Standard, Australian standard
Standards: IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Interface: 1 × 10/100Mbps LAN port
1 × 10 /100Mbps LAN/WAN port
Button: WPS Button, Reset Button
Antenna; 4 * external
Size (W × D × H):122.5 X77.0 × 40.5mm

Wireless Features
Frequency: 2.4GHz and 5GHz(11AC)
Signal rate: 5GHz: up to 867MbPs
2.4GHz: up to 300 MPBS

5GHz:11 a6MbPS:-93dBm @ 10%

11A54 Mbps:-76dBm @ 10%
11AC-HT20MCS8:-69dBm @ 10%
11AC-HT40MCS9:-64 dBm @ 10%
11AC-HT80MCS9:-61dBm @ 10%
2.4GHz:11g 54 meters:-78dBm @ 10%
11N HT20MCS7:-75 dBm @ 10%
11N HT40MCS7:-73dBm @ 10%
Transmit power:<20dBm(2.4GHz)
<18dBm(5GHz)
Wireless mode: repeater/AP/router
Wireless: 64/128/152-bit WEP
WPA-PSK/WPA2-PSK

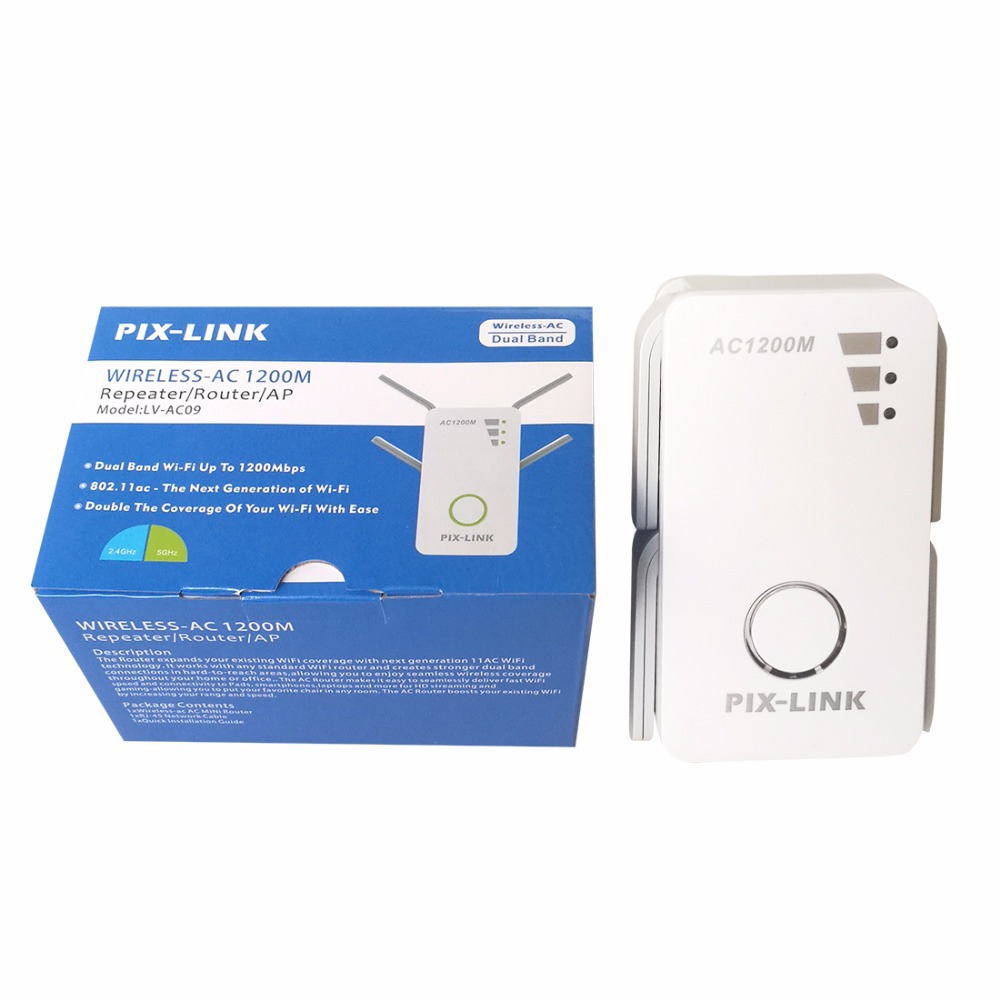

Package content

1X wireless AC repeater/AP/router
1XRJ-45 Ethernet cable
Quick Installation Guide

Environment
Operating temperature: 0°C to 40°C(32°C to 104°C)
Storage Temperature:-40°C to 70°C(-40°C to 158°C)
Operating humidity: 10% ~ 90% non-condensation
Storage humidity: 5% ~ 90% non-condensation
