Hdmi Audio Splitter Hdmi to Hdmi + Audio + Spdif + R/L Audio Signal Converter Power Supply

Product Information
name: hdmi audio splitter
brand: Neutral
color: Black
product Size: 85 x60x22 (unit: mm)
packing weight: 250g

product Features

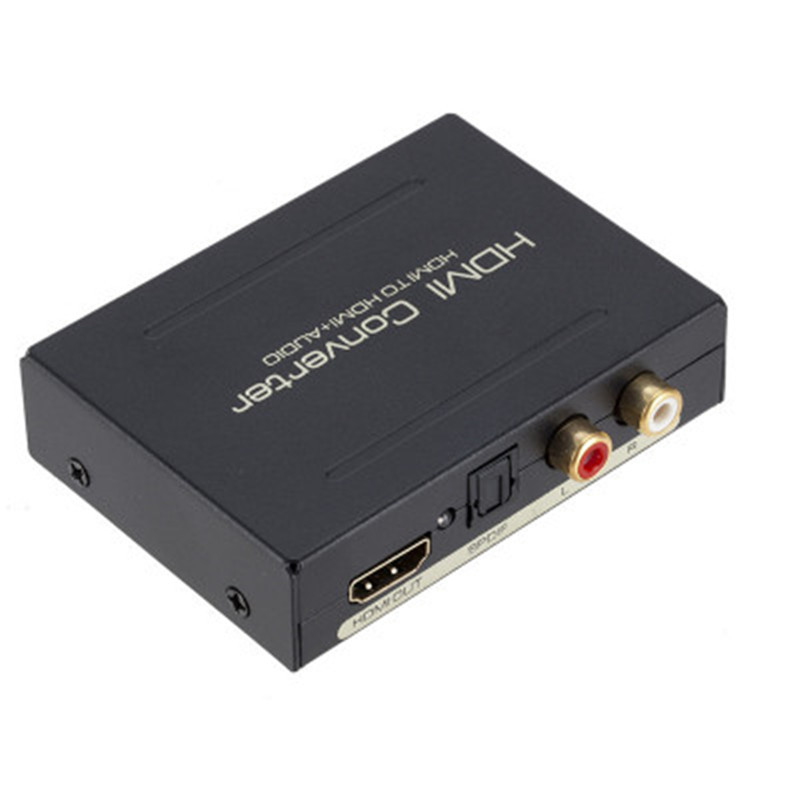

l 1 converts HDMI input into an HDMI output, an optical fiber audio output and an R/L analog audio output
l 2 audio output support: Optical fiber + R/L analog audio output
l 3 input resolution: up to 3840 x2160 @ 30Hz

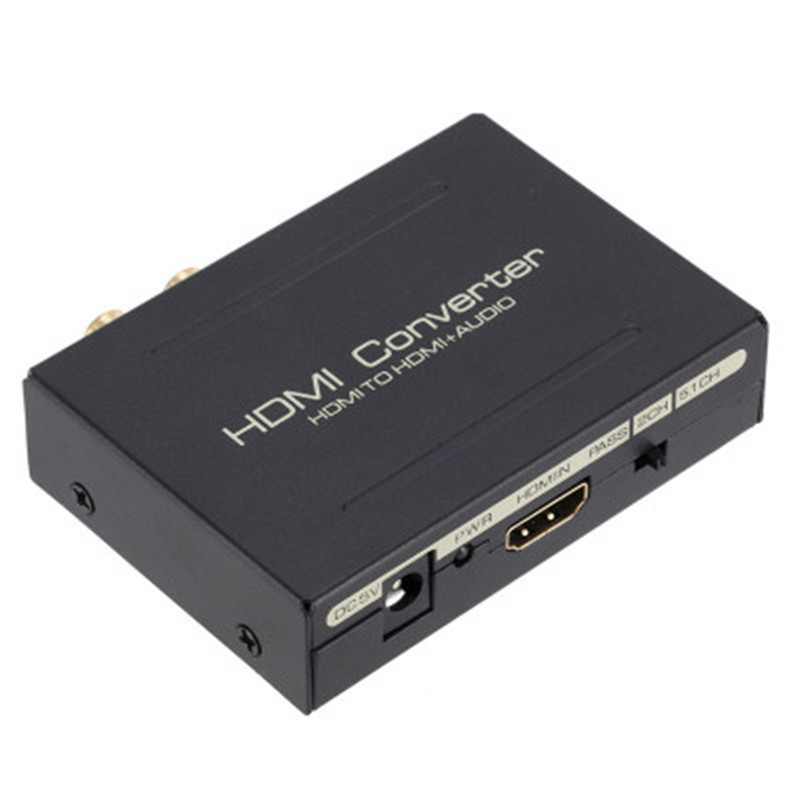

l 4 can realize synchronous separation of audio signals. PASS/2.0CH/5.1CH three audio modes are available

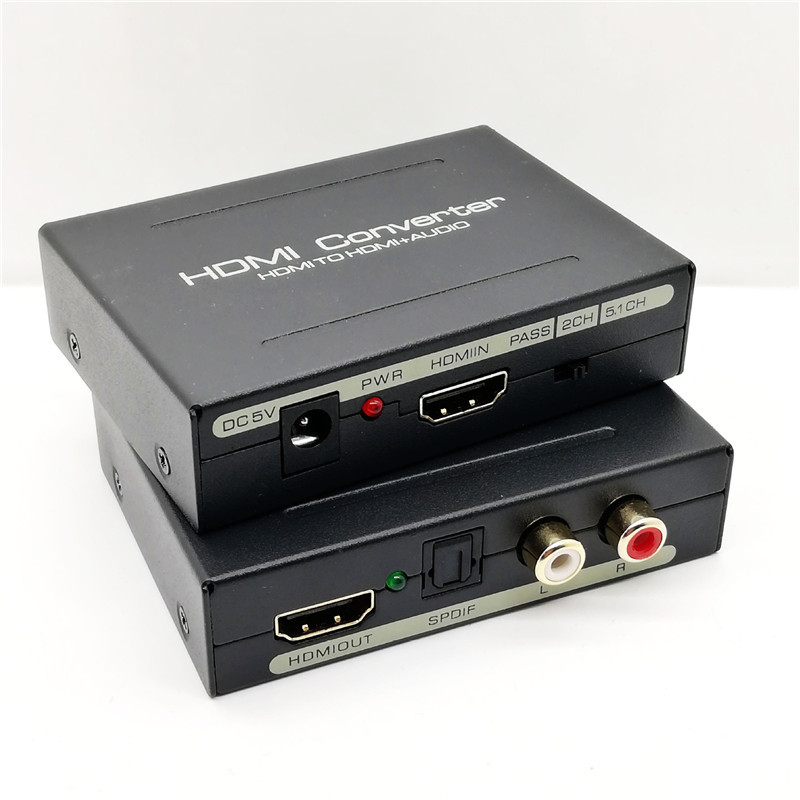

l 5 LED indicator: When the converter power is turned on, the red led will light up; When successfully connected to the HD TV, the green led will light up;

product Usage
this is a high-performance and multifunctional high-definition audio extractor, which can extract audio signals from HDMI high-definition signals to the power amplifier system. So as to obtain the audio effect that is difficult to achieve by TV speakers.

Product features:
l 1 converts HDMI input into an HDMI output, an optical fiber audio output and an R/L analog audio output
l 2 audio output support: Optical fiber + R/L analog audio output
l 3 input resolution: up to 3840 x2160 @ 30Hz
l 4 can realize synchronous separation of audio signals. PASS/2.0CH/5.1CH three audio modes are available
l 5 LED indicator: When the converter power is turned on, the red led will light up; When successfully connected to the HD TV, the green led will light up;

product parameters:

support resolution... 1080p @ 50/60Hz/1080i/720p/1576i/480p/480i
support video color format .................... 24bits/deep color 30bit,36bit
audio output aux L/R + Optical fiber
maximum bandwidth: 340MHz
maximum transmission rate: 10.2Gbps
input/output TMDS signal ....................... 0.5-1.5Volts p-p(TTL)
input/output DDC signal // 5Volts p-p(TTL)
input cable distance ......................<= 7m AWG26 standard cable HDMI
output cable distance ......................<= 8m AWG26 standard cable HDMI
maximum work Current // 500mA
power supply format: AC(50/60Hz)100V-240V; Output: DC5V/1A
operating temperature range (-15 to +55°C)
moderate operating range: 0.5 to 90% RH (non-condensing)
size (length x width x height) ........................... 84.5 x 61.8 x 21(mm)
weight: 135g

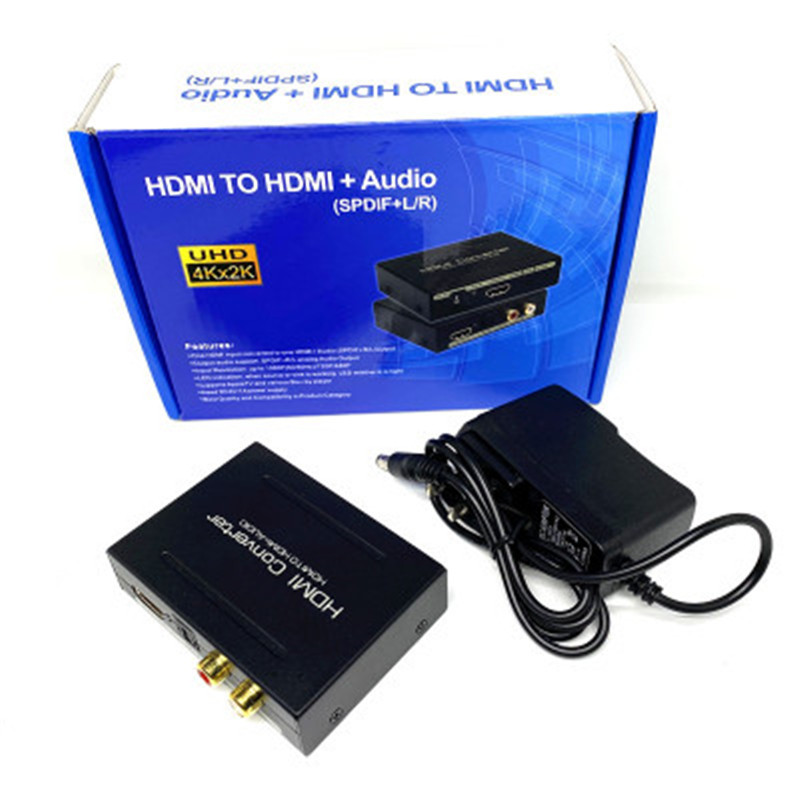

package content:
converter hot 1PCs
5V 1A power adapter (optional for American Standard/European standard) // 1pcs
user Manual label 1PCs
