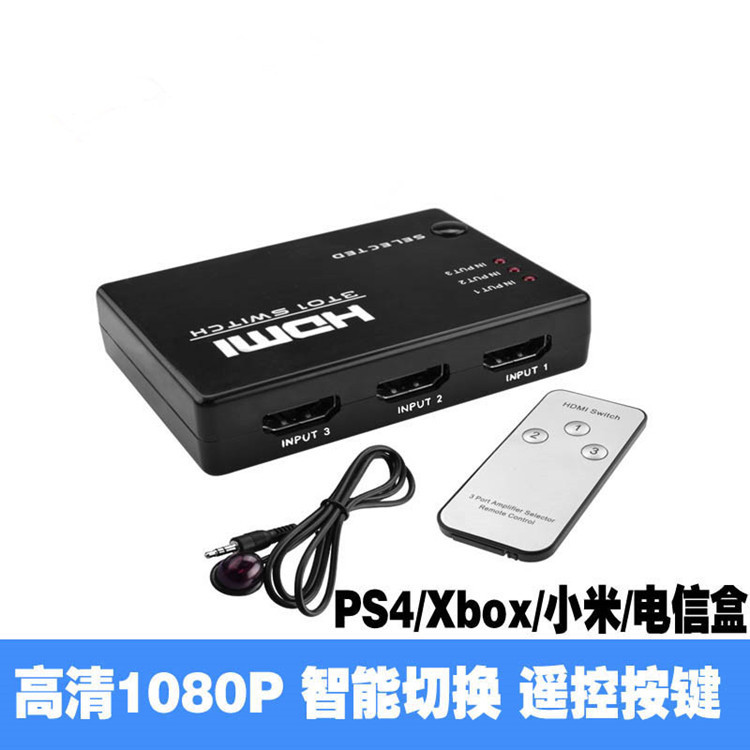

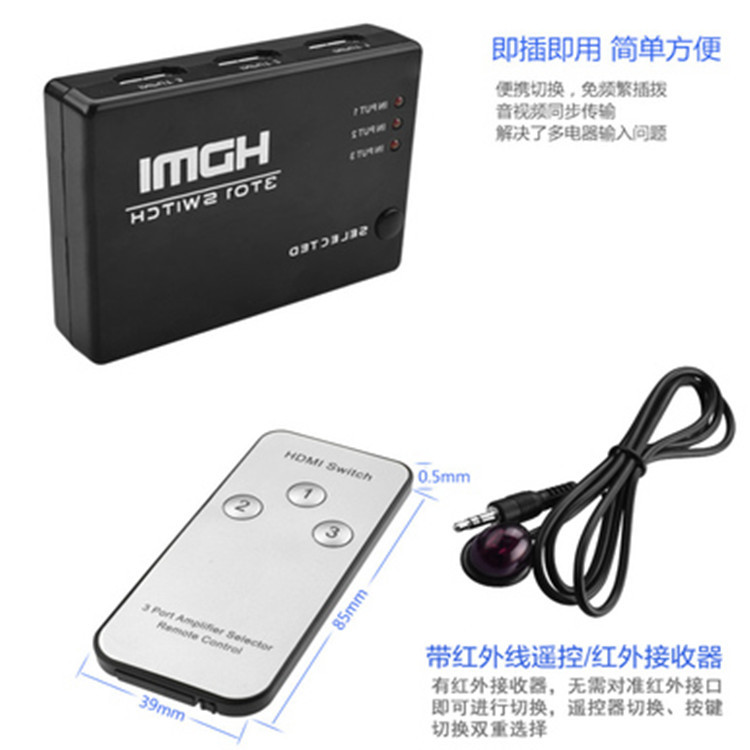

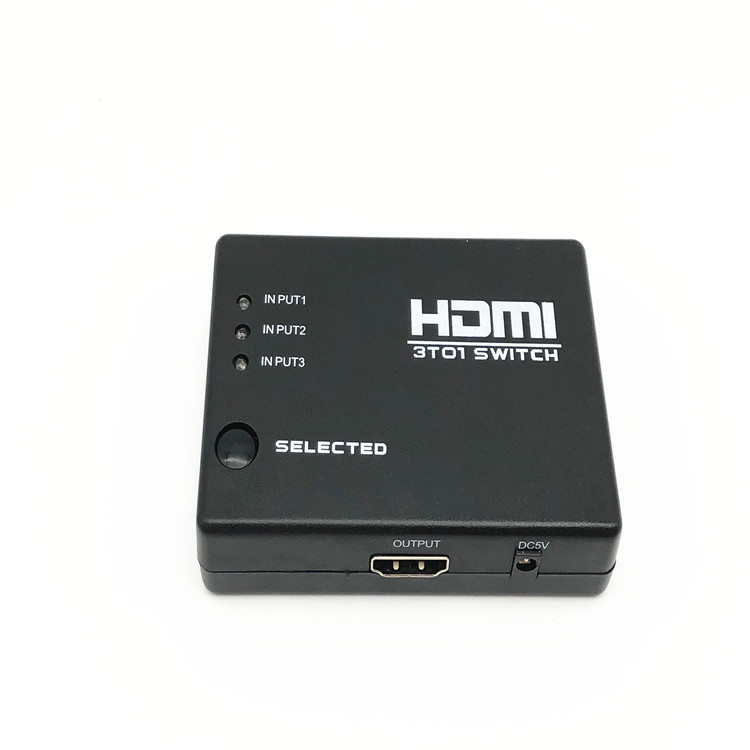

HDMI switcher 3 in 1 out with remote control

product Overview:

HDMI switcher 3 in 1 out with remote control is a small high-performance HDMI switcher. It has unique design and exquisite appearance. Multiple inputs are simultaneously connected to multiple HD video sources, such as PS3 and HD set-top boxes. Output and send high-definition audio/video signals to a high-definition TV. It has good compatibility, compatible with Blu-ray DVD, satellite TV, PS3, Blu-ray player, Xbox360... Resolution up to 1080p, it not only has button cycle switching, but also includes remote control switching and intelligent identification switching. In other words, as long as you switch the power on the signal source device, the switch will automatically respond. Standard equipment includes infrared receiver extender for easy control.

Used for digital HD TV, plasma display, liquid crystal display, set-top box, DVD player, Blu-ray player, digital camera, audio/video receiving device, home video, connection between projector systems, signal amplification, multi-Picture conversion and multi-picture selection.
Product features:
1. Supports HDMI1.3. supports 1080p and 12-bit pixels.
2. Support video amplification signal bandwidth up to: 2.5Gbps
3. Double options for intelligent switching and manual switching
4. Support long-distance transmission of 25 meters at both ends (the specific length is related to the wire)
5. Compatible with HDCP devices
6. Support HD video, high quality and clear picture

intelligent features:

1. After the switcher is powered on, it will automatically select the source device with the power on. The selected priority is:

  input 1> input 2> input 3

2. When a source device is powered on or plugged into the switcher, it automatically selects the source device.

3. When the power supply of a source device is turned off or the source device is pulled out of the switch, it will automatically select the source device whose next power supply is turned on. The selected priority is: input 1> input 2> input 3

product specifications:
1. Signal input/output
Input video signal: 0.5-1.0 volts p-p
Input DDC signal: 5 volts p-p (TTL)
Maximum range of single-channel connection signal: 1920X1200, 1080p
Output video signal: HDMI1.3b + HDCP1.0/1.1
2. Support video formats
VGA:640x480,800x600,1024x768,1920x1200
DTV/HDTV:480i/576i/480p/576p/720p/1080i/1080P
3. Digital signal input/output
HDMI support: HDMI 1.3
4. Operating frequency
frequency Up to250MHz

field frequency 60Hz video amplification bandwidth

2.5Gpbs/250MHz HD support (HDTV)

interlaced scan (50 & 60Hz) 480i,576i,1080i

progressive scan (50 & 60Hz) 480p, 576P,720p, 1080p

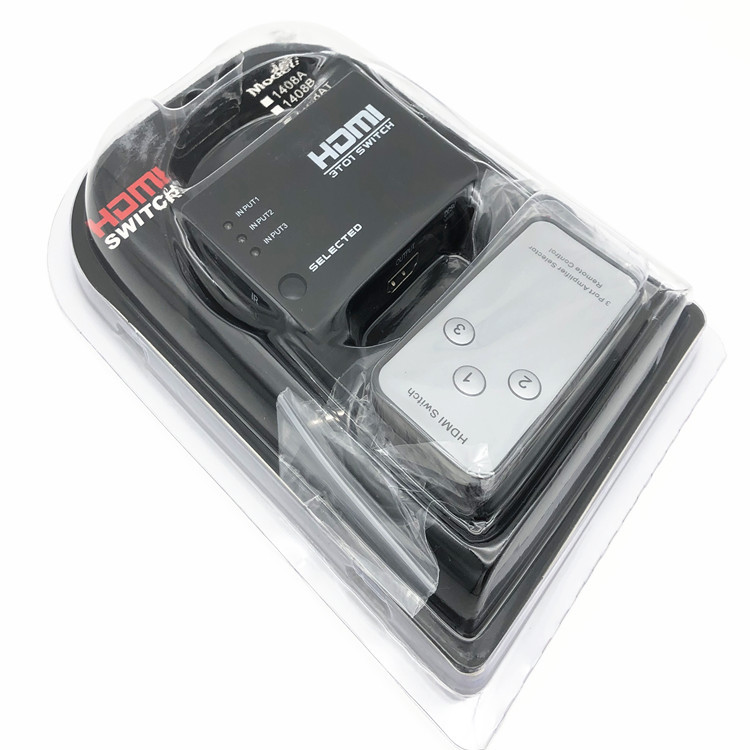

5. Blister packaging

HDMI switcher * 1

infrared Remote Controller * 1

manual (English) * 1
