15LED Human Presence Sensor Light Instruction

Product model: C30-1

Color temperature: 6500k (cool white) 3500k (warm white)

1: Product Description:

Product Size: Diameter 82mm, Height 35.5mm.

2: Power Supply: Powered by three AA batteries at 4.5V. The battery is self-contained.

 3: Light Source Features: Utilizes high-efficiency new-generation white LED technology. Features include:

 High efficiency, energy-saving, long service life, no radiation, environmental protection and energy saving, explosion-proof

 and so on.

 4: Induction Technology: Adopts human body infrared induction technology. It has the advantages of high sensitivity, strong anti-interference, and low standby power consumption.

5: Convenient Installation: The rear shell uses hooks and guide holes or magnets for easy movement. It can also be securely fastened to a strong wall with two screws.

Two: Product Features:

1: The product shell is made of EU environmental protection ABS material. It is environmentally friendly and

  Toughness, good shine, etc.

2: The light source uses ultra-high brightness white LEDs, with a life of over 80,000 hours, and the effective illumination area is greater than 5 square meters.

3: The product is equipped with a working status control switch with three states: OFF, ON, and AUTO. The AUTO state will only activate when the ambient light is less than 10 LUX.

 4: In the automatic sensing mode, it has human infrared sensing and light control functions.

5: Sensitive distance within 3 meters. Lighting delay time is approximately 20 seconds.

6: The battery operates normally when the voltage is 4.5V, with a current less than 135mA, and the static standby current is less than 0.085mA.

Battery Life: Uses three AA alkaline batteries, the continuous illumination can last up to 10 hours, and the intermittent illumination can last up to 28 hours. With a 20-second delay, it can be used for about 0.2 hours a day, lasting for 60 to 90 days. (This description is related to the battery performance.)

Packing data: 100PCS/box, Outer box size: 50*41*25.5CM, Net weight: 10KG, Gross weight: 11KG.

Section Three: Installation and Usage Method:

1: Product installation is not limited, and it can also be directly placed on the ground or desk.

2: Use the hooks or guides on the back cover to hang the product on the guide pins on the wall; it can also be attached to iron with a strong magnet. If you need to fix the installation, open the back cover, and use screws to fix the back cover in the desired position, then install the front cover.

3: Unscrew the rear cover, insert the battery into the battery compartment. If you need constant illumination, set the switch to ON. For automatic sensing illumination, set the switch to AUTO.

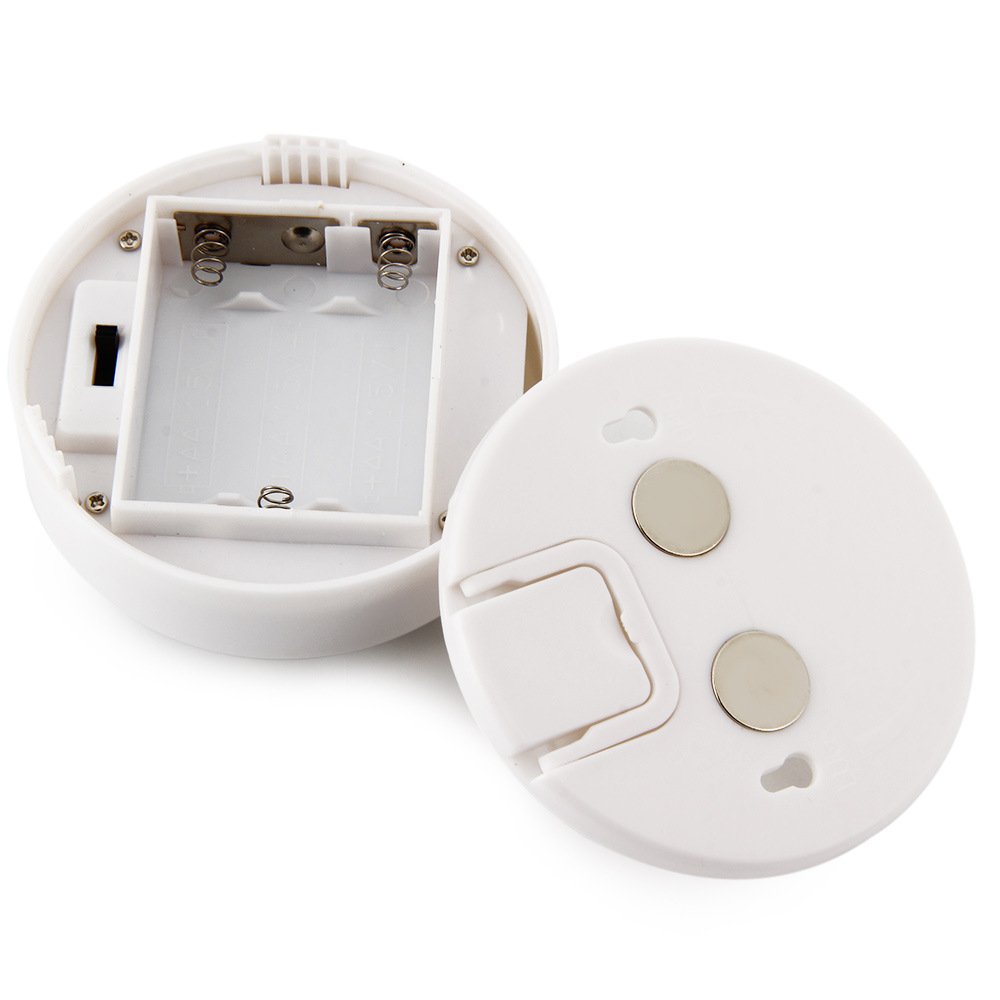

Bottom Structure Diagram:

Four: Caution:

1: If the product is not used for a long time, please remove the battery from the machine. If the battery runs out during use, please replace it immediately.

2: The product is not waterproof and should not be placed in rain water. It should not be installed in places with obvious temperature and light changes, or it may produce false actions.

Example 5: Application Scenario:

  This product is suitable for places such as bedrooms, nursery rooms, wardrobes, wall cabinets, cabinets, corridors, workrooms, basements, garages, oil depots, etc. It is also used for emergency lighting in camping, leisure, and cars.
