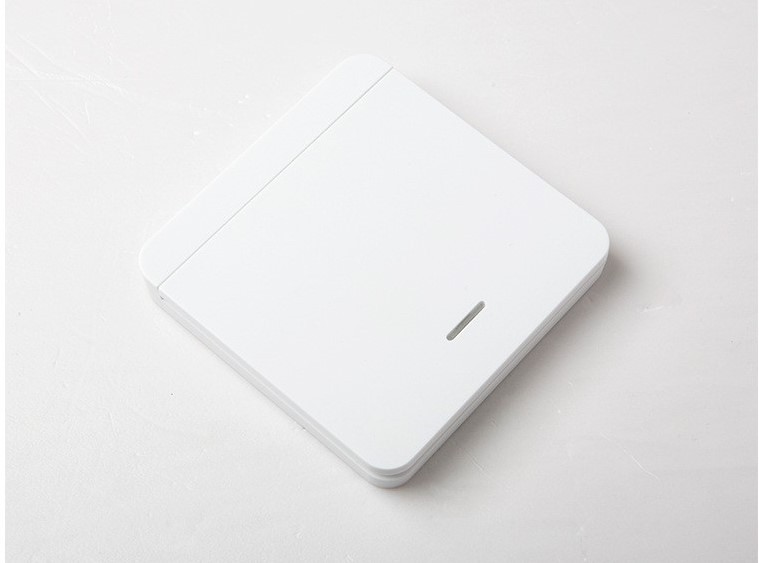

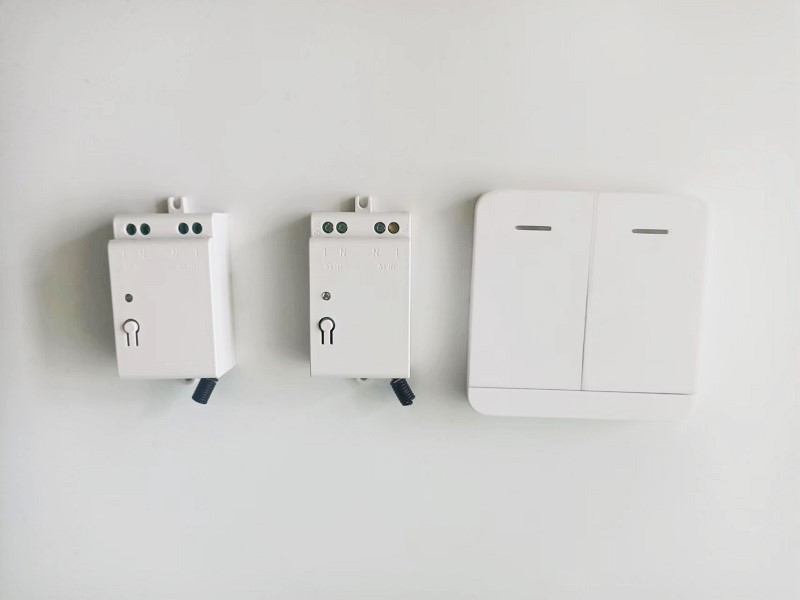

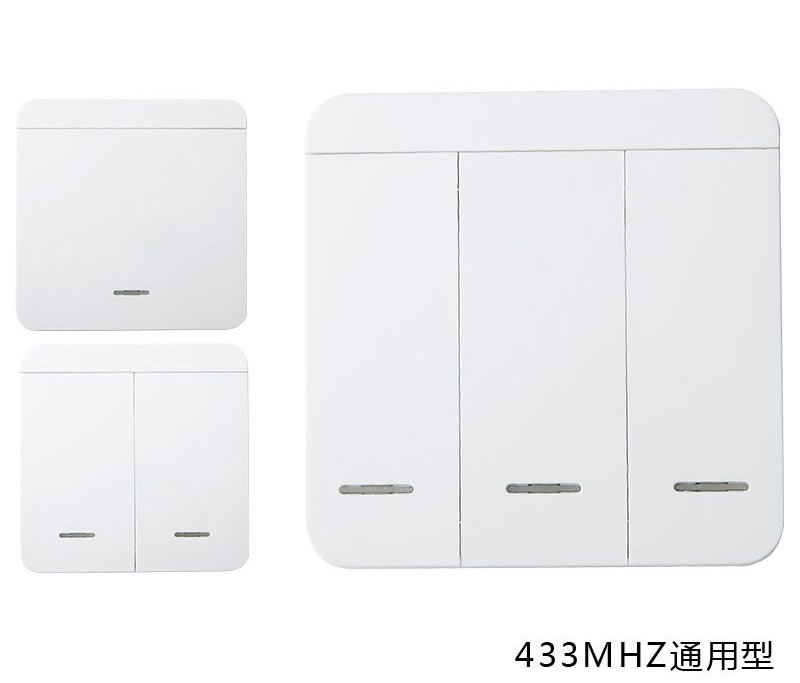

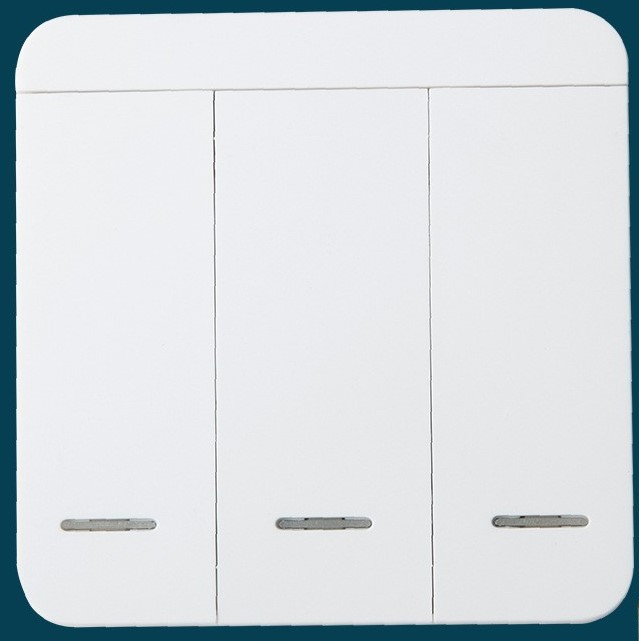

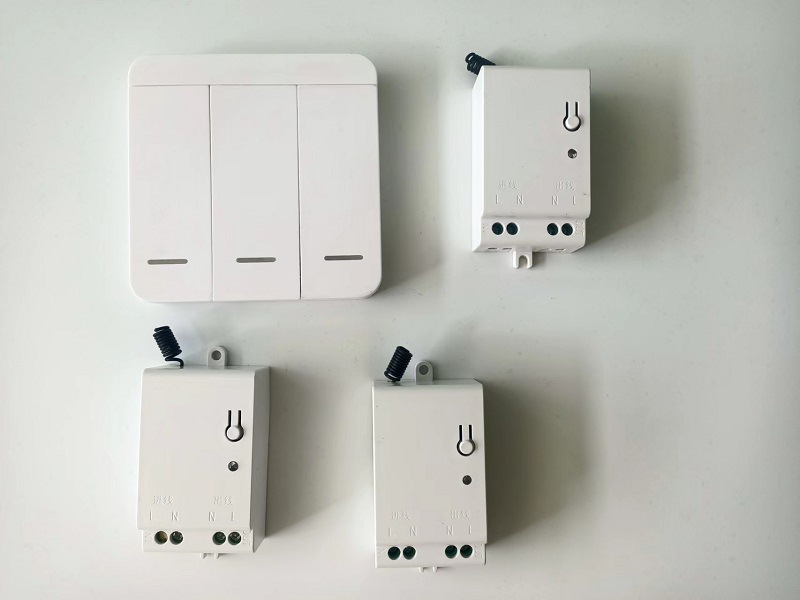

The 86-type panel is notepaper remote control and can be notepaper stuck anywhere, such as walls, bedside tables, stairs, etc. The panel keypad has a single key, two keys and three keys, and the working frequency is 433MHZ. Because notepaper is transmitting signals, it cannot be used alone. It can be used with the switch or controller of our company. It must be connected with them before use to realize the wireless remote control function of wiring free.

1. Avoid the trouble of switch wiring, no need to dig the wall to install and save line, time saving, labor saving and money saving.

2. With wireless receiver or remote control switch, dual control function can be realized easily.

3. Notepaper is powered by 3V battery, which is the safest design scheme at present.

4. Intelligent design, it can be one notepaper remote control multiple switches and sockets, one switch socket can be equipped with multiple notepaper, or you can learn the general switch function. Just learn the code.

5. Do not interfere with each other, adopt digital coding technology, control non-directional, can be remote control across the wall, all-round control two-way control.

6. Flexible and convenient, it can be installed in 86 switch box or pasted on the wall.

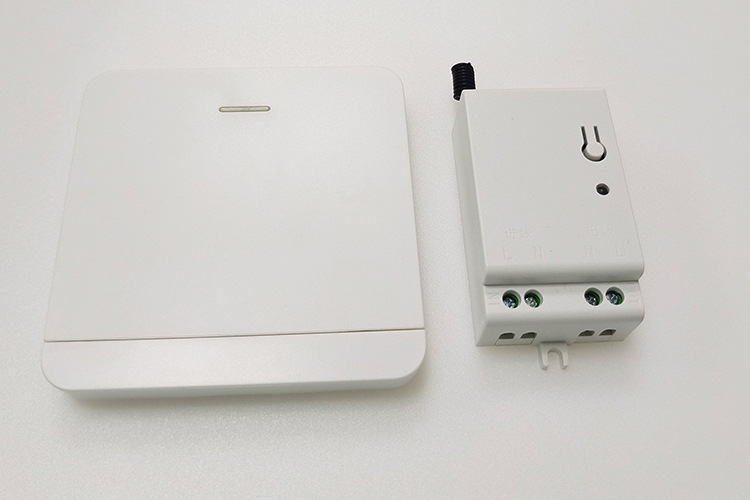

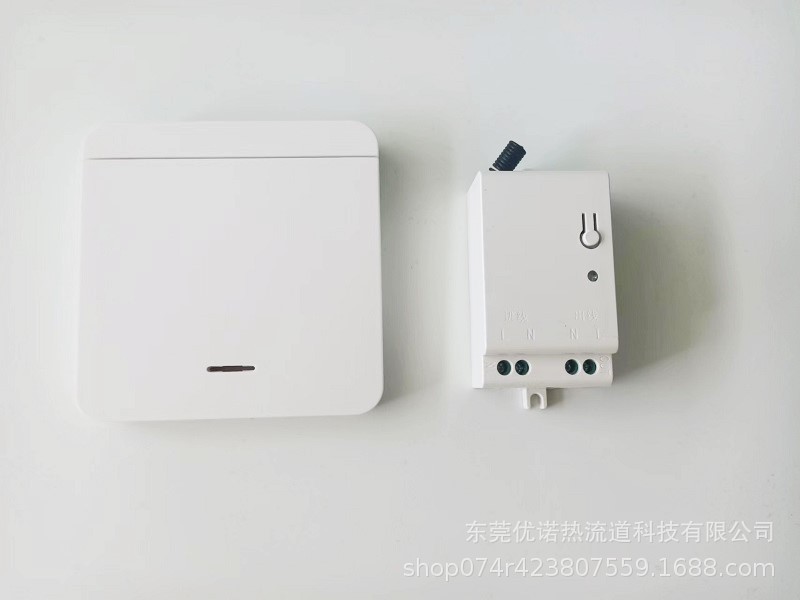

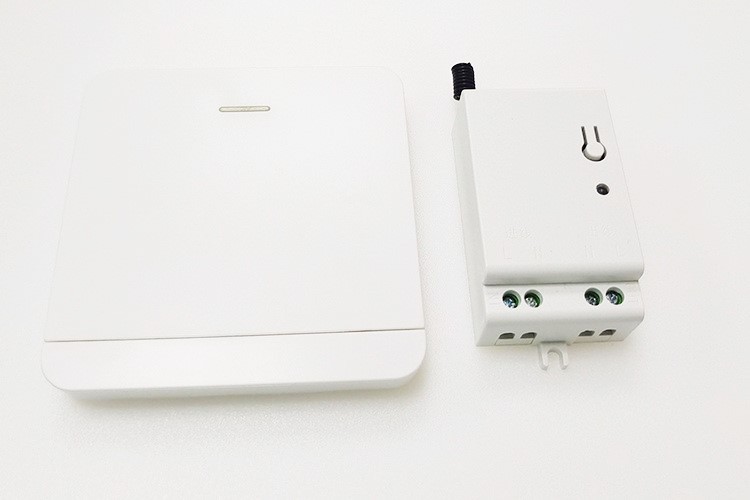

Product Name: notepaper remote control switch controller

Product Size: 86mm * 86mm * 13mm (notepaper) 37mm * 74mm * mm (controller)

Product Type: 86 type 433MHzf Wireless smart Remote Control switch smart home control wiring free switch notepaper

Overall weight: 50g (notepaper) 40g (controller)

Operating voltage: DC3V (notepaper) AC220V (controller)

Output power: 500W

Wireless parameters: 315MHz;433.92MHz optional

Transmission Distance: 30-50 meters

Encoding format: EV1527;

Static power consumption:<8uW

Working environment: temperature (-40℃-80℃); Humidity (10%-95%)

Service life: 100,000 operations

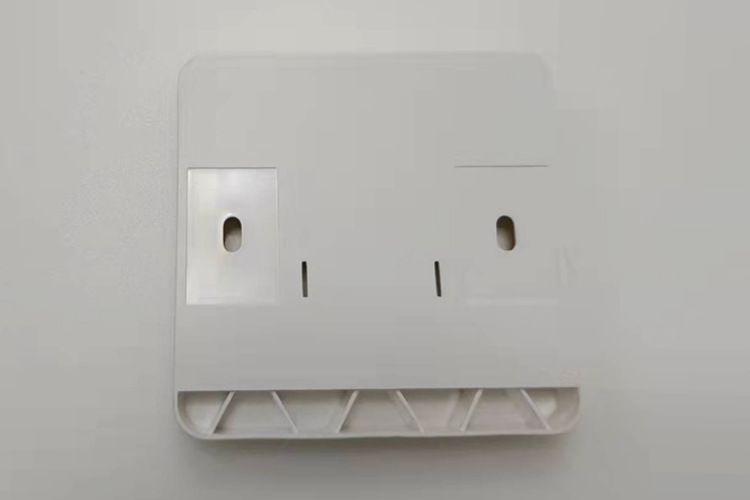

Installation method: double-sided adhesive tape or screw installation and fixing

Product material: fireproof PC material

Color: White

Packing method: Kraft box (notepaper),PC bag (controller)

Packing size: 102mm * 96mm * 26mm (notepaper)

Weight with package: 66G +40g
