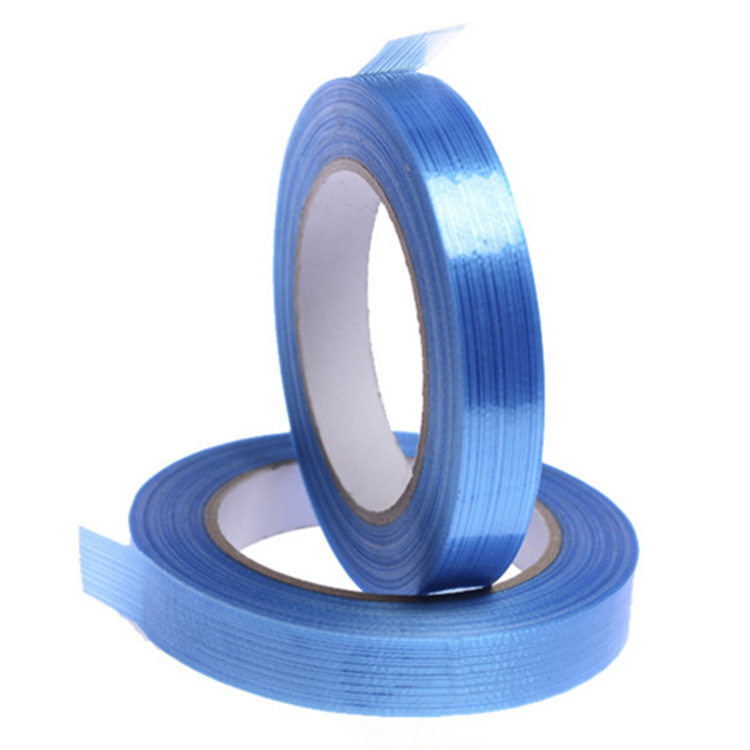

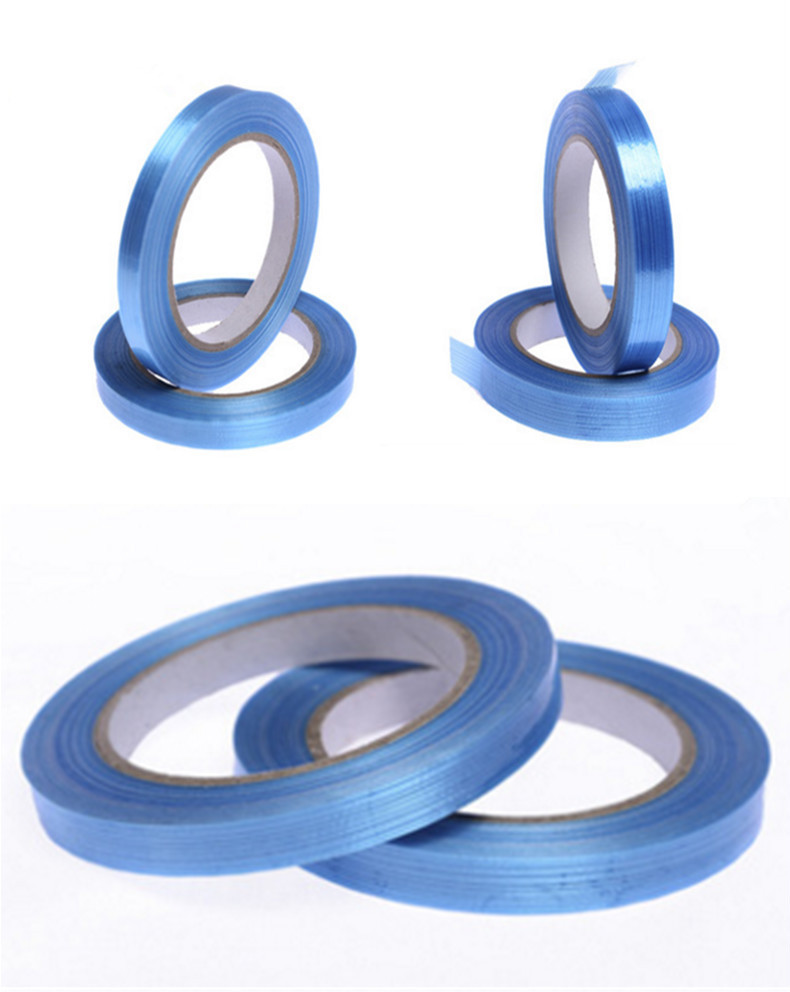

blueFiber tapeGF0303-232LTechnical Report
Features:
-Glass Fiber Tape SelectionblueThe PET film is used as the backing material, and glass fiber yarn is used to strengthen it to provide high tensile strength and to prevent friction, scratching, and moisture.
-The specially configured high-performance adhesive layer ensures appropriate initial adhesive force and retention force, allowing for quick and convenient binding on the adhesive surface with a light pressure, making the process more convenient, fast, and economical compared to general operations.
-High adhesiveness and high strength ensure that the least amount of tape is needed to meet the stringent packaging requirements, thereby reducing costs.
-blueText or advertising can also be printed on PET film to meet different needs.
-High-performance adhesive layer with specialized configuration has a wide temperature range, which can be used in winter.Perform the adhesive operation in different environments such as above 0℃ and summer (note that the operating environment temperature should be between 15℃ and 35℃. As the temperature continuously decreases, the adhesive layer becomes harder and more difficult to adhere due to the gradual hardening of the adhesive layer). Once the adhesive is applied, it can maintain good adhesion effects in a wider temperature range.
Product Structure:
|
Product Number |
Substrate |
Adhesive Type |
Color |
Applicable Temperature |
|
GF0303-232 |
PET film + glass fiber |
Synthetic Rubber |
blue |
-20~60"℃" is the symbol for Celsius temperature scale. |
Physical properties:
|
Test Project |
Reference Standard |
Test Results |
|
Total Thickness (MM) |
GB/T 7125-1999 |
0.14 |
|
初粘力 ("Initial Adhesion")Hash") |
GB/T 4852-2002 |
16 |
|
180° Peel Force (N/25mm） |
GB/T 2792-1998 |
35 |
|
Adhesion force (hours) |
GB/T 4851-1998 |
≥48 |
|
Tensile strength (N/25mm)） |
GB/T 7753-1987 |
520 |
|
Fracture Elongation (%) |
GB/T 7753-1987 |
5 |
Product Use Precautions:
-The adhesive strength depends on the contact area between the adhesive surface and the surface to be adhered, so appropriate pressure and time can improve the bonding strength.
-The surface of the material to be pasted should be clean and free from oil and grease. If necessary, it can be cleaned with solvents such as isopropanol and acetone.
-The adhesive operation environment temperature is room temperature. At lower temperatures, the adhesive film becomes harder, making it more difficult to paste.
Suggested Application:
-Packaging applications requiring high adhesive strength, high strength, and high adhesion force (high shear force).
Storage:
-First in, first out.
-Store in a dry and cool place and avoid direct sunlight.
-Storage period is two years from the date of production under suitable storage conditions.。
